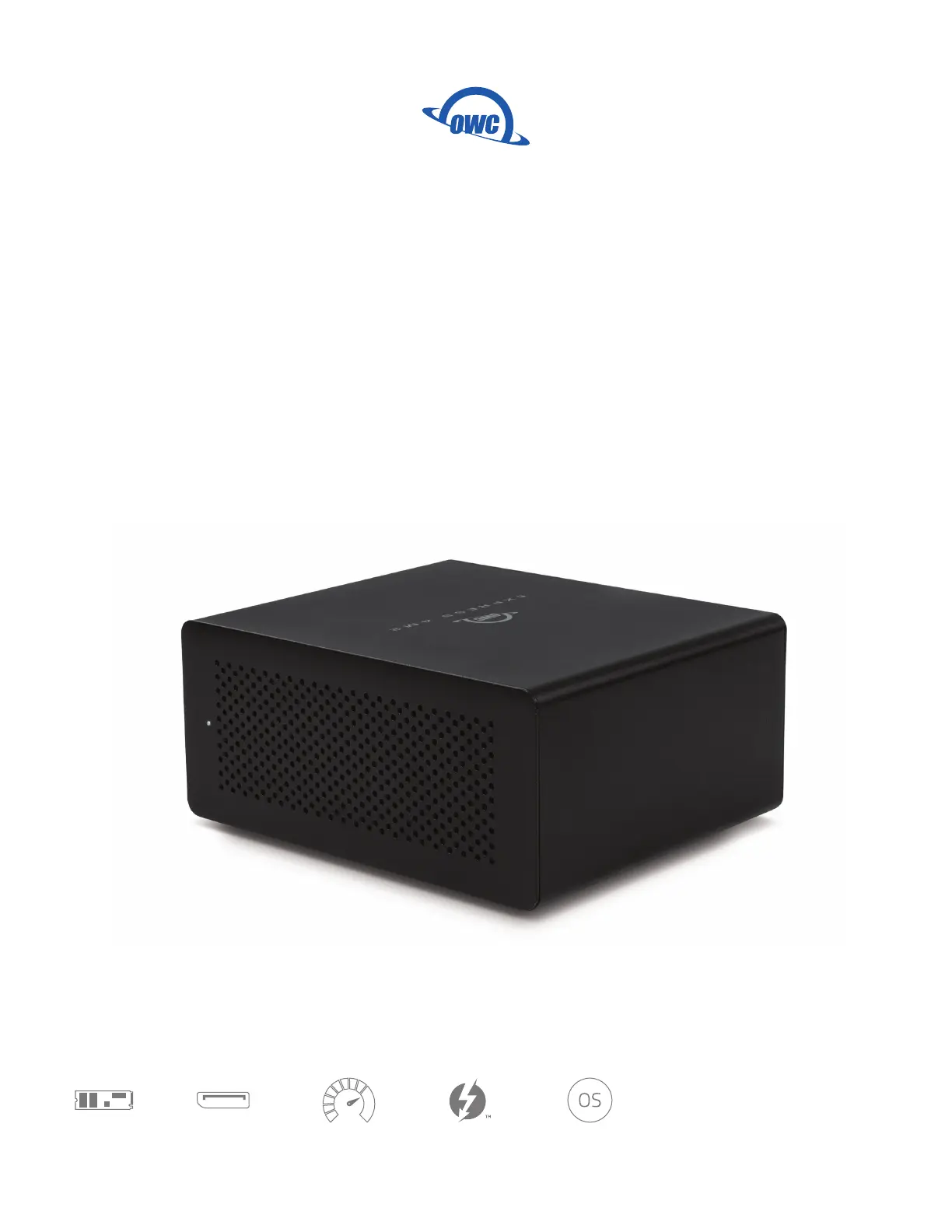

Assembly Manual & User Guide
Express 4M2
Mac & WindowsUp to 2800MB/sDisplayPort 1.2 Thunderbolt 3
Four M.2 SSD
OWC Express 4M2 Contents
Introduction
1.1 Minimum System Requirements 1 ..............................................
- Mac Requirements
- PC Requirements
1.2 Package Contents 1 .....................................................................
1.3 Usage Notes 1 ..............................................................................
1.4 About This Manual .................................................................... 1
1.5 Front View 2 ..................................................................................
1.6 Rear View 2 ...................................................................................
Installation
2.1 Assembly 3 ...................................................................................
Support Resources
3.1 Troubleshooting ........................................................................ 6
3.2 About Data Backup 6 ...................................................................
3.2 Contacting Technical Support 6 ..................................................
CONTENTS
Introduction
1
OWC Express 4M2
1.1 System Requirements
Operating System
- Mac: macOS 10.12 or later1
- PC: Windows 10 or later
Hardware
- Mac or PC with a Thunderbolt 3 port2
Supported Drives
- Any PCIe M.2 SSD with 2280 M-Key form factor

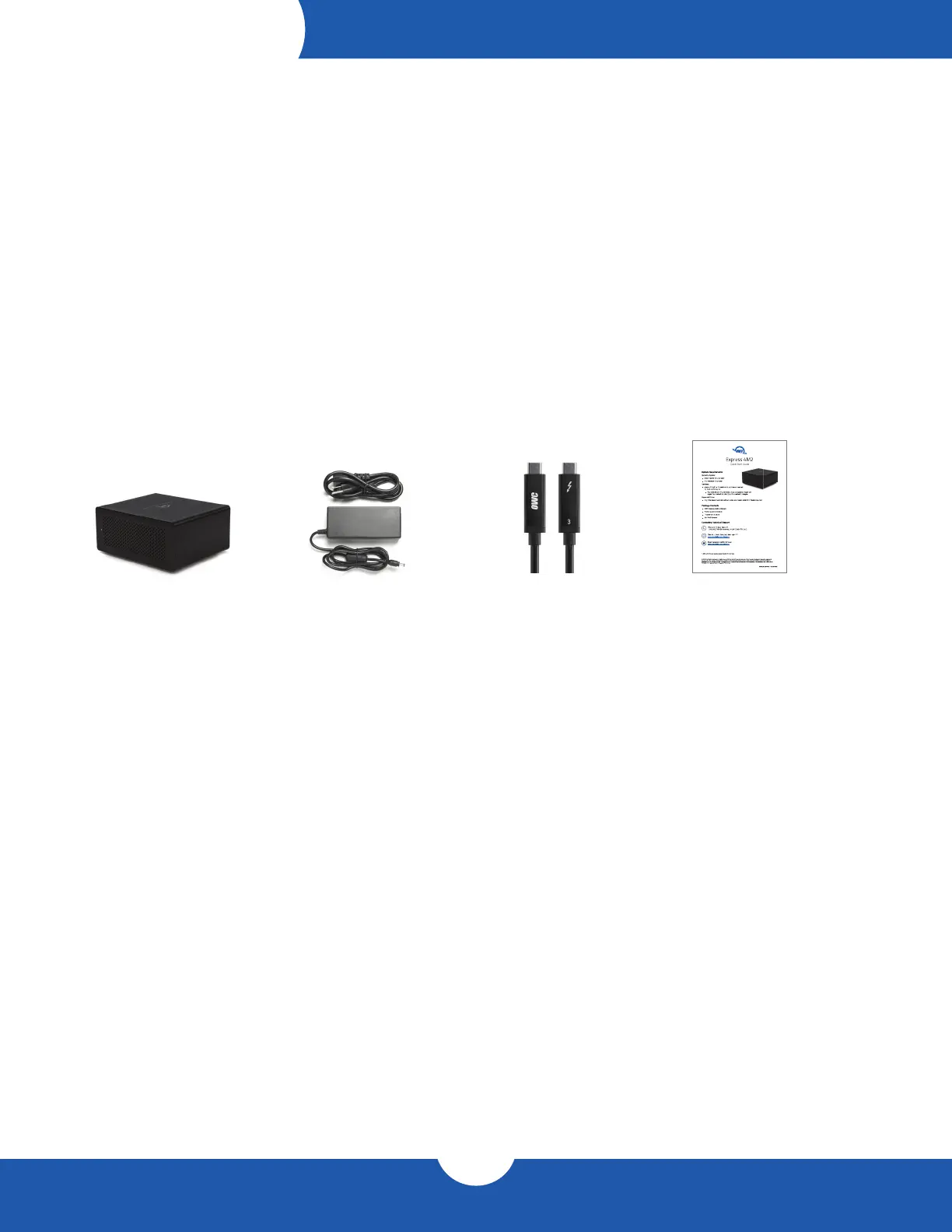

1.2 Package Contents
1.3 Usage Notes
- For best performance, plug this device into a dedicated Thunderbolt 3 host portthat is not sharing
bandwidth with other devices on neighboring ports.
- Use of the onboard DisplayPort will reduce the bandwidth available to the M.2SSDsand may impact
their performance.
- Does not supoort Dual-Mode DisplayPort (DP++), however it does support Multi-Stream Transport
(MST) in Windows 10.
- All four drive bays are bootable on macOS. SSDs with 512 byte sectors require macOS 10.13 or later
1.4 About This Manual
The images and descriptions may vary slightly between this manual and the unit shipped. Functions
and features may change depending on the rmware version. The latest product details and warranty
information can be found on the product web page. OWC’s Limited Warranty is not transferable and
subject to limitations.
OWC Express 4M2
INTRODUCTION
Power supply
and cable
Thunderbolt 3 cable Quick Start Guide
1. SSDs with 512 byte sectors require macOS 10.13 or later.
2. Macs with Thunderbolt or Thunderbolt 2 ports require the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter.
