Strona 1/28

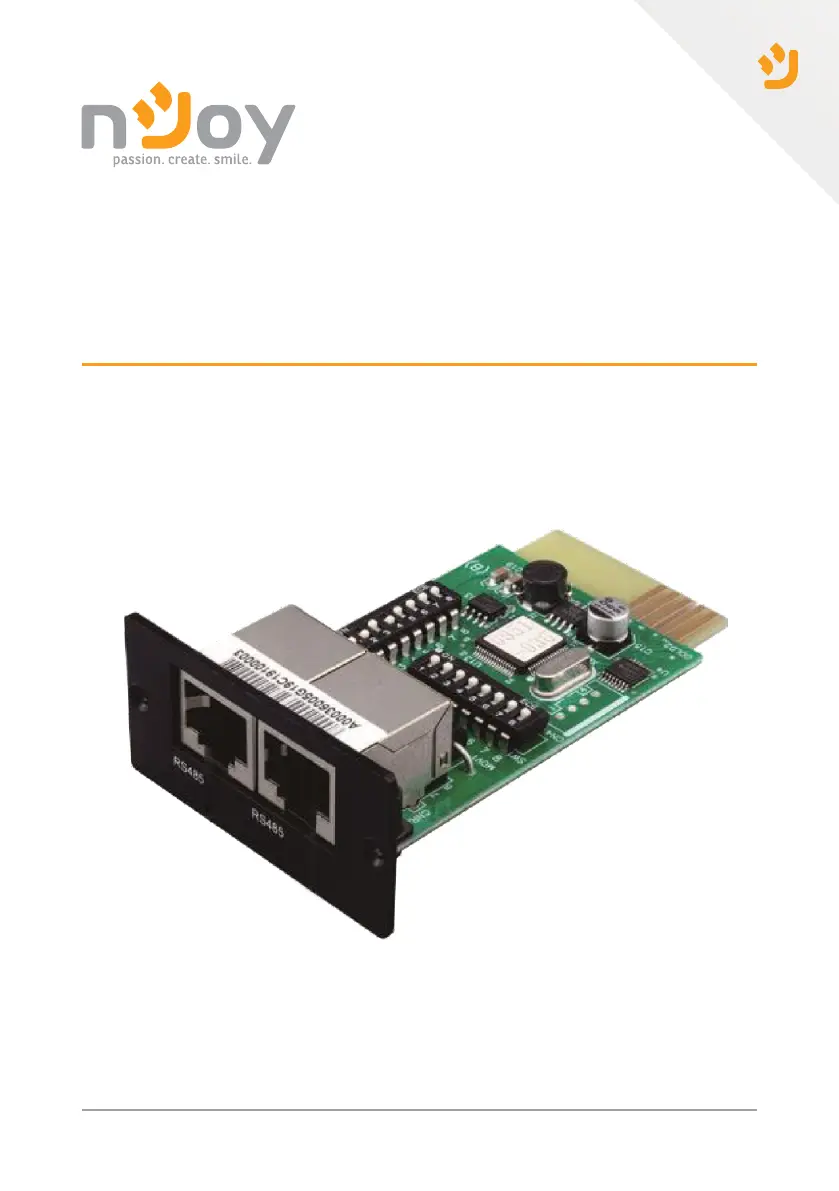

Modbus card
User manualUPAC-MBUSCRD-AZ01B
Before using this product, carefully read all product documentaon and retain it for future reference.
388.44.23.0
2
Table of contents
EN
1. Package contents 3 ............................................................................
2. Product overview 4 ............................................................................
3. Product Introducon .....................................................................4
4. Installaon and Operaon ............................................................5
5. Conguraon ...................................................................................5
5.1 Machine ID Conguraon ...........................................................5
5.2 Communicaon Format Conguraon .....................................5
5.3 RS-485 Resistance Conguraon ..............................................6
5.4 Interface Conguraon ...............................................................6
5.5 Connecon .....................................................................................6
6. Mulple Monitoring .......................................................................7
1. Connut pachet ..............................................................................15
2. Prezentare produs ..........................................................................16
3. Introducere produs ........................................................................16
4. Instalarea si operarea ....................................................................17
5. Congurarea ....................................................................................17
5.1 Congurare ID mașină ...............................................................17
5.2 Congurare format de comunicare ..........................................17
5.3 Congurare rezistenta RS-485 ..................................................18
5.4 Congurare interfata ..................................................................18
5.5 Conexiunea ....................................................................................18
6. Monitorizare mulpla ....................................................................19
RO
3
Thank you for purchasing our products!
Please read this manual before using the product.
nJoy is a brand of power and backup protecon products that
create soluons for mulple levels of environment complexity,
residenal to industrial.
A Modbus card is a hardware component that allows electronic
devices or systems to communicate using the Modbus protocol.
Modbus is a widely used communicaon protocol for remote
monitoring and controlling of UPSes.
Package contents1
Modbus card
Spare jumper
User Manual
Please consult both protocol manuals to check compability with
your UPS.
NOTE!
English
Română
