— 1— — 2 — — 3 —
NPort 5200A Series
Quick Installation Guide
First Edition, July 2010
1. Overview
NPort 5200A series device servers are compact, palm-sized data
communication devices that allow you to control RS-232 (NPort 5210A),
RS-422/485 (NPort 5230A), and RS-232/422/485 (NPort 5250A) serial
devices over a TCP/IP-based Ethernet.
Note: “-T” indicates an extended temperature model.
2. Package Checklist
Before installing the NPort 5200A series device server, verify that the
package contains the following items:
y 1 NPort 5200A serial device server
y Power Adaptor (NPort 5200A-T doesn't include this accessory)
y 4 stick-on pads
y Document & Software CD
y Quick Installation Guide
y Product Warranty Statement
Optional Accessory
y DK-35A: DIN-Rail Mounting Kit (35 mm)
Notify your sales representative if any of the above items are missing or
damaged.

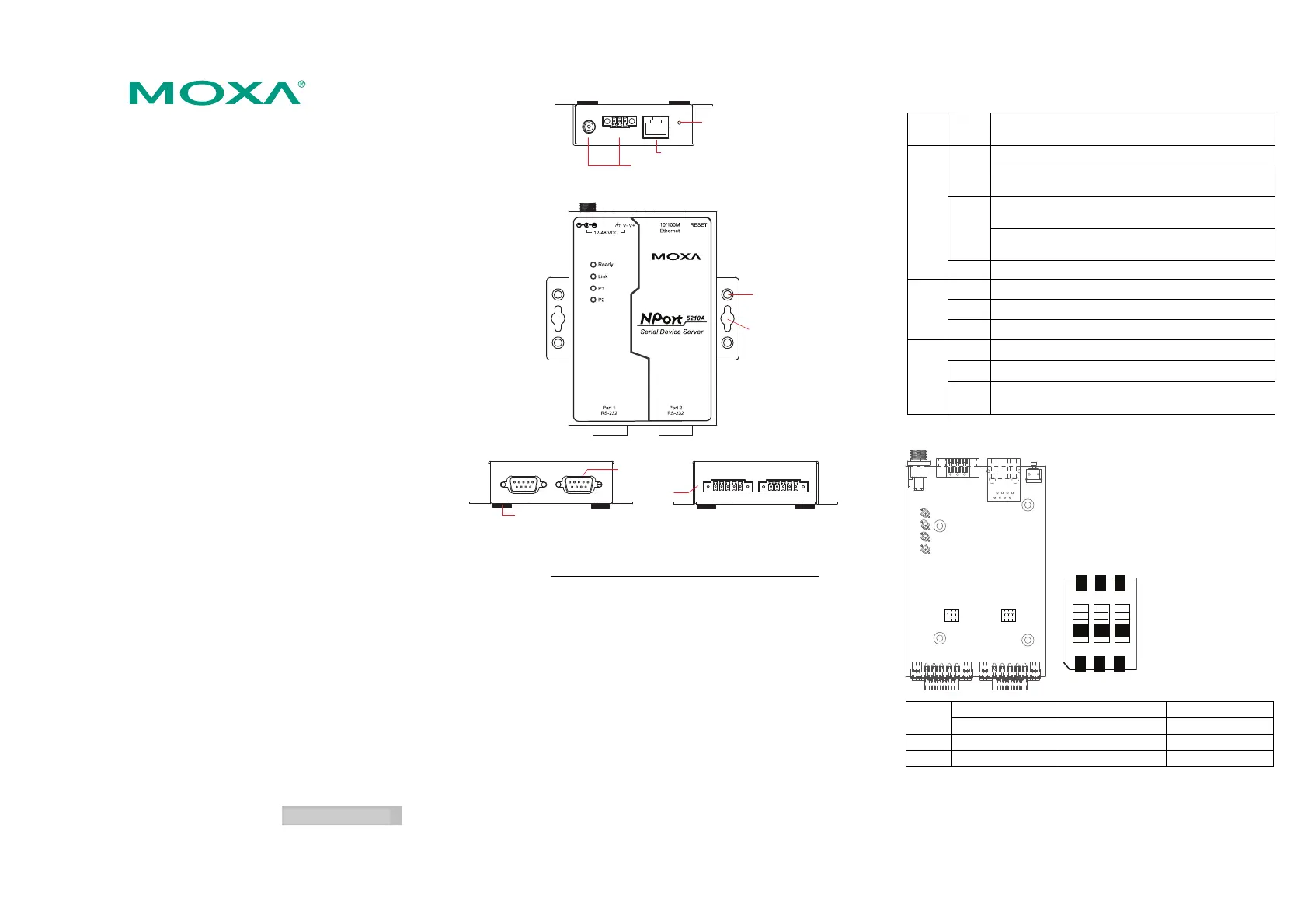

3. Hardware Introduction
As shown in the following figures, NPort 5200A series device servers
have two male DB9 ports for transmitting RS-232 (NPort 5210A), or
RS-232/422/485 (NPort 5250A) serial data and have two 5-pin terminal
block ports for transmitting RS-422/485 (NPort 5230A).
Power input
RJ45 10/100M Ethernet port
Reset button
Rear Panel View
Top Panel View
DIN-Rail
screw hole
Wallmount
screw hole
Terminal Block
Stick-on pad
Male DB9 serial port
Front Panel View
NPort 5210A/5250A NPort 5230A
Reset Button—Press and hold the Reset button for 5 seconds to load
factory defaults: Use a pointed object, such as a straightened paper clip or
toothpick, to depress the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, release the reset
button.
LED Indicators—NPort 5200A’s top panel has four LED indicators,
which are described in the following table.
LED
Name
LED
Color LED Function
Steady on: Power is on and the NPort is booting up.
Red Blinking: Indicates an IP conflict, or DHCP or
BOOTP server is not responding properly.
Steady on: Power is on and the NPort is functioning
normally.
Green Blinking: The NPort has been located by the NPort
Administrator’s Location function.
Ready
Off Power is off, or a power error..
Orange 10 Mbps Ethernet connection.
Green 100 Mbps Ethernet connection.
Link
Off Ethernet cable is disconnected.
Orange Serial port is receiving data.
Green Serial port is transmitting data.
P1, P2
Off No data is being transmitted or received through the
serial port.
Adjustable pull high/low resistor and terminator for RS-422/485
Port 1 Port 2
Remove the NPort 5230A/5250A’s top
cover and you will find DIP switches to
adjust each serial port’s pull-high, pull-low,
and terminator. Do not use the 1 KΩ setting
with RS-232 mode, as doing so will
degrade the RS-232 signals and shorten the
communications range.
ON
1 2 3
1 2 3
SW Pull-high resistor Pull-high resistor Terminator
ON 1 KΩ 1 K 120Ω Ω
OFF *150 KΩ *150 KΩ *---
*Default
P/N: 1802052000010
—4— —5 — — 6 —
4. Hardware Installation Information
STEP 1: After removing the NPort 5200A series device server from the
box, the first thing you should do is connect the power adaptor.
STEP 2: Connect the NPort 5200A series device server to a network. Use
a standard straight-through Ethernet cable to connect to a hub or switch.
When setting up or testing the NPort 5200A series device server, you
might find it convenient to connect directly to your computer’s Ethernet
STEP 3: Connect the NPort 5200A series device server’s serial port to a
serial device.
STEP 4: Placement options.
In addition to placing the NPort 5200A on a desktop or other horizontal
surface, you may also make use of the DIN-Rail or Wall Mount options,
as illustrated below.
5. Software Installation Information
To install NPort Administration Suite, insert the NPort Document &
Software CD into your computer’s CD-ROM drive. Once the NPort
Installation CD window opens, click on the Software folder, and then
follow the instructions on the screen.
To view detailed information about NPort Administration Suite, click
on the Documents folder, and then select “NPort 5200A Series User’s
Manual” to open the pdf version of the user’s guide.
6. Pin Assignments
Ethernet Port Pinouts
1
8
Pin Number Ethernet
1 Tx+
2 Tx-
3 Rx+
6 Rx-
NPort 5210A—DB9 male (RS-232) port pinouts
1 5
6 9
Pin Number RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 ---
NPort 5230A—Terminal Block (RS-422/485) port pinouts
1 2 3 4 5
Pin
Number
RS-422/485
(4W)
RS-485
(2W)
1 TxD+(B) ---
2 TxD-(A) ---
3 RxD+(B) Data+(B)
4 RxD-(A) Data-(A)
5 GND GND
NPort 5250A—DB9 male (RS-232/422/485) port pinouts
1 5
6 9
Pin
Number
RS-232 RS-422/
485 (4W)
RS-485
(2W)
1 DCD TxD-(A) ---
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR --- ---
7 RTS --- ---
8 CTS --- ---
9 --- --- ---
7. Specifications
Power Requirements
Power Input 12 to 48 VDC
Power Consumption 119 mA@12V, 65 mA@24V
Operating Temperature 0 to 60°C (32 to 140°F), for standard models
-40 to 75°C (-40 to 167°F), for -T models
Operating Humidity 5 to 95% RH
100 x 111 x 26 mm
(3.94 x 4.37 x 1.02 in)
Åwith ears Dimensions
77 x 111 x 26 mm
(3.03 x 4.37 x 1.02 in)
Åwithout ears
Serial Line Protection 15 KV ESD for serial port
Level 1 Surge, EN61000-4-5
Magnetic Isolation 1.5 KV for Ethernet
Power Line Protection Level 2 Burst (EFT), EN61000-4-4
Level 3 Surge, EN61000-4-5
Regulatory Approvals FCC Class A, CE Class A, UL, LVD
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
©
©
©
©© 2010 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
