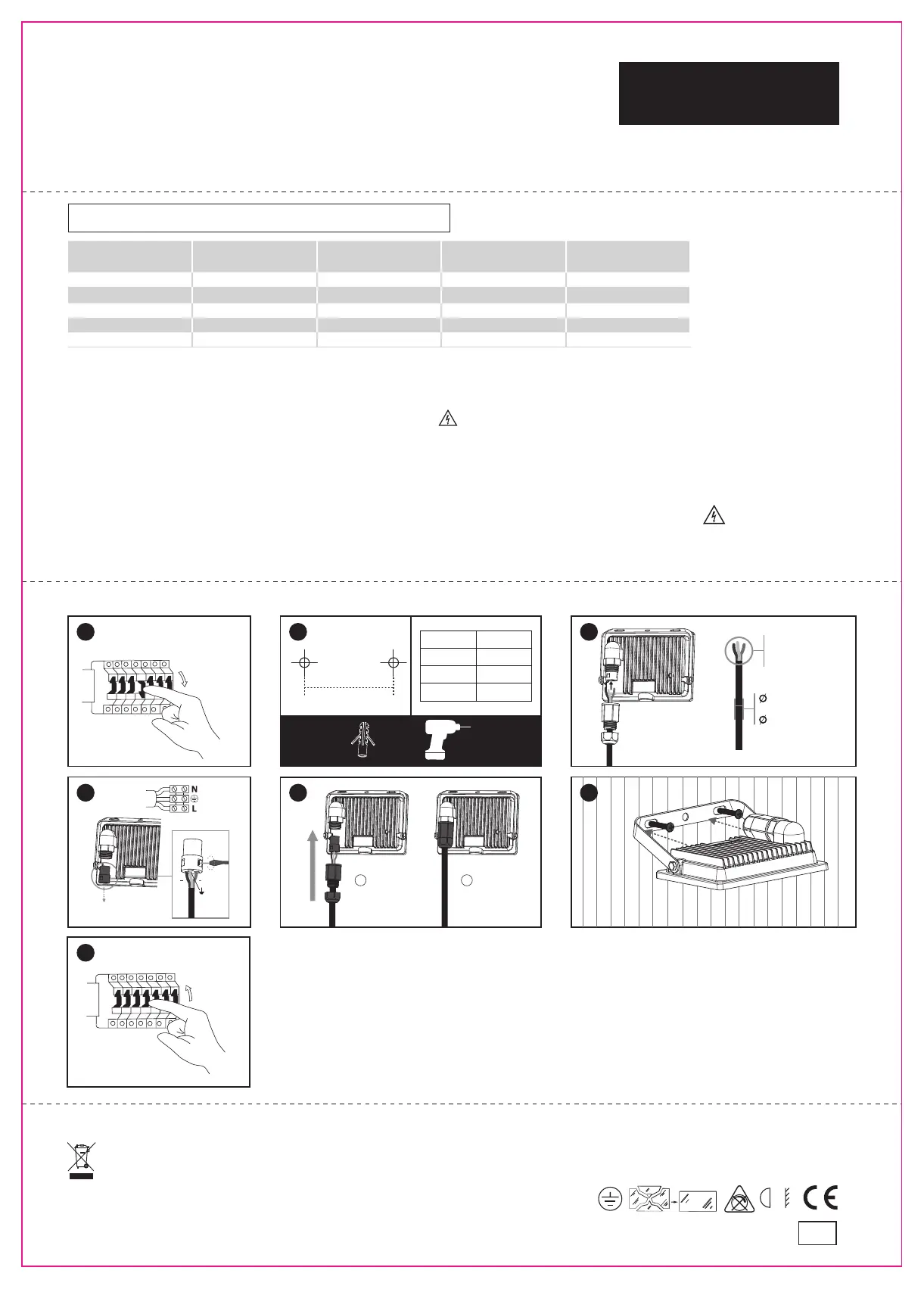

MEGATRON®
LED Floodlight – MEGATRON ispot ®
Series name
Model Number
Wattage
Voltage
Frequency
IP Rating
®
MT68020
9W
220–240V~
50/60 Hz
IP65
®
MT68021
18W
220–240V~
50/60 Hz
IP65
®
MT68022
27W
220–240V~
50/60 Hz
IP65
®
MT68023
47W
220–240V~
50/60 Hz
IP65
TECHNICAL SPECIFICATION
Instruction Manual
ATTENTION:
• Instant start is allowed.
• Designed for indoor and outdoor
applications.
• The operating temperature of the
luminaire is -25˚C to +45˚C.
CAUTIONS:
• Read the entire manual carefully before installation and operation.
• Installation or replacement should be performed only by licensed and qualified electricians.
• DO NOT disassemble the inner part of the luminaire. Doing so may result in luminaire damage or malfunction.
• Switch OFF the power source before installation, replacement and cleaning!
• Wearing gloves during installation is recommended to ensure the luminaire is kept in the best condition.
• Before replacement of the luminaire, turn it off and allow it to cool down. Heat-resistant gloves are mandatory when
handling the luminaire.
• The minimum safety distance from the illuminated object is 1,0m.
• The manufacturer accepts no liability for any damage resulting from the misuse of the luminaire or from when it is used
with inappropriate equipment.
• Consult your dealer if you have any enquiries.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Important warning for drilling in walls: before drilling, make sure that there are no gas and water pipes or power lines behind or near the drilling spots.
Drilling and mounting should be performed only by qualified personnel. Be sure to pay attention to the condition and material of the walls, as the supplied mounting
material is not suitable for all wall types. Please inquire about recommended screws and raw plugs for your wall type and wall condition. The manufacturer accepts
no liability for improper wall raw plug mounting and the herefrom resulting damages.
•
•
Correct disposal of this product:
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly, to promote the sustainable reuse of material resources. To return your device, please use the
return and collection systems, or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
IDV GmbH | Birkenweiherstraße 2 | D-63505 Langenselbold | Germany | www.megatron-licht.eu
GB
INSTALLATION:
OFF
1.
7.
5.
2. 3.
ON
2
H07RN-F 3x0. 75mm
2
H07RN-F 3x1. 0mm
or
to
7.5m m
9.5m m/10m m
4.
N L
Brown
Ye eenllow/Gr
Blue
1 2
A
X2
9W A=45mm
18W A=5 0mm
27W A=70mm
47W A=90mm
6.
1) Turn OFF the power.
2) Use the wall bracket as a template, in order to mark and drill the appropriate fixing holes on the wall.
Secure the bracket with suitable fixings ( not supplied) on the wall.
3) Loosen the cable gland of the fast connector on the back of the luminaire.
4) Pass the power cable through the cable gland and connect the cable to the terminal block.
5) Fix the cable gland and close the fast connector. Make sure when fixing the cable, that a high tightness is achieved.
The screws and fast connector should be installed properly, to ensure the IP protection of the luminaire.
6) Screw the luminaire on the wall
7) Turn ON the power.
----
1,0m
----
1,0m
MEGATRON®
LED Außenstrahler – MEGATRON ispot
®
TECHNISCHE DATEN
Bedienungsanleitung
Serienname
Artikelnummer
Leistung
Netzanschluß
Frequenz
Schutzart
®
MT68020
9W
220–240V~
50/60 Hz
IP65
®
MT68021
18W
220–240V~
50/60 Hz
IP65
®
MT68022
27W
220–240V~
50/60 Hz
IP65
®
47W
220–240V~
50/60 Hz
IP65
ACHTUNG:
• Sofortiger Neustart möglich.
• Für den Innen- und Außenbereich
geeignet.
• Die Betriebstemperatur der Leuchte liegt
zwischen -25˚C und +45˚C.
INSTALLATION:
Die korrekte Entsorgung des Produkts:
IDV GmbH | Birkenweiherstraße 2 | D-63505 Langenselbold | Germany | www.megatron-licht.eu
MEGATRON® Produkte, die mit diesem Symbol gekennzeichnet sind, gehören nicht in den Hausmüll, sondern müssen in Übereinstimmung mit der WEEE-Richtlinie
entsorgt werden. Private Haushalte können verbrauchte Leuchten sowie Energiesparlampen und LED-Lampen kostenlos bei den Wertstoffhöfen bzw. Sammelstellen
ihrer Kommune oder im Handel abgeben (in Deutschland, Österreich: freiwillige Rücknahmestellen). Gewerbliche Anwender können die Leuchten und Lampen
kostenlos bei registrierten Sammelstellen anliefern.
DE/AT/CH
4.
N L
Braun
Gelb/Grün
Blau
2.
A
X2
9W A=45mm
18W A=50mm
27W A=70mm
47W A=90mm
5.
3.
bis zu
2
H07RN-F 3x0. 75mm
2
H07RN-F 3x1. 0mm
oder
7.5mm
9.5mm/10mm
1 2
6.
AUS
1.
7.
AN
1) Schalten Sie die Stromversorgung AUS.
2) Benutzen Sie die Wandhalterung als Schablone, um die Bohrlöcher anzuzeichnen.
Fixieren Sie die Leuchte mit geeignetem Befestigungsmaterial (nicht im Lieferumfang enthalten).
3) Lösen Sie die Kabelverschraubung des Schnellverbinders auf der Rückseite der Leuchte.
4) Führen sie das Netzkabel durch die Verschraubung ein und schließen Sie die Adern in der Lüsterklemme an.
5) Fixieren sie die Kabelverschraubung und schließen Sie den Schnellverbinder. Achten Sie beim Fixieren der
Kabelführung, dass die Dichtigkeit gewährleistet ist. Achten Sie darauf, dass alle Schrauben und der
Schnellverbinder ordnungsgemäß verschraubt werden um die IP-Schutzart zu gewährleisten.
6) Schrauben Sie die Leuchte an die Wand.
7) Schalten Sie die Stromversorgung AN.
Die Lichtquelle dieser Leuchte darf nur vom Hersteller oder einem von ihm beauftagten Servicetechniker oder einer vergleichbar qualifizierten Person ersetzt werden.
Wichtiger Warnhinweis beim Bohren in Wänden: vergewissern Sie sich vor dem Bohren, dass sich keine Gas-, Wasser- oder Stromleitungen an der Bohrstelle befinden.
Montage nur durch fachkundige Personen. Unbedingt auf die Wandbeschaffenheit achten, da sich das beigefügte Befestigungsmaterial nicht für alle Wandarten eignet.
Erkundigen Sie sich im Handel nach den für die jeweilige Wandbeschaffenheit geeigneten Schrauben und Dübel. Für eine unsachgemäße Wand-Dübel Verbindung und
dadurch entstandene Schäden übernimmt der Hersteller keine Haftung.
HINWEISE:
• Bitte lesen Sie die gesamte Anleitung vor der Installation und Inbetriebnahme sorgfälltig durch.
• Die Installation darf ausschließlich durch lizenziertes und qualifiziertes Elektrofachpersonal durchgeführt werden.
• Versuchen Sie nicht den Strahler zu öffnen oder den inneren Teil des Strahlers zu demontieren. Dies kann zur Beschä-
digung der Leuchte oder zu Fehlfunktionen führen.
• Vor der Installation oder dem Reinigen immer zunächst die Stromversorgung abschalten!
• Um den Strahler nicht zu beschädigen, empfehlen wir Ihnen während der Installation Handschuhe zu tragen.
• Sollte die Leuchte ausgetauscht werden müssen, schalten Sie die Stromversorgung ab und lassen die Leuchte abkühlen.
• Der minimale Sicherheitsabstand zum beleuchteten Objekt beträgt 1,0m.
• Der Hersteller übernimmt keine Haftung für Verletzungen oder Schäden, die auf eine unsachgemäße Verwendung der
Leuchte oder in Verbindung mit falschen Komponenten zurückzuführen sind.
• Bei Fragen wenden Sie sich bitte an Ihren Fachhändler.
•
•
