McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com
2
Trademark and License Information
The McIntosh C55 incorporates copyright protect-
ed technology that is protected by U.S. patents and
other intellectual property rights. The C55 uses the
following technologies:
Trademark License Information
ASIO is a trademark and software
of Steinberg Media Technologies
GmbH
Manufactured under license
from Dolby Laboratories. Dolby,
Dolby Audio, and the double-D
symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.
dts.com. Manufactured under
license from DTS, Inc. DTS, the
Symbol, DTS and the Symbol
together, and Digital Surround
are registered trademarks and/
or trademarks of DTS, Inc. in
the United States and/or other
countries. DTS, Inc. All Rights
Reserved.
HIGH-DEFINITION MULTIMEDIA INTERFACE
TM
The terms HDMI, HDMI
High-Denition Multimedia
Interface, and the HDMI Logo
are trademarks or registered
trademarks of HDMI Licensing
Administrator, Inc.
Thank You from all of us at McIntosh
You have invested in a precision instrument that
will provide you with many years of enjoyment.
Please take a few moments to familiarize yourself
with the features and instructions to get the
maximum performance from your equipment.
If you need further technical assistance, please
contact your dealer who may be more familiar with
your particular setup including other brands. You
can also contact McIntosh with additional questions
or in the unlikely event of needing service.
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Technical Assistance (607) 723-3512
Fax (607) 724-0549
Customer Service (607) 723-3515
Fax (607) 723-1917
Email support@mcintoshlabs.com
Website www.mcintoshlabs.com
Please Take A Moment
For future reference, you can write down your
serial number and purchase information here. We
can identify your purchase from this information if
the occasion should arise:
Serial Number: __________________________
Purchase Date: ___________________________
Dealer Name: ___________________________
Table of Contents
General Information .. .. .. .. .. .. .. .. .. .. 3
Connector and Cable Information.. .. .. .. .. 3
Performance Features.. .. .. .. .. .. .. .. .. .. 4
Dimensions .. .. .. .. .. .. .. .. .. .. .. .. .. .. 5
Installation .. .. .. .. .. .. .. .. .. .. .. .. .. .. 5
Front Panel Knobs and Buttons.. .. .. .. .. .. 6
Inputs .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 7
Outputs.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 7
How to use the Remote Control .. .. .. .. .. .. 9
Setup Menus . .. .. .. .. .. .. .. .. .. .. .. .. ..10
Digital Setup Menu .. .. .. .. .. .. .. .. .. .12-13
Inputs Setup Menu .. .. .. .. .. .. .. .. .. .. ..13
Outputs Setup Menu .. .. .. .. .. .. .. .. .. .. 14
Triggers Setup Menu .. .. .. .. .. .. .. .. .. ..15
Data Out Setup Menu .. .. .. .. .. .. .. .. .. ..15
External Control Setup Menu. .. .. .. .. .. ..16
System Configurations .. .. .. .. .. .. .. .. ..17
Connecting Components.. .. .. .. .. .. .. .. ..17
Network Information Menu .. .. .. .. .. .. ..18
Trim Functions Menu.. .. .. .. .. .. .. .. .18-19
Equalizer Controls .. .. .. .. .. .. .. .. .. .. ..19
How to Operate the C55 .. .. .. .. .. .. .. 20-21
Specifications .. .. .. .. .. .. .. .. .. .. .. .. ..22
Packing Instructions 23 .. .. .. .. .. .. .. .. .. ..
Parts List .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..23
Safety First
Please read the safety instructions included in a
separate document called Important Additional
Operation Information Guide.
3
C 5 5

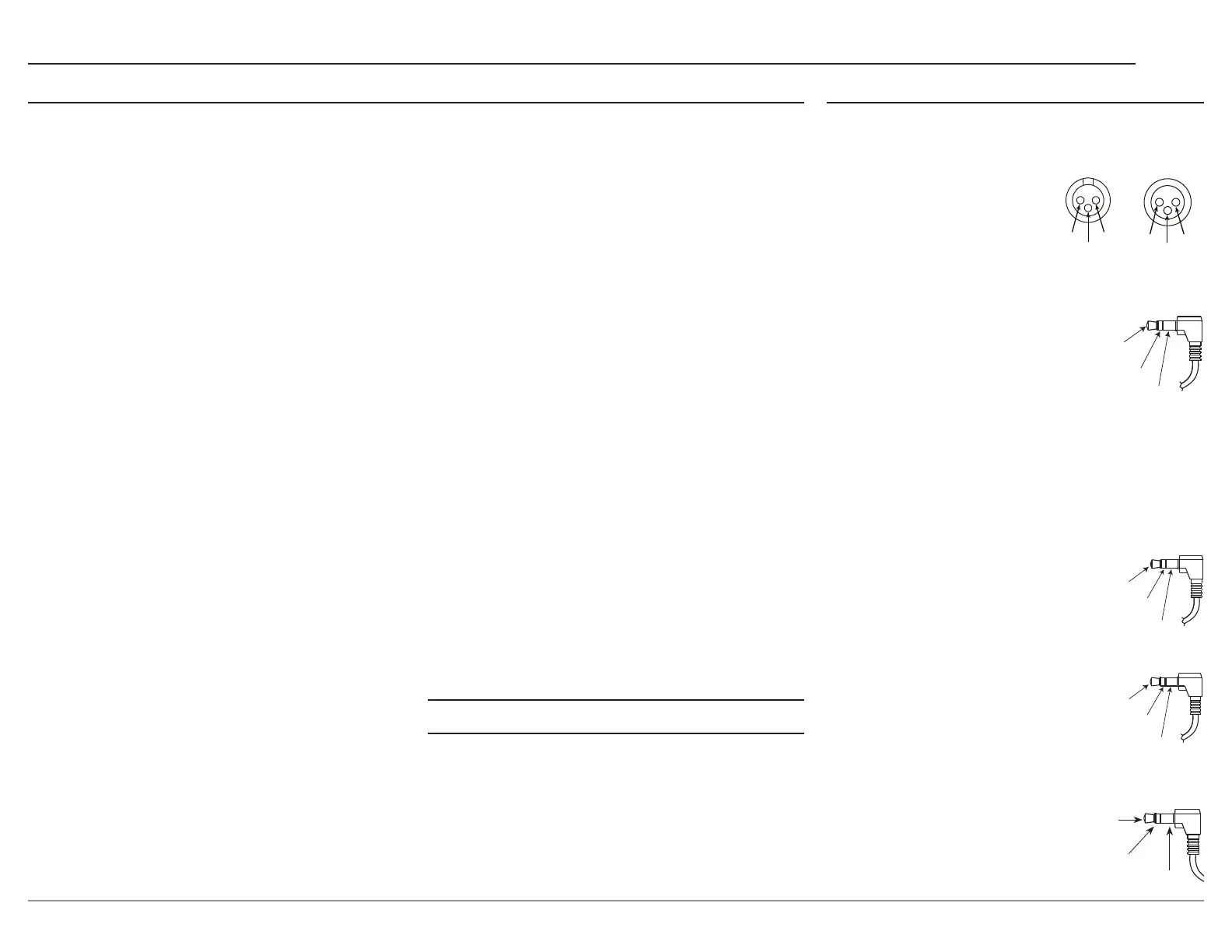

Connector and Cable Information
XLR Connectors
Pin conguration for the XLR Balanced Input
and Output Connector. Refer to the diagrams for
connections:
PIN 1: Shield/Ground
PIN 2: + Input/Output
PIN 3: - Input/Output
Power Control and Trigger Connectors
The C55 Power Control Out, Trigger
and Passthru Output Jacks send
Power On/Off Signals (+12 volt/0
volt) when connected to other
Components. An additional connec-
tion is for controlling McIntosh Power Ampliers
Output Meters. A 3.5mm stereo mini phone plug is
used for connection to the Power Control (Trigger)
and Passthru Output.
Note: The Six Foot Cables are available from the McIntosh Parts
Department. Part No. 170202.
Data Port Connectors
The C55 Data Out Ports send
Remote Control Signals to Source
Components. A 3.5mm stereo mini
phone plug is used for connection.
IR IN Port Connectors
The IR IN Port also uses a 3.5mm
stereo mini phone plug and allows
the connection of other brand IR
Receivers to the C55.
RS232 Data Port Cable
The RS232-C Data Cable is a 3.5mm stereo mini
phone plug used to connect
to external third party
controllers.
Data
Signal
N/C
Data
Ground
PIN 2 PIN 1
PIN 3
PIN 1 PIN 2
PIN 3
General Information
Power
Control
Meter
Illumination
Control
Ground
Main, Triggers 1-4
and Passthru
7. For additional information on the C55 and other
McIntosh Products please visit the McIntosh
website at www.mcintoshlabs.com.
IR Data
Control
Ground
N/C
Introduction
The McIntosh C55 Audio Preamplier is one of
the nest Preampliers ever created with connec-
tions for both analog and digital sources. The C55
Outputs have the ability to drive multiple Power
Ampliers. The C55 reproduction is sonically
transparent and absolutely accurate. The McIntosh
Sound is “The Sound of the Music Itself.”
1. Do not apply AC Power to the C55 and other
Component(s) until they are connected to the
C55 so operational malfunctioning does not
occur.
2. Balanced and Unbalanced Inputs and Outputs
can be mixed. For example, you may connect
signal sources to Unbalanced Inputs and send
signals from the Balanced Outputs. You can
also use Balanced and Unbalanced Outputs
simultaneously, connected to different Power
Ampliers.
3. The C55 internal Digital to Analog Converter
Circuitry is designed to decode PCM, DSD
and DTS Digital Signals. The Coaxial and
Optical Digital Audio Inputs are for PCM
Digital Signals, Dolby Signals and DTS Signals.
The C55 also decodes USB and HDMI (ARC)
Digital Signals. Other Digital Audio Signal
Format Types will cause the Audio Outputs of
the C55 to be muted.
4. The McIntosh C55 is factory congured for
immediate use. It can also be customized to
complement the components making up your
system. Refer to the Setup Menu described on
page 11.
5. The Remote Control Supplied with the C55
Preamplier is capable of operating other
components. For additional information go to
www.mcintoshlabs.com.
6. The IR Input is congured for non-McIntosh
IR sensors such as a Xantech Model HL85BK
Kit. Use a Connection Block such as a Xantech
Model ZC21 when two or more IR sensors need
to be connected to the C55. The signal from a
connected External IR Sensor will have priority
over the signal from the Front Panel IR Sensor.
C55 TXD Out
Data being transmitted
C55 RXD In
Data being received
Ground
