Strona 1/3

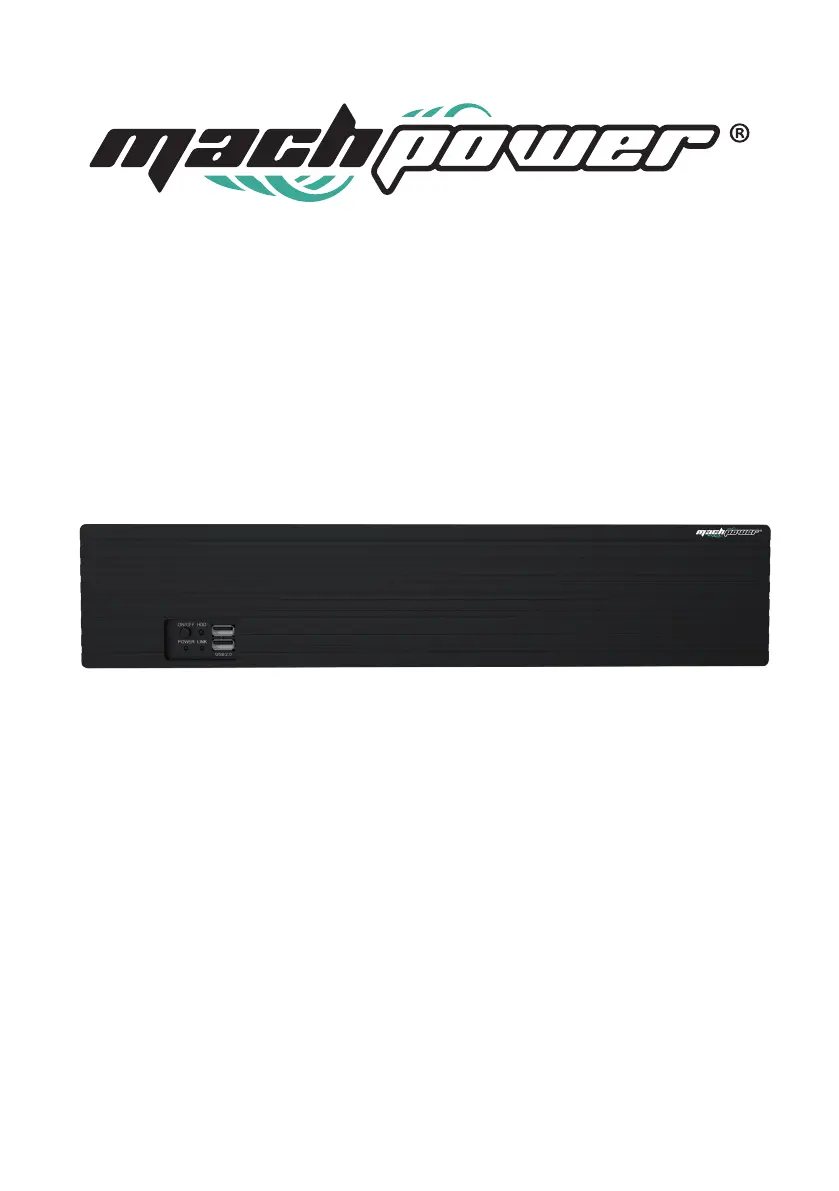

8 CH H.265+
5IN1 XHVR
VS-XHVR8C5MN-306
Technical Specification
System
Main Processor
Operating System
Video
Input
Input
Signal Type
Output
Audio
Input
Two-way Audio
Output
Alarm
Sensor Input
Output
Motion Detection
Trigger Events
Email Alarm
PTZ
Interface
Protocol
Baud Rate
Address
Display
VGA
HD Output
Display Split
Privacy Masking
OSD
Recording
Video Compression
Audio Compression
Resolution
Video Quality
Record Rate
Record Mode
MC6630
Embedded LINUX
Normal Mode= Analog= 8 x (TVI/AHD= 5M@12fps; AHD/TVI/CVI= 4M@15fps; AHD/TVI= 3M@18fps;
AHD/TVI/CVI= 1080P/720P; Analog= 960H) Analog+Network= 2 x Analog(5MP)+7 x network(MAX 5MP),
4 x Analog(5MP)+5 x network(MAX 5MP), 6 x Analog(5MP)+ 3 x network(MAX 5MP)
Network= 16 x 5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
8CH BNC
Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
1HD,1 VGA, CVBS
2 Channel, RCA
No
1 Channel, RCA
4 CH
1 CH
8 Channel(max 16 Channel in pure network mode)
Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Send Image to The Designated E-mail
RS485
Pelco-D, Pelco-P
110~921600
0~255
Resolution= 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720 60Hz, 1024 × 768/60Hz
Resolution = 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
3 Rectangular Zones (Each camera)
Camera title, Time, Video loss, Alarm, Motion detection, Recording
H.265+/H.265/H.264+/H.264
G.711U/G.711A
5MP_Lite(1296×1952),4MP_Lite(1280×1440),3MP_Lite(1024×1536),1080N(960×1080),720P(1280×720),
960H(P=960×576/N=960×480)
Lowest/Low/Ordinary/Good/Better/Best
Analog= PAL= 5MP_Lite(1296×1952 8 x 6fps),4MP_Lite(1280×1440 8 x 8fps), 3MP_Lite(1024×1536 8 x 10fps),
1080N(960x1080 8 x 15fps),720P(1280×720 8 x 15fps), 960H(960×576 8 x 25fps)
NTSC= 5MP_Lite(1296×1944 8 x 6fps), 4MP_Lite(1280×1440 8 x 8fps),3MP_Lite(1024×1536 8 x 10fps),
1080N(960x1080 8 x 15fps),720P(1280×720 8 x 15fps), 960H(960×576 8 x 30fps)
Pure IP(H.265)= PAL= 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,960P@12×25fps,
720P@12×25fps,D1@12×25fps NTSC= 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps,
960P@12×30fps, 720P@12×30fps, D1@12×30fps
Manual\Timer\Motion Detection\Alarm Input\Motion and Alarm
Playback & Backup
Decode Capability
Sync Playback
Remote Playback
Search Mode
Playback Functions
Smart Phone Playback
Backup Mode
Network
Interface
Network Functions
DDNS
Web Browser
CMS Software
Extra Stream
Smart Phone
Hard Disk Driver
Interface Type
Capacity
General
Language
UTC Control
USB Interface
Power consumption
Working Environment
Dimension (W×D×H)
Weight
2CH 1080P@30fps
Pure Analog= 4CH 960H@25fps, 4CH 720P@15fps, 4CH 1080N@15fps, 4CH 5M_LITE@6fps,
4CH 4M_LITE@8fps, 4CH 3M_LITE@10fps
Mixture mode= 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
Pure Network= 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
4 Channel / 1Channel
ALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Motion and Alarm
Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
4 Channel
USB Device(with fomat FAT 32 )/Network/FTP
1 RJ45 10M/100M Adaptive Ethernet Interface
TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
Support Windows 7/ Windows 8/Windows 10
CIF/D1(1-12fps)
iPhone, ipad, Android ,Android pad
1 SATA Interface
1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,
korean, Dutch, Greek, Vietnamese
Yes
2 USB 2.0 Interfaces
DC 12V/2A ≤6W (Without Hard Disk)
-10~55°C /10~90%
260 x 215 x 43(mm)
2kg (Without HDD)
Mach Power è un marchio registrato. visita il nostro sito > machpower.it
Le caratteristiche potrebbero variare senza preavviso REV01-070521
