Strona 1/21

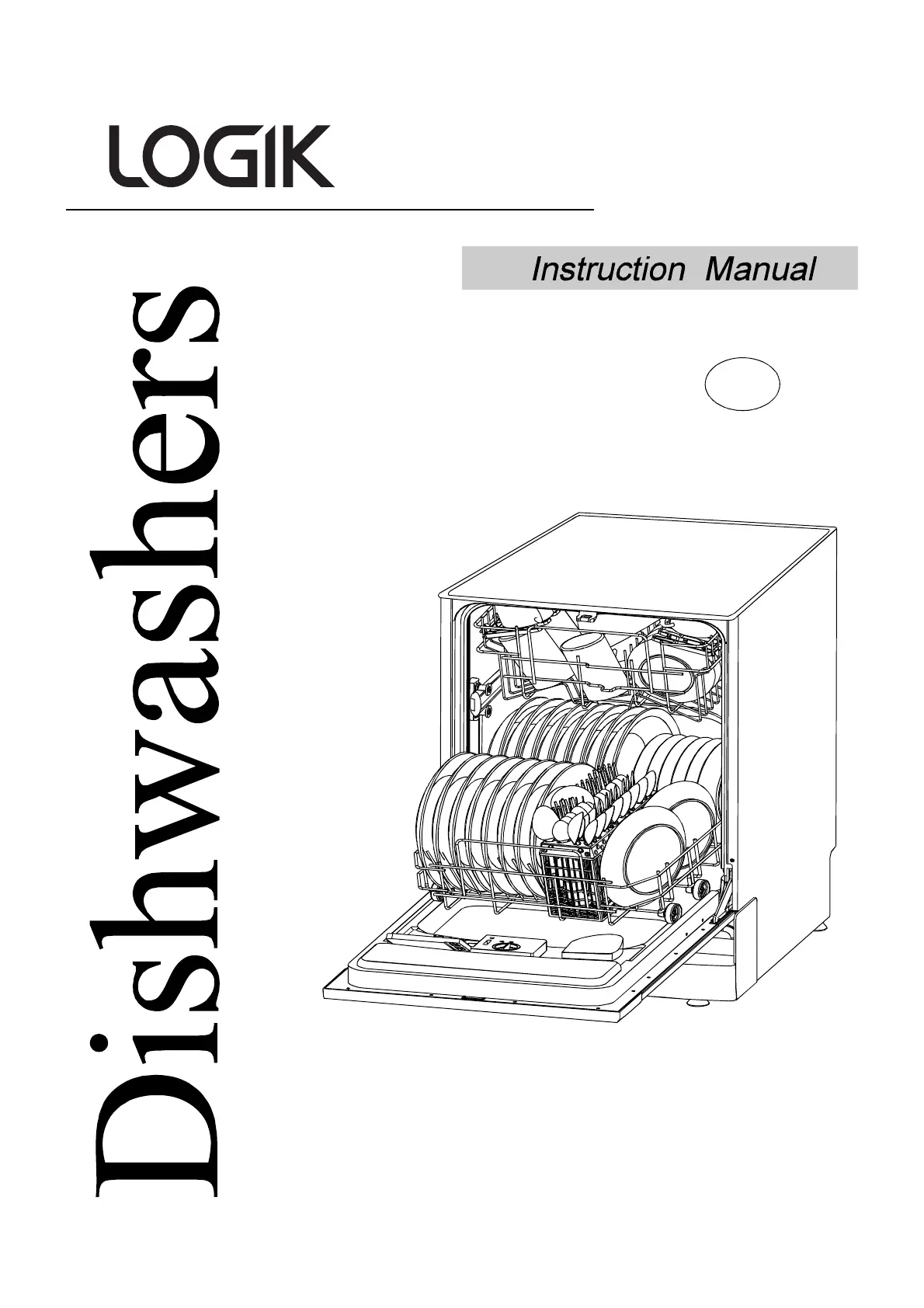

LF674WN / SSN
GB
This manual contains sections of Safety
Instructions, Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher will help you to use and maintain
the dishwasher properly.
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and reduce the need to ask for the
help of professional technicians.
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
. . . . . . . . . . . . . . . . 1
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . 5
Dishwasher Features . . . . . . . . . . . . . . . . . 5
Wash Cycle Table . . . . . . . . . . . . . . . . . . . . 6
Turning On the Appliance . . . . . . . . . . . . . .6
Salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading the Dishwasher Rack . . . . . . 10-13
Filtering System . . . . . . . . . . . . . . . . . . . . ..14
Caring for the Dishwasher . . . . . . . . . . 15-16
About Electricity connection . . . . . . . . . . 16
Before calling for service. . . . . . . . . . 17,18
Fault codes . . . . . . . . . . . . . . . . . . . . . . . . .19
Installation of dishwasher . . . . . . . . . . . .2-4
This product has been wet tested to ensure correct
operation. As a result, some water can remain
inside the unit. This si normal and safe. Please
remove any water droplets from the exterior if
necessary.
Thank You!
11
This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing a
path of l east resistance for el ectric current. This
appliance is equipped with a cord having an
equipment-earthing conductor and an earthing
plug. The plug must be plugged into an appropriate
outlet that i s installed and earthed in accordance
with all local standard and requirements.
Improper connection of the equipment-
earthing conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly earthed. Do not modify the plug
provided with the appliance. If the plug
does not fit properly to the outlet, please
have a qualified electrician to install a
proper outlet.
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
During installation, the power supply cord must not
be excessively or dangerously bent or flattened.
The door should not be left in the open position
since this could present a tripping hazard.
Do not tamper with controls.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The appliance is not intended for use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Young children should be supervised to ensure that
they do not play with the appliance.
The appliance is to be connected to the water mains
using new hose sets. Old hose-sets should not be
reused.
The maximum number of place settings to be washed
is 12.
The maximum permissible inlet water pressure is 1Mpa.
The minimum permissible inlet water pressure is 0.04Mpa.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
the reach of children.
Do not place any heavy objects on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
(
When using your dishwasher, you should prevent
plastic items from coming into contact with heating
element.
Check that the detergent receptacle is empty after
completion of the wash cycle.
Other means for disconnection from the supply
be incorporated in the fixed wiring with
contact separation in all poles.
must
at least 3mm
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
