Strona 1/73

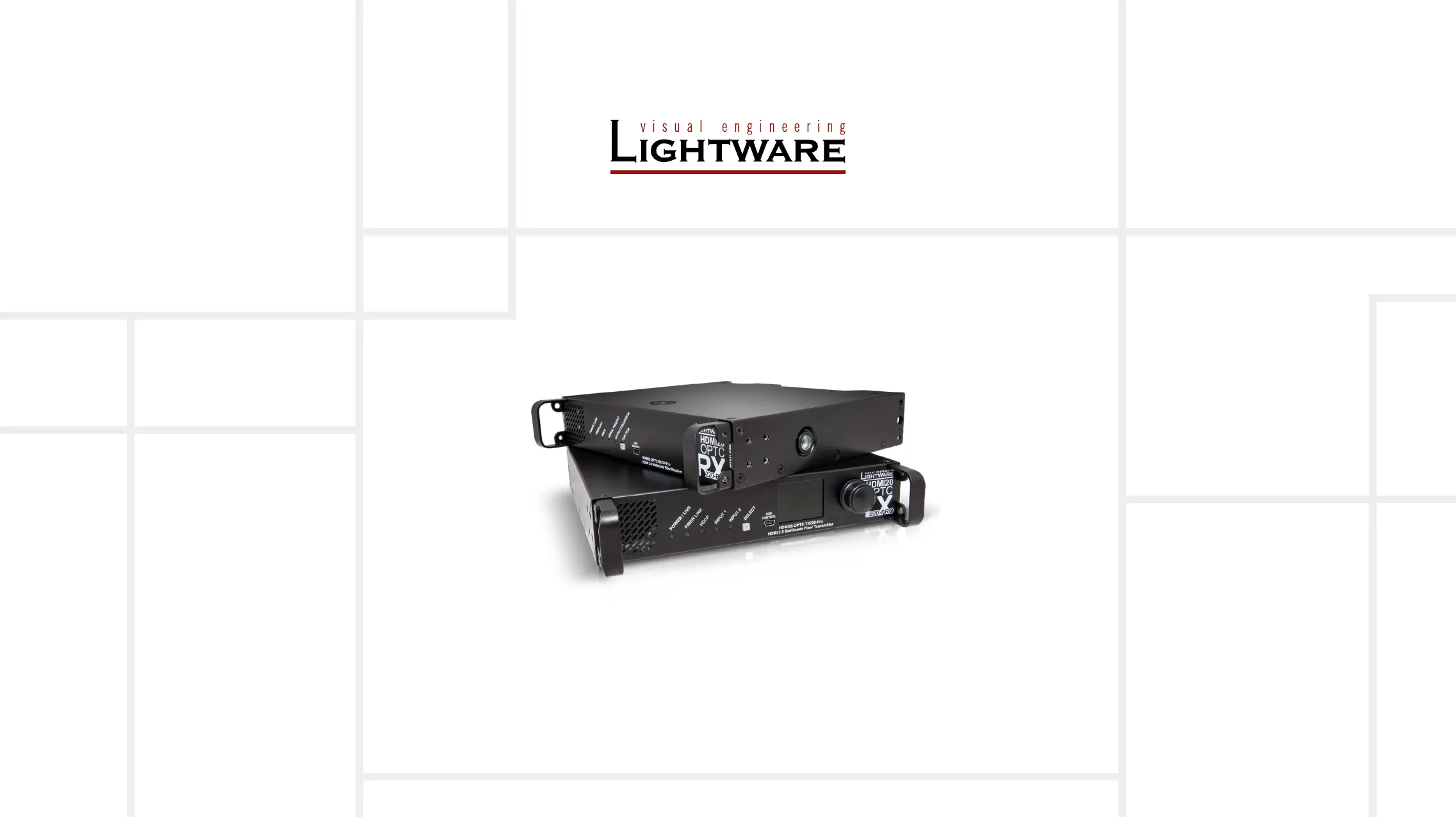

HDMI20-OPTC-TX220-Pro

HDMI20-OPTC-RX220-Pro

User’s Manual

Multimode Single Fiber Optical Extender



HDMI20-OPTC series – User's Manual 2

Important Safety Instructions

Class I apparatus construction

This equipment must be used with a mains power system with a

protective earth connection. The third (earth) pin is a safety feature,

do not bypass or disable it. The equipment should be operated only

from the power source indicated on the product.

To disconnect the equipment safely from power, remove the power

cord from the rear of the equipment, or from the power source. The

MAINS plug is used as the disconnect device, the disconnect device

shall remain readily operable.

There are no user-serviceable parts inside of the unit. Removal of the

cover will expose dangerous voltages. To avoid personal injury, do not

remove the cover. Do not operate the unit without the cover installed.

The appliance must be safely connected to multimedia systems.

Follow instructions described in this manual.

Ventilation

For the correct ventilation and to avoid overheating ensure enough

free space around the appliance. Do not cover the appliance, let the

ventilation holes free and never block or bypass the ventilators (if any).

WARNING

To prevent injury, the apparatus is recommended to securely attach to

the oor/wall or mount in accordance with the installation instructions.

The apparatus shall not be exposed to dripping or splashing and that

no objects lled with liquids, such as vases, shall be placed on the

apparatus. No naked ame sources, such as lighted candles, should

be placed on the apparatus.

CAUTION AVIS

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR



Waste Electrical & Electronic Equipment

WEEE

This marking shown on the product or its literature,

indicates that it should not be disposed with other

household wastes at the end of its working life. To

prevent possible harm to the environment or human

health from uncontrolled waste disposal, please

separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material

resources. Household users should contact either the

retailer where they purchased this product, or their local government

ofce, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their

supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for

disposal.

Caution: Laser product

INVISIBLE LASER RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 3R LASER PRODUCT

Radiated wavelengths:

778 nm, 801 nm, 824 nm, 850 nm, 911 nm

Output power <= 1 mW

Classified by EN 60825-1:2008

Common Safety Symbols

Symbol Description

Alternating current

Protective conductor terminal

Caution, possibility of eletric shock

Caution

Laser radiation









HDMI20-OPTC series – User's Manual 3

Symbol Legend

The following symbols and markings are used in the document:

WARNING! Safety-related information which is highly

recommended to read and keep in every case!

ATTENTION! Useful information to perform a successful procedure;

it is recommended to read.

INFO: A notice which contains additional information. Procedure

can be successful without reading it.

DEFINITION: The short description of a feature or a function.

TIPS AND TRICKS: Ideas which you may have not known yet but can

be useful.

Navigation Buttons

Go back to the previous page. If you clicked on a link previously,

you can go back to the source page by clicking the button.

Navigate to the Table of Contents.

Step back one page.

Step forward to the next page.









Document Information

All presented functions refer to the indicated products. The descriptions

have been made during testing these functions in accordance with the

indicated Hardware/Firmware/Software environment:

Item Version

Lightware Device Controller (LDC) software 1.21.0

Lightware Device Updater Software 1.5.2

Controller rmware 1.1.0

Hardware 1.2

Document revision: 1.1

Release date: 28-02-2018

Editor: Judit Barsony







Specyfikacje produktu

Marka:	Lightware
Kategoria:	przedłużacz AV
Model:	HDMI20-OPTC-TX220-PRO
Kolor produktu:	Czarny
Częstotliwość wejściowa AC:	50 - 60 Hz
Napięcie wejściowe AC:	100 - 240 V
Wysokość produktu:	42.9 mm
Szerokość produktu:	221 mm
Głębokość produktu:	222.25 mm
Waga produktu:	1480 g
Technologia łączności:	Przewodowa
Certyfikaty:	CE
Ilość portów USB:	1
Obsługiwany typ USB:	Mini-USB B
Zakres temperatur (eksploatacja):	0 - 50 °C
Zakres wilgotności względnej:	10 - 80 %
Przewodowa sieć LAN:	Tak
Kompatybilność 3D:	Tak
Diody LED:	Tak
Zakres temperatur (przechowywanie):	-40 - 85 °C
Model:	Nadajnik AV
Maks. rozdzielczość:	3840 x 2160 px
Maksymalna częstotliwość odświeżania:	60 Hz
Wersja HDMI:	2.0
HDCP:	Tak
Szerokość pasma:	18 Gbit/s
Możliwości montowania w stelażu:	Tak
Materiały:	Metal
Wersja USB:	2.0
Złącze światłowodowe:	LC
Maksymalny dystans transferu:	2500 m
HDMI in:	2
Głębia kolorów:	36 bit
Wejścia RJ-45:	2
Wspierane długości fal:	778,850,911,980 nm
Porty wejściowe RS-232:	1
Rozszerzone dane identyfikacyjne wyświetlacza (EDID):	Tak
Zużycie prądu (nadajnik) (max):	11.6 W
Przejście RS-232:	Tak
Przedni panel kontrolny (TX):	Tak
Emulacja EDID (TX):	Tak
Pamięć EDID (TX):	Tak
Pobór mocy (TX):	7.1 W
