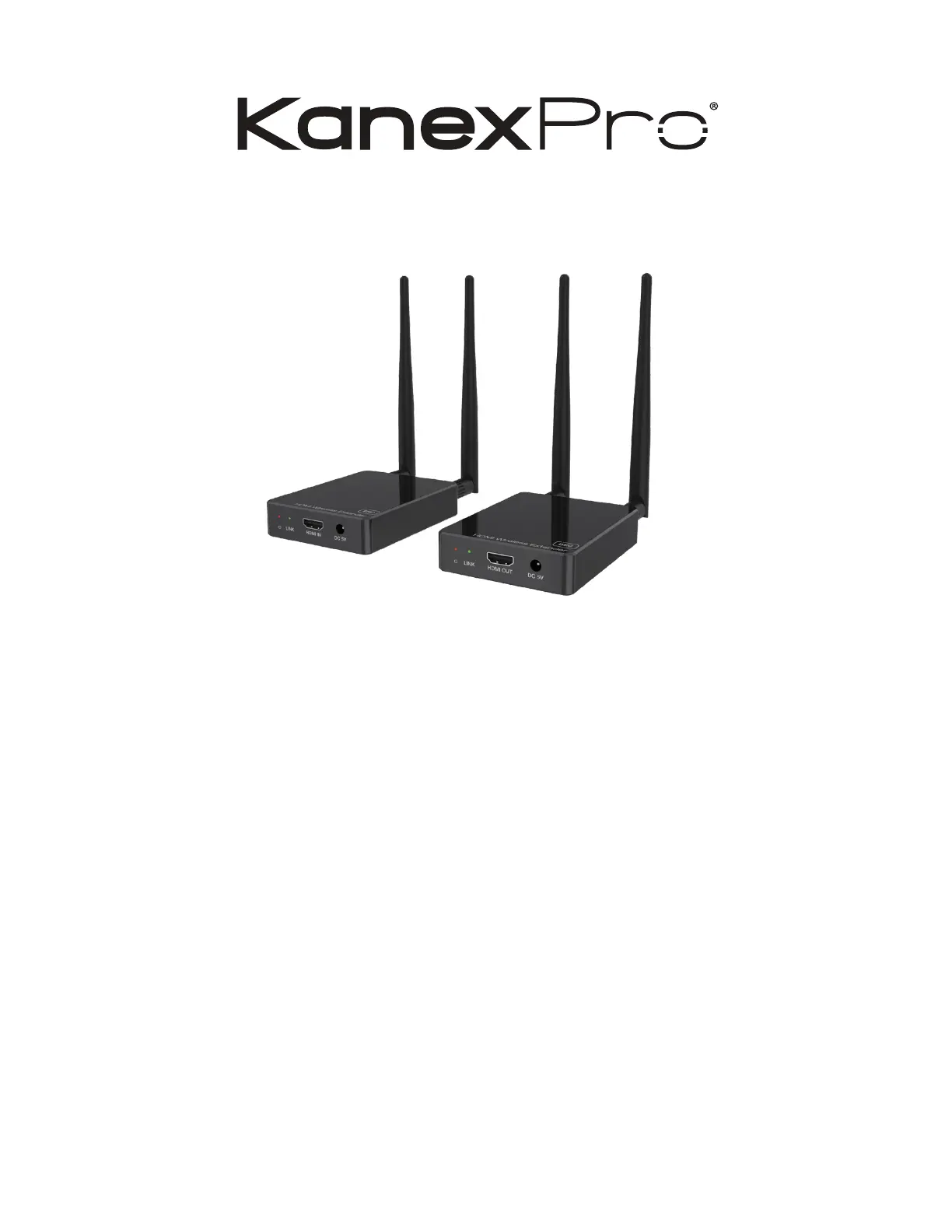

VER 1.0
100M Wireless HDMI Extender
All Right Reserved
MPN: EXT- WL18GHDMI
2
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this
equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
Table of Contents
1. Introduction...............................................................................................................................3
2. Features.......................................................................................................................................3
3. Package Contents..................................................................................................................3
4. Specifications...........................................................................................................................4
5. Operation Controls and Functions.................................................................................5
5.1 Transmitter Panel..................................................................................................5
5.2 Receiver Panel.........................................................................................................5
5.3 Pairing Instruction.................................................................................................6
5.4 Updating Instruction............................................................................................6
5.5 5.5 IR Pin Definition..............................................................................................6
6. Application Example.............................................................................................................7
7. Customer Service...................................................................................................................8
3
1. Introduction
The KanexPro EXT-18GHDMIWL 100M Wireless extender is a compact HDMI
transmitter - receiver set designed to extend HD (1080p) video signals from
a source to a display which can be remotely located up to 328 feet away.
This wireless system is based on powerful low-bandwidth H.265
compression reducing the latency and signal dropouts. The system is
simple, plug and play and it’s ready to go. No drivers or complicated
installation procedures required.
Wireless extenders a offer convenient and elegant solution to delivering long
distance HDMI transmissions without the hassle of running thick unwieldy
HDMI cables through walls and furniture. Ideal for use with TV carts.
2. Features
HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
Supports one HDMI HD source to one HDMI HD display via wireless
transmission
With one-way IR control
Video resolution up to 1080P@60Hz
Transmission distance: One-to-one connects transmission distance up to
330ft/100m. (An open environment without Wi-Fi interference.)
Audio format supports PCM 2.0CH 32KHz/44.1KHz/48KHz
H.265 high performance codec supported, adopting high bit rate mode
End-to-end delays under 120Ms
Compact design for easy and flexible installation.
3. Package Contents
5. 1x HDMI Wireless Extender (Transmitter)
5. 1x HDMI Wireless Extender (Receiver)
5. 1x IR Blaster cable (1.5 meters)
5. 1x 20~60KHz IR Receiver cable (1.5 meters)
5. 4x 5G WiFi Antennas
5. 1x 5V/1A Power Adapters
5. 1x User Manual


Specyfikacje produktu

Marka: KanexPro
Kategoria: przedłużacz AV
Model: EXT-18GHDMIWL
Kolor produktu: Czarny
Częstotliwość wejściowa AC: 50 - 60 Hz
Napięcie wejściowe AC: 100-240 V
Wysokość produktu: 21 mm
Szerokość produktu: 76 mm
Głębokość produktu: 98 mm
Waga produktu: 100 g
Technologia łączności: Bezprzewodowy
Gniazdko wyjścia DC: Tak
Formaty kompresji: H.265
Zakres temperatur (eksploatacja): 0 - 40 °C
Zakres wilgotności względnej: 20 - 90 %
Diody LED: Tak
Model: Nadajnik i odbiornik AV
Prąd wyjściowy: 1.25 A
Maks. rozdzielczość: 1920 x 1080 px
Maksymalna częstotliwość odświeżania: 60 Hz
Wersja HDMI: 1.4
HDCP: Tak
Szerokość pasma: 6.75 Gbit/s
Maksymalny dystans transferu: 100 m
HDMI in: 1
Zdalne wejście IR: 1
Obsługiwane tryby wideo: 480p, 1080p
Zdanlne wyjścia IR: 1
Zużycie prądu (odbiornik) (max): 1.8 W
Zużycie prądu (nadajnik) max: 2.25 mA
