Strona 1/16
USA: Joovy • 2919 Canton Street • Dallas, TX 75226 • Tel: (877) 456-5049 • Fax: (214) 761-1774 • Email: customerservice@joovy.com • Website: www.joovy.com
CANADA: Elfe Juvenile Products • 4500 Thimens Blvd • Saint-Laurent, QC, H4R 2P2 • Tel: (800) 667-8184 • Email: service@elfe.ca • Website: www.elfe.com

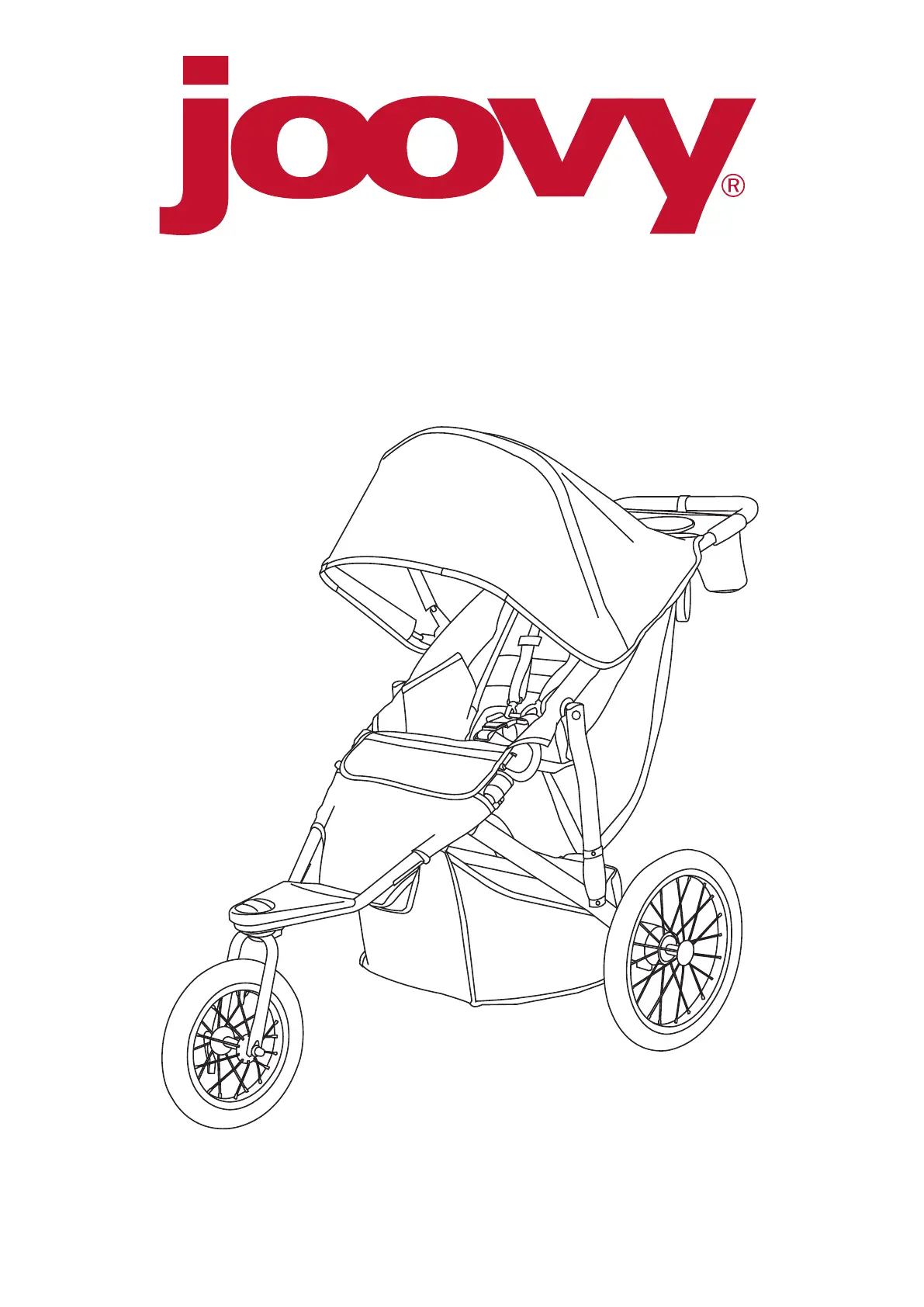

Zoom 360 Ultralight™
806X
© Joovy 2017 • 171227
EN FR ES
!WARNING
Please read these instructions carefully before use and keep them for future reference.
• Failure to follow these instructions could result in serious injury or death.
• Never leave child unattended.
• Avoid serious injury from falling or sliding out.
• Always use restraint system and ensure that all children are positioned according to these instructions.
• Be certain that the stroller is fully opened, locked securely into position, and the wheel brakes are on before
allowing children near the stroller.
• Avoid serious injury from the front wheel falling off. Ensure the wheel is properly installed and secure before any
use of the stroller.
• The parking device should always be engaged during the loading and unloading of children.
• The maximum weight of a child the product is designed to carry is 75 lbs. (34 kg).
• The maximum height of a child the product is designed to carry is 44 in (111.76 cm).
• The seat is not suitable for a child under 3 months.
• Use of the stroller with a child weighing more than 75 lbs. (34 kg), may cause a hazardous unstable condition.
• Never use this stroller to carry more than one child at the same time.
• Never allow a child to step on the footrest to get into or out of the stroller.
• Do not use the stroller on stairways or escalators.
• DonotaddanyattachmentnotspecicallyrecommendedbyJoovy.
• Keep children away from the stroller when folding or unfolding.
• Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels, diaper
bags or other accessory items from the handlebar or any other parts of the stroller may change the balance of the
stroller and cause a hazardous unstable condition.
• The included parent organizer is for use ONLY on the Joovy Zoom 360 Ultralight stroller. DO NOT use it on other
stroller models.
• Never carry hot beverages or open containers in the parent organizer. Maximum weight allowed is 3 lbs. (1.36 kg).
• The maximum weight that can be carried in the storage basket is 5 lbs. (2.27 kg). Excessive weight may result in a
hazardous unstable condition.
• The total weight that can be placed in the seat back pockets should be less than 2 lbs. (0.9 kg).
• The total weight that can be placed in the in-seat pockets should be less than 2 lbs. (0.9 kg).
• Never allow your stroller to be used as a toy.
• Discard all packaging materials properly. Do not allow children to play with them.
• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.
• Discontinue use of the stroller should it malfunction or become damaged.
• Keepwheelsatarecommendedtirepressureof35psiorasspeciedonanyreplacementtire.
• Also check the front wheel attachment and the tether strap attachment regularly for proper function and security.
CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts.
Please do not return this product to the store
If you experience any difculty with the assembly or use of this product, or if you have a question regarding these
instructions, please contact our Customer Service Department:
UNITED STATES - Joovy: (877) 456-5049, Hours 8:30 am – 5:00 pm Central Time.
CANADA - Elfe Juvenile Products: (800) 667-8184, Hours 8:30 am – 5:00 pm Eastern Time.
Please note: Styles and colors may vary.
Assembling and Using Your Stroller
1 Unpacking the Product
• Remove everything from the box and identify the parts using (not to scale).Figure 1.1
stroller, front wheel, 2 rear wheels, parent organizer, tire pump, and documents (not shown).A: B: C: D: E:
• Discard all packaging materials properly including plastic coverings.
• DO NOT allow children to play with any packaging materials.
!WARNING
Adult assembly is required for this product. No Tools Required.
EN FR ES
2 Unfolding the Stroller
• Keep children away from stroller while unfolding.
• Orient the stroller with the seat facing up and the handle bars closest to you.
• If necessary, release the locking latch located on the lower right side by lifting the latch off of the catch. See Figure 2.1.
• Pull up on the handlebar so that the stroller unfolds to its upright and locked position.
• Ensure that the stroller is completely opened and the latching mechanism is secured before ANY further assembly or use of the stroller.
CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts.
!WARNING
ALWAYS keep children away from the stroller when unfolding.
Possible pinching hazard – Be careful when unfolding the stroller.
3 Installing/Removing Rear Wheels
• Take one rear wheel and insert it into one of the rear wheel hubs until an audible click is heard.
You may need to push the wheel with some force to get it past the locking mechanism. NOTE: See Figure 3.1.
• Pull outward on the wheel to ensure the wheel is installed properly.
• To remove a wheel, push down on the plastic tab on the rear axle and then pull outward on the wheel. See Figure 3.2.
4 Installing the Front Wheel
• With the stroller still tilted backwards on the handle bar, remove the plastic protector from the front forks and discard properly.
NOTE:Yourstneedtolocktheforksintoplace.Seesectionon“FrontWheelLock”forthisprocedure.
• Make sure the safety lock on the opposite end of the axle is in the UNLOCKED (straight out) position.
You can assemble the front wheel with the safety lock on either side of the stroller.NOTE:
• Loosen the round nut on the end of the front wheel axle, opposite the safety lock. See Figure 4.1.
• Remove the axle from the wheel. See Figure 4.2.
• Slide the wheel onto the frame forks so that the two holes align.
• Slide the axle through the frame forks and front wheel. See Figure 4.3.
• Reattach the round nut to the other end of the axle. See Figure 4.4.
• While holding the safety lock in the open position, tighten the round nut BY HAND in a clockwise direction until it is as tight as you can get it.
• Push the safety lock DOWN to the closed position and ensure it is tight. You may need to loosen the round nut slightly to See Figure 4.5.
fully close the safety lock.
• Pull outward on the wheel to ensure the wheel is installed properly.
• If the wheel is loose or able to be pulled off the forks, loosen the safety lock to the unlocked position and tighten the round nut further.
Repeat until the wheel is secure.
• To remove the wheel, rotate the safety lock to the unlocked position and loosen the round nut counter clockwise until you can remove the
axle. Slide the wheel off of the frame forks.
5 Front Wheel Swivel Lock
The stroller can be operated with the front wheel in either swivel mode or locked mode.
• To put the front wheel into locked mode, locate the plastic locking lever just above the front wheel.
• Push this lever to the right (clockwise) and rotate the wheel until it locks automatically in the straight position and an audible click is heard.
See Figure 5.1.
• To unlock the front wheel and use it in swivel mode, push the lever to the left (counter clockwise) until an audible click is heard.
6 Rear Wheel Brakes
This stroller is equipped with a linked parking brake for the rear wheels.
• Before placing your child into the stroller or removing them from the stroller, be certain that the rear parking brake is engaged.
• To engage the rear parking brake, push down on the brake lever on the rear axle of the stroller until you hear an audible click. See Figure
6.1.
• Check that the brake is properly applied by attempting to push the stroller backwards and forwards.
• To release the brake, lift up on the brake lever until it locks into the UP position and you hear an audible click. See Figure 6.2.
!WARNING
Always engage the parking brake when the stroller is not being pushed so that it will not roll away.
Never leave stroller unattended, especially on a hill or incline, as the stroller may tip over or slide.
