Strona 1/12

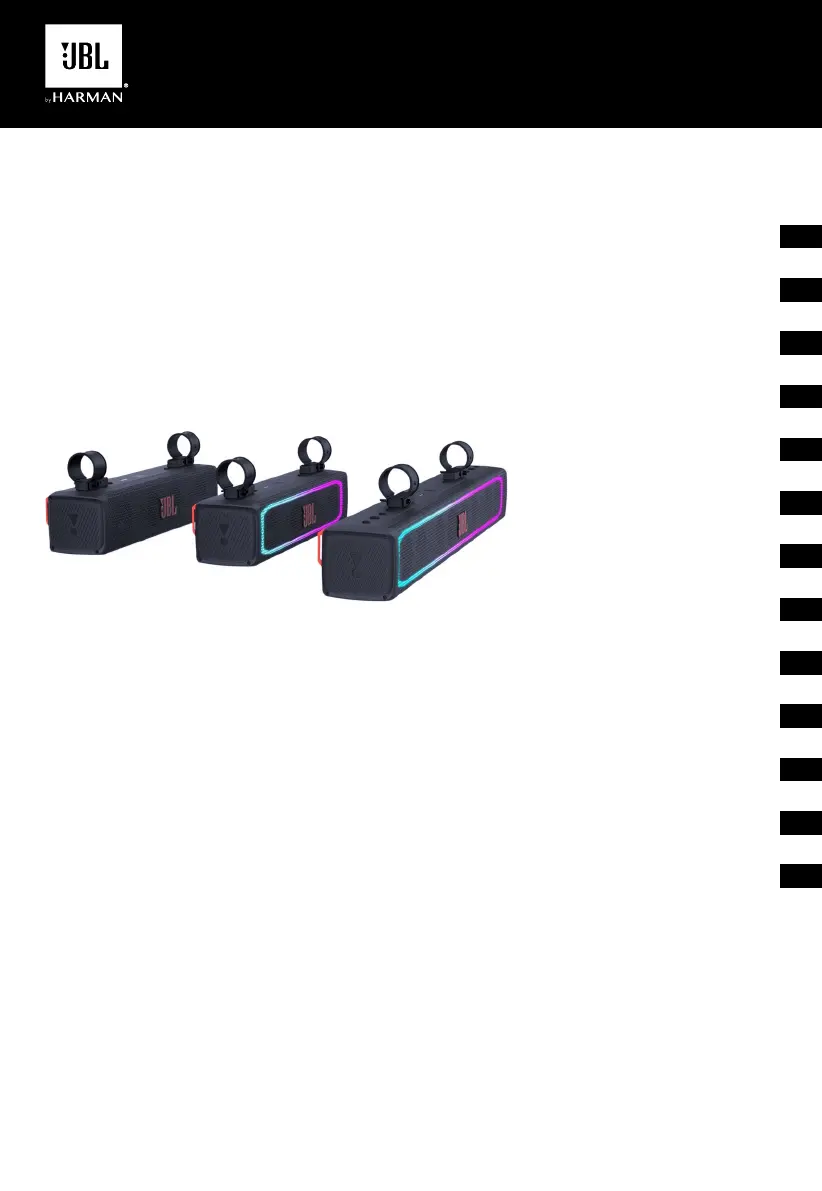

JBL RALLYBAR S/RALLYBAR/
RALLYBAR XL
EN
OWNER'S MANUAL
RALLYBAR S RALLYBAR RALLYBAR XL
11
TABLE OF CONTENTS
1. INTRODUCTION.......................................................................................................................................................................................
2. WHAT’S IN THE BOX ................................................................................................................................................................................
3. PRODUCT INSTALLATION ......................................................................................................................................................................
3.1 Product Dimensions ......................................................................................................................................................................... 2
3.2 Product Mounting ............................................................................................................................................................................ 2
4. WIRING AND POWER ON ........................................................................................................................................................................
4.1. WIRING ........................................................................................................................................................................................... 3
4.2. Power on ......................................................................................................................................................................................... 4
5. PRODUCT OVERVIEW .............................................................................................................................................................................
5.1 Side panel ......................................................................................................................................................................................... 4
5.2 Bottom Panel .................................................................................................................................................................................... 4
6. USING YOUR RALLAYBAR ......................................................................................................................................................................
6.1 Bluetooth connection ....................................................................................................................................................................... 5
6.2 USB Connection ............................................................................................................................................................................... 5
6.3 AUX connection ................................................................................................................................................................................ 5
6.4 Source Priority ................................................................................................................................................................................. 6
7. ADVANCED USAGE ..................................................................................................................................................................................
7.1 MAP Lights Effect ............................................................................................................................................................................. 6
7.2 RGB Lights Effect.............................................................................................................................................................................. 6
7.3 RGB Lights Brightness Setting .......................................................................................................................................................... 7
7.4 RGB Lights DIY Setting ..................................................................................................................................................................... 7
7.5 Broadcast mode ............................................................................................................................................................................... 8
7.6 Party Mode ....................................................................................................................................................................................... 8
7.7 DEMO Mode ..................................................................................................................................................................................... 8
7.8 DEEP STANDBY MODE .................................................................................................................................................................... 8
7.9 FACTORY RESET ............................................................................................................................................................................. 9
7.10 Firmware Upgrade Service ............................................................................................................................................................. 9
8. SPECIFIATION .........................................................................................................................................................................................
9. TROUBLESHOOTINGS .......................................................................................................................................................................... 1
22
1. INTRODUCTION
Congratulations on your purchase! This manual includes
information about “RALLYBAR S”, “RALLYBAR” and “RALLYBAR
XL” speakers. We encourage you to take a few minutes to read
this manual, which describes general installation guidelines and
operation instructions. Please note that proper installation of
mobile audio and video components require qualified experience
with mechanical and electrical procedures. If you do not have the
knowledge and tools to successfully perform this installation, we
strongly recommend consulting an authorized JBL dealer about
your installation options.
2. WHAT’S IN THE BOX
×1 ×2
×2 ×2
×2
×2
×2×2
×2
×2×2×2
×2 ×4
×1
×1
×1×1
×1×1
×1
1x Soundbar 2x Short M8 screws
2x Security cables 2x Short M5 screws
1xSmall Wrench 2x Long M5 screws
1 x L- Small Allen wrench 2x M5 screw nuts
1xT-handle hex wrench 4X Flat washers
2x Straps with Velcro 2X C -Clamps (2")
1X G -Clamp 2X C -Clamps (1.75")
1x Keychain 2X Thick rubber strips
(for 1.5" pole)
1x 12ft (3.66m) power/
ground wire harness
2x Thin rubber strips
(for 2" &1.75" pole)
2x Rubber top covers 1x Quick start guide
2x Mount cleats 1x Safety sheet &warranty card
3. PRODUCT INSTALLATION
3.1 Product Dimensions
RALLYBAR&RALLYBAR S
21-5/32"
(537.5mm)
4-5/8"
(118mm)
5-5/16"
(135.2mm)
5"
(126.7mm)
RALLYBAR XL
35-11/32"
(897.5mm)
4-5/8"
(118mm)
5-5/16"
(135.2mm)
5"
(126.7mm)
3.2 Product Mounting
1) Top mount view
2) Back mount view
3) Mounting Steps
Step 1 -Choose cleat mounting positions on soundbar.
Note: There are 4 (RALLYBAR /RALLYBAR S), or 8 (RALLYBAR
XL) mounting positions for left cleat and right cleat;
RALLYBAR&RALLYBAR S
1 12
4
3
2
3 4
RALLYBAR XL
1 2 3 4
5678
1 2 3 4
5 6 7 8
Step 2-put cleat on soundbar
1
2
Step 3 -Choose C-Clamps and rubbers based on your
pole size.
Option1:
2" 2"
