Strona 1/19

Page 2

1. Safety.......................................................................................3

2. Power Supply...........................................................................3

3. Package Contents....................................................................3

4. DVR Parts and Definitions........................................................3

5. Hard Drive Installation............................................................3

6. DVR Installation.......................................................................3

7. Login Information....................................................................4

8. Starting Up and Shutting Down...............................................4

9. Set Up Wizard and First Login.................................................4

10. Live View...............................................................................4

Live View Icons..............................................................................................4

Live View Menu.............................................................................................5

Live View Configuration.................................................................................5

11. Setup Menu...........................................................................6

12. Setup Menu: Search..............................................................6

Normal Search...............................................................................................6

Event Search.................................................................................................6

Tag Search....................................................................................................6

Smart Search................................................................................................6

External File Playback....................................................................................7

Playback by System logs...............................................................................7

Additional Playback Functions........................................................................7

Video Save and Backup..................................................................................7

13. Setup Menu: Backup.............................................................8

14. Setup Menu: Storage.............................................................9

General..........................................................................................................9

Advanced (Setting Quota)...............................................................................9

15. Setup Menu: Schedule...........................................................9

Schedule Recording.......................................................................................9

Video Settings...............................................................................................10

Sub Stream...................................................................................................10

Holiday Scheduling.......................................................................................11

16. Setup Menu: Camera............................................................11

Display Settings............................................................................................11

Image Settings.............................................................................................11

PTZ Settings.................................................................................................12

Accessing i3 Camera OSD with PTZ Menu...................................................12

Motion..........................................................................................................12

Privacy Mask...............................................................................................12

Video Tampering...........................................................................................13

Video Loss...................................................................................................13

Video Quality Diagnostics.............................................................................13

VA (Video Analytics)......................................................................................13

17. Setup Menu: System Management......................................14

System Info Settings.....................................................................................14

Network Settings..........................................................................................15

Email Settings...............................................................................................15

Exceptions....................................................................................................15

User Management........................................................................................17

18. Setup Menu: Management...................................................17

System Info Settings.....................................................................................17

Log Information............................................................................................18

Import/Export Configuratio

ns.........................................................................18

Upgrade........................................................................................................18

Default (factory Default settings)...................................................................18

Network Detection........................................................................................19

Storage Detection.........................................................................................19

No part of this manual may be reproduced or transmitted in any form

or by any means, electronic or mechanical, including but not limited

to, photocopying, recording, or by any information storage or retrieval

system, without the prior written permission of the copyright owner and

the publisher.

Disclaimer

This manual guide is provided as is, without warranty of any kind,

expressed or implied, including but not limited to performance,

merchantability, or fitness for any particular purpose. Neither i3

International Inc. nor its dealers or distributors shall be liable to any

person or entity with respect to any liability, loss, or damage, caused or

alleged to have been caused directly or indirectly by this information.

Furthermore, i3 International Inc. reserves the right to revise this

publication, and to make changes to the content at any time, without

notice.

Address:

i3 International Inc.

780 Birchmount Road, Unit 16

Scarborough, ON M1K 5H4

Canada

Tech Support: 1.877.877.7241

Email: support@i3international.com

Web Site: www.i3international.com

Page 3

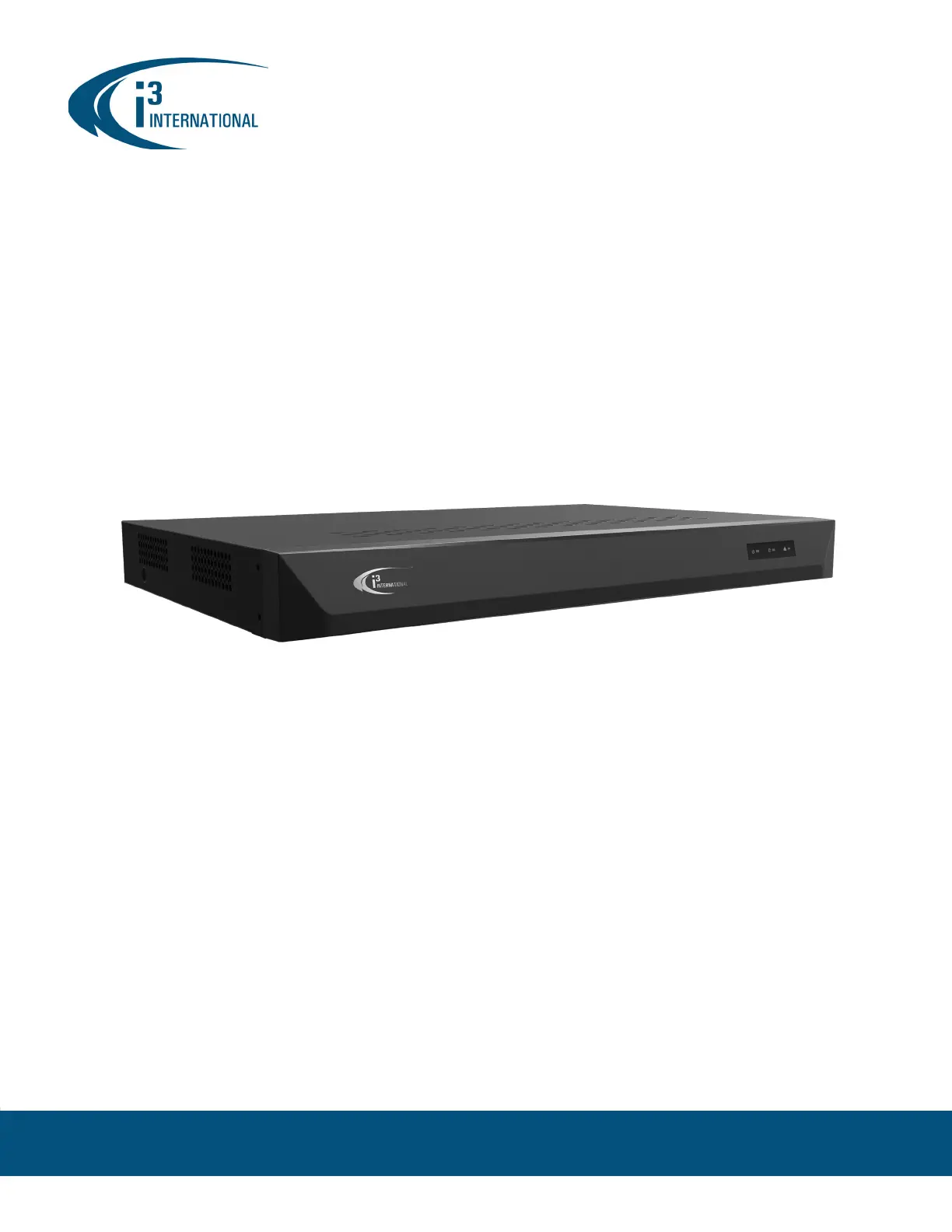

Thank you for purchasing i3 International’s Embedded DVR the Veo17. This is the User

Manual describing the operation of the local machine.

1. Safety

When installing your Veo17 Embedded DVR be sure to avoid:

• excessive heat, such as direct sunlight or heating appliances

• contaminants such as dust and smoke

• strong magnetic fields

• sources of powerful electromagnetic radiation such as radios or TV transmitters

• moisture and humidity

• areas with mechanical vibrations

• fluorescent lamps or objects that reflect light

• unstable light sources as this may cause flickering

• temperatures below -10°C (14°F) and above 55°C (131°F)

2. Power Supply

Veo17 Power consumption requirement: 12V DC, max 30W (without Hard Drives).

4. DVR Parts and Definitions

No. Item Description

1VIDEO IN 16 x BNC connectors for HDTVI & analog video input

2USB Port Universal Serial Bus (USB) for mouse connection

3HDMI HDMI video output connector

4VGA DB15 connector for VGA output, display local video and

5AUDIO IN Audio Input RCA connector

6AUDIO OUT Audio Output RCA connector

7Gigabit LAN/

Network Port

CAT5 network connection port

8RS-485 Interface RS-485 PTZ control connector

912V Power Input 12V DC Power Supply connector (included)

10 Power Switch Power ON and OFF the DVR

11 GND Ground

3. Package Contents

In addition to this Quick Installation Guide and the Veo17 DVR, the packing box includes:

1. Rackmount brackets (x2)

2. SATA flat cables (x2)

3. HDD Power cable (x1)

4. Round-head screw, silver (x8) used to attach the HDD to the inside of the device.

5. 12V DC Power Supply

6. Power Cable

7. Cat 5 Network Cable

8. USB mouse

Back Panel

Front Panel

No. Item Description

1Power Lights Green when DVR is powered on.

2Hard drive Light flashes Red when data is being read or written to

hard drives

3Network Flashes Green to indicate network connectivity

5. Hard Drive Installation

It may be necessary to add hard drives to Veo17. Please follow these steps:

1. Ensure the Veo17 is disconnected from a power source.

2. Make sure you are properly grounded to prevent static electricity from damaging the

equipment.

3. Remove the cover from the DVR by unfastening the screws on the back and side.

4. Connect one end of the data cable to correct connector on the motherboard of the

DVR and the other end to the HDD.

5. Connect the power cable to the HDD.

6. Place the HDD on the bottom of the device and then fasten the screws on the bottom

to firmly attach the HDD to the bottom of the machine case.

7. Re-install the cover of the DVR and secure it by fastening the screws.

The Veo17 is built in a 1U chassis for convenient Rackmount installation. Follow safety

precautions when selecting an installation location for your Veo17 DVR.

1. If using the Rackmount option use existing screws from the chassis to secure the

provided Rackmount brackets to the Veo17 unit, then install the Veo17 DVR into the

server rack. Otherwise find a flat dry dust free surface to place the DVR on.

2. Make sure the Power switch is in the OFF position.

3. Plug the USB mouse into one of the two USB ports on the rear panel of the machine.

4. Plug in the monitor. Depending on the monitor model, use either the HDMI or the VGA

port on the back panel of the machine.

5. Connect the Analog cameras into the VIDEO IN BNC video ports #1-16. Note, that

i3-TVI cameras will have two coaxial cables: 720x480 (D1 quality) and 1MP/2MP

(780P/1080P quality). Make sure you connect the coaxial cable that transmits your

desired video quality.

6. Connect your video inputs PTZ signal cables (where applicable) to the RS-485 block

on the rear

panel of the

DVR. Using

a pointed

object, press

and hold the

orange toggle

portion of

the D+ and

D- RS-485

terminals and

insert the correct PTZ signal cables into the slots below. Release the orange toggle to

secure the cables in place. Ensure a secure and tight cable connection.

7. Connect your Audio IN and OUT devices, if using, to the corresponding RCA

connectors on the rear panel.

8. Plug in the network cable into the Gigabit LAN connector on the rear panel of the

Veo17 and then plug it into the Network.

9. Connect the provided 12V power supply to the 12V DC Power Supply connector and

then plug in the supplied Power Cable into the provided power supply.

10. Plug the power cable into the power source. Use of the UPS (Uninterrupted Power

Supply) is highly recommended by i3 for added reliability and longevity of your DVR.

11. Return the power switch into the ON position. The DVR will power on and the front

panel LEDs will turn on.

6. DVR Installation
