Strona 1/23

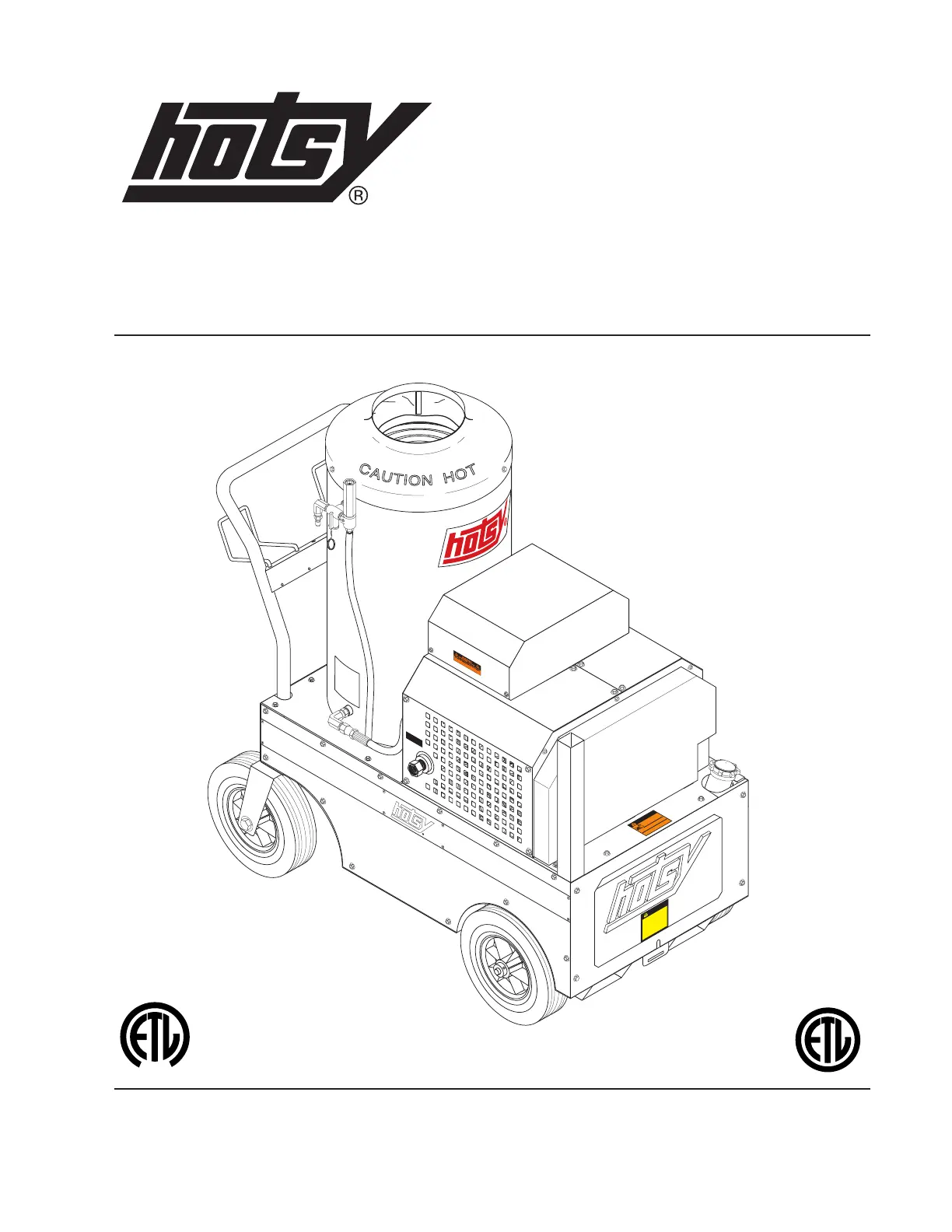

8.921-206.0
OPERATOR MANUAL
FOR TECHNICAL ASSISTANCE OR THE HOTSY DEALER NEAREST YOU,
VISIT OUR WEB SITE AT WWW.HOTSY.COM
800
MOBILE
OIL-FIRED SERIES
®
c
L
I
S
T
E
D
®
89212060-1
US E O NL
Y KEROS EN E, S TOVE OI L O R
DI ES EL F UEL IN THIS
TANK
CAUT ION: RISK OF FIRE — DO NOT ADD FUEL
WHILE MA
CHINE
IS OPE R
ATING OR
WHEN ST ILL H
OT
.
U
NI C
AM E
NTE U SE KER OS ENE , ACEI TE
CO M B U S TIB L
E O D I E
SE
L E
N E ST
E TANQ U E
PREC
AU CIÓN: RIE SGO DE INCE NDIO — NO
A
GREGUE COM
BU S
TIB LE CO N LA MÁ
QUINA OPE RA NDO O AL E S
TAR CALIEN TE .
UTIL IS ER SE ULE ME NT DE KÉRO SE NE,
DE L' HUI LE À PO ELE OU CO MB US TIB LE
DI ÉS EL D ANS CE RÉ SER VOI R
AT T E NT ION
: RIS QUE D E FE
U
. NE PAS AJOUT ER DE C AR
BURANT
LORS
Q
UE L'APP ARE IL ES T E N OPÉ RAT ION OU ENC ORE C H
AU D.
9.800-002.0
CA UTIO N
PR ECAUC IO N /
A
T T ENT I O N
COLD WATER INLET
INGRESO DEL A GU A FRíA
ADMISSION D’E
A
U FROID
9.800-020.0
EXPO S E
D P U LLE YS A
ND
BE
LT S CA
N
CAUSE I NJ UR Y
KEEP CLEAR WHILE MACHINE RY
IS OPERA TING
P
OL
EA S Y CORR
EAS EX
PUES T
AS
PUE
DEN
CAUSAR DAÑO
NO S E ACERQUE SI M
ÀQUINA ES T Á FUNCIONAND O
DES CO
URR
OIES OU
P OULIES EXPOS É ES
PE
UVENT CAUS ER DE S B LESS U RES
NE P
AS S ’APPR OCHER LORS QUE L
’APPAREIL EST EN OP ÉRATION
WARNING
PREC
AUCIÓN / AVE
RTISSEMENT
8.932-965.0
1.109-120.0 821 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/228 GPH
● Pump Pressure At Pump Head: 2300 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 6.2
● Machine Voltage: 208Vac/60Hz/1Ph
● Total Machine Amperage: 33 Amps
● Machine Weight: 582 Lbs.
● Shipping Weight: 632 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-121.0 842 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 2000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 5.0
● Machine Voltage: 208Vac/60Hz/3Ph
● Total Machine Amperage: 20 Amps
● Machine Weight: 572 Lbs.
● Shipping Weight: 622 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-122.0 843 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 2000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 5.0
● Machine Voltage: 230Vac/60Hz/1Ph
● Total Machine Amperage: 29 Amps
● Machine Weight: 572 Lbs.
● Shipping Weight: 622 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-123.0 844 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 2000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 5.0
● Machine Voltage: 230Vac/60Hz/3Ph
● Total Machine Amperage: 19 Amps
● Machine Weight: 572 Lbs.
● Shipping Weight: 622 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-124.0 845 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 2000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 5.0
● Machine Voltage: 460Vac/60Hz/3Ph
● Total Machine Amperage: 10 Amps
● Machine Weight: 641 Lbs.
● Shipping Weight: 691 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-125.0 851 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 8.2
● Machine Voltage: 208Vac/60Hz/1Ph
● Total Machine Amperage: 41 Amps
● Machine Weight: 625 Lbs.
● Shipping Weight: 675 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-126.0 852 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 7.5
● Machine Voltage: 208Vac/60Hz/3Ph
● Total Machine Amperage: 25 Amps
● Machine Weight: 615 Lbs.
● Shipping Weight: 665 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-127.0 853 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 7.5
● Machine Voltage: 230Vac/60Hz/1Ph
● Total Machine Amperage: 37 Amps
● Machine Weight: 615 Lbs.
● Shipping Weight: 665 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-128.0 854 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 7.5
● Machine Voltage: 230Vac/60Hz/3Ph
● Total Machine Amperage: 25 Amps
● Machine Weight: 615 Lbs.
● Shipping Weight: 665 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=52", Width=28", Height=52"
1.109-129.0 855 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 7.5
● Machine Voltage: 460Vac/60Hz/3Ph
● Total Machine Amperage: 14 Amps
● Machine Weight: 615 Lbs.
● Shipping Weight: 665 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-130.0 856 SPECIFICATIONS
● Pump Volume At Pump Head: 4.0 GPM/234 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 343,000 BTU/Hr.
● Burner Fuel Pressure: 150 PSI
● Motor Hp: 8.2
● Machine Voltage: 575Vac/60Hz/3Ph
● Total Machine Amperage: 11 Amps
● Machine Weight: 630 Lbs.
● Shipping Weight: 680 Lbs.
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-131.0 873 SPECIFICATIONS
● Pump Volume At Pump Head: 5.0 GPM/300 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 385,800 BTU/Hr.
● Burner Fuel Pressure: 160 PSI
● Motor Hp: 10
● Machine Voltage: 230Vac/60Hz/3Ph
● Total Machine Amperage: 42 Amps
● Machine Weight: TBD
● Shipping Weight: TBD
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
1.109-132.0 874 SPECIFICATIONS
● Pump Volume At Pump Head: 5.0 GPM/300 GPH
● Pump Pressure At Pump Head: 3000 PSI
● Burner Type: Fuel Oil Fired, 385,800 BTU/Hr.
● Burner Fuel Pressure: 160 PSI
● Motor Hp: 10
● Machine Voltage: 230Vac/60Hz/3Ph
● Total Machine Amperage: 29 Amps
● Machine Weight: TBD
● Shipping Weight: TBD
● Exhaust Stack Size: 8"
● Machine Dimensions: Length=51", Width=28", Height=52"
