Horizon
Renewable Energy Monitor
User Manual
And
Software Reference Guide
2

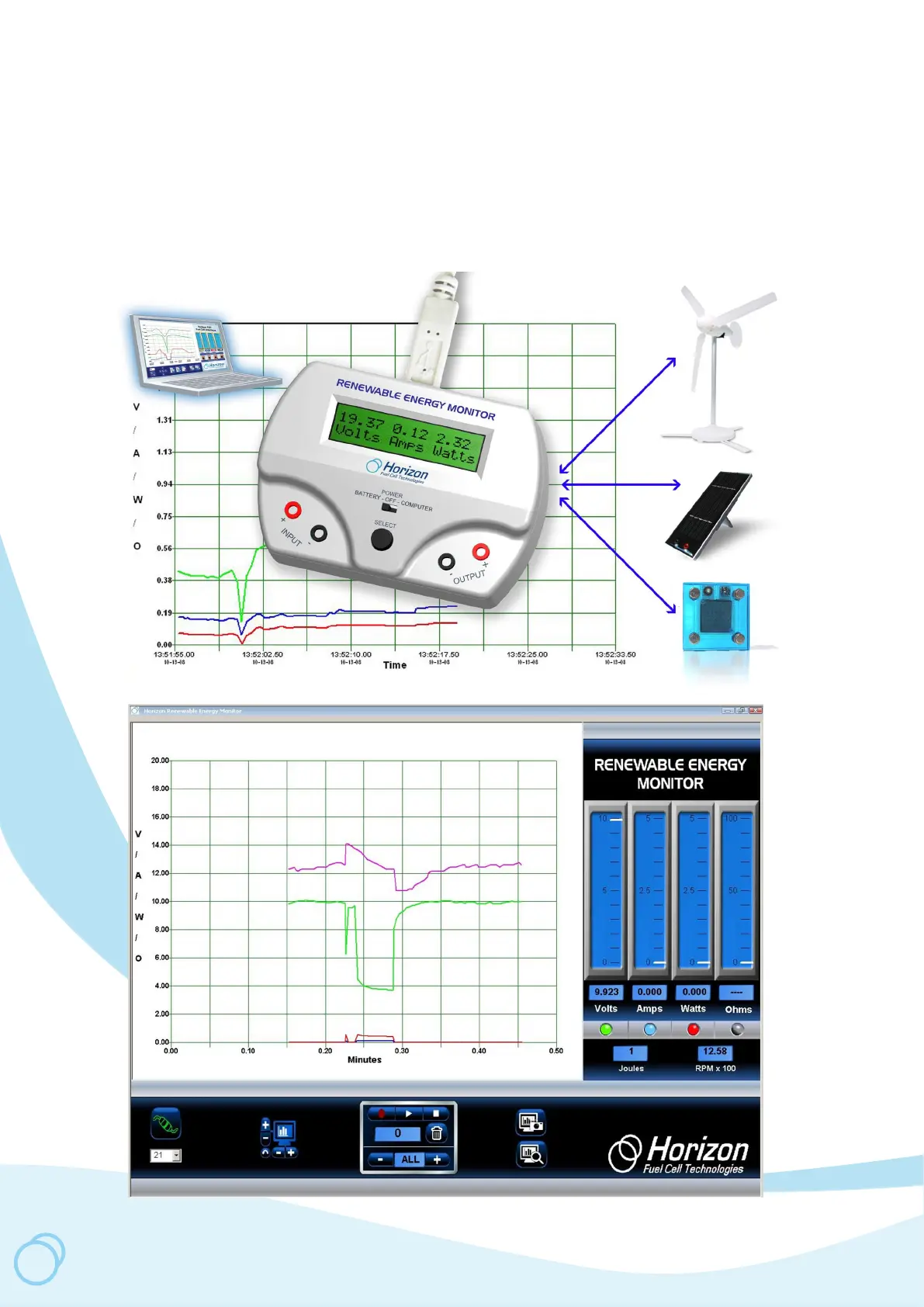

Introducing the Horizon
Renewable Energy Monitor
T h e i s a n R e n e w a b l e E n e r g y M o n i t o r
educational evaluation monitoring device with
PC measurement software for graphical display
of performance characteristics on its own 2 line
LCD screen or your Windows computer. It has a
2 line LCD screen for viewing measurements that
you cycle through just by pushing a button.
And the is battery Renewable Energy Monitor
operated and comes with a USB port so it can
also be used with or without a computer –
indoors or outdoors – where you can make direct
solar and wind measurements.
And its power is in its simplicity!
Horizon developed the Renewable Energy
Mo n i to r to al l o w you t o a v oid usi n g t he
multimeters confusing setup and cumbersome
computations in order to provide an immediate,
graphical way for recording data directly with no
formulas and nothing to calculate. Numerous
experiments and evaluation activities for
hydrogen fuel cells, miniature wind turbine kits,
and solar panels are now quantiable in real time
for voltage, current, power, joules, resistance,
and even wind turbine RPM speed – all viewable
and recordable at the same time!
The is f ully Re n ew abl e En erg y Mo n it o r
compatible with any of Horizon’s educational kits.
Screens
Just push the Select button to cycle
through the following screens:
3
Switches
There are only two switches to operate:
• Battery – OFF - Computer
• Select
Set it to Battery when you want to make your
measurements outside or without using a
computer, or set it to Computer when it’s
plugged into your computer using the supplied
USB cable. And set it to when it’s not in OFF
use.
Push the button to cycle through the Select
four main LCD screens. You can even hold
the button to “freeze” the display if the Select
numbers are changing too fast.
USB Connection
A USB “type B” connector on the back of the unit
allows connection to a Windows PC computer
(MAC computers are not supported at this time).
Power for the Renewable Energy Monitor is
supplied by the PC via the USB cable.
Battery Requirements
The uses a Renewable En erg y Monitor
standard 9 volt radio battery that is easily
replaced when necessary. The LCD screen will
indicate when
Units of Measurements
The measures Renewable Energy Monitor
standard electrical units like voltage, current,
power, energy and resistance. It also
measures the RPM speed of the WindPitch
wind turbine.
Voltage is measured in volts or millivolts
(mV). A millivolts is 1/1000 of a volt but when
seen on the LCD screen it can provide a
more accurate measure of the voltage. For
example…
1.23 volts = 1230 mV
10.456 volts = 10456 mV
Current is measured in amps or milliamps
(mA). A milliamp is 1/1000 of an amp. For
example…
0.003 amps = 3 mA
1.256 amps = 1256 mA
Power is measured in watts or milliwatts
(mW). A milliwatt is 1/1000 of a watt. For
example…
0.034 watts = 34 mW
2.987 watts = 2987 mW
Energy is measured in Joules. Energy is
basically power x time and one Joule is equal
to one watt-second. For example.
21 Joules = 21 watt-seconds or the amount of
power used in 21 seconds.
RPM is a measure of the rotational speed
of the wind turbines blades. RPM is used
in experiments to show how the above
parameters are affected by higher or lower
RPM rates.
i n d i c a t e w h e n t h e
b a t t e r y i s l o w a n d
needs replacement.
B e s u r e t o s e t t h e
s w i t c h t o O F F t o
extend the battery life
when not in use.
