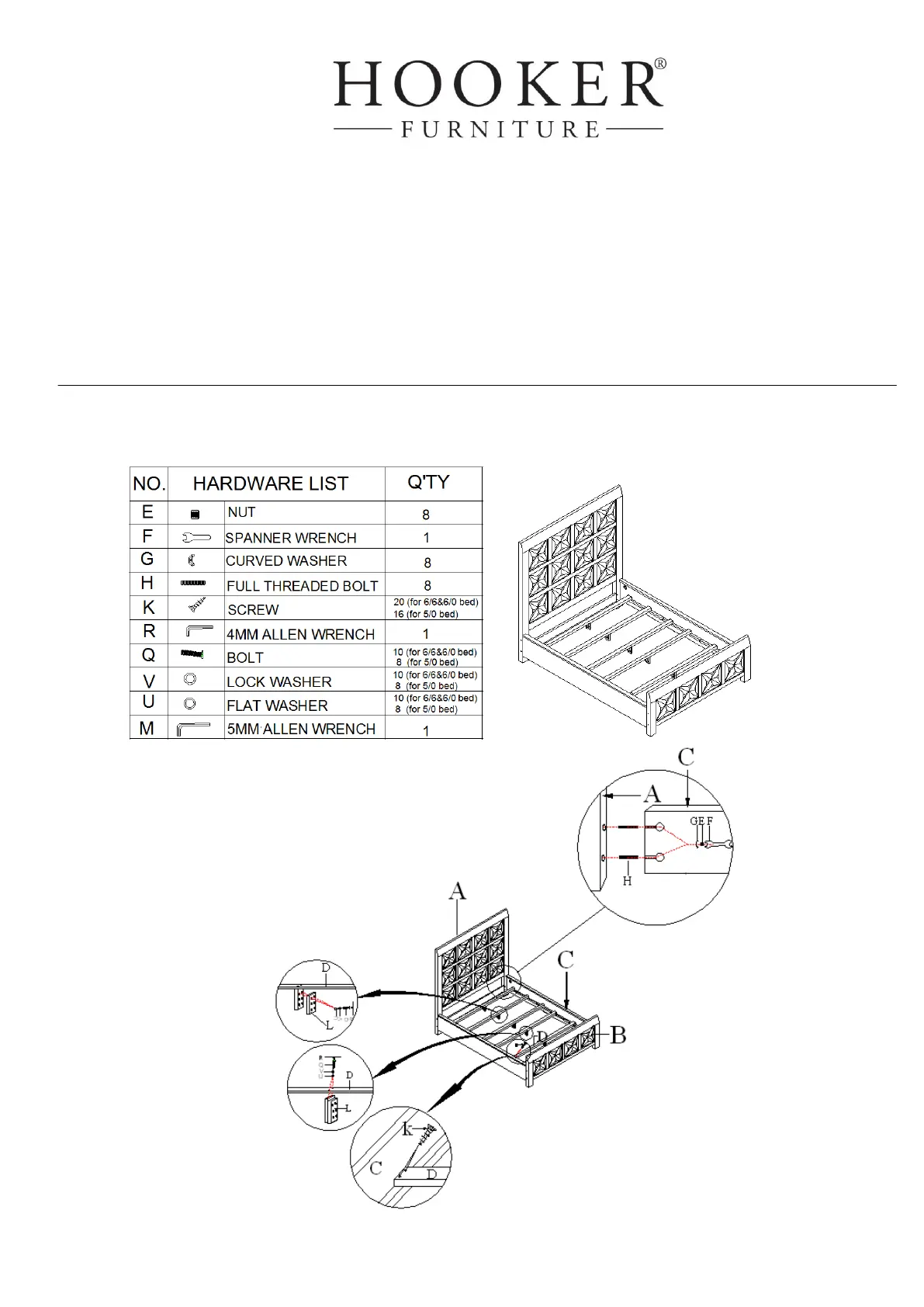

ASSEMBLY INSTRUCTION
ITEM# 1-90251- 5/0 Panel Headboard 575 95
575 90251- 2-95 5/0 Panel Footboard
575 902671- - 6/0 & 6/6 Panel Headboard 95
575 902681- - 6/0 & 6/6 Panel Footboard 95
575 902531- - 5/0 & 6/6 Rails 95
575 902631- - 6/0 Rails 95
Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 5
Diagram 2
Diagram 3
Diagram 1
2/3
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.
Assembly steps:
1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten
nuts (E) securely with spanner wrench (F). (See diagram 1)
Diagram 1
2. Take out center supports (L) from the rail box, attach center supports (L) to slats (D) by using 2
bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R).
(See diagram 2)
Diagram 2
3. Attach slats (D) to side rails (C) and tighten screws(K) on both ends of slats(D) to side rails(C), .
(See 3)diagram
Diagram 3
3/3
Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in
diagram 4. Remove bo s (I), lock washers (O) and flat washers (J) from the cleats by turning lt
the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired
position, and then secure lock washers, flat washers, bolts in clockwise direction by turning
with allen wrench.
Diagram 4
You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the
following steps.
1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise
direction.
Diagram 5
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
