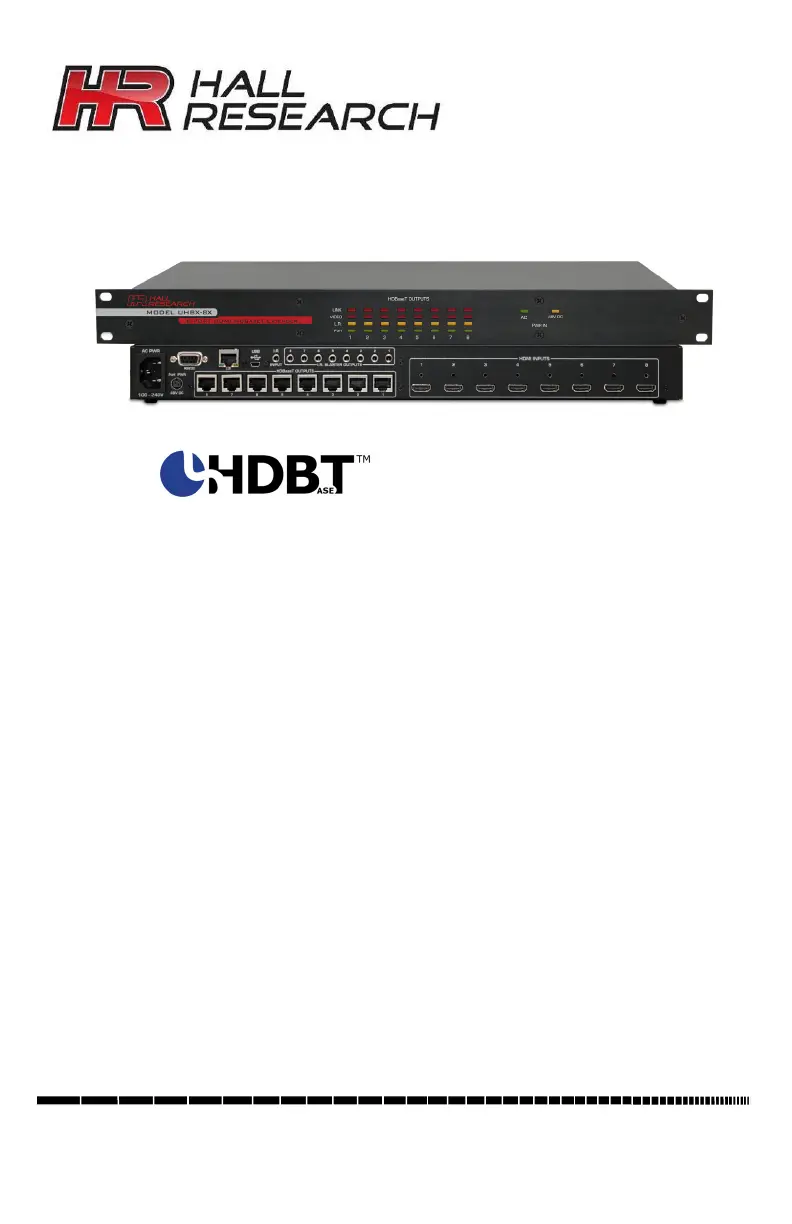

User’s Manual
UHBX-8X
8-Port HDMI Extender on HDBaseT™
with
IR, RS-232, and IP Control
Send 8 HDMI inputs to 8 remote displays up to 500 ft away
Send PoH to power compatible receivers
Extend IR in both directions
Send RS-232 and IR commands to any remote Display
Control unit via RS-232 and IP ports
UMA1213 Rev B
© Copyright 2018. Hall Research, Inc. All rights reserved.
1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698
8-Port HDMI Extender with Power, IR, and RS-232
2
Table of Contents
1.0 Introduction 3
2.0 Features 3
3.0 Setup 4
3.1 Package Contents 4
3.2 Extender Connections 4
4.0 Operation 11
4.1 Front Panel HDBaseT Status Indicators 11
5.0 Control Commands (RS232 and IP) 12
6.0 Troubleshooting 16
7.0 Specifications 18
TRADEMARKS USED IN THIS MANUAL
Hall Research and its logo are trademarks of Hall Research. Any other trademarks
mentioned in this manual are acknowledged as the property of the trademark owners.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment generates, uses, and can radiate radio frequency energy and if not installed and
used properly, that is, in strict accordance with the manufacturer’s instructions, may cause
interference to radio communication. It has been designed to comply with the limits for a Class A
computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are intended to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residential area is
likely to cause interference, in which case the user at their own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
UHBX-8X
3
1.0 Introduction
The UHBX-8X is an 8-Port HDMI extender that converts 8 inputs to
corresponding HDBaseT™ outputs for extension to 150 meters/500 ft on
single UTP. The extender supports HDCP, Deep Color, CEC, and 4K (UHD)
resolutions. Compatible receivers include the economical UH-1BT-R or UH-
1BTX-R for HDMI extension to 230 ft or 330 ft respectively, or the UHBX-
R-PD which supports RS-232, IR, PoH and Long Reach modes to 500 ft.
When using receivers with PoH function, a single optional 48v power supply
is needed for the 8-channel sender (Model # 511-PS4815).
The UHBX-8X provides both IP (Ethernet), and RS-232 ports for control. The
user can address and send RS-232 or IR commands to any of the receivers to
control the remote display. IR signals can also be extended in both directions.
The UHBX-8X can generate IR commands to send to remote TVs but it also
provides an IR detect e detector can be routed to or input. The IR received by th
any particular or combination of outputs. 8 separate IR emitter ports are
provided on the rear of the UHBX-8X The source of these signals would be
IR detectors at each remote location. This would be perfect for controlling
multiple sources in a rack remotely from where the TV’s are located
The extender is constructed as a 1RU rack-mountable unit and has built-in
power supply. LED indicators on the front panel show Link status, Video
status, Long Reach, and PoH Power for each of the 8 outputs. The UHBX-8X
is designed and manufactured in the USA.
2.0 Features
• Converts 8 separate HDMI inputs to corresponding HDBaseT™
outputs
• Extends IR in both directions
• Can issue RS-232 or IR commands to any output (requires
compatible receiver)
• RS-232 and IP control ports
• Supports HDCP, 3D, Deep Color, CEC, and 4 K (UHD) resolutions
• Sturdy 1RU design with built in power supply
• HDBaseT™ Compliant
• Can power compatible receivers through the cable using PoH
(requires optional 48v supply)
• Front panel status indicators for power, link, video and more for each
channel
• Designed and manufactured in the USA
