Strona 1/11

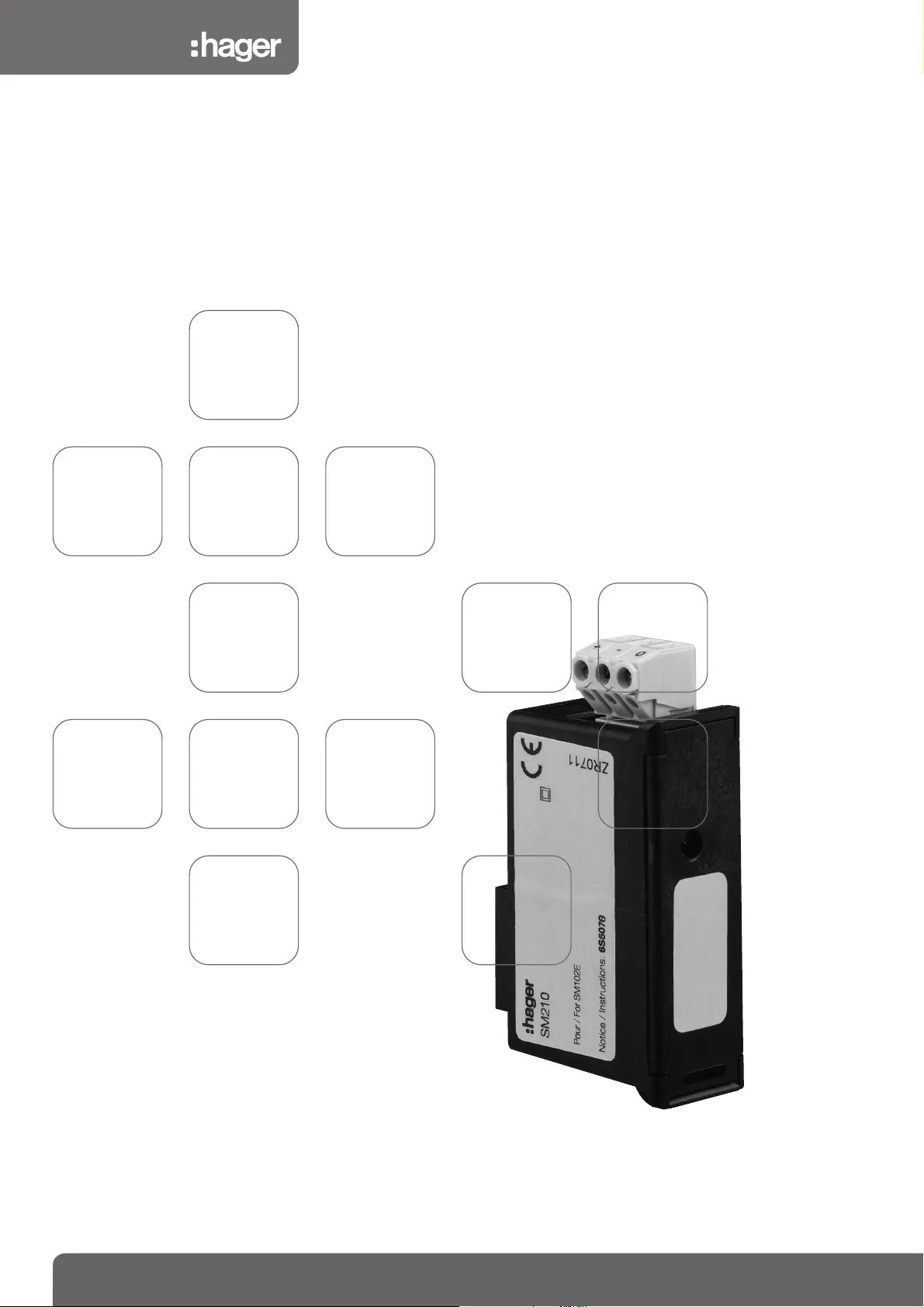

SM210
RS485 - JBUS/MODBUS®for SM102E
§
User instructions

Contents
Preliminary operations ................................................... 1
General informations...................................................... 1
Installation ...................................................................... 2
Programmation............................................................... 3
Acces to programming mode (COde= 100) ....................... 3
Communication address............................................... 5
Communication speed ................................................. 6
Communication parity.................................................. 6
Communication stop bit ............................................... 7
To quit programming ................................................... 7
Communication .............................................................. 8
The standard communications frame............................... 8
Communication table................................................... 8
Technical characteristics ............................................... 8
Glossary of abbreviations.............................................. 8
§

Preliminary operations
1
For personnel and product safety please read the
contents of these operating instructions carefully before
connecting.
Check the following points as soon as you receive the
package:
• the packing is in good condition
• the product has not been damaged during transit
• the product reference number conforms to your order
• the package contains the product and the operating
instructions.
Functions
The optional IP Communication module must be connected
to the SM102E. It provides an RS485 serial link (2 or 3 wires)
with JBUS/MODBUS®protocol for the use of SM102E from
a PC or PLC.
General points
For a standard configuration, an RS485 link is used to
connect up to 31 SM102E or SM103E with a PC or a PLC
over a distance of 1200 metres, using JBUS/MODBUS
®
protocol.
Recommendations
You should use a shielded twisted pair (LIYCY type). In a
disturbed environment or large network (in terms of
length) we recommend the use of a shielded twisted pair
(type LIYCY-CY).
A repeater (1 channel) or an arrestor (4 channels) should
be used if you intend to exceed the distance (1200 m.)
and/or maximum number (31) of SM102E.
Please contact us for more information.
N.B.
A 120 ohm resistance (found on the additional module)
must be fixed at both ends of the link.
N N 1 n
R=120Ω R=120Ω R=120Ω
+ - - +
RS485
R=120 Ω
RS232
N N N 1 2 n
R=120Ω
RS485
R=120 Ω
RS232
General informations
PLC
PLC
~
–1200 M or 32 UL
~
–1200 M or 32 UL ~
–1200 M or 32 UL
Repeater
