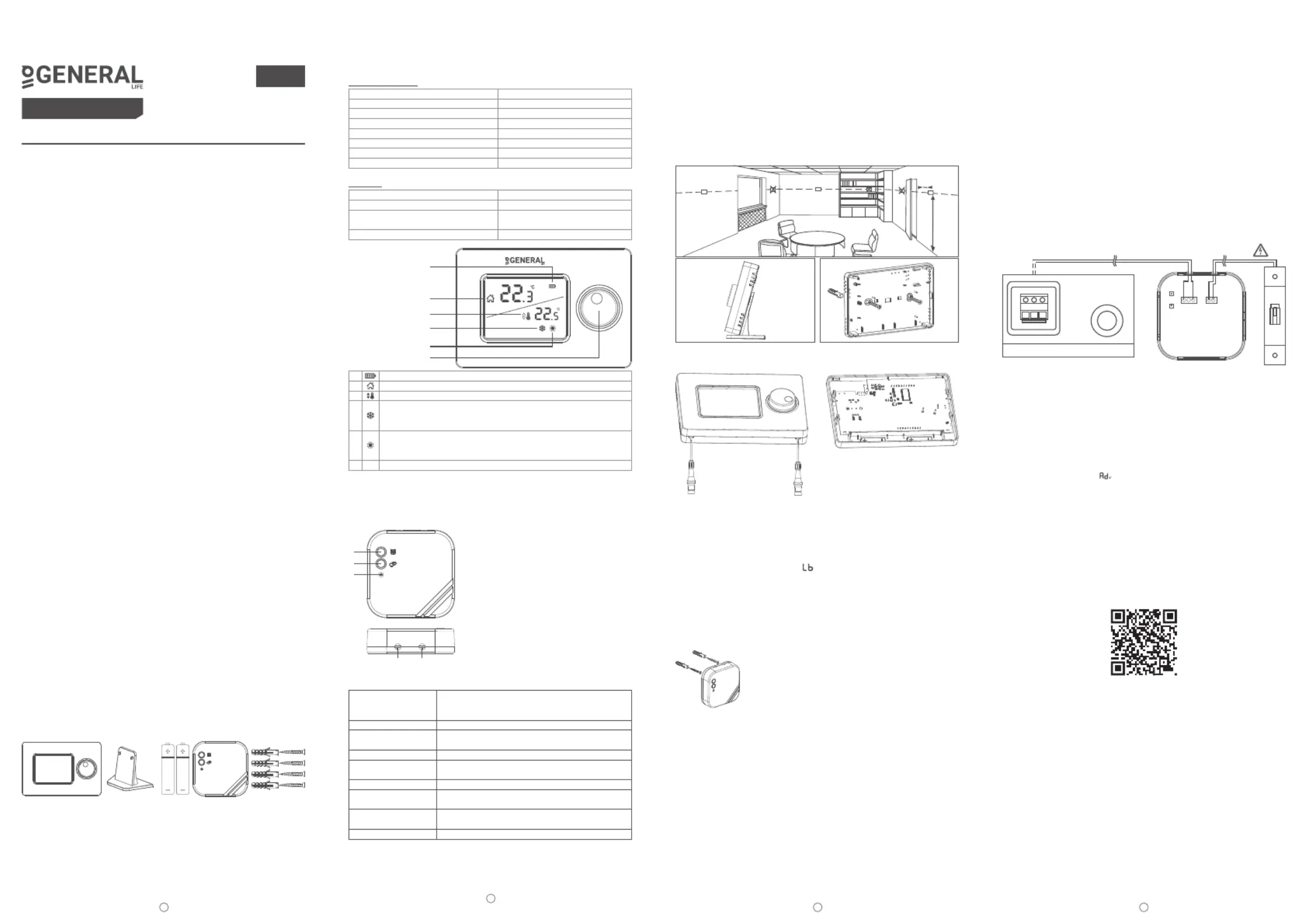

ROOM THERMOSTAT PLACEMENT

The room thermostat needs to be placed in the room which is used most

frequently. For instance; the living room or lounge. Placing the room

thermostat in a spot that has air circulation like the entrance of a room or the

side of the window should be avoided. Also anywhere close to

heating/cooling units such as a radiator, stove, and spots that get direct sun

lights would not be suitable. The room thermostat needs to be located

above the ﬂoor 150 cm in height. Few trials may be made to ﬁnd the most

convenient spot.

BATTERY PLACEMENT

Press the screwdriver forward from the space at the bottom of the room

thermostat, bend the tabs and separate the front cover. Insert 2 new AAA

alkaline batteries in the battery housing with the correct battery direction.

Replace both batteries at the same time. Align the front part of your room

thermostat with the corresponding slot on the back, and then push gently

until the thermostat snaps into place.

Low Battery Warning: When the “ ” icon appears on the screen, it means

“low battery warning”. It is recommended to replace the batteries when this

warning appears.

Warning: When the product is not used for a long period (more than 15 days),

remove the batteries. Otherwise, malfunctions that may occur would be out of

warranty. Please throw your dead batteries into the waste bin for batteries.

RECEIVER PLACEMENT

The important things to note for the Receiver placement

are avoiding physical contact between the receiver and

the heating/cooling unit, and protecting it against

materials such as liquid, dust, etc.

The devices should be placed to minimize the damage to the received and

transmitted signals by paying attention to the following points;

The devices should not be mounted on metal surfaces.

 The devices should not be installed close to electrical cables and

electronic equipment such as computers and television units.

 The devices should not be installed near large metal structures or other

building materials using ﬁne metal meshes such as special glass or

special concrete.

 Distance between the room thermostat and the Receiver should not

exceed 20 meters or 2 ﬂoors.

The receiver must be installed at least 50 cm away from the

heating/cooling unit.

TECHNICAL DATA

Room Thermostat

Receiver

ROOM THERMOSTAT

Note: During active use of the room thermostat, the symbols indicated by 3,

4 and 5 will not appear on the screen.

RECEIVER

RECEIVER LED DESCRIPTIONS

WHAT IS A SMART ROOM THERMOSTAT?

A smart room thermostat is a device that allows you to control your heating

equipment via APP with the internet even when you are not at home.

HOW DOES HT250 SMART WORK?

HT250 SMART is a smart wireless room thermostat. You can control it with

the mobile application after you pair your room thermostat with the receiver,

and complete the installation of the smart receiver.

WHAT ARE THE ADVANTAGES OF THE HT250 SMART?

You can control your home's temperature via its mobile application, no

matter where you are in the world.

You can easily create daily and weekly schedules via its mobile

application.

You can place the room thermostat anywhere in your home, thanks to its

use with batteries.

It ensures that your living space stays at the desired temperature at any

time. In this way, you can save up to 30% on your bills by preventing your

heating unit from working unnecessarily.

RULES THAT NEED TO BE OBSERVED FOR SAFETY

1- Be sure to read the user manual before using the device and its

equipment.

2- Opening, disassembly, or use of plastic parts of the product and

equipment other than the intended purpose are out of warranty.

3- Please make sure that the sockets to which you connect your devices and

equipment are at the recommended voltage value in the user manual.

4- Keep away and protect your product and its equipment from all kinds of

external substances such as liquid, dust, heat, etc.

5- Do not expose the device cables to any jamming and pressure. Take care

to connect the devices' energy connection to the sockets you can always

reach.

6- Turn off the electrical power to prevent damage to your device and

apparatus in case of lightning and thunderstorms.

7- Turn off the electrical power when your device is not used for a long time.

8- Your devices and equipment should be used by paying attention to the

matters stated in the user manual. In case of damage and malfunctions,

arising from improper use (contact with liquid, falling to the ground, etc.)

deﬁnitely ask for the installer's help.

9-Call our service for maintenance and repair of HT250 SMART and its

equipment. Maintenance and repair of the device and equipment should be

carried out only by the technical service of ISIPARK A.S. and its authorized

services, spare parts, and accessories speciﬁed by the company should be

used.

HT250 SMART and EQUIPMENT

3 4

150 cm

min. 20 cm

ENGLISH

generallife.com.tr

SMART ROOM THERMOSTAT

HT250 SMART USER MANUAL

RECEIVER INSTALLATION

First, shut down your heating/cooling unit and your heating/cooling unit's

power source with all electrical current (fuse, socket, etc.)

 As shown in the connection diagram, connect one end of the

heating/cooling unit connection cable to the COM and the other to the NO

input of the receiver.

 Connect the other ends of the cable -which you connected to the receiver-

to the room thermostat connection terminal as shown in your

heating/cooling unit's user manual.

 You must ﬁrst connect the receiver power cable to the receiver and then to

the fuse to which the heating/cooling unit is connected.

 After completing the cable connection process, ﬁrst, turn on your fuse and

then your heating/cooling unit.

Finish the installation of the room thermostat to pair the receiver with the

room thermostat.

RECEIVER WIRING DIAGRAM

Warning!

Operations within the heating/cooling unit or the electrical installation must

be carried out by professionally qualiﬁed persons.

PAIRING THE ROOM THERMOSTAT WITH THE RECEIVER

To pair the room thermostat with the receiver, press the “Manual

Operation Button” and “Wi-Fi Pairing Button” together at the same time

and see the receiver's fast blinking red LED.

Press the button for 3 seconds while your device is turned off.

Press the button until “ ” the pairing menu appears.

Turn your room thermostat's button while the LED is fast blinking red.

If the pairing is successful, the fast red ﬂashing LED on the receiver will be

steady.

The receiver and room thermostat have been paired with each other.

SMART RECEIVER SETUP

For smart receiver setup, download the application from App Store or

Google Play or scan the QR code below with your smartphone. In this way,

you will be able to download the mobile application from App Store or

Google Play to your smartphone. (You may be required to have a QR code

reader application depending on the brand and model of your phone, for

this process.)

Complete the user registration process by opening the mobile application

that you downloaded.

 Open the Bluetooth from your mobile phone's settings.

 After you completed the user registration process, press the “+” button in

the top-right corner of the main screen of the application, Press the

receiver's Wi-Fi pairing button for 5 seconds.

 The LED on the receiver will start to blink green.

 Setup will begin with Bluetooth in the application. When the device is

found, press the “Add” button.

 Press the “+” button near the W Modem device and press the “ ” Next

button after making sure that you entered the correct Wi-Fi information.

Wait until the setup process is completed. When you saw the green

approval symbol on the W Modem, press the “ ” button in the top-right Done

corner.

AA A

85mm / 125mm / 24mm

3V DC (2 x AAA Alkaline Battery)

0.1 C

o o

(-2.0 C) – (+2.0 C)

o o

(5 C) – (40 C)

1 Year (2 x AAA)

o o

(-10 C) – (+50 C)

o o

(-20 C) – (+60 C)

Dimensions (H/L/W)

Operating Current

Temperature Measurement Accuracy

Operating Sensitivity

Operating Temperature Range

Battery Life

Operating Temperature

Storage Temperature

Dimensions (H/L/W)

Operating Current

Relay NO Switching Current

Storage Temperature

HT250 SMART

Room Thermostat Alkaline

Battery

Holder Dowels and

Screws

Receiver

Battery Indicator

Room Temperature

Set Temperature

Cooling Indicator

- If the Cooling Indicator is blinking, the cooling unit is working.

- If the Cooling Indicator is steady, the cooling unit is not working.

Heating Indicator

- If the Heating Indicator is blinking, the heating unit is working.

- If the Heating Indicator is steady, the heating unit is not working.

ON/OFF and Temperature Setting Button

1-Manual Operation Button:

Deactivates the receiver and allows users

to manually use the heating/cooling unit.

2-Wi-Fi Pairing Button:

Makes the receiver ready for smart

installation.

3-Receiver LED Light

4- Receiver Power Cable Input

5- Heating/Cooling Unit Connection Cable

Input

Blinking Red

Fast Blinking Red

Steady Red

Blinking Green

Steady Green

Steady Turquoise

3 Short Red Blinking

3 Short Green Blinking

Blinking Red and Green

The receiver did not get any signal from the

heating/cooling unit for 22 minutes or longer and

the heating/ cooling unit has shut down.

Waiting for a pairing signal from the room thermostat.

The receiver and the room thermostat have been paired.

Smart installation has not been completed.

The receiver is in Bluetooth searching mode.

Smart installation has been completed.

The heating/cooling unit is not working.

The heating/cooling unit is working.

Shut the heating/cooling unit down signal has

reached the receiver.

Operate the heating/cooling unit signal has

reached the receiver.

The heating/cooling unit is working in manual mode.

90mm / 90mm / 25mm

230V AC

7A (240VAC – Resistive Load)

10A (120VAC – Resistive Load)

o o

(-20 C) – (+60 C)

COM

(230V)

HEATING/COOLING UNIT

Click to download.

75 6 8

FACTORY SETT ING RESE T

You can reset your Room Thermostat to its default factory settings. This operation

resets the calibration setting, heating/coling modes and hysteresis settings to

factory setting. To reset your Room Thermostat to factory setting:

While your device is turned off, press and hold the button for 3 seconds.

Press the button until the “ ” menu appears.

While in the “ ” menu, turn the button to right or left in order to select “ ”

option and press the button.

Your device will be turned off and reset to factory settings.

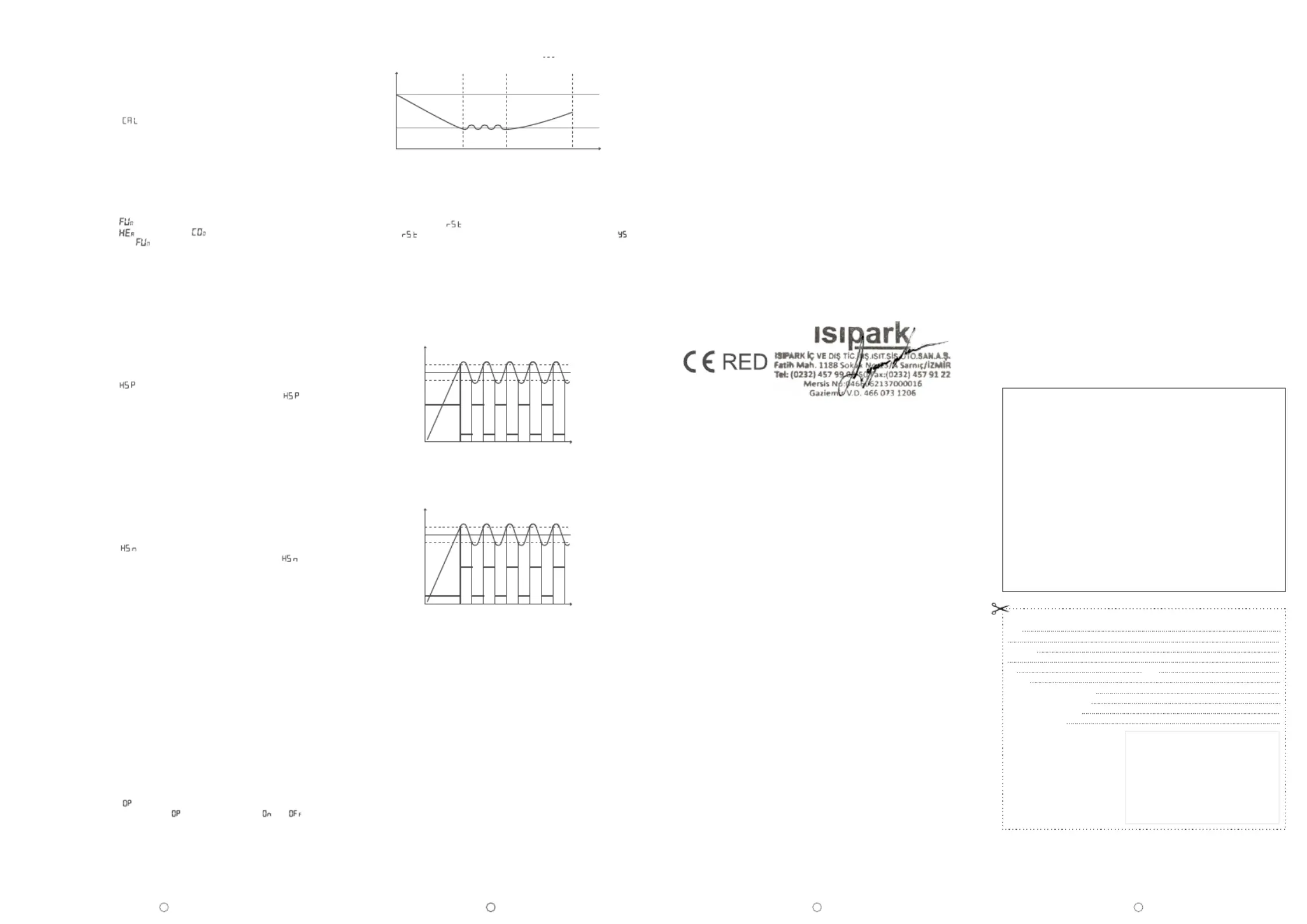

ROOM THERMOSTAT W ORKING LOGIC

Heating Mode

Your room thermostat takes the average room temperature of last 40 seconds as

basis. If the room temperature goes above the hysteresis positive temperature

value you set, your Room Thermostat will stop the heating unit. If it goes below the

hysteresis negative temperature value, your Room Thermostat will start the heating

unit. Thus, it ensures that the room temperature remains within a certain range.

Cooling Mode

Your Room Thermostat takes the average room temperature of last 40 seconds as

basis. If the room temperature goes above the hysteresis positive temperature

value you set, your Room Thermostat will start the cooling unit. If it goes below the

hysteresis negative temperature value, your Room Thermostat will stop the cooling

unit. Thus, it ensures that the room temperature remains within a certain range.

Your Room Thermostat sends the last status signal to the Receiver every 3 minutes.

Thus, your Room Thermostat and Receiver work synchronously. If the signal cannot

reach to the Receiver from the Room Thermostat for 22 minutes, it perceives that

the connection is broken and stops the heating/cooling operation for safety

reasons. Likewise, in cases where the electricity comes back after a power failure,

the Receiver do not operate the heating/cooling unit until 'operate' signal reaches

from the Room Thermostat.

However, in this case, if the Room Thermostat continues to operate normally, it will

continue to work properly without any need for intervention since it sends a status

signal to the Receiver every 3 minutes.

FREQUENTLY ASKED QUESTIONS

Is my Room Thermostat compatible with my heating/cooling unit?

If your heating / cooling unit has on-off connections, your Room Thermostat is

compatible. You can ﬁnd information about your heating / cooling unit from your

heating / cooling unit operating manual or from your heating / cooling unit service.

How will I connect my heating/cooling unit with my Receiver?

We recommend that the connection between the Receiver and heating/cooling unit

should be made by professionally qualiﬁed persons.

2x0.75 mm cable is suﬃcient for the Receiver – heating/cooling unit connection.

Connect one end of the cable pair to the room thermostat connection terminals

stated in the user manual of your heating/cooling unit.

Connect the other end of the cable pair to COM and NO inputs of the terminal inside

the Receiver as shown in the "RECEIVER WIRING DIAGRAM" section.

The direction of the cable ends does not matter.

ROOM THERMO S TAT TE MPER ATU RE CALIB RATION

Temperature sensors which are used in room thermostats are highly sensitive. You

may need to calibrate your room thermostat if you would like to get the same

temperature values as other thermometers in your living space.

While your device is turned off, press the button for 3 seconds.

 Press the button until the “ ” menu appears. To see the desired temperature,

set the temperature difference by turning the button right or left. This value can be

arranged between “-8° C" and “+8°C".

To save the settings and exit, press the button until the device turns off.

Note: Recommended temperature calibration is “0.0 C”.

ROOM THERMOSTAT HEATING / COOLING MODES

Your Room Thermostat has heating and cooling modes. In order to switch easily

between heating and cooling modes:

While your device is turned off, press and hold the button for 3 seconds.

Press the button until the “ ” menu appears.

You can switch between “ ” (heating) and “ ” (cooling) modes by turning

the button to right or left in the “ ” menu.

To save the settings and exit, press the button until the device turns off.

The settings you have made have been saved. Once you turned on your device, it

will operate with the changed settings.

ROOM THERMO S TAT H YS TERESIS POSIT IV E MENU

The hysteresis positive factory setting of your room thermostat is 0.5°C. This value

may be adjusted between “0.1°C” and “2.0°C”. While the hysteresis positive value is

0.5°C, if the room temperature goes above 0.5°C of the set temperature, your room

thermostat will send a signal to your heating/cooling unit. For instance, when you

set your room thermostat to 22.0°C, if the room temperature goes above 22.5°C, on

the heating mode your heating unit will stop working; on the cooling mode your

cooling unit will start working. To change the hysteresis positive setting:

 While your device is turned off, press and hold the button for 3 seconds.

 Press the button until the “ ” menu appears.

 Adjust the operating sensitivity by turning the button right or left in the “ ”

hysteresis positive menu. To save the settings and exit, press the button until the

device turns off.

Changes have been saved. Your room thermostat will be working with set

operating sensitivity when you open your device.

ROOM THERMO S TAT H YS TERESIS NEGATI VE MEN U

The hysteresis negative factory setting of your room thermostat is -0.5°C. This value

may be adjusted between “-0.1°C” and “-2.0°C”. While the hysteresis negative value is

-0.5°C, if the room temperature goes below 0.5°C of the set temperature, your room

thermostat will send a signal to your heating/cooling unit. For instance, when you

set your room thermostat to 22°C, if the room temperature goes below 21.5°C, on the

heating mode your heating unit will start working; on the cooling mode your cooling

unit will stop working. To change the hysteresis negative setting:

 While your device is turned off, press and hold the button for 3 seconds.

Press the button until the “ ” menu appears.

 Adjust the operating sensitivity by turning the button right or left in the “ ”

hysteresis negative menu. To save the settings and exit, press the button until the

device turns off.

Changes have been saved. Your room thermostat will be working with set

operating sensitivity when you open your device.

OPEN WINDO W DET ECT ION FEATU RE

Your room thermostat measures sudden temperature changes in your house with

its open window detection feature and prevents unnecessary energy consumption

by turning off the heating/cooling unit.

The room thermostat is switched to heating mode while the detection is active. If a

decrease in room temperature of more than 5 degrees is detected within 15

minutes, the room thermostat switches to the alarm state and turns off the heating

system.

The heating unit remains switched off for 10 minutes unless manual intervention is

performed on the room thermostat. A warning appears on the mobile application

that an open window has been detected. The heating unit is activated at the end of

10 minutes. If the room thermostat detects that the window is closed, the heating

unit continues to work. If the temperature continues to drop, the heating unit is

turned off again.

If the room Thermostat is operated in cooling mode, a sudden temperature rise is

taken into account.

This feature can be enabled/disabled from the room thermostat settings:

 Press the button for 3 seconds while your device is turned off.

 Press the button until the “ ” menu appears.

 Press the right or left button while in the “ ” menu to choose the “ ” or “ ”

option and press the button.

To save the settings and exit, press the “ON/OFF” button until the device turns off.

The settings you have made are saved. Your device will work with the setting you

have made when you open it.

DECLARATION OF CONFORMITY

ISIPARK İÇ VE DIŞ TİC. İNŞ. ISITMA SİSTEMLERİ OTO. SAN.A.Ş.which Head Oﬃce

and production site is located on Fatih Mah. 1188 Sk.No:13/A Sarnıç - Gaziemir -

İZMİR – TÜRKİYE conﬁrms and declares that the product marked with CE and its

speciﬁcations below is covered by the provisions of the mentioned directive.

Brand

Product Name

Product Type

The product manufactured by ISIPARK and mentioned above is connected

wirelessly at 2.4 Ghz internet and periodically shares the temperature and status

information with the server on the internet.

Compatible Directives:

Radio and Telecommunications Terminal Equipment Regulation

2014/53/EU (ETSI EN 301 489-1 V2.2.3 (2019-11),

ETSI EN 301 489-17 V3.2.4 (2020-09), EN 300 220-1 V3.1.1,

EN 300 220-2 V3.2.1 (2018-06), EN 62479: 2010, EN 62368-1:2014+A11:2017)

Electromagnetic Compatibility Regulation 2014/30/EU

(ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.1.1)

Low Voltage Directive 2014/35/EU (EN 60730-2-9)

Supplementary Information: Mentioned product can be used with combi boilers

with on / off output and compatibility with the directive only covers the product.

ISIPARK is not responsible for the compliance of the entire system with the

directive. This declaration does not apply when changes are made to the product

without obtaining our consent.

WARRANTY CONDITIONS

1- The warranty period starts from the invoice date and warranted against

manufacturing defects for 2 years.

2-Devices and apparatus are delivered to the customer in working condition in our

company. On-site commissioning is subject to a service fee.

3-The repair of the devices and apparatus covered by the warranty is carried out in

our company factory and should send by contracted transportation company. In on-

site services, the transportation and accommodation expenses of the service

personnel belong to the customer. The shift fee during transportation is added to

the service fee and collected in advance.

4-The maintenance of devices and apparatus is done in our company. For the

maintenance of the devices and apparatus, the round travel fares belongs to the

customer.

5-In case of malfunctioning of the devices and apparatus whose warranty period

continues, it is tested in our company whether the malfunction is caused by a

customer or manufacturer fault, and it is reported with a report issued by our

company.

6-In case of detection of manufacturer-induced errors of devices and apparatus

whose warranty period continues, the customer can request a replacement or

repair of the devices and apparatus at full expense by the manufacturer, unless it's

higher than the product's price

7-In the event that the faults of the devices and apparatus whose warranty period

continues are determined as caused by the customer, all expenses would be belong

to the customer.

8-Customers should be aware of damages (if there is any) of product and warn

manufacturer since the day warranty duration starts.If customer do not warn

manufacturer with knowledge of damage, customer lose the rights of article 6.

9-Malfunctions resulting from the use of devices and apparatus contrary to the

matters stated in the User Manual are not covered by the warranty.

10-Devices and their apparatus are out of warranty if they are beaten, broken or

scratched by the customer.

11-Damages resulting from the use of devices and apparatus belonging to other

brands and models without the approval of the manufacturer are not covered by the

warranty.

12-Battery leakage and errors due to rust, oxidation and liquid contact by working in

acidic / humid environments are not covered by the warranty.

13-When the product is not used for a long period (more than 15 days), remove the

batteries. Otherwise, malfunctions that will occur are out of warranty.

14-Damages that may occur during the transportation of devices and apparatus are

not covered by the warranty. Customers can take a transportation insurance.

15-Damages caused by mains voltage / faulty electrical installation are not covered

by the warranty.

16-Devices and apparatuses are out of warranty for malfunctions caused by force

majeure such as ﬁre, ﬂood, earthquake etc.

17-All of the devices and apparatuses, including all their parts, are under the

warranty of our company.

Time

17 C

22 C

Room

Temperature

15 min. 25 min. 40 min.

Off On On

Heating/Cooling Unit

Time

Heating

Unit Off

Heating

Unit On

Set

Temperature

Room

Temperature

22.0 C

22.5 C

21.5 C

Time

Cooling

Unit Off

Cooling

Unit On

Set

Temperature

Room

Temperature

22.0 C

22.5 C

21.5 C

WARRANTY CERTIFICATE

Manufacturer

Title: ISIPARK İÇ DIŞ TİC. A.Ş.

Adsress: Fatih Mah. 1188 Sk. No:13/A Sarnıç

Gaziemir İzmir-TÜRKİYE

Tel: +90 (232) 457 99 50

Fax: +90 (232) 457 91 22

E-Mail: generallife@generallife.com.tr

Authorised Signatory:

Company Stamp:

Product

Type: Smart Room Thermostat

Brand: GENERAL Life

Model: HT250 SMART

Guarantee Period: 2 Years

Max. Time to Repair: 20 Days

Banderole and Serial Number:

Vendor

Title:

Address:

Tel: Fax:

E-Mail:

Invoice Date and Number:

Delivery Time and Place:

Authorised Signatory:

Company Stamp:

Product

Type: Smart Room Thermostat

Brand: GENERAL Life

Model: HT250 SMART

STAMP

V-01.2023

Isıpark reserves the rights of changing product speciﬁcations and user manuals.

*For all changes,you may visit generallife.com.tr

18-In case of malfunction of the devices and apparatuses within the warranty

period, the time spent during repairment period is added to the warranty period. The

repair period of the product cannot exceed 20 working days. This period starts from

the date of notiﬁcation to the service station of the malfunction related to the

product or, in the absence of a service station, to the seller, dealer, agency,

representative, importer or manufacturer of the product. Consumer can report the

problem by; phone, fax, e-mail, registered and reply paid letter or a similar way.

However, in case of a conﬂict, responsibility of prove is belong to the customer. If

the malfunction of the product is not repaired within 20 working days, the

manufacturer-producer or importer; has to allocate another product with similar

features to the use of the consumer until the repair of the product is completed,

19-Although the consumer uses his/her repair rights,

-If the product breaks down for 4 times in a year or 6 times in warranty duration and

these problems effects main purpose of the product.

(starting from delivery time during warranty.)

- Exceeding the maximum time required for repair,

- In the event that the service station is not available, if it is determined that the

repair of the defect is not possible with the report prepared (in order) by one of the

seller, dealer, agency, representative, importer or manufacturer, a refund or a price

discount at the rate of defect can be requested.

20-The customer can make complaints and appeals to consumer courts or

consumer arbitration committees.

21-The warranty document must be kept by the customer during the warranty

period. If the document is lost, a second document will not be issued. In case of

loss, repair and replacement of devices and apparatus will be made for a fee.

: GENERAL Life

: HT250 SMART

: Smart Room Thermostat

Specyfikacje produktu

Marka:	GENERAL Life
Kategoria:	termostat
Model:	HT220

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z GENERAL Life HT220, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje termostat GENERAL Life

GENERAL Life FH10 Instrukcja

7 Października 2024

GENERAL Life HT220S Instrukcja

7 Października 2024

GENERAL Life FC100 Instrukcja

7 Października 2024

GENERAL Life HT270 Instrukcja

7 Października 2024

GENERAL Life HT300 Instrukcja

7 Października 2024

GENERAL Life HT270S Instrukcja

7 Października 2024

GENERAL Life FH25S Instrukcja

7 Października 2024

GENERAL Life HT220 Instrukcja

7 Października 2024

GENERAL Life HT330S Instrukcja

7 Października 2024

GENERAL Life HT250S Instrukcja

7 Października 2024

Instrukcje termostat

Najnowsze instrukcje dla termostat

Siemens RDG100T Instrukcja

15 Października 2024

Junkers TA 21E Instrukcja

14 Października 2024

Oreg AT90E Instrukcja

9 Października 2024

Oreg AT60E Instrukcja

9 Października 2024

Heatit PRO Instrukcja

9 Października 2024

Heatit MULTIREG6 Instrukcja

9 Października 2024

Avidsen HomeFlow W Instrukcja

9 Października 2024

ORNO OR-SH-17701 Instrukcja

8 Października 2024

ORNO OR-SH-17702 Instrukcja

8 Października 2024

STI -9102 Instrukcja

8 Października 2024
