Inspection
The following items are inside the box:
●
UPS unit
●
User manual
Remove the UPS from its package and inspect it for damage that
may have occurred during shipping. If any damage is discovered,
re-pack the unit and return it to the place of purchase.
Connect to Utility Pow er
Connect AC power cord to utility power. Then, the UPS will start to
charge inside battery. For best result, charge the battery for 6 hours
prior to initial use.
Plug in Equipment
Battery Backup Outlets(3)
Connect computer and monitor to the "Battery Backup" outlets.
These outlets provide battery backup, EMI ltering, line
conditioning, and surge protection. Battery power is automatically
provided in case of power failure.
Surge-Protected Outlets(3)
Connect a printer, fax machine, scanner or to the “Surge protected” -
outlets. These outlets do not provide power during power failure.
CAUTION: NEVER connect a laser printer or scanner to the
battery backup sockets of UPS. The equipment may draw
signicantly power to overload the UPS.
Turn On/Off the UPS
To turn on the UPS unit, press the power switch lightly. Then, the
LED or LCD will light up. To turn o the UPS unit, press the power
switch again. Then, display will shut o.
1. LCD display or LED indicators
(Please check LED or LCD
section for the details)
2.
Power switch
3.
AC input
4.
Battery backup outlets
5.
Surge-protected outlets
6. USB port (option)
7.
Modem/phone/network surge
protection (option)
Operation Display
UPS
Mode
LCD
Description
UPS
Power on
When UPS is powered
on, it will enter this
mode for 4 seconds.
AC Mode
LCD information will be
displayed in the
following order when
LCD is touched.
1.
Output voltage
2.
Input voltage
3.
Load level
4.
Battery capacity
Overload
in AC
mode
icon will ash.
When overload occurs,
alarm will beep every
0.5 second.
Battery
Mode
When battery level is low,
icon will ash.
Alarm will beep every
10 seconds and LCD
information will be
displayed in the
following order when
LCD is touched.
1.
Output voltage
2.
Input voltage
3.
Load level
4.
Battery capacity
Overload
in battery
mode
icon will ash.
When overload occurs,
alarm will beep every
0.5 second.
NOTE: If backlight shuts o, you may activate it by touching the
screen.
Fault Code Table:
*Outlet type can be schuko,
UK or universal. 8.
Coax surge protection (option)
LED
Alarm
UPS Status
● Green
O
The mains is normal and
UPS is operated
normally.
★Yellow
Sounding every
10 seconds
Power failure occurs and
UPS is on battery mode.
★Yellow
Sounding every
second
Low battery
○ Green
O
UPS is o.
● Red
Continuously
sounding
UPS fault
●
LED on
○
LED O
★
LED flashing
Fault condition
LCD
Solutions
Output short
circuited
Disconnect short-circuited
loads and restart the UPS
again.
Overload fault
Disconnect all output loads
and restart the UPS again.
Overcharge
Call for service immediately.
Bad or severely
discharged
battery
Please replace the battery.
High output
voltage fault
Call for service immediately.
If fault alarm occurs, please call for service immediately.
SAVE THESE INSTRUCTION-This manual contains important instructions that should be followed
during installation and maintenance of the UPS and batteries.
● This UPS utilizes voltage that may be hazardous. Do not
attempt to disassemble the unit. The unit contains no user
replaceable parts. Only factory service personnel may
perform repairs.
● This pluggable type A equipment with battery already installed
by the supplier is operator installable and may be operated by
laymen.
● The mains socket outlet that supplies the UPS shall be installed
near the UPS and shall be easily accessible.
● During the installation of this equipment it should be assured
that the sum of the leakage currents of the UPS and the
connected loads does not exceed 3.5mA.
● Connection to any other type of receptacle other than a
two-pole, three-wire grounded receptacle may result in shock
hazard as well as violate local electrical codes.
● In the event of an emergency, press the "OFF" button and
disconnect the power cord from the AC power supply to
properly disable the UPS.
● Do not allow any liquids or any foreign object to enter the UPS.
Do not place beverages or any other liquid-containing vessels
on or near the unit.
● This unit intended for installation in a controlled environment
(temperature controlled, indoor area free of conductive
contaminants). Avoid installing the UPS in locations where
there is standing or running water, or excessive humidity.
● Do not plug the UPS input into its own output.
● Do not attach a power strip or surge suppressor to the UPS.
● Do not attach non-computer-related items, such as medical
equipment, life-support equipment, microwave ovens, or
vacuum cleaners to UPS.
● Do not dispose of batteries in a re as they may explode.
● Internal battery voltage is 12VDC.Sealed, lead-acid, 6-cell
battery.
● A battery can present a risk of electrical shock and high short
circuit current. The following precautions should be observed
when working on batteries:
1)
Remove watches, rings, or other metal objects from the hands.
2)
Use tools with insulated handles.
3)
Wear rubber gloves and boots.
4)
Do not lay tools or metal parts on top of batteries.
5)
Disconnect charging source prior to connecting or
disconnecting batteries terminal.
● Servicing of batteries should be performed or supervised by
personnel knowledgeable of batteries and the required
precautions. Keep unauthorized personnel away from
batteries.
● When replacing batteries, replace with the same number and
type of sealed lead-acid battery.
● Do not open or mutilate the battery or batteries. Release
electrolyte is harmful to the skin and eyes. It may be toxic.
● Attention, hazardous through electric shock. Also with dis-
connection of this unit from the mains, hazardous voltage still
may be accessible through supply from battery. The battery
supply should be therefore disconnected in the plus and minus
pole at the connectors of the battery when maintenance or
service work inside the UPS is necessary.
● To reduce the risk of overheating the UPS, do not cover the
UPS' cooling vents and avoid exposing the unit to direct
sunlight or installing the unit near heat emitting appliances such
as space heater or furnaces.
● Unplug the UPS prior to cleaning and do not use liquid or spray
detergent.
● WARNING: This is a category C2 UPS product. In a residential
environment, this product may cause radio interference, in
which case the user many be required to take additional
measures.
MODEL
400
600
800
CAPACITY
400VA/
240W
600VA/
360W
800VA/
480W
Input Voltage
220/230/240 VAC
Input Voltage Range
180-270 VAC
Output Voltage
Regulation
± 10 % (Bat. mode)
Transfer Time
Typical 2-6 ms
Waveform
Simulated Sine Wave
Battery Type
12V/4Ah
12V/4.5Ah
12V/5Ah
Battery Number
1
1
1
Charging Time
8 hours recover to 90% capacity
Dimension (DxWxH)mm
305 x 158.5 x 95
Net Weight (kgs)
2.5
2.6
2.9
Humidity
0-90% RH @ 0-40°C non-condensing)
Noise Level
Less than 40dB
*Specications are subject to change without notice.
If any abnormal situations occur that are not listed above, please
call for service immediately.
Problem
Possible Cause
Solutions
Nothing is
displayed on
the panel.
The UPS is not on.
Press the power switch
again to turn on the UPS.
Battery voltage is too
low.
Charge the battery at least
6 hours.
Battery fault.
Replace the battery.
The UPS
always on
battery mode.
Power cord loose.
Re-plug the power cord.
The UPS
continuously
beeps.
Please check the fault
code for the details.
Please check the fault code
for the details.
Backup time
too short.
Battery voltage is too
low.
Charge the battery at least
6 hours.
Overload.
Remove some unnecessary
loads. Before reconnecting
equipment, please verify
that the load matches the
UPS capability specied in
the specs.
Battery defect.
Replace the battery.
UPS в готовност
400VA/600VA/800VA
Преглед
В кутията ще откриете следните елементи:
●
UPS устройство
●
Ръководство на потребителя
Отстранете UPS от опаковката и го инспектирайте
за повреди, появили се по време на
транспортиране Ако откриете повреди, опаковайте
отново оборудването и го върнете на мястото,
където сте го закупили.
Свързване към захранването
Свържете захранващия кабел за променлив ток към
захранването. След това UPS ще започне да зарежда
вградената батерия. За най добър- резултат, заредете
батерията за 6 часа преди първоначална употреба.
Включване на оборудване
Изходи на резервна батерия(3)
Свържете компютъра и монитора към изходите на
резервната батерия. Тези изходи предоставят резервна
батерия, EMI филтриране, подобрение на линията и защита
от пренапрежение. Батерийното захранване се предоставя
автоматично в случай на проблем със захранването.
Изходи за защита от пренапрежение (3)
Свържете принтер, факс или скенер към изходите за защита
от пренапрежение. Тези изходи не предоставят захранване по
време на проблем със захранването.
ВНИМАНИЕ: НИКОГА да не се свързва лазерен принтер или
скенер към гнездата за резервно батерийно захранване на
UPS. Оборудването може да използва значително количество
енергия и да претоварване на UPS.
Включване/изключване на UPS
За включване на UPS оборудването, натиснете внимателно
бутона на захранването. След това LED или LCD ще светне.
За изключване на UPS оборудването, натиснете бутона на
захранването отново. Дисплеят ще се изключи.
1. LCD дисплей или LED индикатори
(вижте раздел LED или LCD за
повече информация)
2.
Бутон на захранването
3.
Вход за променлив ток
4.
Изходи за резервна батерия
Изходи със защита от
5. Пренапрежение
6. USB порт (опция)
7. / /Модем телефон мрежа, защита
от ( ) пренапрежение опция
8. Защита от коаксиално
пренапрежение (опция)
Работен дисплей
UPS
Режим
LCD
Описание
UPS
Включване
Когато UPS
оборудването е
включено, то ще
влезе в този режим
за . 4 секунди
Режим за
променлив
ток
LCD информация ще
бъде показана в
следната
последователност
при докосване на
LCD.
1. Изходно
напрежение
2. Входно
напрежение
3. Ниво на
натоварване
4. Капацитет на
батерията
Претоварв
ане в
режим за
променлив
ток
При претоварване ще
се активира аларма
0,5 секунди.
Батериен
режим
Когато нивото на
батерията е ниско ,
иконата мига ще .
Алармата звучи ще
на всеки 10 секунди и
LCD информацията
ще бъде показана в
следната
последователност
при докосване на
LCD.
1.
Изходно
напрежение
2.
Входно
напрежение
3.
Ниво на
натоварване
4.
Капацитет на
батерията
Претова
рване в
батерие
н режим
При претоварване ще
се активира аларма
0,5 секунди.
БЕЛЕЖКА: ако подсветката изгасне можете я активирате , да
като докоснете екрана .

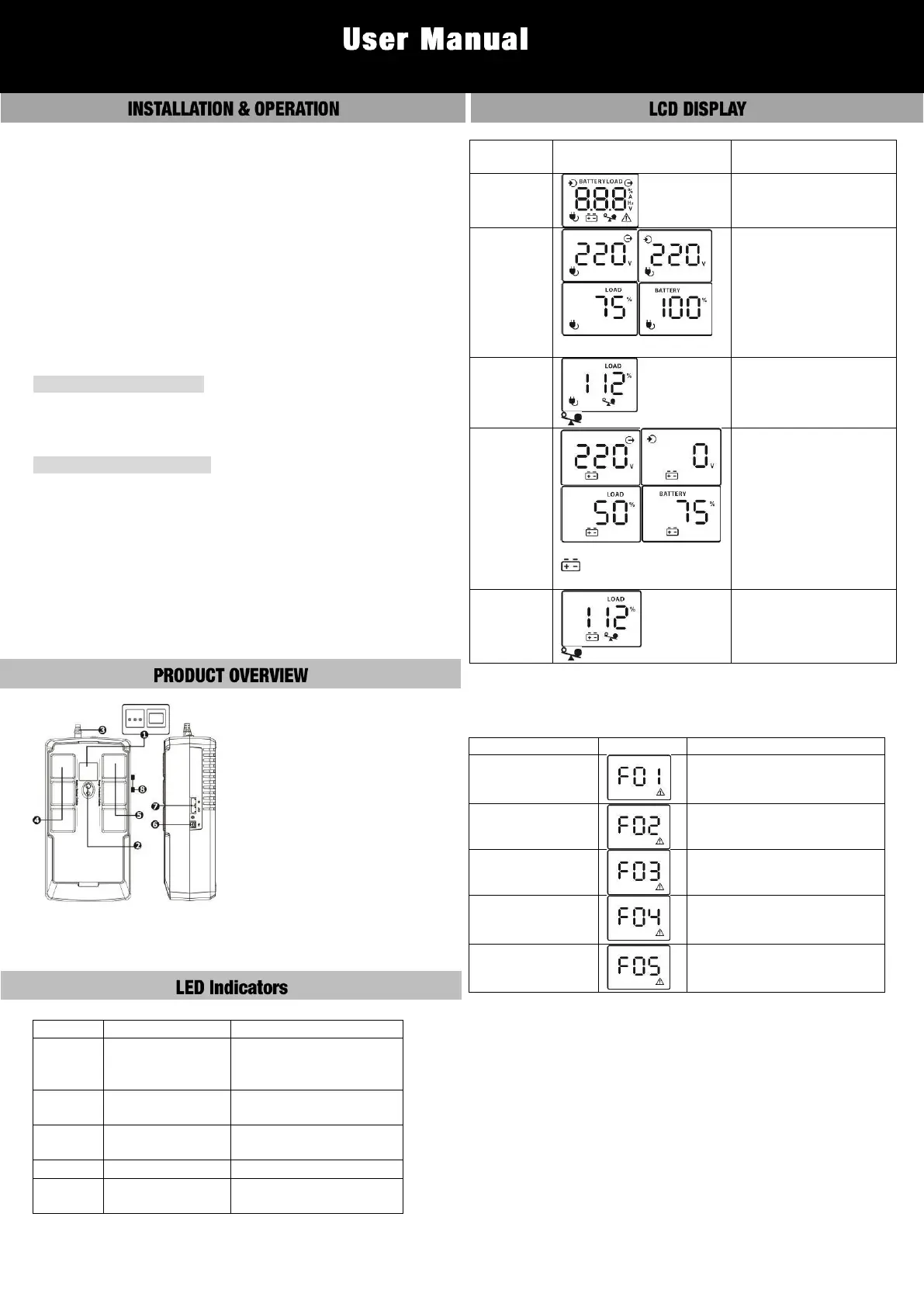

Таблица с кодове неизправности на :
Състояние на
неизправност
LCD
Решения
Късо съединение на
изход
Изключете съединени
накъсо натоварвания и
рестартирайте отново
UPS.
Неизправност
претоварване
Изключете всички
външни натоварвания и
рестартира отново
UPS.
Претоварване
Свържете незабавно се
с обслужване .
Лошо или сериозно
разредена
батерия
Моля сменете
батерията.
Неизправност високо,
изходно напрежение
Свържете незабавно се
с обслужване .
LED
Аларма
Състояние на UPS
●
Зелено
Изключено
Захранването е
нормално и UPS
работи нормално.
★Жълто
Звучи на всеки 10
секунди
Неизправност в
захранването и UPS е
в батериен режим.
★Жълто
Звучи на всяка
секунда
Ниско ниво на
батерията
○
Зелено
Изключено
UPS е изкл.
●
Червено
Звучи непрекъснато
UPS неизправност
* Типът на изхода може
да schuko, UK бъде или
универсален.
икона мига ще .
икона мига ще .
●
LED вкл
○
LED .изкл
★
LED мига
При активиране на аларма за неизправност, незабавно се
обадете за ремонт.
Specyfikacje produktu
| Marka: | FSP |
| Kategoria: | UPS |
| Model: | NanoFit 800 |
Potrzebujesz pomocy?
Jeśli potrzebujesz pomocy z FSP NanoFit 800, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą
Instrukcje UPS FSP
3 Października 2024
3 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
2 Października 2024
Instrukcje UPS
- UPS Ikea
- UPS AEG
- UPS Voltcraft
- UPS LC-Power
- UPS APC
- UPS Tripp Lite
- UPS Block
- UPS V7
- UPS Digitus
- UPS Online USV
- UPS Equip
- UPS Emerson
- UPS CyberPower
- UPS JUNG
- UPS Eaton
- UPS Adj
- UPS PowerWalker
- UPS Salicru
- UPS Energenie
- UPS Steren
- UPS East
- UPS Liebert
- UPS Avocent
- UPS Minute Man
- UPS Furman
- UPS Minuteman
- UPS Riello
- UPS Maruson
- UPS Phoenix Contact
- UPS Puls Dimension
- UPS Vanson
- UPS Approx
- UPS Altronix
- UPS Bxterra
- UPS Middle Atlantic
- UPS Atlantis Land
- UPS FSP/Fortron
Najnowsze instrukcje dla UPS
12 Października 2024
12 Października 2024
12 Października 2024
12 Października 2024
12 Października 2024
12 Października 2024
12 Października 2024
12 Października 2024
11 Października 2024
9 Października 2024
