Strona 1/21
Français page 9
Focal-JMlab ® - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal-fr.com
Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04
Due to const ant t echnological advances, Focal reserves its right to modif y specifications wit hout not ice. Images may not conform exactly to specific product.

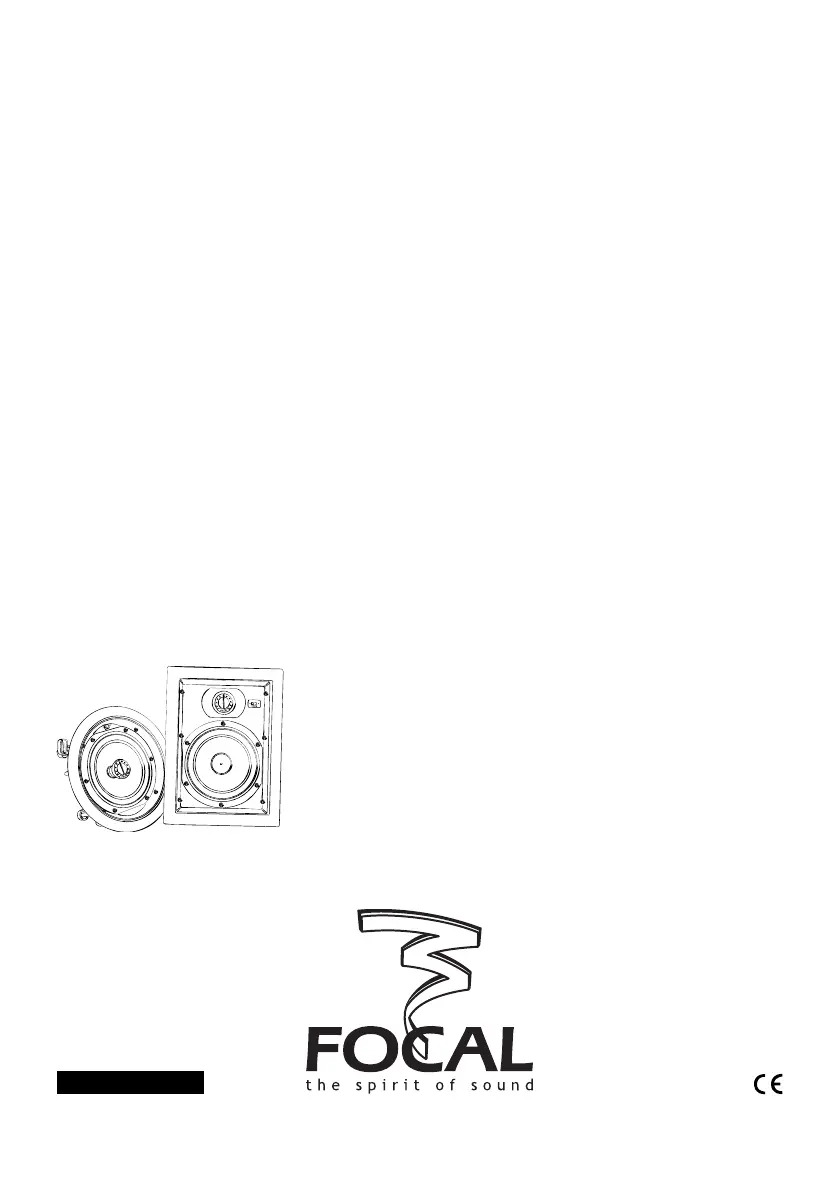

Chorus IW 706 V / IC 706 V user manual
Aluminum/magnesium alloy TNA
inverted dome tweeter®:
the tweeter of the Chorus V benefits
from the inverted dome technology,
which is exclusive to Focal-JMlab. It
allows optimal energy transfer and
wide dispersion. The aluminum/
magnesium alloy making up of
the dome guarantees exceptional
performances in terms of stiffness and
damping thus ensuring a subtle blend
of softness and dynamics.
Polyglass® cone woofer and mid-
bass:
impregnated paper cones with a fine
layer of silica micro-balls for a fully
dynamic bass impact, precise and
distortion-free.
OPC® (Optimum Phase Cros-sover):
phase optimization for a precise,
natural and stable soundstage and
image.
Wall Boost Control:
to reduce the "wall effect" inherent
to any built in speaker, we have
developed a wall boost equalization
circuit which corrects this phenomenon
and makes it easier to position your
speakers to suit your preferences.
Adjustable aluminum inverted
dome tweeter:
detailed and non directive.
Easy integration:
the aluminum grille and reinforced
ABS chassis can be painted.
Optional mounting kit
Design to work in wet environment:
In kitchen, bathroom… Ideal for
installations in yachts.
Thank you for choosing the Chorus V
In Wall/In Ceiling loudspeakers.
We are pleased to share with
you our philosophy : “the Spirit of
Sound”. These high-performance
speakers feature the latest
technical developments from
Focal in terms of speaker design,
whether it is for high fidelity or
home theater systems. In order
to (make the most of these
speakers) enjoy the maximum of
their performance, we advise you
to read this user’s manual and to
keep it carefully so that you can
consult it later.
To ensure optimal performance
from your loudspeakers, we highly
recommend that installation is
carried out by a professional.
They will be able to advise on
the best placement within your
listening environment and adjust
your system to achive the highest
possible sound quality.
Included inside:
• 1 x In wall or in ceiling loudspeaker
• 1 x removable metal grille in wich a
removable driver mask is located
• 1 x wall cut-out template
• 1 x protective mask for use when
painting the grille
The Focal-JMlab guarantee
only applies if the enclosed
guarantee card is returned to
us within 10 days of purchase.
B
D
E
A
C
02
Installation
The Chorus input sockets ensure
reliable multipurpose connections for
stripped cables as well as for plugs. It
is imperative to respect the connector
polarity of both the loudspeaker
and amplifier. The positive terminal
“+” must be connected to the
corresponding (matching) amplifier’s
terminal and the negative terminal
“-“ to the negative terminal . (fig. A)
Stereo image, soundstaging and
bass perception would be seriously
compromised if these conditions were
not respected. Don’t underestimate
the importance of the cable: make
sure you chose the appropriate
section and length. Let your retailer
advise you.
About amplifiers
Contrary to what one might think, it
is not a too powerful amplifier that
might damage a loudspeaker, but
rather a lack of power. Actually if the
output level of the amplifier is too
high it will saturate and distort which
will irremediably damage the tweeter.
The power handling and frequency
response of the Chorus loudspeakers
is good enough to highlight the
qualities or weak points of the
amplifiers they are combined with. Let
your retailer help you make the right
choice, matching your personal taste
and budget.
Mounting
This should be carried out after all
of the cables have been fitted. We
recommend that you use a marked
cable in order to conserve the polarity
of the speakers (+/-).
Existing construction:
• Cut the dry wall using the template
supplied . Be sure to check (fig. B)
that this is perfectly vertical using a
spirit level before you begin cutting.
• Check construction plans of your
room to make sure that you are
not drilling into a pipe, an electrical
cable or any other specialised
installations behind the wall.
New construction:
• Use the dedicated mounting kit.
• Route the connection cables before
installing the plasterboard.
• Ensure that the speakers are con-
nected before installing them into
the wall!
Fixing
The loudspeaker is firmly fixed into
the wall using a system of clamps.To
achieve this, place the speaker into
the cut-out and tighten the fixing
screws in a clockwise direction using a
cross-head screwdriver (fig. C, D, E).
Wall Boost Control
Your loudspeakers use an exclusive
filtering process known as OPC
(Optimum Phase Crossover) guaran-
teeing a perfect stereo image and
outstanding sound definition. Ad-
ditionally, in order to reduce the "wall
effect" inherent to any built in speaker,
we have developed a wall boost
equalization circuit which corrects
this phenomenon and makes it easier
to position your speakers to suit your
preferences.
03
