Strona 1/22

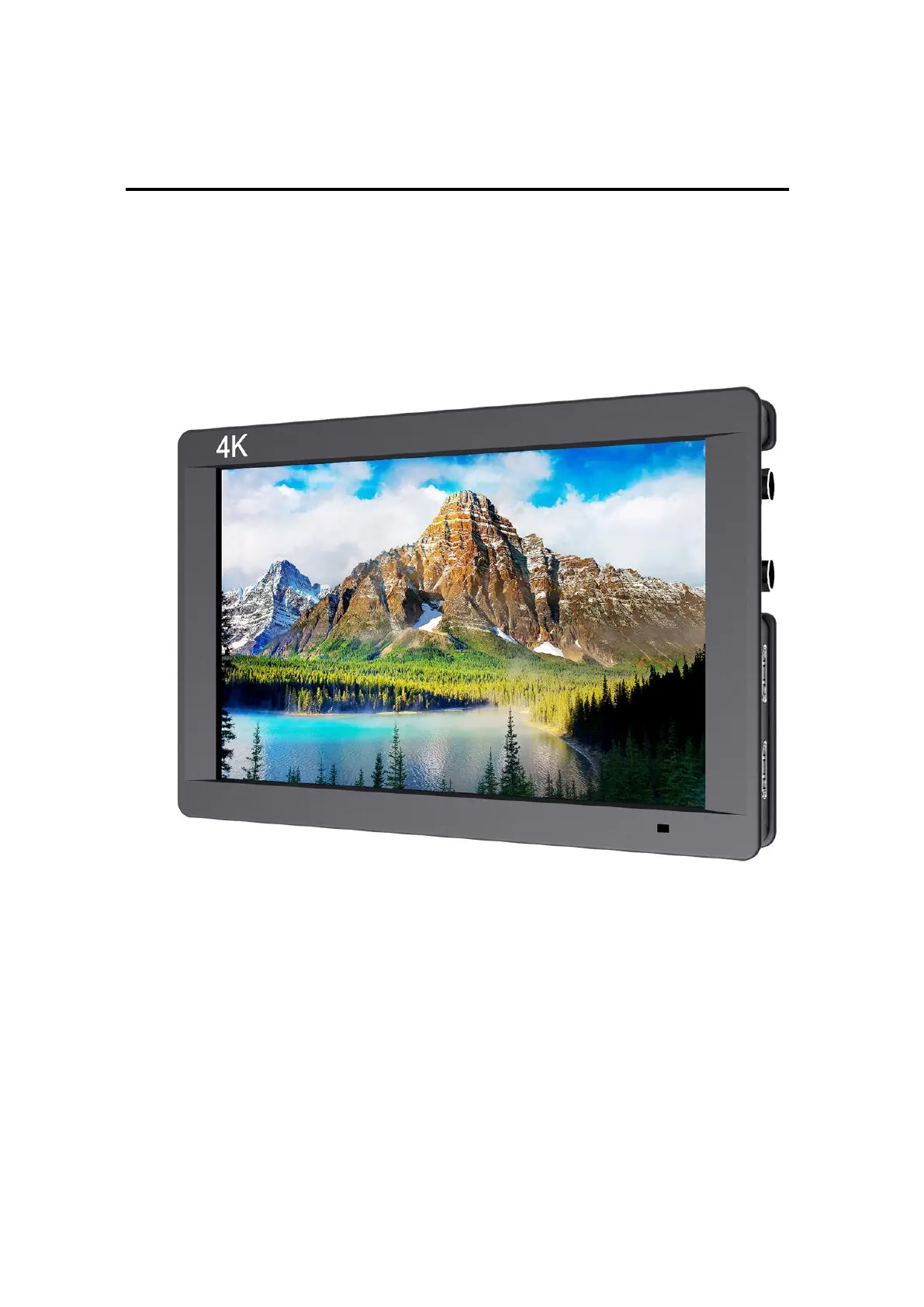

7" Full HD SDI On-camera Monitor

Support 4K HDMI Input/ Output

User Manual

Product Overview

Thank you for purchasing our photography, broadcasting kits color

LCD monitor, which adopts advanced integrated digital signal

processing circuits and professional IPS LED panel, which makes it

high brightness, low power consumption, stable performance, etc. It

is equipped with SDI, HDMI input and output, which make it wide

application, casing compact, simple operation, portable

convenience and strong compatibility.

Advanced features include Histogram, False Colors, Zebra

Exposure, Focus Assist, Nine Grid, Embedded Audio, Center

Marker, Safe Frames, Color Temp., Picture Setting, Color Setting

etc., ideal portable lightweight as viewfinder and video monitor.

The monitor is equipped with an external battery plate; you can use

the power adapter supply or use the external battery for power

supply.

To insure the best use of the unit, please read the

user’s manual carefully

CAUTION

● Please avoid the heavy impact and drop onto the ground when

move the product.

● Please do not cover the vents and holes on the enclosure and

do not place the machine on a bed, sofa, and rug to ensure

good ventilation. Otherwise it will lead to overheating and

reduce the service life.

● The screen of this product is made of glass. Please do not drop

the screen towards the ground. Keep away from injury if the

screen is broken.

● Keep the product away from the heat source, such as the

radiator, the water heater, the stoves and the other heating

products.

● Avoid the prolonged exposures to the sun as the LCD screen

will be damaged.

● Please use the qualified adapter or battery if need.

● To avoid damaging the product, please do not take apart or

repair the unit by yourself without the adjustable components in

the unit.

● To maintain the LCD screen better, please notice the ways as

below to avoid the scratch, the discoloration and the other

damages.

1. Please refrain from using the hard objects to hit the screen.

2. Please do not force to wipe the screen.

3. Please do not use the chemical solutions to clean the screen.

4. Please do not spray any detergent on the screen.

5. Please do not write on the screen directly.

6. Please do not stick on the screen.

7. Please simply wipe with a clean soft cloth and make sure no

water on the screen.

● To protect the plastic cover better, please follow these ways as

below to avoid the damages;

1. Please do not use the chemical solutions to clean the cover.

2. Please keep away from the volatile things.

3. Please keep away from the rubber.

4. Please do not clean the case hard.

5. Please simply wipe with a clean soft cloth and make sure no

water on the cover.

Specyfikacje produktu

Marka:	Feelworld
Kategoria:	dyktafon
Model:	FW703
Kolor produktu:	Czarny
Wysokość produktu:	120 mm
Szerokość produktu:	180 mm
Głębokość produktu:	22 mm
Waga produktu:	320 g
Szerokość opakowania:	222 mm
Wysokość opakowania:	158 mm
Głębokość opakowania:	76 mm
Długość przekątnej ekranu:	7 "
Zakres temperatur (eksploatacja):	-20 - 55 °C
Rozdzielczość:	1920 x 1200 px
Ekran dotykowy:	Tak
Wyjście na słuchawki:	Tak
Napięcie:	6.5 - 24 V
Zakres temperatur (przechowywanie):	-30 - 65 °C
Ilość portów HDMI:	1
Technologia wyświetlacza:	IPS
Typ zasilacza:	Bateria/DC
Jasność:	450 cd/m²
HDMI in:	1
Podświetlenie LED:	Tak
Format obrazu:	16:9
Wyjście HDMI:	Tak
Ilość wejść 3G/HD/SD-SDI:	1
Ilość wyjść 3G/HD/SD-SDI:	1
