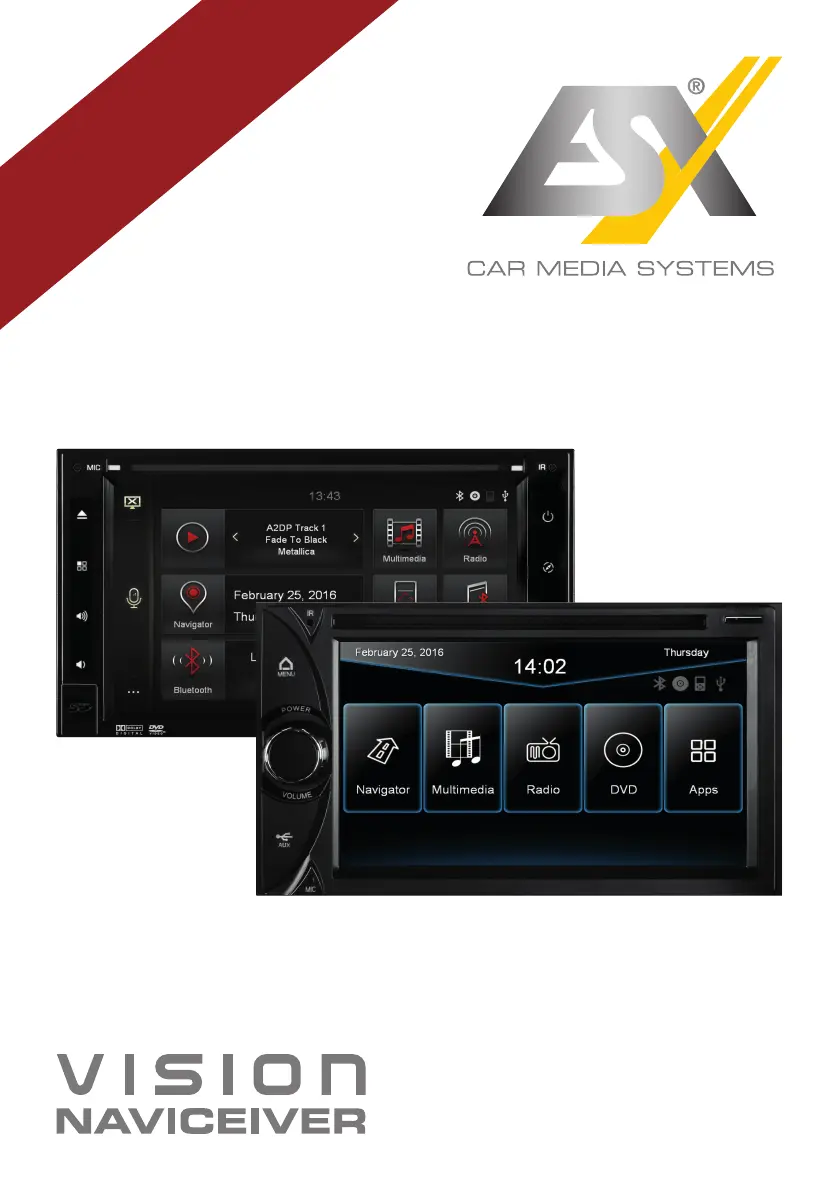

Strona 1/60

V1. 1

15,7 CM (6.2”) DOPPEL-DIN

TOUCHSCREEN NAVICEIVER

15,7 CM (6.2”) DOPPEL-DIN

TOUCHSCREEN NAVICEIVER

VN620W

VN620D

OWNER‘S

MANUAL

INSTALLATION GUIDE

Always follow the instructions in this manual before using the device. Please keep this manual easily

accessible in the vehicle for future reference.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. iPod and iPhone are trademarks of Apple Inc.. The Bluetooth word mark is

registered trademark owned by Bluetooth SIG, Inc. Other trademarks, trade names or brands are the property of their respective owners.

Features

• iGo Primo, 3D Navisoftware with TMC on 8GB SD card, 46 countries including Turkey with Points of

Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and

prompt languages. Latest Map Guarantee (30 days) after activation via .www.naviextras.com

• High-resolution 15.7 cm (6.2“) LCD touchscreen display with 800 x 480 pixels

• Advanced i20 operating system based on Microsoft Windows CE 6

• MTK Dual Core Cortex A9+A11 800 MHz CPU, 256MB DDR3 RAM, 256MB NAND Flash RAM

• Audio ampliﬁer with 4 x 50 Watts max.

• Pre-ampliﬁer outputs 2 x Front/2 x Rear/Subwoofer

• DSP-Audioprocessor with 10-Band-Equalizer

• Bluetooth™ handsfree, phone book synchronization and A2DP audio streaming

• Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX/FLAC etc.), supports FullHD 1080p (1920 x

1080) playback

• Quick-Boot (approx. 10 seconds)

• Support ACC Logic: the device can be operated up to 30 minutes without ignition

• DVD-Player (DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-Text, CD-R/RW, MP3)

• Radio AM/FM with RDS function (supports Europe, Northamerica, Asia)

• Virtual Disk to convert audio CDs into MP3 format

• E-LINK mirror function with compatible Android smartphones

• Quick Charge USB function with up to 2.1A charge current

• Voice control (except navigation)

• Custom design function (wallpaper, startup logo, menu)

• Several design themes (skins) for customizing the user interface

• Individually adjustable pre-channel volume for each application

• File manager with an open ﬁle structure, photo slideshow

• MicroSD card slot and USB port with copy function

• Integration of external applications (Compatible with Windows CE 6)

• Date/time function, 12/24 hrs. display

• 3 x Audio/Video output

• 2 x Audio/Video input

• Front and rear camera inputs

• Supports original factory AUX-In and USB-Port

• Supports analog steering wheel controls

• Supports 2D-/3D navigation maps with TMCpro function

• Supports external TV or radio receivers (DVB-T, DAB, etc.)

• Supports iPod / iPhone™ with ID3 tag display via USB (compatible with iPhone 5/6), with media library,

cover display and ID3 Tag display

INTRODUCTION

Scope of delivery .....................................................................................................................................4

Safety Information ...................................................................................................................................6

Basic functions ........................................................................................................................................8

Operating elements .................................................................................................................................8

Main menu ...........................................................................................................................................10

Navigation .............................................................................................................................................11

Multimedia player .................................................................................................................................12

Radio ....................................................................................................................................................14

DVD (DVD/CD player) .............................................................................................................................17

Applications ..........................................................................................................................................18

– Bluetooth™ .......................................................................................................................................19

– LinkPod .............................................................................................................................................21

– AV/TV .................................................................................................................................................23

– A2DP .................................................................................................................................................24

– Audio .................................................................................................................................................25

– Files ...................................................................................................................................................28

– Virtual Disk ........................................................................................................................................29

– E-Link ................................................................................................................................................31

– Quick Charge .....................................................................................................................................32

– Option ................................................................................................................................................33

Custom settings .....................................................................................................................................39

Menu assignments ................................................................................................................................39

Wallpaper .............................................................................................................................................40

Bootlogo ...............................................................................................................................................41

Additional functions ..............................................................................................................................42

Infrared remote control .........................................................................................................................42

Multifunction steering wheel .................................................................................................................43

Limited media playback ........................................................................................................................43

Optional rearview camera .....................................................................................................................43

Troubleshooting .....................................................................................................................................44

Installation .............................................................................................................................................48

Installation notes ...................................................................................................................................48

Interconnection .....................................................................................................................................50

Installation hints ....................................................................................................................................54

General notes .........................................................................................................................................56

INDEX
