Universal dimming actuator IP
EUD62NPN-IP/110-240V
Eltako Connect App download:
https://eltako.com/redirect/eltako-connect
Universal dimming actuator. With power
MOSFET.
Dimmable 230 V LED lamps in 'phase
cut-off' mode up to 300 W or in 'phase control'
mode up to 100 W depending on ventilation
conditions. 230 V incandescent lamps and
halogen lamps up to 300 W depending on
ventilation conditions
. No minimum load.
Only 0.7 watt standby loss.
For installation. 49 x 51 mm wide, 25 mm deep.
The terminals are plug-in terminals for
conductor cross-sections of 0.2 mm2 to
2.5 mm2.
Zero passage switching with soft ON and
soft OFF to protect lamps.
Supply voltage, switching voltage and control
voltage local 110-240 V.
The brightness level is stored on switch-off
(memory).
built for
GB
30 062 002 - 2
Temperature at mounting location:
-20°C up to +50°C.
Storage temperature: -25°C up to +70°C.
Relative humidity:
annual average value <75%.
Only skilled electricians may install this
electrical equipment otherwise there is
the risk of  re or electric shock!
If
supp
l
y vo
l
tage
f
a
il
s, t
h
e
d
ev
i
ce
i
s sw
i
tc
h
e
d
off in de ned mode.
Automatic electronic overload protection and
overtemperature switch-off.
With control input for a mains voltage control
button that may be installed in front of it.
Glow lamp current is not permitted.
This actuator is Apple-certi ed and can
therefore be taught in Apple Home.

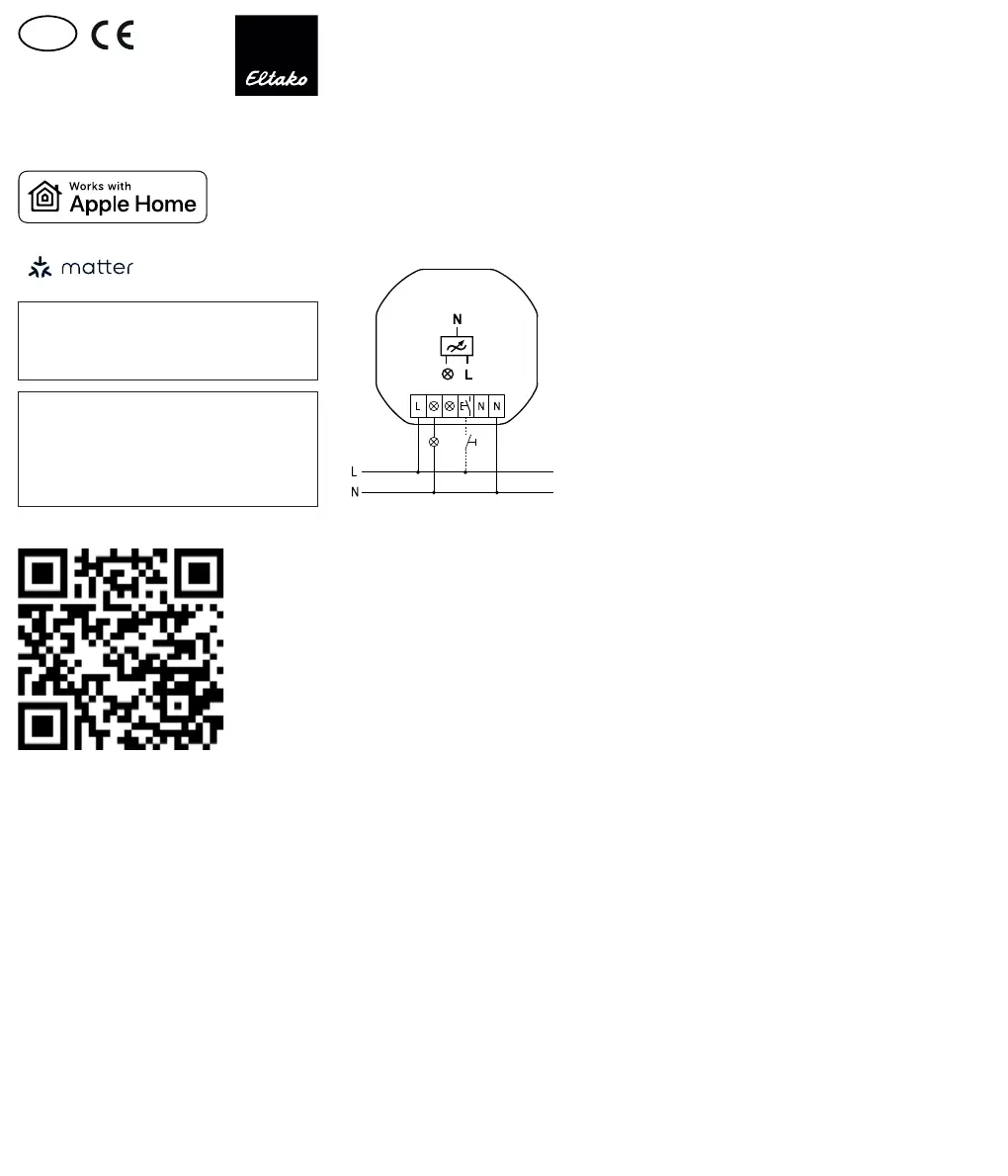

Typical connection
Add device to Apple Home:
ɀ Only 2.4 GHz Wi-Fi frequency bands are
supported.
ɀ Recommended: Commissioning close to
the main router.
2. Connected switch/button: press 8x brie y
(< 1 sec.) and 1x long (> 1.5 sec. and < 5 sec.).
A signal tone sounds for the last two short
closing actions.
The reset con rmation beeps are delayed by
15 seconds with this option.
! Outside of the time window, the device is
simply restarted !
Option 3:
1. The device is disconnected from the supply
voltage.
2. Apply supply voltage, wait for the signal
tone and disconnect the supply voltage
within 5 seconds.
3. Repeat step 2 a total of 5 times.
4. The sixth time the supply voltage is swit-
ched on, the successful factory reset is
con rmed by 3 short and 3 long beeps.
Over-the-Air (OTA) Firmware Updates:
ɀ If the device is connected to the Internet, it
will immediately search for possible updates.
Updates are then requested cyclically every
12 hours.
ɀ Data transfer between the Eltako update
server and the device meets the highest
security standards.
ɀ Before an update is installed, it is checked
whether it is correctly encrypted, validated
and undamaged.
ɀ Updates are downloaded and installed, but
only activated when no important process is
running and no load is switched. The restart
required for this takes a few seconds and
goes unnoticed.
ɀ If an update fails or leads to device insta-
bility, the system automatically switches
back to the previous  rmware version and
waits for a new update.
O ine  rmware updates:
The device supports o ine  rmware updates
via REST API. More information on this on the
product website.
1. Apply mains voltage and wait for the signal
tone.
2.
Wait 15 seconds until all modules have started.
3. Open the Apple Home app.
4. In the upper right corner press the '+' symbol
and select 'Add device'.
5. Scan the Apple Home QR code. It can be
found on the back of the device and on the
QR code card in the packaging.
6. The Apple Home app will guide you through
the remaining steps.
Important!
After a successful connection, an update is
automatically searched for, installed and the
device restarts.
Factory reset:
3 short and 3 long beeps will beep to con rm
the reset:
Option 1:
Via the Eltako Connect app.
Option 2:
1. Apply supply voltage
(time window of 5 minutes be
g
ins)
Technical data
Dimmable Trailing edge
230 V LED lamps up to 300 W 5)
Leading edge
up to 100 W 5)
Incandescent and up to 300 W
halogen lamps
1) 230 V (R)
Inductive up to 300 W 2) 3)
transformers (L)
Electronic up to 300 W 2) 3)
transformers (C)
Dimmable energy saving up to 300 W 5)
lamps ESL
Max./min. temperature +50°C/-20°C
4)
at mounting location
Standby loss (activ power) 0.7 W
1) Applies to lamps of max. 150 W.
2)
Per dimmer it is only allowed to use max. 2 inductive
(wound) transformers of the same type, furthermore
no-load operation on the secondary part is not
permitted. The dimmer might be destroyed. There-
fore do not permit load breaking on the secondary
part. Operation in parallel of inductive (wound) and
capacative (electronic) transformers is not permitted!
3)
When calculating the load a loss of 20% for inductive
(wound) transformers and a loss of 5% for capacitive
(electronic) transformers must be considered in
addition to the lamp load.
4)
Affects the max. switching capacity.
5)
Usually applies for dimmable energy saving lamps
and dimmable 230 V LED lamps. Due to differences in
the lamps electronics, there may be limited dimming
range, switch on and off problems dependent on the
manufacturer and a restriction on the maximum
number of lamps; especially if the connected load is
very low (for 5 W-LEDs).
To control this HomeKit-enabled accessory, the latest
version of iOS or iPadOS is recommended.
Use of the Works with Apple badge means that an
accessory has been designed to work speci cally with
the technology identi ed in the badge and has been
certi ed by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory
standards.
Apple, Apple Home, and HomeKit are trademarks of
Apple Inc., registered in the U.S. and other countries
and regions.
Frequency 2.4 GHz
Transmit power max. 100 mW
Hereby, Eltako GmbH declares that the radio
equipment type EUD62NPN-IP/110-240V is
in com pliance with Directive 2014/53/EU.
The full text of the EU declaration of con-
formity can be accessed via the QR code or
the internet address under 'Documents'.
Must be kept for later use!
Eltako GmbH
D-70736 Fellbach
Technical Support English:
+49 711 943 500 25
technical-support@eltako.de
eltako.com
32/2023 Subject to change without notice.
Manuals and documents in further languages:
http://eltako.com/redirect/EUD62NPN-IP*110-240V
