2nd revision, Nov 10th 2016
EK-RAM Monarch
USER GUIDE
GENERAL INFORMATIONS
EK-RAM Monarch Module is a heatsink adapter
which allows virtually any (DDR-)SDRAM memo-
ry module (of any generation) to employ EK-RAM
Monarch series water blocks.
Not compatible with Memory Kits with taller PCB!

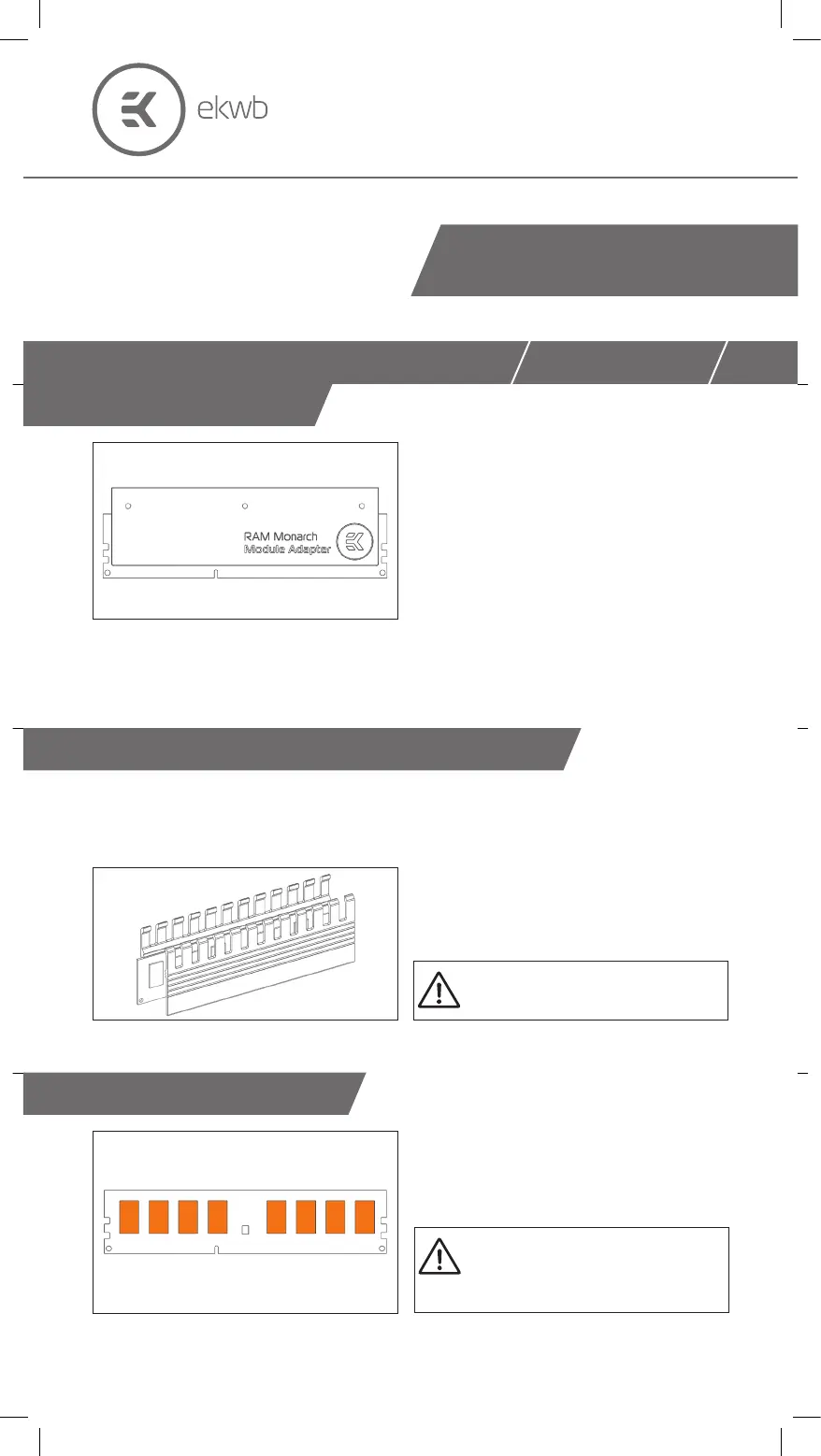

REMOVING THE FACTORY INSTALLED HEAT-SPREADERS
Wipe off the remains (by using non–abrasive cloth
or qtip) of the original thermal compound or adhe-
sive tape until the components and circuit board
are completely clean. EKWB recommends the use
of denatured alcohol for removing such leftovers.
Removing the factory heat spreader
may void your warranty!
In case your DIMM memory modules are equipped with heat spreaders by default it is mandatory to
remove those prior to continuing the installation process. Because there is no prescribed standard on
how the heat spreader should be attached to the memory module, many methods are used, most
common being self-adhesive tape between the heat spreader and memory IC.
APPLYING THE TERMAL PADS
Each module comes with two Thermal Pad E –
0.5mm thermal pads which are trimmed in order to
fit eight memory IC chips on each side of the mem-
ory module as shown on the picture. Repeat the
procedure for the IC on the back side of the PCB.
In case of single-sided memory mod-
ules it is mandatory to use 1,5mm thick
thermal pad in place of the missing
memory IC
/ 1 /
/ 2 /
/ 3 /
APPLYING THE TERMAL PADS

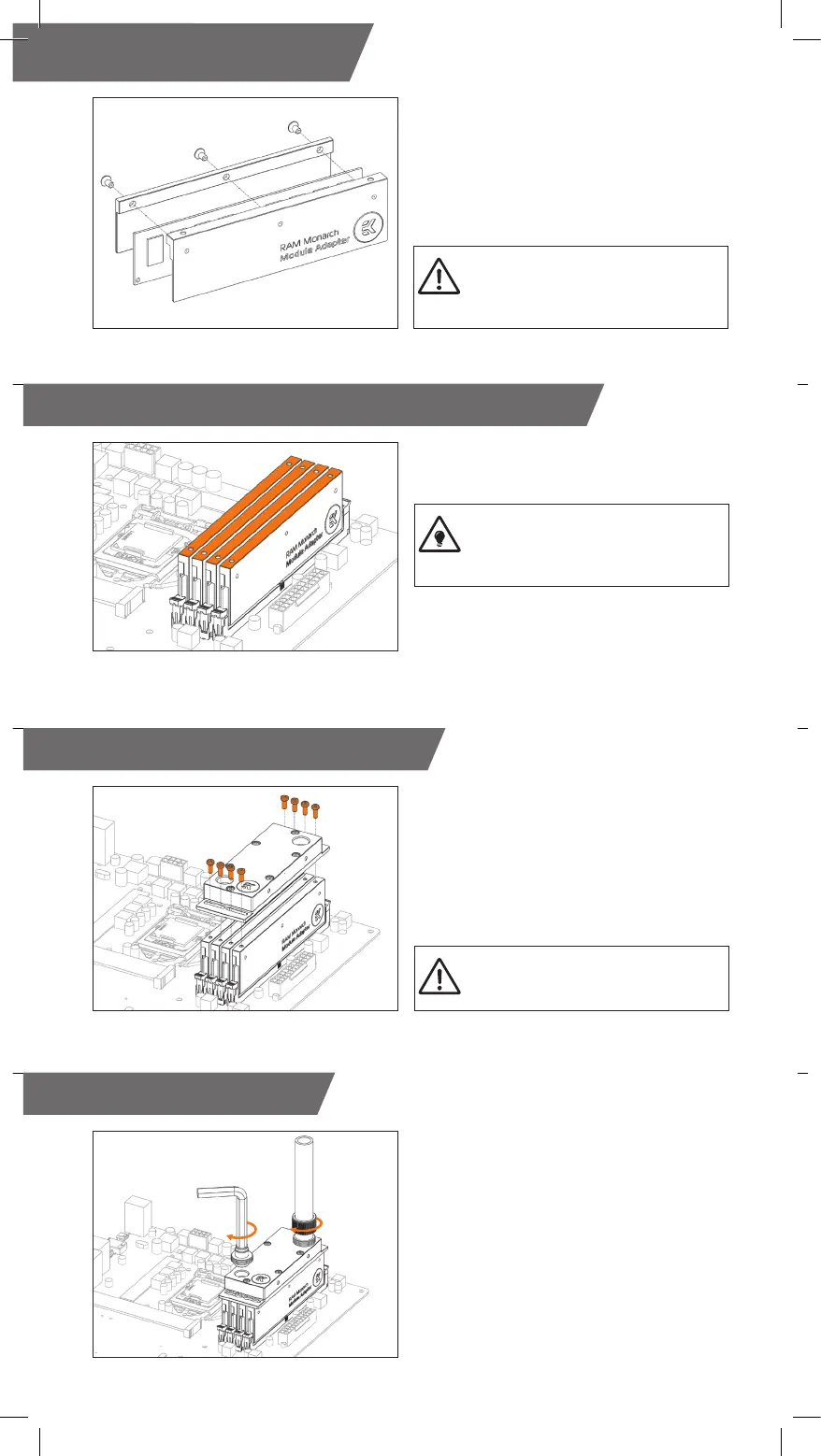

Sandwich the memory module with adhered ther-
mal pads gently between the both halfs of the EK-
RAM Monarch Module Adapter while making sure
the holes line up. Install each adapter in such way
the side locking latch will not be obstructed. Use
enclosed M3x6 DIN7991 screws and 2mm Allen
key to secure the memory module in the EK-RAM
Monarch Module Adapter.
Do not use excessive force as you
might strip the threading in the soft alu-
minum body. Repeat the step with the
second module adapter.
INSTALLING EK-RAM MONARCH BLOCK ON EACH MEMORY
Apply thermal compound: lightly coat the top of
the DIMM modules with electrically non-conduc-
tive thermal compound.
EKWB recommends to apply thermal
grease in line form due to the specific
design of this water block (see sample
picture).
You can also use enclosed Thermal PAD F
0,5mm (120x16mm). Avoid applying the paste into
the threaded openings!
ATTACHING BLOCK TO DIMM MODULES
During this process please make sure you align
threaded holes on the memory modules with
holes on the water block.
By using 2mm Allen key, screw enclosed M3X6
ISO 7380 screws to secure EK-RAM Monarch
water block to EK-RAM Monarch Modules.
EKWB recommends start screwing the other
most screws and continue inwards.
Do not tighten the screw completely until
you have aligned all memory modules as
straight as possible.
ATTACHING THE FITTINGS
Screw in the two G1/4 threaded male fittings. At-
tach the liquid cooling tubes and connect the wa-
ter-block(s) into the cooling circuit. EKWB recom-
mends using EK-ACF fittings with the EK-RAM
Monarch series water blocks. To ensure that the
tubes are securely attached to the barb/fittings,
please use hose clamps or an appropriate substitute.
These fittings do not need to be tightened with much
force because the liquid seal is made using o-rings.
Any G1/4 opening can be used as an inlet/outlet
port or vice versa, flow orientation is not important
and is thus not prescribed.
