How to install and
operate the
DLS ULTIMATE
A-series amplifiers
A2, A3, A4, A5, A6,
och A7
Welcome!
This owners manual is written in easy english and
uses a lot of drawings to simply the installation and
use of the above amplifiers.
Your DLS amplifier must be installed correctly in
order to work well. This manual will show you how
to install the amplifier like a pro. Please read the
entire manual before beginning the installation.
Install the amplifier yourself if you feel confident with
our instructions and if you have the proper tools.
However if you feel unsure, turn over the installa-
tion job to someone better suited to it.
Warranty Service
This amplifier is covered by warranty, depending
on the conditions in the country where it is sold. If
the amplifier is returned for service, please include
the original dated receipt with the product.
Technical Assistance
For technical assistance ask the shop where the
product was sold, or the distributor in your country.
You can always phone the DLS Helpdesk in Sweden
+ 46 31 84 00 60 or send an e-mail to info@dls.se.
Information can also be found on our WEB-site
www.dls.se
Contents
Caution………………………..…….. 2
Installation…………………….……. 2
Tools and materials needed………. 3
Amplifier installation kit………….... 3
Routing Wires…………………….... 3
Wiring
Power terminals.....……………..…. 4
Inputs and controls…….…………... 5
Input wiring................................... 5
Input level control.......................... 5
Phase control................................ 5
Remote bass level......................... 5
Protection circuits.......................... 5
Input & controls A7…………........... 6
Crossovers / filters………………..... 7
Crossovers / filters A7.................... 8
Professional tips............................ 9
Wiring examples:
DLS A2......................................... 10-11
DLS A3......................................... 12-13
DLS A4......................................... 14-16
DLS A5......................................... 17
DLS A6......................................... 18
DLS A7......................................... 19-22
Testing……………………………….. 23
Trouble-shooting…………………….. 23
Specifications………………………... 24-25
Approval of electromagnetic compatability
according to the EEC Directive 95/54/EC for
DLS A2, A3, A4, A5, A6, A7.
E 11 Approval No: 10R-020962
Installation
Before you begin to install
Before you begin you need to read the manual, to have
some tools, cables and other material available. There
is one such list of material on the following page.
Amplifier location
Important
Allow air circulation around the amplifier.
2
Disconnect Battery
Before starting the instal-
lation, always disconnect
the negative terminal of
the battery.
The DLS ULTIMATE amplifiers have a great
flexibility in mounting but the best is to mount it
somewhere in the trunk.
When you select a location, do remember that the
amplifier generates a lot of heat.
Choose a location where air can circulate freely
around the amplifier. Do not cover the amplifier with
carpets or hide behind trim panels.
Do NOT mount the amplifier upside down under
the hat rack.
In the amplifier case there are four mounting holes.
If the surface where you intend to mount the
amplifier isn´t big enough you can mount it on a
separate fibre board or similar. This will also isolate
the amplifier chassies from ground.
WARNING!
Check all locations and placements carefully before
making any cuts, drilling any holes or making any
connections.
ULTIMATE A-series
CAUTION!
Some of our amplifiers are capable of producing a sound pressure level that can cause permanent
damage to your hearing system. High sound pressure levels combined with long time listening can give
permanent damage to your hearing system. Choose a listening level that is comfortable for your ears.
To establish a safe level:
Start your volume control at a low setting. Slowly increase the volume until you can hear the music
comfortly and clearly, without any distortion. Sudden sound shocks are dangerous.
The following noises can be dangerous with constant exposure:
90 dB Subway, motorcycle, lawn mover 4 hours max
100 dB Chain saw 2 hours max
120 dB Rock band live concert 30 minutes max
140 dB Gunshot blast, jet plane 0 minutes
Professional Tip:
If amplifier installation kits are available with diffe-
rent size of power cable, chose the most heavy power
cable to improve sound quality and to allow more
amplifiers to be installed now or later.
These are the minimum sizes of power cables we
recommend for the different models:
Cable length:< 1,5 m 1,5 - 4 m >4 m
A2 10 mm216 mm221 mm2
A3 / A4 / A5 16 mm221 mm233 mm2
A6 21 mm233 mm250 mm2
A7 16 mm221 mm233 mm2
A8 10 mm216 mm221 mm2
The ground cable must have the same size.
Max fuse values for different cable sizes:
6 mm2 (9 AWG) :25 A 10 mm2 (7AWG) :40 A
16 mm2 (5AWG) :60 A 21 mm2 (4AWG) :100 A
33 mm2 (2AWG) :150 A 42 mm2 (1AWG) :200 A
Congratulations, you have just purchased the finest mobile audio amplifier that today´s technology can
offer. DLS offers a series of high quality car audio products for real music lovers, and we are sure that you
will enjoy a high class car sound for many years.
Tools and material needed
Tools:
Flat and Phillips screwdrivers
Wire cutter
Wire stripper
Electric drill with drills
Crimping tool
Digital multimeter or test lamp
Wire brush, scraper or a piece
of an abrasive sheet to remove
paint for a good ground connection
Grease to protect the ground
connection from oxidation
Material:
Speaker wire: minimum
12 AWG = 4 mm2 for subwoofers
13 – 16 AWG = 1,5-2,5 mm2 for other
speakers
Sheet metal screws for mounting the
amplifier to the amplifier board and the
amplifier board to the car + some extra
for fuse holder, amplifier ground etc.
Electrical insulation tape
½ inch thick plywood or particle board for
the amplifier to be mounted upon.
Amplifier installation kit:
If available,buy an amplifier installation kit. It
contains normally all you need. This is what you
have to buy if you buy the items separately
20- 25 feet = 6- 7.5 meter power cable,
preferably AWG 5 = 16 mm2 or heavier. See
the table on previous page to find out what
cable size you need.
1 pc of fuseholder to install close to the
car battery + fuse 80 Ampere, or other value
depending on what cable and amplifier you
use. See the table on page 2.
20 feet of AWG 15 = 1,5 mm2 wire for
remote turn on / off cable from head unit.
RCA-cable for input from head unit.
- 20 feet or 5 meter for trunk installations
You can connect all inputs together and use
only one RCA-cable, or use separate wires
to each input.
Two min. 5 gauge ring crimp terminals –one
for connection to the battery plus and one
for the amplifier ground connection.
Wire ties
Insulating grommet or insulating tube

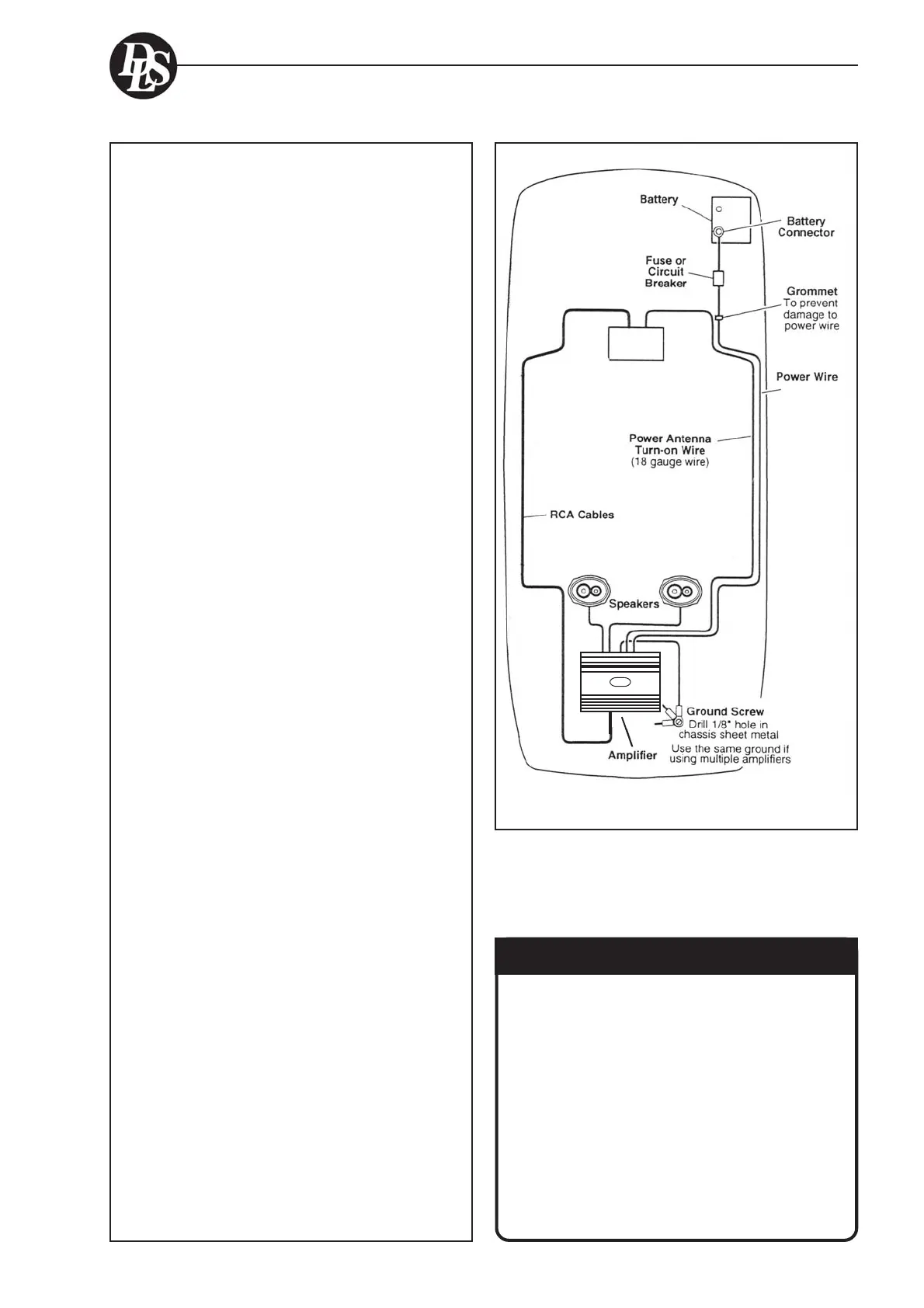

Routing wires
Stereo
head unit
3
ULTIMATE A-series
Professional Tip:
Gauge (ga) is an American measure for cable size,
also called AWG (American Wire Gauge).
CONVERSION GAUGE - mm2
0 AWG = 50 mm2
1 AWG = 42 mm29 AWG = 6,8 mm2
2 AWG = 33 mm210 AWG = 5,3 mm2
3 AWG = 27 mm211 AWG = 4,2 mm2
4 AWG = 21 mm212 AWG = 3 mm2
5 AWG = 16 mm213 AWG = 2,7 mm2
6 AWG = 13 mm214 AWG = 2 mm2
7 AWG = 10 mm215 AWG = 1,65 mm2
8 AWG = 8 mm216 AWG = 1,3 mm2
