1
Universal Docking Station, USB Type C
Manual
DA-70861
1. INTRODUCTION
The fully functional universal docking station, USB type C from Digitus offers you
everything to create a fully equipped workspace. It offers three video interfaces
(HDMI, MiniDP and VGA), where two monitors can be operated at the same time.
Thus, the best possible supported resolution is achieved: Brilliant UHD (4K2K/30Hz).
In addition, it offers three USB 3.0 ports, where one port (5V/1.5A) also provides a
charging function for mobile devices. The USB interfaces are supplemented by a
USB-C with power delivery (PD) functionality. Two card readers are also built in
(MicroSD, SDHC, SDXC/MMC). Your notebook can also be connected to your network
via cable over the Gigabit Ethernet port. We top everything off with a stereo audio
port. Extend your notebook to 11 additional ports using only one USB-C port - with
the multifunctional Universal Docking Station USB Type C.
2
This Type-C docking offers integrated solution for power, data and video. It allows
you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort displays for video
transmission, to USB-A devices for data transmission. It also helps the host PC to get
access to Ethernet through RJ45 port. Besides, the SD/MMC and Micro SD card slot
helps to read the information of the external memory in the host PC and the USB-C
female port can charge for the host computer.
2. FEATURES
Support USB-C input
Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C Female,
USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C
interface
Support HDMI resolution up to 4kx2k@30Hz
Support Mini DisplayPort resolution up to 4kx2k@30Hz
Support VGA resolution up to 1920x1200@60Hz
The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, with
max 7.5W (5V@1.5A), the other two ports share max 5W (5V@1A)
Support 10/100/1000Mbps bandwidth
Stereo port supports both microphone and headphone
USB-C female charging port for USB-C notebooks/ultrabooks
Multiple USB-C interfaces support plug and play, hot swap
Support SD/SDHC/SDXC
Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed
max 90Mbps)
Support MultiMediaCard (MMC) specification
Support Micro SD/SDHC/SDXC (up to 128 GB)
Supports: Mac OS 10.10.2 and above, Google Chrome, Windows: Windows 7 to
Windows 10,

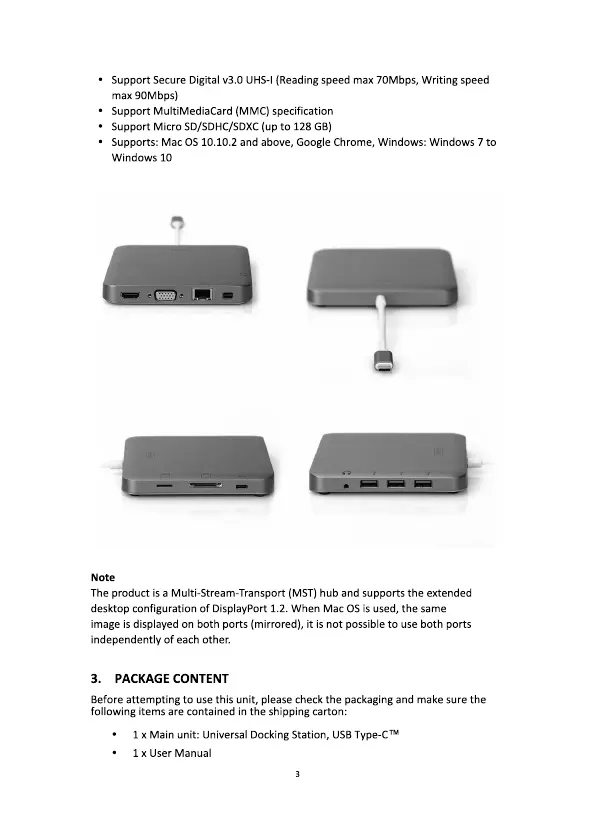

3
3. PACKAGE CONTENT
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1 x Main unit: Universal Docking Station, USB Type C
1 x User Manual
4. SPECIFICATIONS
Input/Output Connector
Input USB-C Male x1
Output HDMI Female p3-x1
Mini DP Female p3-x1
VGA Female p3-x1
USB-C Female p3-x1
USB 3.0 Female p3-x3
RJ45 X1
Stereo p3-x1
SD card slot p3-x1
Micro SD card slot p3-x1
USB-C Female p3-x1 for charging
Environmental
Operating Temperature 0°C to +45°C
Operating Humidity 10% to 90 % RH (no condensation)
Storage Temperature -10°C to +70°C
Storage Humidity 10% to 90 % RH (no condensation)
Power Supply
USB-C PD Charging Port 60W (20V/3A)
USB-A Port X3 Total output: 10W (5V@2A)
One port supports max 7.5W (5V@1.5A)
Other two ports share max 5W (5V@1A)
Regulatory Approvals
Certifications FCC, CE
Accessory Adapter
User Manual 10 languages
Chipset VL100: PD controller
VL813/RTL8153/NS1081C/SSS1629/STDP4320/
PS8339B/ANX9833
