Strona 1/28

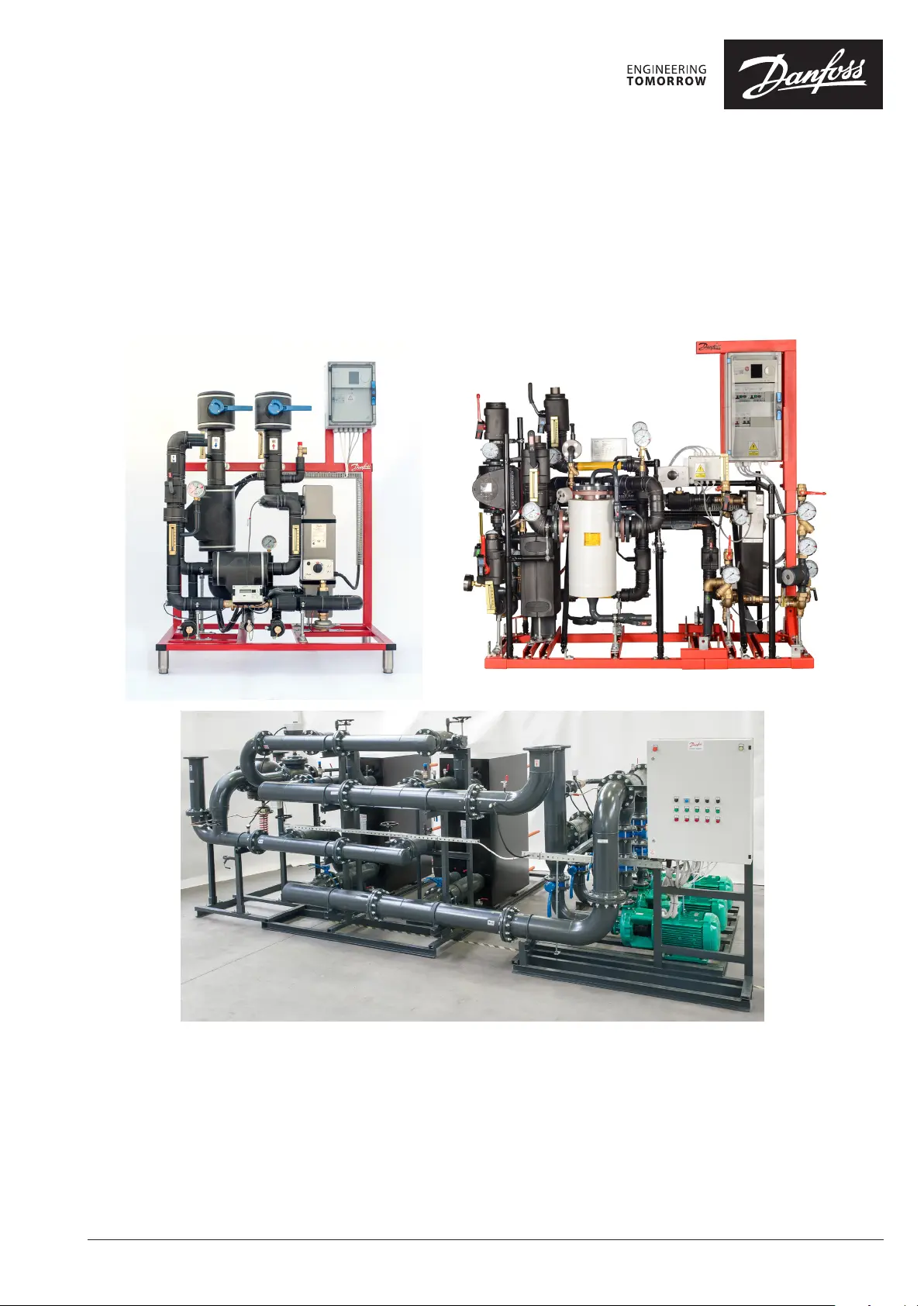

District Heating Substations

suitable for indirect heating / cooling, dhw production

and other water based heating systems

Operating Guide

Always keep the instruction manual readily

available near the device.

Read the instruction manual before installation!

In case of wrong installation

Danfoss could change warranty terms!

Caution!

Before putting the device into service,

check if it is undamaged and in perfect operating condition. Original operating instructions

2 | © Danfoss | 2020.02 AQ167786463757en-000402

District Heating Substations

1.0 General information 3 ..........................................................................................................................................................................................................................

1.1 Information on installation and operating instruction manual 3 ....................................................................................................................................

1.2 Other applicable documents 3 ....................................................................................................................................................................................................

1.3 Explanation of symbols 3 ...............................................................................................................................................................................................................

1.4 Liability and warranty 3 ...................................................................................................................................................................................................................

1.5 Copyright 4 ..........................................................................................................................................................................................................................................

1.6 Spare parts 4 .......................................................................................................................................................................................................................................

1.7 Dismantling 4 ......................................................................................................................................................................................................................................

1.8 Disposal 4 ............................................................................................................................................................................................................................................

2.0 Safety ................................................................................................................................................................................................................................................5

2.1 General information 5 .....................................................................................................................................................................................................................

2.2 Responsibility of the operator 5 ................................................................................................................................................................................................

2.3 Intended use 5 ...................................................................................................................................................................................................................................

2.4 Possible misuse 5 ..............................................................................................................................................................................................................................

2.5 Safety work 5 ......................................................................................................................................................................................................................................

2.6 Personal protective equipment 6 ...............................................................................................................................................................................................

2.7 Possible hazards of the device 6 .................................................................................................................................................................................................

2.8 Emergency stop switch 7 ..............................................................................................................................................................................................................

2.9 Operating personnel 7 ...................................................................................................................................................................................................................

2.10 Actions in the event of danger or accidents 7 .......................................................................................................................................................................

2.11 Residual hazards / hazard analysis 8 ........................................................................................................................................................................................

3.0 Technical data 9 ......................................................................................................................................................................................................................................

3.1 Technical and main system data 9 ..............................................................................................................................................................................................

3.1.1 CE label 9 ...................................................................................................................................................................................................................................

3.1.2 Dimensions and packaging 9 ............................................................................................................................................................................................

3.2 Symbols used in circuit diagrams 10 .........................................................................................................................................................................................

4.0 Function and conﬁguration 10 .........................................................................................................................................................................................................

4.1 Function 10 .........................................................................................................................................................................................................................................

4.2 DSE FLEX conﬁguration possibilities 11 ...................................................................................................................................................................................

5.0 Transport, packaging and storage 12 .............................................................................................................................................................................................

5.1 Transport of pallets by forklift .............................................................................................................................................................................................. 12

5.2 Transport inspection 12 .................................................................................................................................................................................................................

5.3 Packaging 13 .....................................................................................................................................................................................................................................

5.4 Storage 13 .........................................................................................................................................................................................................................................

6.0 Installation .......................................................................................................................................................................................................................................... 13

6.1 Installation preparation 14 .........................................................................................................................................................................................................

6.1.1 Primary connection 14 ........................................................................................................................................................................................................

6.1.2 Secondary connection 14 ...................................................................................................................................................................................................

6.1.3 Electrical connection 14 ......................................................................................................................................................................................................

6.2 Draining station 17 ........................................................................................................................................................................................................................

7.0 Commissioning ................................................................................................................................................................................................................................. 18

7.1 Requirements for commissioning 18 ......................................................................................................................................................................................

7.2 Secondary side commissioning 18 ..........................................................................................................................................................................................

7.3 Primary-side commissioning 18 ...............................................................................................................................................................................................

7.4 Requirements for commissioning 19 ......................................................................................................................................................................................

7.5 Fault and Shutdown 19 ................................................................................................................................................................................................................

7.6 Commissioning after a failure or malfunctioning 19 ........................................................................................................................................................

8.0 Operation 19 ..........................................................................................................................................................................................................................................

8.1 Switching on 19 ..............................................................................................................................................................................................................................

8.2 Switching oﬀ 19 ..............................................................................................................................................................................................................................

8.3 Restarting after substation shutdown 19 ..............................................................................................................................................................................

8.4 Service / clean - strainer .......................................................................................................................................................................................................... 20

8.5 Service / disassembly and replacement - heat exchanger ......................................................................................................................................... 21

8.6 Service / Check - Safety valve and expansion vessel 21 ....................................................................................................................................................

9.0 Maintenance 22 ....................................................................................................................................................................................................................................

9.1 Safety warning 22 ..........................................................................................................................................................................................................................

9.2 Maintenance plan (recommendations) ............................................................................................................................................................................ 22

9.3 Heat exchanger maintenance 23 .............................................................................................................................................................................................

9.4 Maintenance validation 23 .........................................................................................................................................................................................................

10.0 Troubleshooting 24 .....................................................................................................................................................................................................................

10.1 Safety .......................................................................................................................................................................................................................................... 27

11.0 Spare parts 27 ................................................................................................................................................................................................................................

12.0 Index 28 ..................................................................................................................................................................................................................................

Table of contents

District Heating Substations

1.0 General information

1.1 Information on installation

and operating instruction manual

This Instruction Manual describes installation, operation and main-

tenance of the system. Compliance with all speciﬁed safety instruc-

tions and operating instructions is a prerequisite for safe system

operation and handling. In addition, the local accident prevention

regulations and speciﬁc / general safety regulations, applicable to

the area where system is installed must be observed. The operating

instructions are part of the product and must be kept accessible

for installation, operating, maintenance and cleaning personnel at

all times in the immediate vicinity of the system’s operating area.

1.2 Other applicable documents

Unless stated otherwise , the individual components of the system

are modules purchased from other manufacturers. All components

used in the system have been subjected to risk assessments by

their manufacturers. The conformity of the design with the appli-

cable European and national regulations has been declared by the

manufacturers of the components. The manufacturers’ declarations

of conformity, as well as the operating, maintenance and repair

instructions for the individual system components, are inseparable

parts of the system documentation.

1.3 Explanation of symbols

Important safety and device-related instructions in this operating

manual are marked by warning symbols. The instructions must be

followed in order to avoid accidents, personal injury and material

damage.

1.4 Liability and warranty

All information and instructions in this operating manual have been

compiled taking into account the applicable regulations, accepted

standards of good engineering practice, and our many years of exper-

tise and experience. In the case of special versions, use of additional

order options or due to the latest technical changes, the actual scope

of delivery may diﬀer from the explanations and drawings in this doc-

ument. If you have any questions, please contact the manufacturer.

We reserve the right to make technical changes to the product as part

of improving the performance characteristics and product develop-

ment. Parts such as tools subject to wear in the use of the device

and/or normal wear and tear, as well as auxiliary supplies and con-

sumables such as greases, oils or cleaning agents, are not covered

by the warranty.

For presentation purpose of the described situations, the illustra-

tions in this manual are not necessarily to scale and may diﬀer

slightly from the actual design of the system.

In addition to this operating instruction manual, the operating

instructions for the installed components apply. The information

contained therein – in particular safety instructions – must be ob-

served at all times.

The instructions for safety, assembly and installation, operation,

maintenance, disassembly and disposal of the components con-

tained in the manufacturer’s documents must be followed by the

system’s operating personnel unconditionally.

Additionally, the obligations agreed in the delivery contract, the gen-

eral terms and conditions of business, and the delivery conditions of

the manufacturer and applicable statutory regulations at the time of

the conclusion of the contract apply.

NOTE!

This symbol highlights tips and information that must be observed

for eﬀective and trouble-free operation of the system.

WARNING!

This symbol identiﬁes hazards that may result in adverse health

eﬀects, injuries, permanent bodily injury or death. Ensure compli-

ance with the instruction manual on work safety and take extra

care in these cases.

CAUTION!

This symbol indicates instructions, the non-observance of which

may result in damage, malfunctions and/or system failure.

WARNING!

Electrical hazard. This symbol is alert for safety hazards involving

electricity. Failure to observe the safety instructions may result in

serious injury or death. Work required on electrical parts of the

system can only be carried out by a qualiﬁed electrician.

NOTE

These installation and operating instruction manual must be read

carefully before starting work on and with the device, particularly

before commissioning. The manufacturer accepts no liability for

damage or malfunctions resulting from non-compliance with the

installation and operating instructions.
