Strona 1/6

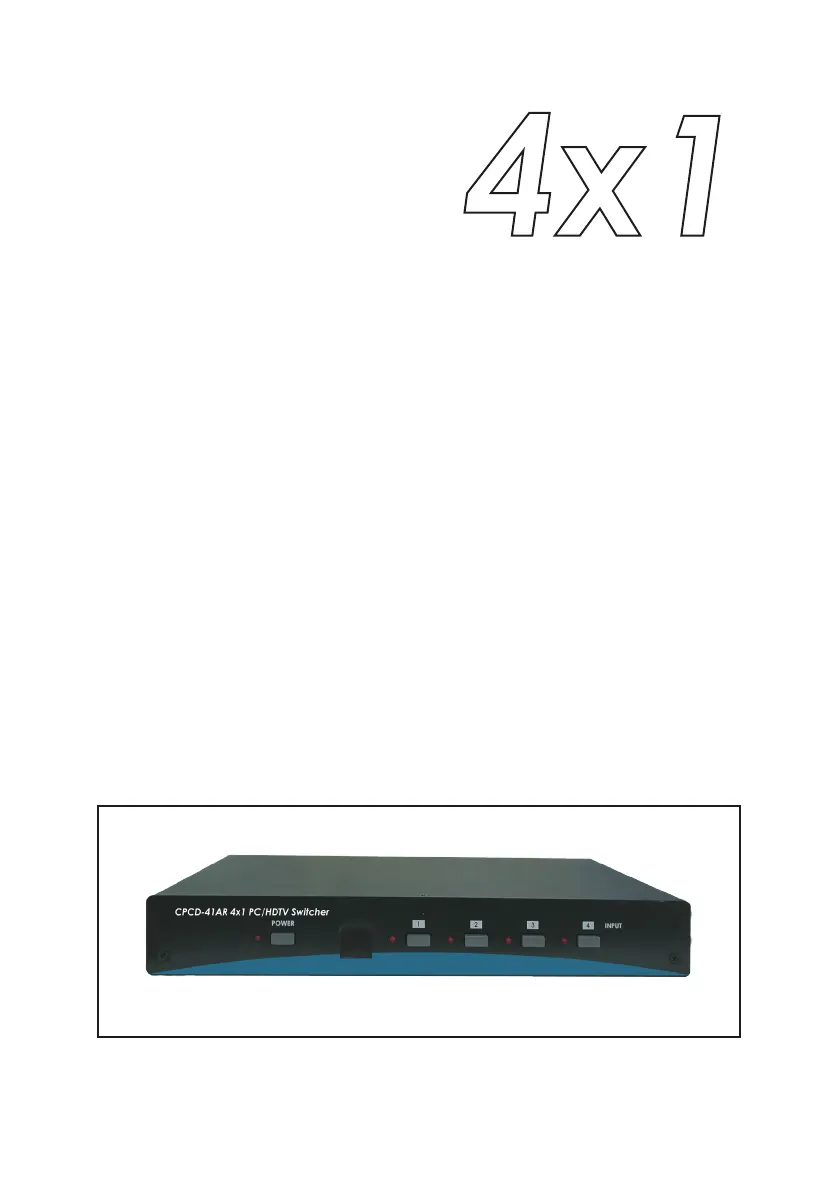

PC/HDTV Switcher
Operation Manual
4x1
CPCD-41AR
Applications:
Cypress CPCD-41AR PC/HDTV is perfect solution for
switching between various PC/HDTV sources such as PCs, DVD...
to share one display monitor, TV or projector with resolution up
to WUXGA/1080p.
Features:
- LED indicators
- IR remote control.
- Supports high resolution input:
PC:
VGA, SVGA, XGA, SXGA,UXGA(1600x 1200) and WUXGA(1920x1200),&
HDTV: 480i, 576i, 480p, 576p, 720p. 1080i and 1080p.
- Bandwidth: 650 MHz.
- Plug and play, easy to install and operate.
- Built-in advance circuit ensures a smooth transition when
switching from one PC/HD source into another.
- RS-232 interface allows control from a distant device.
- Ideal for presentation and large shop intergration.
- Audio format: L/R analog.
Package includes:
- CPCD-41AR unit.
- IR remote control
- 5VDC power supply, center +
- User manual
- A 3V lithium battery
- One set of 3.5mm phone jack to 2R audio cable.
1
Operation Controls and Functions
Front Panel
1 2 3 4 5 6 7 8 9
10 11
1. Power indicator LED.
2. Power ON/OFF switch: Push the button to turn ON/OFF the power.
3. IR sensor: Infrared remote control sensor.
4. Input 1 indicator LED .
5. Input 1 switch: Push the button, LED lights up, source 1 is selected.
6. Input 2 indicator LED.
7. Input 2 switch: Push the button, LED lights up, source 2 is selected.
8. Input 3 indicator LED .
9. Input 3 switch: Push the button, LED lights up, source 3 is selected.
10. Input 4 indicator LED.
11. Input 4 switch: Push the button, LED lights up, source 4 is selected.
Rear Panel
DC 5V
INPUT 1INPUT 2INPUT 3INPUT 4OUTPUT
AUDIO
PC 1/YPbPr 1PC 2/YPbPr 2PC 3/YPbPr 3PC 4/YPbPr 4PC/YPbPr
12345
INPUTOUTPUT
RS-232
POWER 1234INPUT
CPCD-41AR 4x1 PC/HDTV Switcher
123
4567
89
101112
1. DC 5V: 5 Volt, 5W DC input , center +.
2. Input 1 connector: Input connector for PC 1/YPbPr 1.
3. Input 2 connector: Input connector for PC 2/YPbPr 2.
4. Input 3 connector: Input connector for PC 3/YPbPr 3.
5. Input 4 connector: Input connector for PC 4/YPbPr 4.
6. Output connector: Output connector for PC/YPbPr.
7. Audio input 1 connector: Audio input connector for
Audio (L+R) 1 via 3.5mm phone jack to 2R audio cable.
8. Audio Input 2 connector: Audio input connector for
Audio (L+R) 2 via 3.5mm phone jack to 2R audio cable.
9. Audio input 3 connector: Audio input connector for
Audio (L+ R) 3 via 3.5mm phone jack to 2R audio cable.
10. Audio input 4 connector: Audio input connector for
Audio (L+R) 4 via 3.5mm phone jack to 2R audio cable.
11. Audio output connector: Audio output connector for
Audio(L+R) via 3.5mm phone jack to 2R audio cable.
12. RS-232 interface: DB-9 female connector for connecting
to your other control console for remote control.
2
