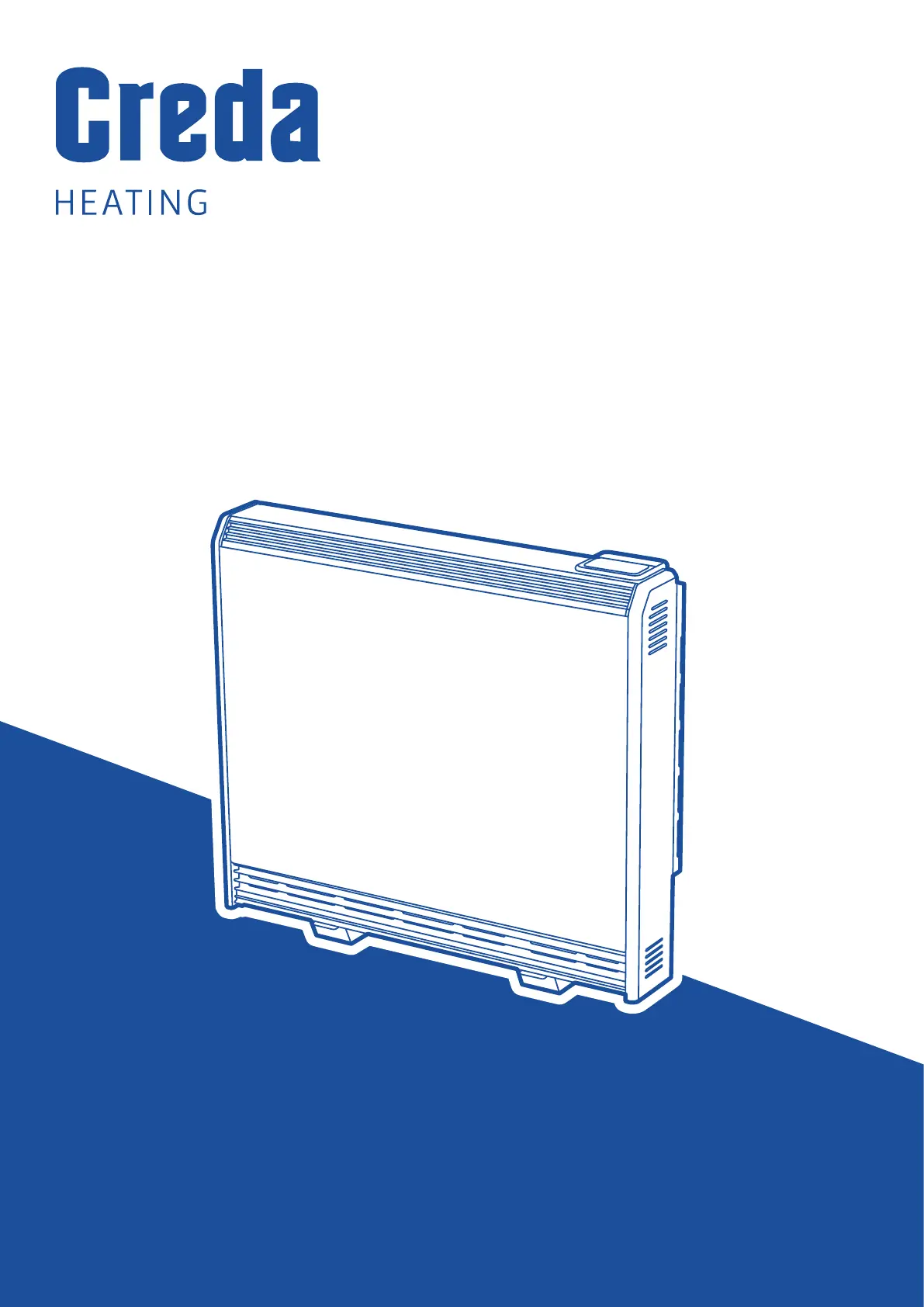

INSTRUCTION MANUAL
Installation and Operating
These instructions should be read carefully and
retained for future use. Note also the information
presented on the appliance.
Creda TSRE Storage Heater
Models: TSRE050 / TSRE070 / TSRE100 / TSRE125 / TSRE150
08/80278/0 ISSUE 2 Series A
IMPORTANT SAFETY ADVICE
When using electrical heaters, basic precautions should always be followed to reduce the risk
of re, electrical shock, and injury to persons, including the following:
IMPORTANT – The wall bracket supplied with the heater must be used.
IMPORTANT – All packaging should be disposed of in an appropriate manner.
OVERHEATING WARNING
WARNING - In order to avoid overheating, do not cover or obstruct the heater. Do not place
material or garments on the heater, or obstruct the air circulation around the heater, for instance
by curtains or furniture, as this could cause overheating and a re risk. NEVER cover or obstruct in
any way the heat outlet slots at the top of the heater or the air outlet slots in the base of the heater.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
The heater carries a warning ‘DO NOT COVER’ to alert the user to the risk of re that exists if
the heater is accidentally covered.
CAUTION
- Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present
.
For your safety this heater is tted with a thermal cut-out. In the event that the product
overheats for some reason, the cut-out prevents excessive temperatures on the product by
cutting the power to the heater. Once the heater has cooled down, it will reset automatically,
it will continue to cycle on and o automatically until the reason for overheating is removed.
The display screen may ash red to indicate the product has overheated. To reset the display,
remove the obstruction and hold Enter for 10 seconds.
SUITABLE APPLICATIONS
WARNING - This heater is suitable for normal domestic household purposes and should not
be used in any other type of environment. This product should only be used in the country
where it was purchased from by a recognised commercial retailer. Do not use outdoors.
SERVICING AND REPAIRS
WARNING - Servicing and product repairs should only be undertaken by the manufacturers
approved service agent or a similarly trained or qualied person, using only exact manufacturer
approved spare parts.
PLEASE NOTE: Household dust, lit cigarettes, candles and oil burners, combined with the
convection eect of electric heaters can cause signicant soot deposits to build up on the
surface directly above and to the sides of the heater. This is not a fault of the heater. Extensive
burning of candles or smoking in the operating environment of this product can produce heavy
discolouration within a few months of use.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE
AND MAY INVALIDATE YOUR GUARANTEE
2
OPERATING WARNINGS
IMPORTANT: Remember to observe all safety warnings and precautions when operating the
heater on the automatic or timer modes, either attended or unattended since a re risk exists
when the heater is accidentally covered or obstructed.
Mains cables are not provided with this heater.
CAUTION: Do not use if either of the heater’s mains power leads become damaged. If the supply
cord is damaged it must be replaced by the installer or an approved service partner.
Curtains must not come to within 250mm of the top of the heater.
Do not sit or stand on the heater
Do not place objects in contact with the heater.
To maintain stability, it is essential that the heater is placed on a level surface and care should
be taken to avoid irregular surfaces, such as may result from carpets or tiled surrounds
partially protruding under the heater.
ELECTRICAL INSTALLATION
The installation of the heater should be carried out by trained personnel.
WARNING - Minimum clearances and IP zone requirements must be adhered to in
accordance with the current wiring regulations.
WARNING - The electrical installation of this heater must be carried out by a suitably qualied or
trained electrician, and be in strict accordance with current wiring Regulations. The peak supply
must be connected via a switched fused spur with a fuse rated suitably for the appliances ex,
the o-peak supply , via a 20A double pole switch. Failure to follow these instructions will mean
that the manufacturer’s instructions have not been adhered to. THERE ARE NO EXCEPTIONS.
• This heater must be earthed
• Not suitable for connection via a plug top
• Do not locate the heater immediately above or below a xed electrical point i.e. socket outlet.
This appliance is intended for installation to a single phase supply only and is not suitable for
connection to 3 phase supplies.
The heater is not tted with a mains cable, this should be tted by the installer. Cable type
(minimum size) H05VV-F 1.5mm² three core for peak and 2.5mm² three core for o-peak for
connection to the xed wiring of the premises through suitable isolation devices positioned
adjacent to the heater. The supply circuits to the heater must incorporate a double pole isolating
switch having a contact separation of at least 3mm.
In installation the supply cord may be cut to the appropriate length for the electrical connection
point. Excess cable should not be inserted or stored behind the heater.
If, during reassembly of the heater, a part of the thermal insulation shows damage or deterioration,
it should be replaced by an identical part.
WARNING: All electrical connections to the terminal block must be secure to prevent risk of
ignition. Tighten to 0.5 Nm.
3
