INSTRUCTION MANUAL
Installation and Operating
These instructions should be read carefully and
retained for future use. Note also the information
presented on the appliance.

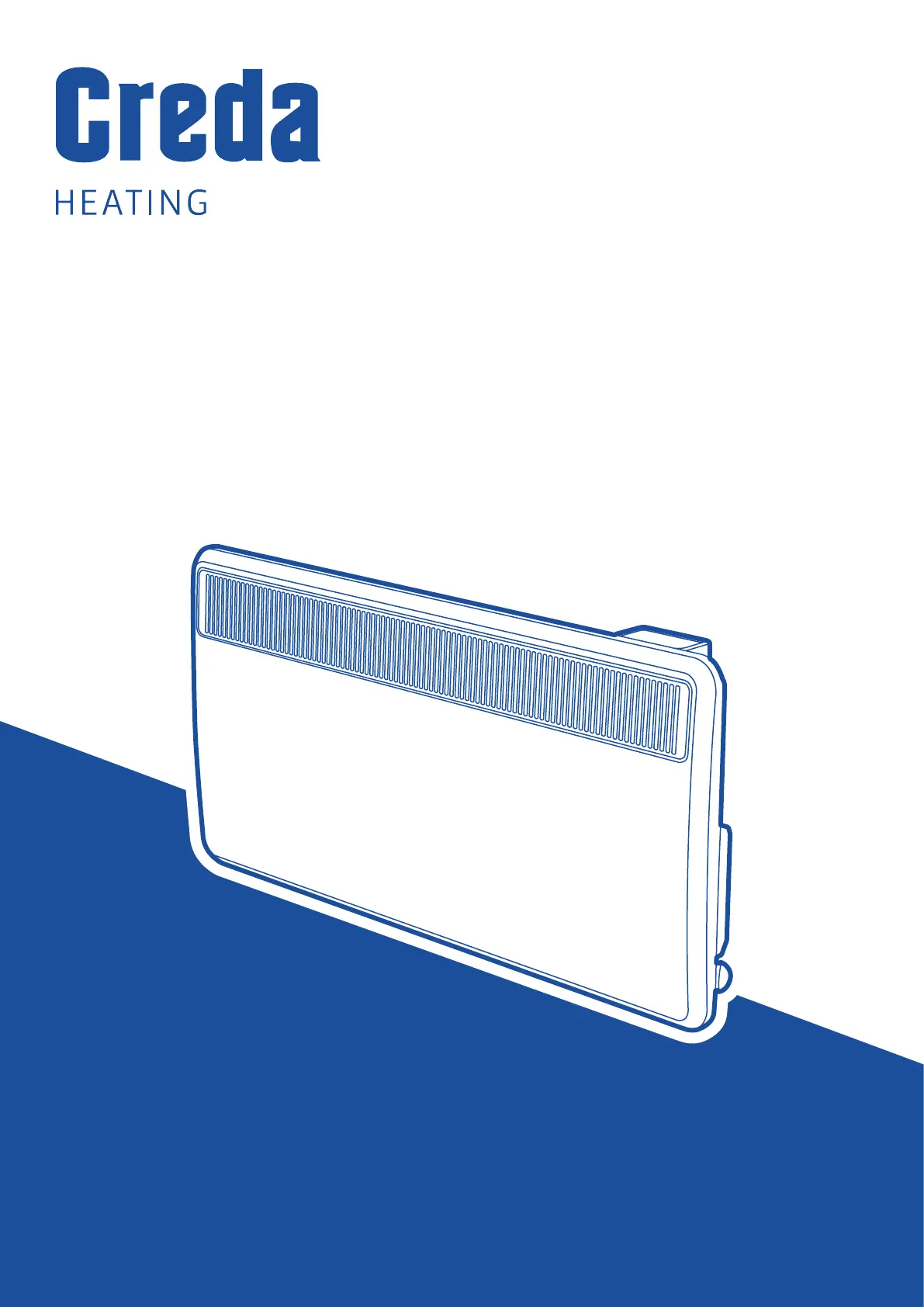

Creda TPRIIIE Panel Heater
Models: TPRIII050E / TPRIII075E / TPRIII100E / TPRIII125E
TPRIII150E / TPRIII200E / TPRIII300E
08/53455/0 ISSUE 1
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR
DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
IMPORTANT SAFETY ADVICE
When using electrical heaters, basic precautions should always be followed to reduce the risk
of re, electrical shock, and injury to persons, including the following:
IMPORTANT – The wall bracket supplied with the heater must be used.
IMPORTANT – All packaging should be disposed of in an appropriate manner.
OVERHEATING WARNING
WARNING - In order to avoid overheating, do not cover or obstruct the heater. Do not place material
or garments on the heater, or obstruct the air circulation around the heater, for instance by curtains
or furniture, as this could cause overheating and a re risk. NEVER cover or obstruct in any way the
heat outlet slots at the top of the heater or the air inlet slots in the base of the heater.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT. The heater carries a warning ‘DO
NOT COVER’ to alert the user to the risk of re that exists if the heater is accidentally covered.
CAUTION - Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
For your safety this heater is tted with a thermal cut-out. In the event that the product
overheats for some reason, the cut-out prevents excessive temperatures on the product by
cutting the power to the heater. Once the heater has cooled down, it will reset automatically,
it will continue to cycle on and o automatically until the reason for overheating is removed.
The display screen may ash red to indicate the product has overheated. To reset the display,
remove the obstruction and hold Enter for 10 seconds.
SUITABLE APPLICATIONS
WARNING - This heater is suitable for normal domestic household purposes and should not
be used in any other type of environment. This product should only be used in the country
where it was purchased from by a recognised commercial retailer. Do not use outdoors.
Do not install if the product is damaged.
SERVICING AND REPAIRS
WARNING - Servicing and product repairs should only be undertaken by the manufacturers
approved service agent or a similarly trained or qualied person, using only exact manufacturer
approved spare parts.
PLEASE NOTE: Household dust, lit cigarettes, candles and oil burners, combined with the
convection eect of electric heaters can cause signicant soot deposits to build up on the
surface directly above and to the sides of the heater. This is not a fault of the heater. Extensive
burning of candles or smoking in the operating environment of this product can produce heavy
discolouration within a few months of use.
OPERATING WARNINGS
IMPORTANT: Remember to observe all safety warnings and precautions when operating the
heater on the automatic or timer modes, either attended or unattended since a re risk exists
when the heater is accidentally covered or displaced.
CAUTION: Do not use if the heater’s mains power lead is damaged. If the supply cord is
damaged it must be replaced by the installer or an approved Dimplex service partner.
2
ELECTRICAL INSTALLATION
WARNING - The electrical installation of this heater must be carried out by a suitably qualied
or trained electrician, and be in strict accordance with the current wiring Regulations BS
7671. The supply must be connected via a switched fused spur with a fuse rated suitably
for the appliances ex. Failure to follow these instructions will mean that the manufacturer’s
instructions have not been adhered to. . THERE ARE NO EXCEPTIONS
WARNING - Minimum clearances and IP zone requirements must be adhered to in accordance
with the current wiring regulations. The wires in this mains lead are coloured in accordance with
the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
• This heater must be earthed
• Not suitable for connection via a plug top
• Do not locate the heater immediately below a xed electrical point i.e. socket outlet.
The heater is tted with a length of exible cable type H05VV-F size 3 x 1.0mm² for 500W to 2kW and
3 x 1.5mm² on 3.0kW models for connection to the xed wiring of the premises through a suitable
connection box positioned adjacent to the heater. A means for disconnection must be incorporated
in the xed wiring of the premises in accordance with the current wiring regulations. The supply
circuit to the heater must incorporate a double pole isolating switch having a contact separation of
at least 3mm. Products that are supplied without a plug are for installation into the xed wiring of the
property, via a suitable double pole switched fused spur with a fuse rated suitably for the appliances
ex. Typical fuse ratings for 230V equipment - Up to 700W = 3A, over 700W = 13A.
In installation the supply cord may be cut to the appropriate length for the electrical connection
point. Excess cable should not be inserted and stored behind the heater.
WARNING: This heater must not be connected to the electricity supply via an external switching
device (such as a timer) or a circuit that is regularly switched on and o by the utility supplier.
Failure to follow this warning could result in the heater’s thermal cut-o being inadvertently
reset and could create a re hazard. Cables/exes that are supplied pre-tted to the product
must NOT be extended.
CHILD SAFETY
WARNING - This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of appliance by a person responsible for their safety.
This appliance can be used by children from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the appliance provided
that it has been placed or installed in its intended normal operating position and they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years shall not regulate
and clean the appliance or perform user maintenance. This product contains a replaceable
battery. WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN.
WARNING - Packaging should be disposed o responsibly as the EPS used could be a
potential choking harzard for children.
3
