Strona 1/24

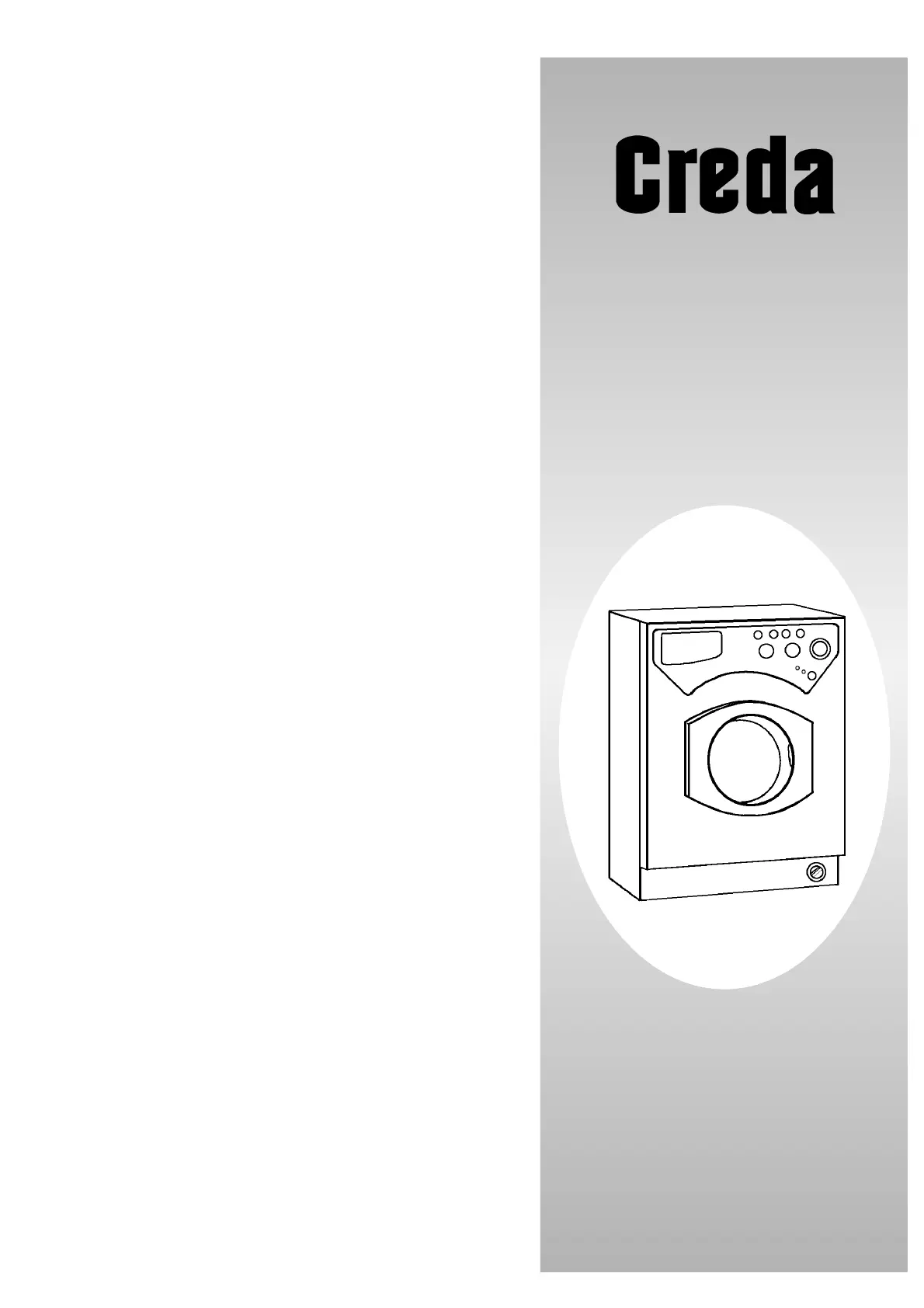

Congratulations on the purchase of your new
built-in appliance.
IMPORTANT INFORMATION
Please read this Instruction Manual
thoroughly before installing and using
your appliance for the first time.
Instructions for
Installation and Use
For Integrated Washer and Washer Dryer
Models IWM12 & IWD12
WARNING:This appliance must be earthed.
Fuses
Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only
those rated at 13A and ASTA approved to BS1362 should be used.To change the fuse in a
moulded plug,lift holder to vertical position and lift fuse out.To replace, insert fuse and push
fuse holder down into locked position. Correct replacement is identified by colour coding or the
marking on base of plug.
WARNING: Do not use plug unless fuse holder is in locked
position and fuse cover fitted.
Changing the Plug
Cut off and dispose of the supplied plug if it does not fit your socket.
WARNING:To avoid a shock hazard do not insert the discarded plug into a socket anywhere else.
IMPORTANT:WIRES IN THE MAINS LEAD
ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE:
Green/Yellow - Earth
Blue - Neutral
Brown - Live
If you change the plug, the colour of
wires in the mains lead may not
correspond with the colour of the
markings identifying terminals in the plug.
You should therefore wire it as shown.
Recommendations for the Electrical Installation of your Appliance
●
Do not use extension leads, adaptors or multiple plugs.
●
Never remove the earth connection.
●
You should plug your appliance into a socket that is easily accessible but out of reach of
children.
If in doubt, get in touch with your installer.
Changing the Mains Lead
A special lead can be ordered from Service UK: 08709 066 066 or
Republic of Ireland: 1850 302 200
If you have damaged the existing lead or require a longer one a charge will be made.
It is strongly advised that this work is carried out by a qualified electrician.
CE marking certifies that this appliance conforms to the following EEC directives:-
Low Voltage Equipment - 73/23/EEC
Electromagnetic compatibility - 89/336/EEC (including the modification directive
92/31/EEC)
Electricity Supply
Green and yellow (Earth)
wire to terminal
marked ‘E’,
symbol , or
coloured green
and yellow.
Blue (Neutral)
wire to terminal
marked ‘N’ or
coloured black.
13A ASTA approved
fuse to BS1362.
Brown (Live)
wire to terminal
marked ‘L’ or
coloured red.
Cord clamp
2
IMPORTANT INFORMATION:
●
Do not plug in and switch appliance on at the mains until installation is complete.
●
You may be charged for a service call if a problem with your appliance is caused
by incorrect installation or misuse.
Electricity Supply ...................................... 2
Recycling & Disposal Information .............. 3
Installation Instructions
............ 4
i. Remove Transit Bolts ....................... 5
ii. Choose a Location... ... 5
iii. Connect to the Water Supply........... 6
iv. Connect to a Drainage System.............. 7
v. Fitting the Door Panels and Plinth........ 8
vi. Fitting your appliance into your kitchen.. 10
vii. Levelling................... 11
The Controls
.................................. 12
Getting to know your Appliance:
Washing Machine IWM12..............................13
Washer Dryer IWD12.......................................14
Choosing a Programme:
Washing Machine IWM12..............................15
Washer Dryer IWD12.......................................16
The Dispenser Drawer
......................
17
Using your Appliance
......................
18
Washcare Tips
......................
20
Cleaning
.......................................... 21
Troubleshooting
General Maintenance
................... 22
Key Contacts
................................. Back Page
Retention of this
Instruction Manual
Keep this instruction manual in a
handy place for reference.
It contains important details on
the safe and proper use of your
appliance. If you sell the
appliance, pass it on to someone
else, move house and leave it
behind, make sure that you
provide this manual so that the
new owner can become familiar
with the appliance and safety
warnings.
Contents
Recycling & Disposal Information
As part of our continued commitment to helping the environment, We reserve the right to use
quality recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise risk of injury to children,
remove the door, plug and cut mains cable off flush with the appliance. Dispose of separately to
ensure that the appliance can no longer be plugged into a mains socket.
3
