Important Safety Advice
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of re, electrical shock, and
injury to persons, including the following:
IMPORTANT – The wall bracket supplied
with the appliance must be used.
WARNING – DO NOT USE THIS HEATER
IN THE IMMEDIATE SURROUNDINGS OF
A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a
room containing a bath or shower, it must be
so installed that switches and other controls
cannot be touched by a person using a bath
or shower.
Do not use outdoors.
Do not locate the heater immediately below
a xed socket outlet or connection box.
WARNING: In order to avoid overheating, do
not cover the heater. Do not place material
or garments on the heater, or obstruct the
air circulation around the heater, for instance
by curtains or furniture, as this could cause
overheating and a re risk.
NEVER cover or obstruct in any way the heat
outlet slots at the top of the heater or the air
inlet slots in the base of the heater.
The heater carries the Warning symbol
indicating that it must not be covered.
CAUTION - Some parts of this product
can become very hot and cause burns.
Particular attention has to be given where
children and vulnerable people are present.
This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand

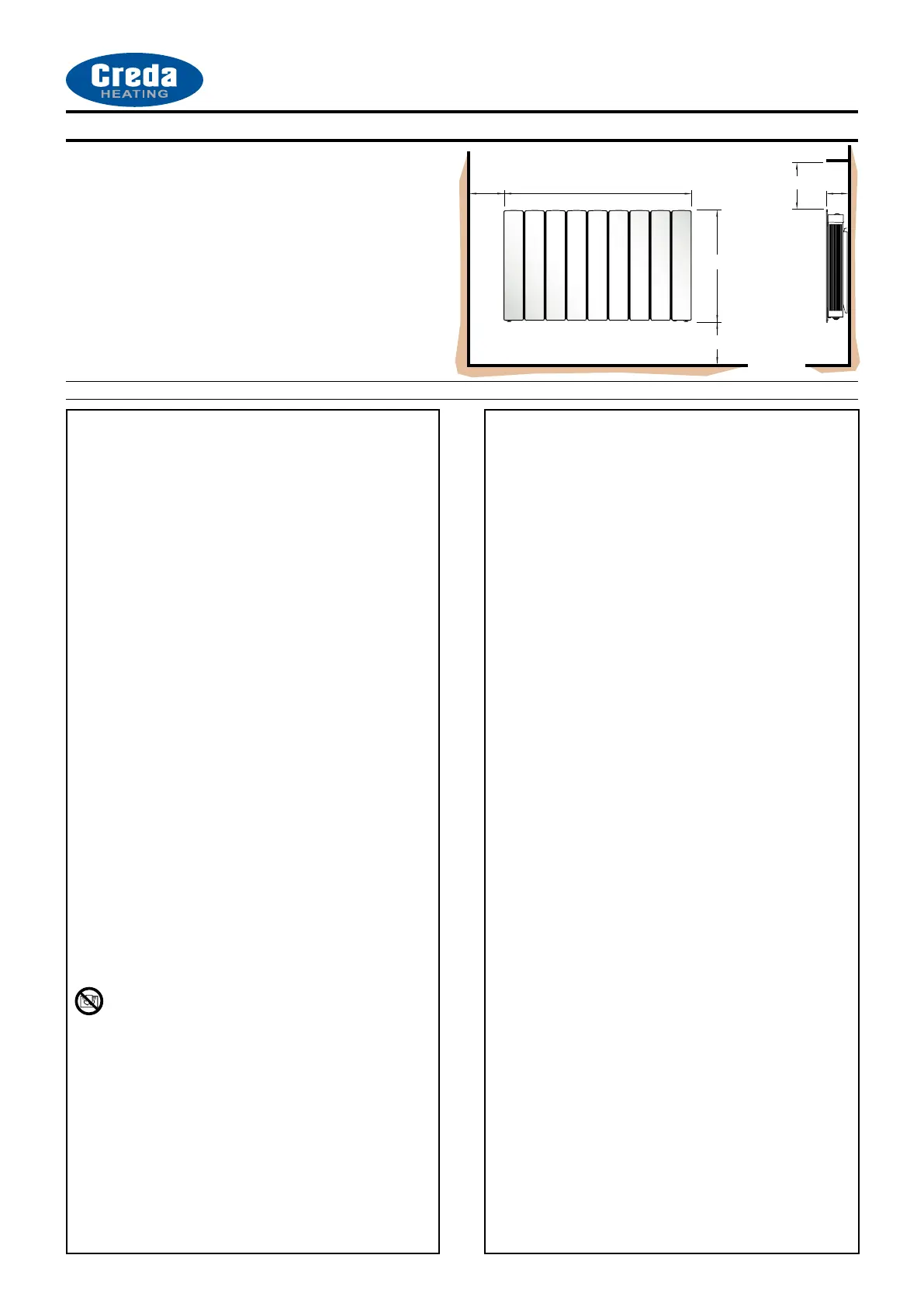

Installation and Operating Instructions
INCMUKP7RG Issue 6
Contour 100 Electronic Panel Heaters
Dimensions
(millimetres)
Model s Watt A B ( )
CEP500E 0.5kW 503 104
CEP750E 0.75kW 503 104
CEP1000E 1.0kW 671 104
CEP1500E 1.5kW 741 104
CEP2000E 2.0kW 911 104
Fig. 1
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintainance shall not
be made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate
and clean the appliance or perform user
maintainance.
Note that due care and consideration must
be taken when using this heater in series
with a thermal control, a program controller,
a timer or any other device that switches on
the heat automatically, since a re risk exists
when the heater is accidentally covered or
displaced.
If the supply cord is damaged it must be
replaced by the manufacturer or service
agent or a similarly qualied person in order
to avoid a hazard.
WARNING: Servicing and product
repairs should only be undertaken by the
manufacturers approved service agent or a
similarly qualied person, using only exact
manufacturer approved spare parts.
A means for disconnection must be
incorporated in the xed wiring of the
premises in accordance with the wiring
rules. The supply circuit to the heater must
incorporate a double pole isolating switch
having a contact separation of at least 3mm.
A
536
B
150
Min.
300 n.Mi
shelf
150 Min.
Operation
Switching On the Heater
The controls are located on the right hand side on top of the appliance.
The button marked ‘ ’ controls the electricity supply to the electronic
thermostat. An indicator beside the ‘ ’ button shows when the unit
is powered ‘ON’.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance with the
following code:
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
BLACK : PILOT WIRE
- see also ‘Pilot Wire Connection’.
The heater is tted with a length of exible cable type H05VV-F size 4
x 1.0mm2 for connection to the xed wiring of the premises through a
suitable connection box positioned adjacent to the heater.
The supply circuit to the heater must incorporate a double pole isolating
switch having a contact separation of at least 3mm.
Pilot Wire Connection
The BLACK control wire is designed to carry a signal from slot in or
wall mounted Creda programmers. If, however a programmer is not
being used, the pilot wire should be isolated in accordance with the
current IEE Wiring Regulations.
IMPORTANT - connect the BLACK pilot wire to earth. Care DO NOT
should be taken with the installation of the pilot wire(s) as when
switching to background (set back) they become energised at 240V
although only at a current of less than 100mA. In every case a suitable
means of isolation must be provided for the pilot wire and marked
to indicate that two sources of supply may be present at the heater.
Where pilot wires are installed separately from the heater nal sub-
circuit they should be protected, double insulated and carry their own
integral earth continuity conductor.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing conductor
in the supply cord is deemed to provide the supplementary bonding
connection (see Regulation 544.2.5, 17
th Edition I.E.E. Wiring
Regulations).
General
The heater is designed for wall mounting on the wall bracket supplied.
It should only be operated when in the upright position as shown -
see .Fig. 1
All models are splashproof to IPX4 standard and may be used in
bathrooms, however not in the immediate vicinity of baths, showers,
water connections, wash basins or swimming pools.
Before connecting the heater check that the supply voltage is the same
as that stated on the heater.
NOTE - Lit cigarettes, candles and oil burners, combined with the
convection effect of electric heaters can cause soot deposits to build
up on the surface directly above and to the sides of the heater. This
is not a fault of the heater. Extensive burning of candles or smoking
in the operating environment of this product can produce heavy
discolouration within a few months of use.
Wall Mounting
IMPORTANT – The wall bracket supplied with the appliance must
be used. The heater should be positioned observing the minimum
clearances stated around the heater - see and .Fig. 1 Fig. 2
DO NOT locate the heater immediately below a xed socket outlet
or connection box.
1. Remove wall mounting bracket from the back of the heate r
by depressing the spring latch at the top of each bracket - see
Fig. 2.
2. Fix the wall bracket securely to the wall through the four screw
holes provided.
3. Present the heater to the wall bracket, and engage lower slots
in the back with bracket.
4. Raise the heater to upright position and push the heater onto
the bracket to engage the top latch.
Fig. 2
MAX
MIN
Fig. 3
Turn on the heater using the ‘ ’ button and rotate the thermostat knob
to the desired position. When the room temperature has reached the
desired level, the power to the elements will be reduced, the heater
will then maintain the room temperature at the chosen level.
NOTE - Should your heater fail to come on when the thermostat knob
is at a low setting, this may be due to the room temperature being
higher than the thermostat setting.
Background Temperature
When used in conjunction with a remote programming device
supporting a background/setback setting, the heater will automatically
operate at a room temperature setting of 5
0C less than the thermostat
setting when the programme is in background/setback mode.
Limiting the thermostat setting
Before wall mounting the product the installer may wish to limit the
heat selection knob movement for the operator. This may be achieved
by unclipping the knob and removing the two plastic pins (see Fig. 4)
using pliers and inserting them in the preferred holes to limit the knob
movement. Replace the plastic cap.
Setting Desired Temperature Fig. 3(see )
The heater is tted with an adjustable thermostat enabling the room
temperature to be controlled by rotating the knob accordingly. The min
setting ‘ ’ represents a room temperature of approximately 5
0C and
may be used for protection against frost. The ‘MAX’ setting represents
a room temperature of approximately 30
0C. The ‘ ’ symbol glows when
the elements are actually heating.
D
255 Min.
C
C D
CEP500E 390 300
CEP750E 390 300
CEP1000E 560 300
CEP1500E 630 300
CEP2000E 800 300
Safety - Overheat protection
For your safety this appliance is tted with a thermal cut-out. In
the event that the product overheats for some reason, the cut-out
prevents excessive temperatures on the product by cutting the power
to the heater. Once the heater has cooled down, it will reset
automatically, it will continue to cycle on and off automatically until
the reason for overheating is removed.
Cleaning
WARNING – ALWAYS DISCONNECT FROM THE POWER SUPPLY
BEFORE CLEANING THE HEATER.
Before commencing cleaning, unplug the heater and allow it to cool.
Disconnect the electricity supply to the appliance.
The outside can be cleaned by wiping it over with a soft damp cloth
and then dried. Do not use abrasive cleaning powders or furniture
polish, as this can damage the surface nish.
To release the heater from the wall bracket for cleaning or redec-
oration, depress the latch on each bracket (see ) and hinge Fig. 2
forward.
Recycling
For electrical products sold within the European
Community. At the end of the electrical products
useful life it should not be disposed of with household
waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling
advice in your country.
After Sales Service
Your product is guaranteed for one year from the date of purchase.
Within this period, we undertake to repair or exchange this product
free of charge provided it has been installed and operated in
accordance with these instructions. Your rights under this guarantee
are additional to your statutory rights, which in turn are not affected
by this guarantee.
Should you require after sales service you should contact our
customer services help desk on 0844 879 3588. It would assist us
if you can quote the model number, series, date of purchase, and
nature of the fault at the time of your call. The customer services help
desk will also be able to advise you should you need to purchase
any spares.
Please do not return a faulty product to us in the rst instance as
this may result in loss or damage and delay in providing you with a
satisfactory service. Please retain your receipt as proof of purchase.
Notes to the Installer
Test Mode
When the heater is connected via a pilot wire system, the test mode
allows the installer to check whether the heater is responding correctly
to the incoming pilot wire signal.
Before switching the heater on at the mains, rotate the thermostat
knob to the ‘MAX’ position, then press and hold the ‘ ’ button whilst
switching on the mains.
The unit will now enter a test state for 4 mins. During this test state
the ‘ ’ neon will indicate the pilot wire status:
NEON PILOT WIRE
CONTROLLER MODE
Neon on - ON
Neon off - OFF
Fig. 4
Fig. 5
Neon ashing fast approx every 0.1sec - FROST
Neon ashing slow approx every 0.5 sec - SETBACK
Accessory Modules
Optional accessory modules are available for use with this range of
heaters - see separate User Instructions for details on the operation
of each accessory module.
Before tting a control module switch the heater off at the mains supply.
To insert a module, the plug-in protective cover on the right hand side
of the thermostat unit at the back of the heater must rst be removed.
Insert a at-head screwdriver into the side of the cover and prise away
from the heater - see Fig. 5.
Lift the cover away from the heater to reveal the slide in compartment.
Insert the accessory module into the slot ensuring it is positively
located in position - see . Secure the module in place with the Fig. 5
screw provided.
Switch the heater on at the mains supply.
Specyfikacje produktu
| Marka: | Creda |
| Kategoria: | grzejnik |
| Model: | CEP1500E |
Potrzebujesz pomocy?
Jeśli potrzebujesz pomocy z Creda CEP1500E, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą
Instrukcje grzejnik Creda
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
15 Września 2024
Instrukcje grzejnik
- grzejnik Bauknecht
- grzejnik Tesy
- grzejnik DeLonghi
- grzejnik Götze & Jensen
- grzejnik Tefal
- grzejnik Nedis
- grzejnik Adler
- grzejnik Rinnai
- grzejnik Domo
- grzejnik Ardes
- grzejnik Taurus
- grzejnik Orbegozo
- grzejnik Einhell
- grzejnik Bimar
- grzejnik Honeywell
- grzejnik Concept
- grzejnik Chauvet
- grzejnik Fuxtec
- grzejnik Broan
- grzejnik Mestic
- grzejnik Wilfa
- grzejnik Eureka
- grzejnik DEDRA
- grzejnik Emerio
- grzejnik Melissa
- grzejnik Beper
- grzejnik Ravanson
- grzejnik Thermex
- grzejnik Trotec
- grzejnik Thomson
- grzejnik Trumatic
- grzejnik Klarstein
- grzejnik Danfoss
- grzejnik Güde
- grzejnik JANDY
- grzejnik Qlima
- grzejnik Scarlett
- grzejnik GUTFELS
- grzejnik Dimplex
- grzejnik Harvia
- grzejnik Clatronic
- grzejnik SVAN
- grzejnik Solac
- grzejnik Hama
- grzejnik Orion
- grzejnik Blumfeldt
- grzejnik Zibro
- grzejnik Becken
- grzejnik Thermotec
- grzejnik Reer
- grzejnik Vitek
- grzejnik Eurom
- grzejnik Lifesmart
- grzejnik Lasko
- grzejnik Flama
- grzejnik Yellow Garden Line
- grzejnik Toyotomi
- grzejnik Soler & Palau
- grzejnik Monzana
- grzejnik Bestron
- grzejnik Optimum
- grzejnik Profile
- grzejnik TaoTronics
- grzejnik Anslut
- grzejnik Eldom
- grzejnik Kambrook
- grzejnik Noveen
- grzejnik Waldbeck
- grzejnik Waves
- grzejnik Ecoteck
- grzejnik Mirpol
- grzejnik Ausclimate
- grzejnik Hortus
- grzejnik Mission Air
- grzejnik Bromic
- grzejnik Airo
- grzejnik Ionmax
Najnowsze instrukcje dla grzejnik
26 Września 2024
25 Września 2024
25 Września 2024
25 Września 2024
25 Września 2024
24 Września 2024
24 Września 2024
24 Września 2024
24 Września 2024
24 Września 2024
