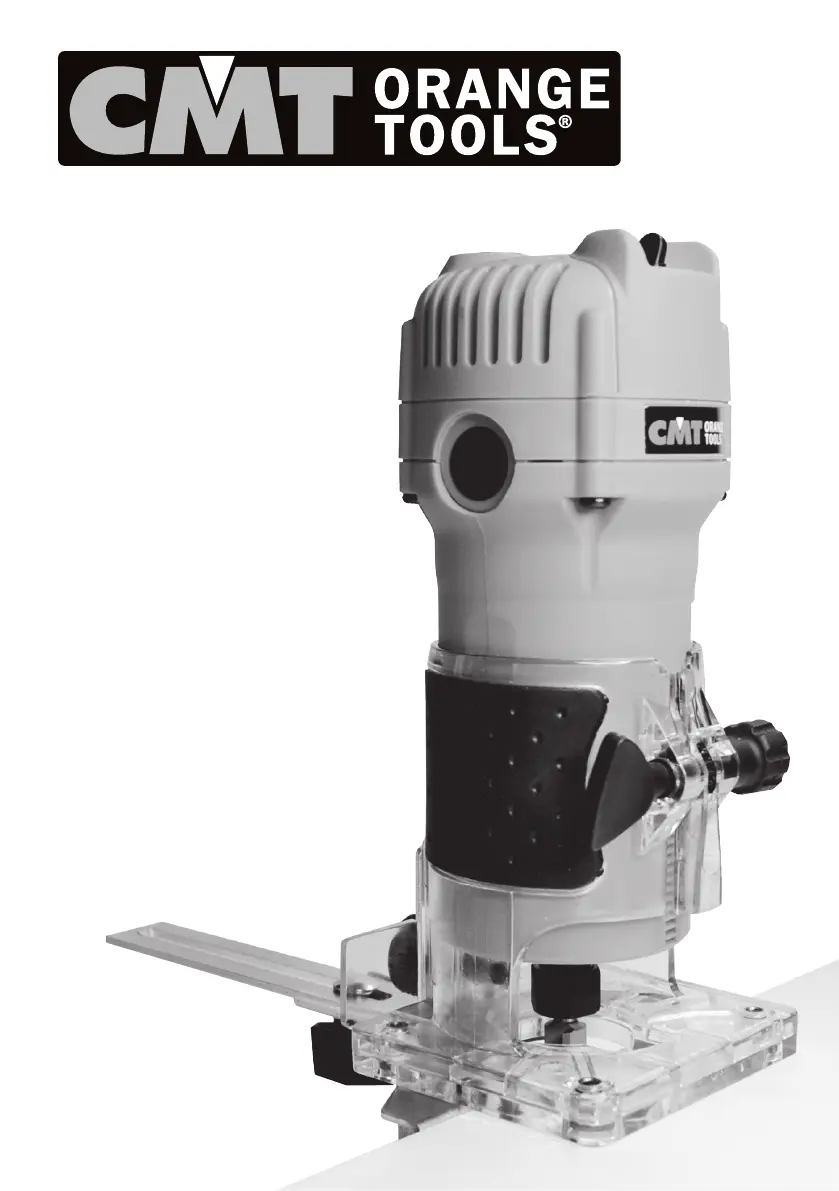

CMT10
550W
Precision Router
OPERATING INSTRUCTIONS
MANUAL DE INSTRUCCIONES
INSTRUCTIONS D’EMPLOI
ISTRUZIONI D’USO
BEDIENUNGSANLEITUNG
INSTRUKCJA OBSŁUGI
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
12 3
45
6 7
10
8
9 11-12
13
14 15
16
17 18
19
20 21
A
B
www.cmtorangetools.com 3
• Due to the continuing program of research and develop-
ment, the specifications herein are subject to change with-
out prior notice.
• Note: Specifications may differ from country to country.
1. Intended use
The tool is intended for flush trimming and profiling of wood,
plastic and similar materials.
2. Power supply
The tool should be connected only to a power supply of the
same voltage as indicated on the nameplate, and can only be
operated on single-phase AC supply. They are double-insulated
in accordance with European Standard and can, therefore, also
be used from sockets without earth wire.
3. Safety hints
For your own safety, please refer to enclosed safety instructions.
4. ADDITIONAL SAFETY RULES
1. Hold tool by insulated gripping surfaces when performing
an operation where the cutting tool may contact hidden
wiring or its own cord. Contact with a “live” wire will make
exposed metal parts of the tool “live” and shock the opera-
tor.
2. Wear hearing protection during extended period of opera-
tion.
3. Handle the bits very carefully.
4. Check the bit carefully for cracks or damage before opera-
tion.
Replace cracked or damaged bit immediately.
5. Avoid cutting nails. Inspect for and remove all nails from
the workpiece before operation.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Make sure the bit is not contacting the workpiece before
the switch is turned on.
9. Before using the tool on an actual workpiece, let it run for
a while.
Watch for vibration or wobbling that could indicate im-
properly installed bit.
10. Be careful of the bit rotating direction and the feed direc-
tion.
11. Do not leave the tool running. Operate the tool only when
hand-held.
12. Always switch off and wait for the bit to come to a com-
plete stop before removing the tool from workpiece.
13. Do not touch the bit immediately after operation; it may be
extremely hot and could burn your skin.
14. Always lead the power supply cord away from the tool to-
wards the rear.
15. Do not smear the tool base carelessly with thinner, gaso-
line, oil or the like.
They may cause cracks in the tool base.
16. Draw attention to the need to use cutters of the correct
shank diameter and which are suitable for the speed of
the tool.
1 Loosen
2 Tighten
3 Hold
4 Base
5 Adjusting roller
6 Bit protrusion
7 Lever
8 Scale
9 Switch lever
10 Workpiece
11 Feed direction
12 Bit revolving direction
13 View from the top of the tool
14 Correct bit feed direction
15 Trimmer shoe, straight guide
or trimmer guide
16 Bolt
17 Guide plate
18 Straight guide
19 Flat washer
20 Wave washer
21 Wing nut
22 Clamp screw (A)
23A Centre hole (70-121mm)
23B Centre hole (122-221mm)
24 Nail
25 Adjusting screw
26 Clamp screw (B)
27 Trimmer guide
28 Bit
29 Guide roller
30 Screwdriver
31 Base protector
32 Screws
33 Straight bit
34 Templet
35 Distance (X)
36 Templet guide 10
37 Limit mark
38 Brush holder cap

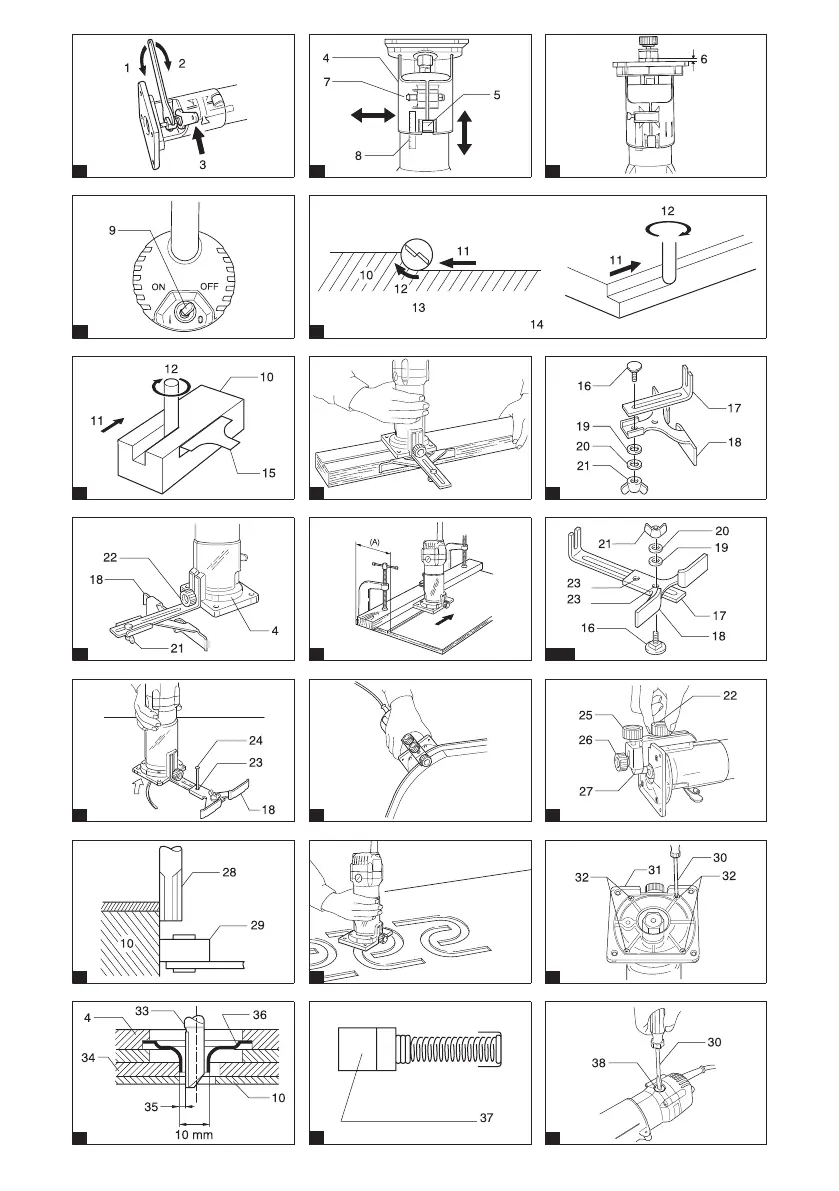

Explanation of general view
CMT10
Power input W 550
No load speed min
-1 32.000
Collet mm 6-6.35-8
Routing depth mm 0-40
Tool weight Kg 1.6
These data are valid for nominal voltages of [U] 220~230 V ~ 50/60 Hz. These
values may change of the voltage was lower and in the specific embodiments for
certain countries.
