Operator’s Manual

CP7762

Impact Wrench

WARNING

To reduce risk of injury, everyone using, installing, repairing, maintaining,

changing accessories on, or working near this tool must read and

understand these instructions, as well as separately provided safety

instructions part number 6159948710, before performing any such task.

8940174867 REV. 02

04/2017

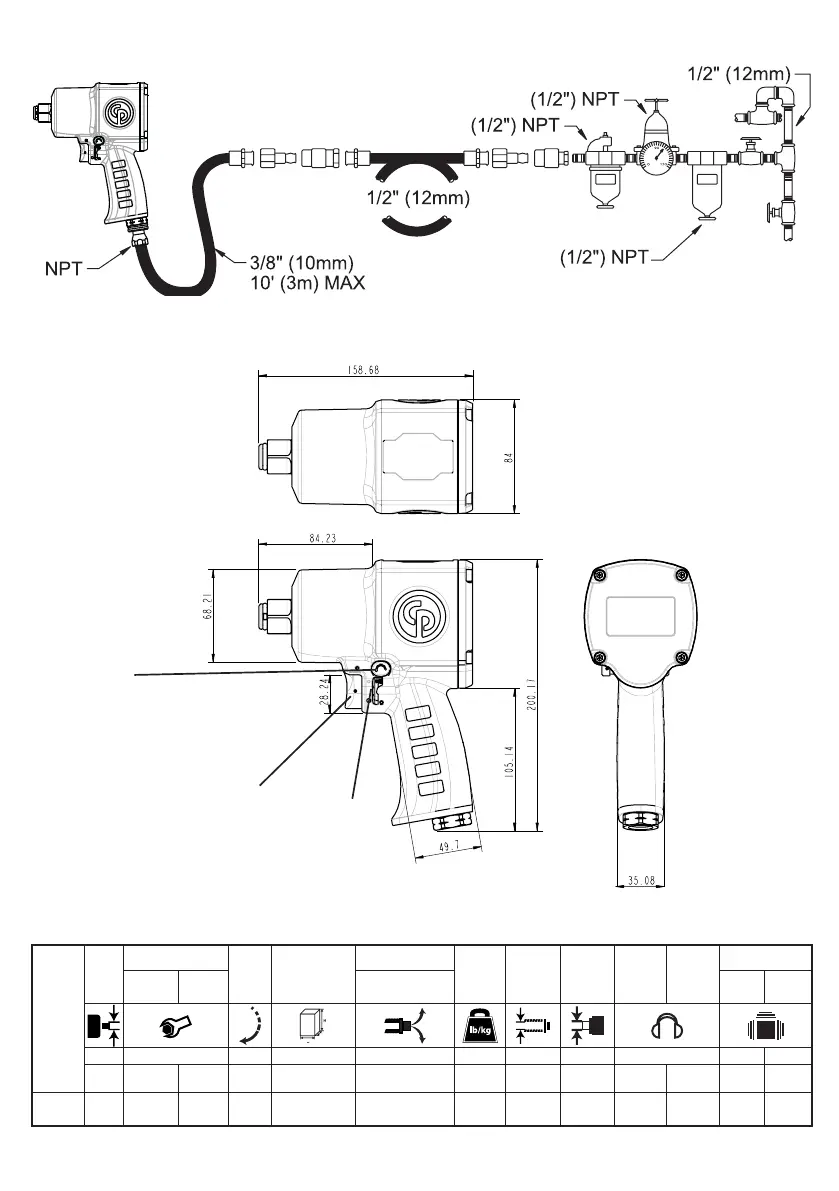

Fig. 02

Air Diagram:

Model

Drive

Torque

Speed Dimension

L*W*H

Air consumption

Weight

Inner

hose di-

ameter

Air inlet

Sound

pres-

sure

LpA

Sound

power

LwA

Vibrations

Working Max @ load a k

1 2 3 4 5 6 7 8 9 10 11

in. ft.lbs

N.m

ft.lbs

N.m rpm in.

SCFM

Nl/s

lbs

in.

mm in. dB(A) dB(A) m/s² m/s²

CP7762 3/4" 150 - 670

200 – 900

1050

1420 4850 6,24*3,3*7,87

159*84*200

34,75

16,4

6,6 3/4"

3/8" NPT 95 106 10,7 2,8

3 10

Fig. 01

3/8’’

Technical Data

Model

Drive

Torque

Free speed Dimension

L x W x H

Air Consumption

Weight Inner Hose Dia. Air Inlet

Sound pressure

LpA

Sound power

LwA

Vibrations

Working Max Average at load ahd K

1 2 3 4 5 6 7 8 9 10

[inch] [ft.lbs]

[Nm]

[ft.lbs]

[Nm] [min-1] [inch]

[mm]

[Nl/s]

[SCFM]

[kg]

[lb]

[inch]

[mm] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]

max. pressure 6.3bar(90psi)

ah : Vibration level, Uncertainty ; k L

pA Sound pressure dB(A), K

pA K= WA = 3 dB Uncertainty.

Declaration of noise and vibration statement (ISO 15744 and ISO 28927-2)

All values are current as of the date of this publication. For the latest information please visit www.cp.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared

values of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user. We, CHICAGO PNEUMATIC

TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reecting the actual exposure, in an individual risk

assessment in a work place situation over which we have no control. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

An EU guide to managing hand-arm vibration can be found at www. pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf. We

recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures can

be modied to help prevent future impairment.

Machine type(s)

• This product is designed for installing and removing threaded fasteners in wood, metal and plastic. No other use permitted. For professional use only.

Operation

• Fix the accessories properly to the tool.

• Connect device as shown in Fig. 01 to a clean and dry air supply.

• To start the machine, pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the trigger to stop.

• To switch rotation, turn the switch (B) as shown in Fig. 02.

• Use the reverse switch (B) only when the drive spindle comes to a complete stop. Changing the speed before the drive spindle stops may damage the

machine.

• To adjust output power, turn the regulator (C) as shown in Fig. 02.

Lubrication

Motor Clutch

• Use an air line lubricator with SAE #10 oil, adjusted to two drops per minute. If an air line

lubricator cannot be used, add air motor oil to the inlet once a day.

Recommended lubricant : CP Oil PROTECTO-LUBE

- 4 oz (0.12l) P/N: CA149661

- 20.8 oz (0.591l) P/N: CA000046

- 1gal (3.8l) P/N: P089507

• Use CP Pneu-Lube synthetic clutch Grease 8940158455 :

9 g (0.31 oz.)

Maintenance instruction

• Follow local country environmental regulations for safe handling and disposal of all components.

• Maintenance and repair work must be carried out by qualified personnel using only original spare parts. Contact the manufacturer or your nearest authorised

dealer for advice on technical service or if you require spare parts.

• Always ensure that the machine is disconnected from energy source to avoid accidental operation.

• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.

• High wear parts are underlined in the parts list.

• To keep downtime to a minimum, the following service kits are recommended :

Tune-Up Kit : see part list

Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

EU Declaration of Conformity

We : CHICAGO PNEUMATIC Tool Co. LLC, 1815 Clubhouse Drive, Rock Hill, SC 29730 - USA

Machine type(s) : impact wrench

Declare under our sole responsibility that the product(s) : CP7762 Serial Number : 00001-99999

Origin of the product : Taiwan

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC

(17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-6:2012

Name and position of issuer : Pascal Roussy (R&D Manager)

Place & Date : Saint-Herblain, 16/03/2017
