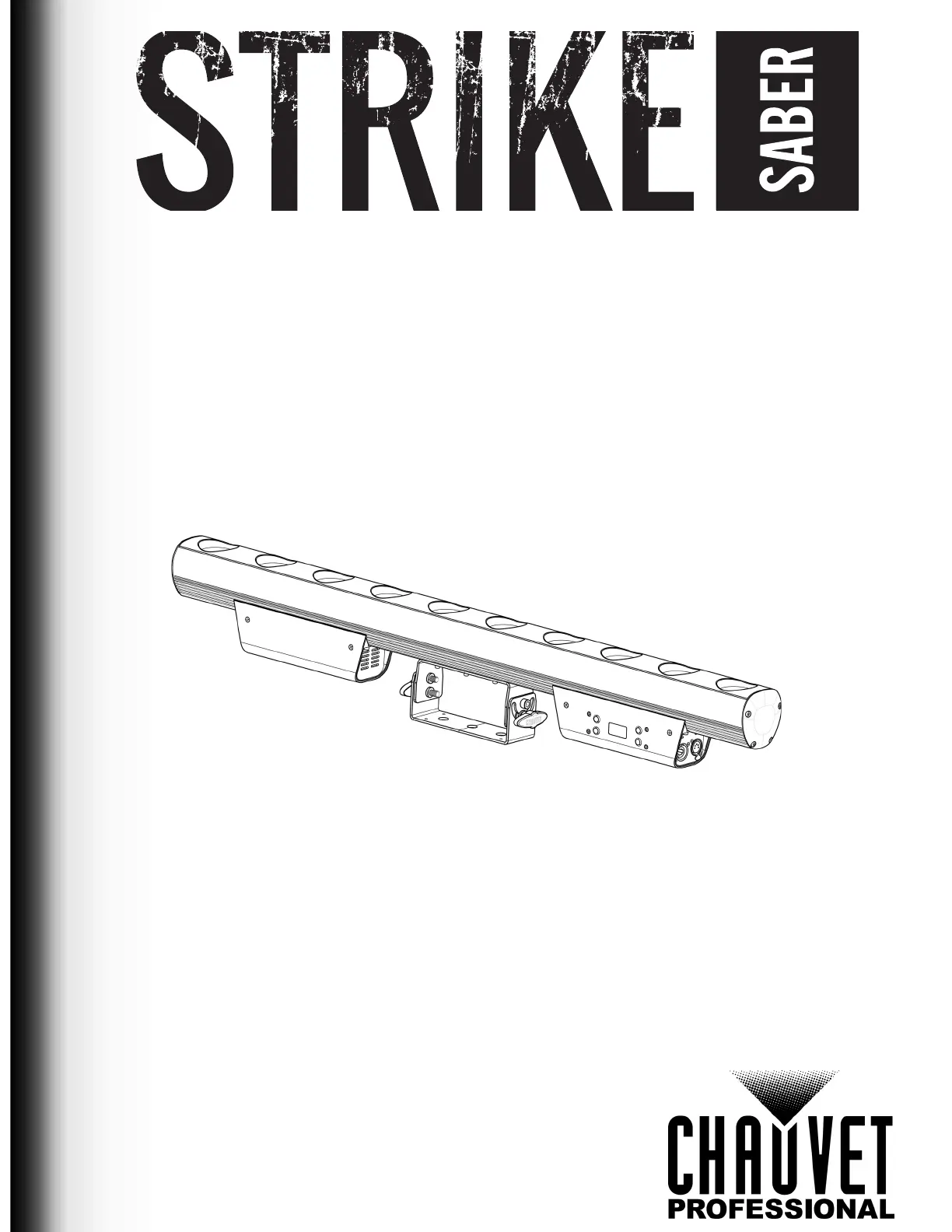

Quick Reference Guide
English EN
Español ES
Français FR
Deutsch DE
Nederlands NL
1
EN
QUICK REFERENCE GUIDE
STRIKE Saber QRG Rev. 7
About This Guide
The STRIKE Saber Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration/.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period
specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty
extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you
must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product
name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you
specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is
valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France,
Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• CAUTION: Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding
notification of strobe use.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect
it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
• STRIKE Saber
• Neutrik® powerCON® power cord
• Floor stand
• Quick Reference Guide
EN
2
STRIKE Saber QRG Rev. 7
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 9 STRIKE Saber products at 120 V, 16 products at 208 V, or 18 products at 230 V. Never exceed this
number. Power linking cords can be purchased separately.
AC Plug
Replacing the Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The STRIKE Saber will work with a DMX controller using a 5-pin DMX data connection. A DMX Primer is available from
www.chauvetprofessional.com.
DMX Connection
The STRIKE Saber uses a 5-pin DMX data connection for its DMX personalities: 1Ch, 3Ch, 7Ch, 10Ch, 11Ch, 20Ch, and
27Ch. See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The STRIKE Saber uses the DMX data connection for its Master/Slave mode. See the User Manual for information about
connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. The STRIKE Saber supports RDM protocol that allows feedback to monitor changes to the
menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
