A NOTE ABOUT SAFETY

Any time you see this symbol in manuals, instructions and on the

unit, be aware of the potential for personal injury. There are three levels

of precaution:

DANGER identifies the most serious hazards which will result in severe

personal injury or death.

WARNING signifies hazards that could result in personal injury or

death.

CAUTION is used to identify unsafe practices which would result in

minor personal injury or product and property damage.

NOTE is used to highlight suggestions which will result in enhanced

installation, reliability, or operation.

A07903

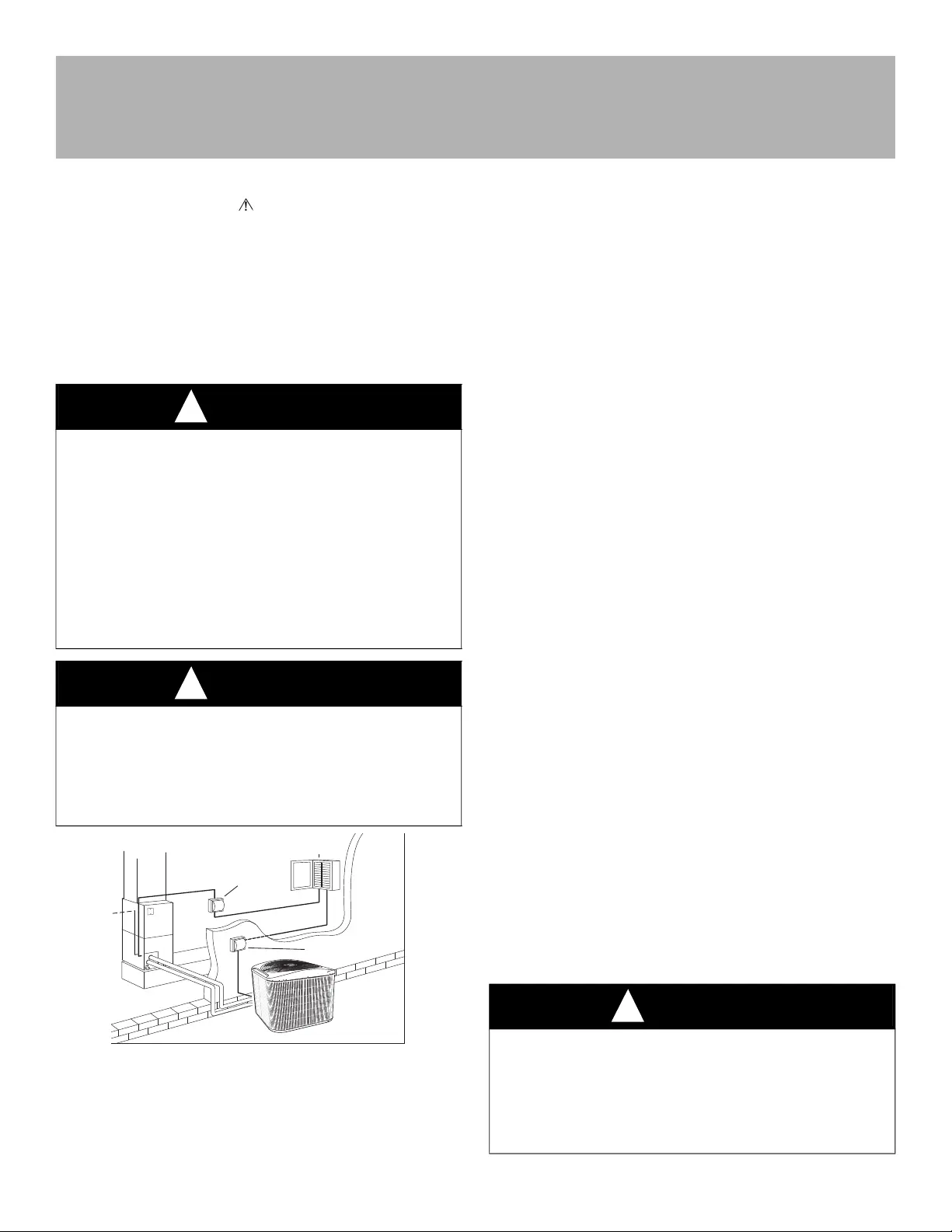

Fig. 1 – Electrical Disconnects

ABOUT YOUR AIR CONDITIONING SYSTEM

Our products are designed, tested and built in accordance with US

Department of Energy standardized procedures and other standards;

however, actual operating results and efficiencies may vary based on

manufacturing and supplier tolerances, equipment configuration,

operating conditions and installation practices.

Identifying Your System

Your new air conditioning system is called a ”split system.” It has an

outdoor unit and an indoor unit connected to each other with copper

tubing called refrigerant lines. Each of these units has a rating plate with

the model and serial numbers you will need to reference when calling an

authorized dealer about your system.

Take a few moments now to locate those numbers and record them for

future reference.

Using Your New System

Your air conditioning system is controlled by a wall-mounted thermostat

installed inside your home. Because there are so many thermostats

available, please refer to the owner’s manual supplied with your

thermostat for complete details on system operation.

2-Stage Operation

If you own a two-stage air conditioning system, you may notice your

system runs for longer periods of time. When appropriately sized, nearly

80% of the time it’s running, it is operating in low-stage, and your indoor

temperature will remain more consistent with fewer drafts, better

humidity control, enhanced comfort and enhanced energy efficiency.

Cooling Your Home

For cooling operation, make sure the System or Mode control is set for

Cooling. Then, adjust the Temperature control to your desired setting.

Finally, use the Fan control to select Automatic (turns on and off as

cooling is needed) or On (runs continuously).

Operation Under Extreme Conditions

Your air conditioner will run as long as necessary to maintain the indoor

temperature selected on your thermostat. On extremely hot days, your air

conditioner will run for longer periods at a time than on moderate days.

Your system will also run for longer periods of time under the following

conditions:

• Frequent opening of exterior doors

• Operating laundry appliances

• Taking hot showers

• More than the usual number of people present in the home

• More than the normal number of electric lights in use

• Drapes or blinds are open on the sunny side of the home

ROUTINE MAINTENANCE

Simple, routine maintenance as described below will enhance your air

conditioning system’s ability to operate economically and dependably.

Always remember the following safety precautions:

OWNER’S MANUAL

SPLIT-SYSTEM AIR CONDITIONER

USING R-410A REFRIGERANT

WARNING

PERSONAL INJURY, DEATH AND / OR PROPERTY

DAMAGE HAZARD

Failure to follow this warning could result in personal injury, death or

property damage.Improper installation, adjustment, alteration, service,

maintenance, or use can cause explosion, fire, electrical shock, or other

conditions which may cause personal injury or property damage.

Consult a qualified installer, service agency, or your distributor or

branch for information or assistance. The qualified installer or service

agency must use factory-authorized kits or accessories when modifying

this product.Read and follow all instructions and warnings, including

labels shipped with or attached to unit before operating your new air

conditioner.

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death.

Disconnect all electrical power to the indoor air handler or furnace

before removing access panels to perform any maintenance.

Disconnect power to both the indoor and outdoor units.

NOTE: There may be more than one electrical disconnect switch.

Main

Disconnect

Indoor

Disconnect

Outdoor

Disconnect

ostat

CAUTION

PERSONAL INJURY AND/OR PRODUCT AND

PROPERTY DAMAGE HAZARD

Failure to follow this caution may result in personal injury or product

and property damage.Although special care has been taken to minimize

sharp edges in the construction of your unit, be extremely careful when

handling parts or reaching into the unit.

7310 W. Morris Street • Indianapolis, IN 46231 Catalog No: OG-ACR410GEN-03

Edition Date: 08/19 Replaces: OG-ACR410GEN-02

OWNER’S MANUAL SPLIT-SYSTEM AIR CONDITIONER USING R-410A REFRIGERANT:

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

• Keep Filter Clean

A clogged or improperly installed air filter on your indoor unit will

increase operating costs and shorten the life of the unit. For detailed

filter cleaning information refer to indoor unit literature.

• Do Not Block Floor, Wall or Ceiling Vents

When drapes, furniture, toys or other common household items block

vents, the restricted airflow lessens the system’s efficiency and life span.

• Do Not Cover or Block Outdoor Unit

The outdoor unit needs unrestricted airflow. Do not cover it or place

items on or next to it. Do not allow grass clippings, leaves, or other

debris to accumulate on the sides or top of the unit. And, maintain a 12”

(304.8 mm) minimum clearance between the outdoor unit and tall grass,

vines, shrubs, etc.

• Check Condensate Drain

Your air conditioner removes humidity from your home during the

cooling season. After a few minutes of operation, water should trickle

from the condensate drain of the indoor coil. Check this occasionally to

be sure the drain system is not clogged. Drainage will be limited if you

live in a very dry environment.

• Do Not Operate Below 55°F/13°C

Your outdoor unit is not designed to operate when outdoor temperatures

are lower than 55_F/13°C without modification. If operation below this

temperature is required, consult your authorized dealer.

• Coil Cleaning

Your indoor coil is located in a sealed cabinet on your indoor unit and

will require minimal cleaning with routine filter maintenance. Longer

operating cycles and reduced energy efficiency may indicate the need for

a coil cleaning by your authorized dealer.

• Base Pan Drainage

Periodically check for and remove debris that has settled around the base

of your outdoor unit. This will ensure proper drainage of the base pan

and eliminate standing water inside the outdoor unit.

• Level Installation

Your authorized dealer will install the outdoor unit in a level position. If

the support base settles or shifts and the unit is no longer level, be sure to

re-level it promptly to assure proper drainage. If you notice water or ice

collecting beneath the unit, arrange for it to be drained away from the

unit.

Sea Coast Coil Maintenance

Coastal locations often require additional maintenance of the outdoor

unit due to highly corrosive airborne ocean salt. Although your new

system is made of galvanized metal and is protected by top-grade paint,

take the additional precaution of periodically washing all exposed

surfaces and the outdoor coil approximately every 3 months. Consult

your installing dealer for proper cleaning intervals and procedures for

your geographic area or ask about a service contract for regularly

scheduled professional cleaning and inspections.

TROUBLESHOOTING

Before you request dealer service, check for these easily solved

problems:

• Check the indoor and outdoor disconnect switches Also check your

main electrical panel circuit breakers or fuses.

• Check for sufficient airflow. Air filter(s) should be reasonably clean

and interior vents should be open and unobstructed.

• Check thermostat settings. For cooling, your desired temperature

setting should be LOWER than the displayed room temperature, and

the System/Mode control should be on Cool or Auto. For heating,

your temperature setting should be HIGHER than the displayed room

temperature, and the System/Mode control is set to Heat or Auto.

• Time delays - depending on the air conditioner you have, there may be

delays in unit operation that are built-in to protect the equipment and

your comfort. Don't be alarmed if you notice a time delay in

operation. It may be a standard protection feature of your equipment.

Check with your authorized Dealer for more information on time

delays.

If you need to contact your authorized dealer for troubleshooting and/or

repairs, be sure to have the model and serial numbers of your equipment

available (there are spaces on the cover for you to write this

information). With this information, your dealer may be able to offer

helpful suggestions over the phone or save valuable time through

knowledgeable preparation for the service call.

Regular Dealer Maintenance

In addition to the routine maintenance that you perform, your home

comfort system should be inspected regularly by a properly trained

service technician. Many dealers offer this service at a reduced rate with

a service contract. Some service contracts offer additional benefits such

as parts discounts and no additional charge for ”after hours” or

emergency service.

Monthly maintenance items and outdoor unit rinsing may be performed

by the consumer. All other maintenance items and all service work must

be performed by a qualified service technician. Read all waring labels.

* Monthly maintenance items and outdoor unit rinsing may be performed by the consumer. All other maintenance items and all service work must be performed by a qualified service technician. Read all waring labels.

Notes:

1. The above list may not include all maintenance items. Inspection intervals may vary depending on climate and operating hours. Consult your HVAC dealer about a service contract for seasonal inspections.

2. Do not use harsh chemicals or high pressure water on coils. More frequent rinsing is required for units near a sea coast.

Maintenance Checklist Recommended

Interval*

Outdoor unit specific: Monthly Annual

Clear away debris and vegetation near unit. X

Inspect cabinet for damage. Replace components that are damaged or severely rusted. X

Inspect electrical disconnect for proper function. Repair or replace as necessary. X

Inspect electrical wiring and connections. Tighten loose connections. Inspect and perform functional test of equipment as needed to ensure proper

function. Repair or replace damaged or overheated components and wiring. X

Check refrigerant system subcooling and/or superheat (system dependent). X

Inspect inside of unit. Clean if debris is present. X

Inspect condenser coil. Clean if dust, dirt, or debris is present. Rinse unit with fresh water (see Note 2). X

Inspect motor and fan for damage. Make sure fan spins freely. X

Indoor specific: (for fossil fuel furnaces and accessories, refer to unit specific literature)

Inspect, clean, or replace air filter if dirty. X

Inspect and clean blower assembly (includes blower housing, wheel, and motor). X

Inspect internal and external of cabinet. Clean as needed. X

Inspect electrical disconnect for proper function. Repair or replace as necessary. X

Inspect electrical components, wiring, and connections. Tighten loose connections. Repair or replace damaged components and wiring. X

Inspect evaporator coil. Clean if dust, dirt, or debris is present (see Note 2). X

Clean condensate pan, trap, and drain lines (more frequent maintenance may be required in humid climates - consult your local HVAC dealer). X

Inspect airflow system (ductwork). Check for leaks and repair as needed. X

Specyfikacje produktu

Marka:	Carrier
Kategoria:	klimatyzacja
Model:	Comfort 24ACC4

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Carrier Comfort 24ACC4, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje klimatyzacja Carrier

Carrier Comfort 24ABB3 Instrukcja

30 Września 2024

Carrier Comfort 24ACC4 Instrukcja

30 Września 2024

Carrier Comfort 24ABC6 Instrukcja

30 Września 2024

Carrier Infinity 24VNA0 Instrukcja

30 Września 2024

Carrier Comfort 24SCA4 Instrukcja

30 Września 2024

Carrier Performance 24ACB7 Instrukcja

30 Września 2024

Carrier Performance 24TPA7 Instrukcja

30 Września 2024

Carrier Performance 24SPA6 Instrukcja

30 Września 2024

Carrier Infinity 24ANB7 Instrukcja

30 Września 2024

Carrier Comfort 24AAA5 Instrukcja

30 Września 2024

Instrukcje klimatyzacja

Najnowsze instrukcje dla klimatyzacja

LG HS-H076QPA0 Instrukcja

15 Października 2024

Klarstein Vita Pure 2G Instrukcja

15 Października 2024

Gree ETAC-15HP265V20B Instrukcja

15 Października 2024

Qlima P 126 Instrukcja

14 Października 2024

Mitsubishi MSZ-CB22VA Instrukcja

14 Października 2024

Suntec Motion 90+ Instrukcja

14 Października 2024

Fujitsu Airstage ABHA014GTEH Instrukcja

14 Października 2024

Danby DTAC120B1WDB Instrukcja

14 Października 2024

Amana PTC093K35AXXX Instrukcja

14 Października 2024

Amana AMAP121AB-2 Instrukcja

14 Października 2024
