Notice

This manual provides general information, preparation for use, installation and oper-

ating instructions for the Black Lion Audio PBR-Series Patchbays.

The information contained in this manual is subject to change without notice. Black

Lion Audio makes no warranties of any kind with regard to this manual, including, but

not limited to, the implied warranties of merchantability and tness for a particular

purpose. Black Lion Audio shall not be liable for errors contained herein or direct, indi-

rect, special, incidental, or consequential damages in connection with the furnishing,

performance, or use of this material.

or registered trademarks of Black Lion Audio.

This manual and any associated intellectual property are subject to

any form without explicit written consent from Black Lion Audio.

Owner’s Manual

SIGNAL FLOW IN YOUR TRS PATCHBAY

The ow of signal through a patchbay module is affected by both

physical connections and mode setting (Normaled or Half-

Normaled.) The most common conguration for a patchbay is for

signals to come in to the patchbay from the top rear connections,

and out of the patchbay from the bottom rear connections.

Conversely, on the front of the patchbay, the top row connections

are outputs and the bottom row connections are inputs.

With jacks connected to the top rear and bottom rear of

a single patchbay module, signals coming into a top rear

connection are passed directly through to the output on the

bottom rear, as shown here. This connection style should

be used for your hardware’s “default” conguration - the way

you want your signals to ow on a day-to-day basis.

When no jacks are connected to the top connections of a module, a

signal from the front bottom input is passed through to the rear bottom

output.

When all four jacks are connected to a patchbay module, a signal

connected to a rear top input of the patchbay is passed to the front top

output, while signal from the the front bottom input is passed to the

rear bottom output.

NORMALED OPERATION

When a module is set to Normaled and connections are made to the

top rear and top front jacks, the signal is passed through from the

top rear to the top front - breaking the connection shown in gure 1.

A Normaled conguration allows you to run several devices in series by

using patch cables on the front of the patchbay to interconnect several

of your devices. For example, you could run a signal from a preamp, to a

compressor, and nally to a reverb. A cable inserted into the bottom

rear will have its connection connection broken when a cable is

inserted into the top front.

HALF-NORMALED OPERATION

When a module is set to Half-Normaled and connections are made

to the rear top, rear bottom, and front top jacks, the signal is passed

through from the top rear to the top front - without breaking the con-

nection shown in gure 1.

This allows you to use the patchbay as a mult (splitter), sending the signal

coming into the patchbay to two different destinations; very useful for

parallel processing of your signal and monitoring applications. Inserting

a cable in to the front bottom jack of a half-normaled module will break

the connection between the rear jacks.

TRS PATCHBAY TIPS

We advise against connecting a single device, interface, or outboard

processor to a single module’s vertically-connected set of patch points.

In other words, don’t connect both the Input and Output of a delay unit on

module 1 of your patchbay - that would could create a feedback loop. Use

separate modules for a single devices inputs and outputs.

Furthermore, doing so severely limits the convenience of a patchbay. It

also forces you to use more patch cables, and increases the minimum

length of the signal chain. In reality it is more convenient to wire the

normalling scheme around the way that your particular studio is wired

and will most commonly be used, and to modify those connections by

breaking patches from the front of the patchbay when something other

than the “standard” conguration for your studio is desired.

Based on our experience, basing patchbay wiring on thru connections

(without internal normaling) is quick and easy. That said, we’ve found

that using a normalled or half-normalled conguration based on the

most commonly-used processing chains in your studio saves a lot of

time in the long run.

We advise against running phantom power through a TRS patchbay, as

this makes it possible to send phantom power to a device not designed

to handle it; expensive damage could result!

Fig. 2

Fig. 1

Fig. 3

Fig. 4

Fig. 5

PBR-Series

Patchbays

PBR TRS

PBR TRS-BT

PBR XLR

The PBR TRS and PBR TRS-BT Patchbays both offer 96 points

of connectivity for your studio gear, allowing for permanent

installation and routing of your favorite hardware while still

allowing for exible and creative patching.

The PBR TRS and PBR TRS-BT Patchbays both offer Normalled and

Half-Normalled operation, switchable from the rear of the unit on a

per-module basis. A module, in this context, is any set of vertically-

aligned jacks on the patchbay; front and back.

The functionality of the PBR TRS and PBR-TRS-BT are identical,

apart from the Bluetooth connection available on the PBR TRS-BT,

discussed below.

A typical patchbay conguration will have device outputs sent to

the top rear row of patch points with device Inputs connected to

the rear bottom row. For example, you would connect the Input of

a delay unit or compresssor to a rear bottom row connection of the

patchbay, and its Output to a rear top row conection.

PBR TRS-BT BLUETOOTH

CONNECTION

Once you have installed your PBR TRS-BT where you need

it, plug it in to an appropriate power source. Note: The

power supply is only needed for Bluetooth audio.

Plug in your equipment to the correct outlets on the

PBR TRS-BT.

Once the power supply is pluged into the power inlet, the

PBR TRS-BT Bluetooth is active. To sync your device to the

PBR TRS-BT, press and hold the Bluetooth Sync button.

Once the Bluetooth Status LED has started to blink,

devices are able to nd the PBR TRS-BT via Bluetooth

connection.

To sync another device to the PBR TRS-BT, press and hold

the Bluetooth Sync button.

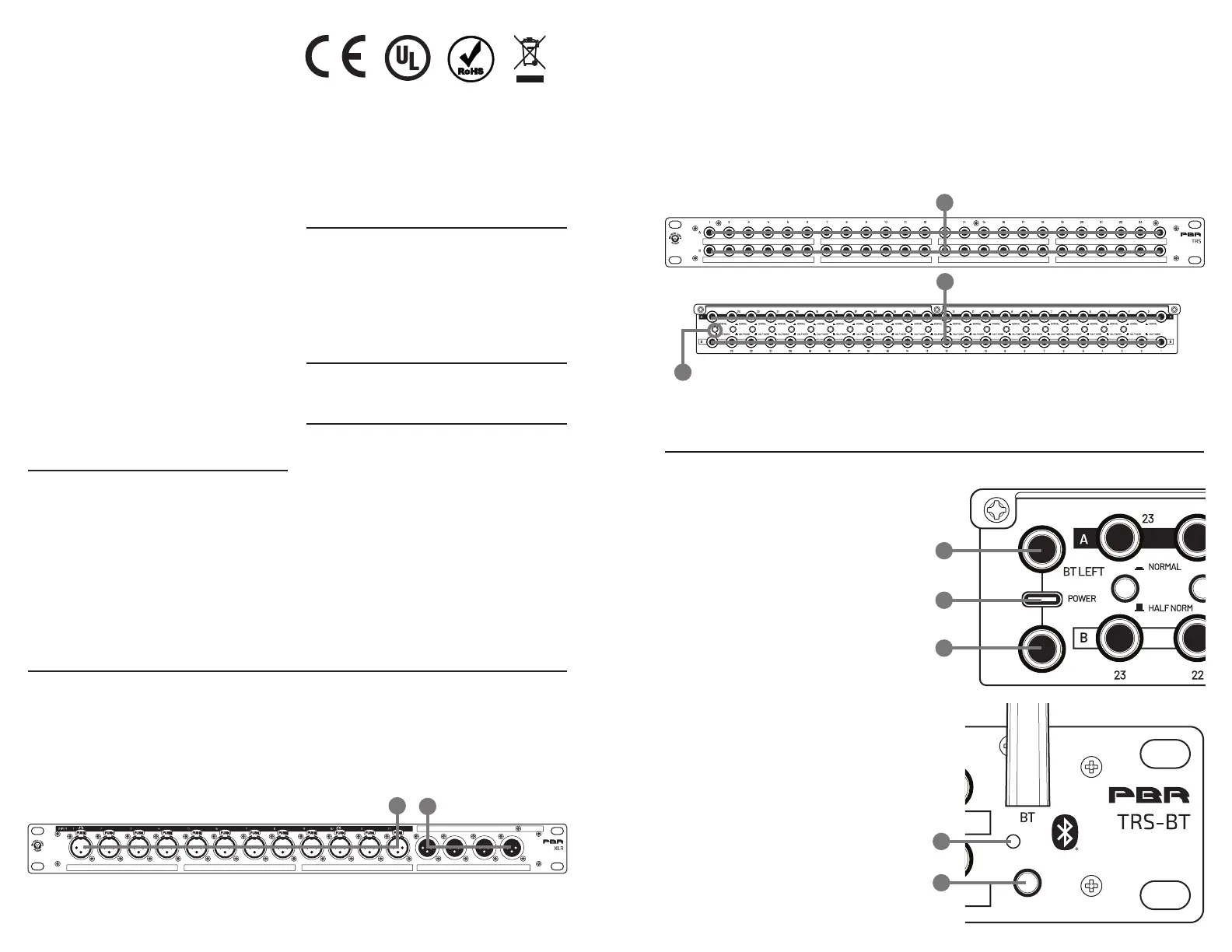

1. Power Inlet: Connect power supply here. Power is only

necessary for Bluetooth connection.

2. Bluetooth Sync: This button operates the Bluetooth

Sync. Press and hold this button to set the PBR TRS-BT

to “sync mode”, when connecting new devices.

3. Bluetooth Status: When this LED is blinking, the PBR

TRS-BT is ready to be paired. When this LED is lit, the

PBR TRS-BT is synced to a device.

4. Bluetooth Left Output: This TRS jack outputs the left

channel of the Bluetooth audio.

5. Bluetooth Right Output: This TRS jack outputs the right

channel of the Bluetooth audio.

1. Balanced 1/4” TRS connection: Accepts 1/4” jacks for connecting

and routing your audio gear. Accepts balanced (TRS) and unbal-

anced (TS) connections.

2. Normal/Half-Normaled Switch: Toggles the routing for the select-

ed channel between Normal and Half Normaled operation. Switch

in = Normal, Switch out = Half-Normal.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding-type plug has two blades and a third grounding prong.

The wide blade or third prong is provided for your safety. If the pro-

vided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particular-

ly at plugs, convenience receptacles, and the point where they exit

from the apparatus. If the power cord becomes frayed, stop using

immediately.

11. Use only attachments/accessories specied by the manufacturer

12. Use only with a cart, stand, tripod, bracket or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid in-

jury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been ex-

posed to rain or moisture, does not operate normally, or has been

dropped.

15. This apparatus shall not be exposed to dripping or splashing, and

no object lled with liquids, such as vases, shall be placed on the

apparatus.

16. The mains plug or power inlet on the product is used as the discon-

nect device, so the disconnected device shall remain readily opera-

ble when reconnected.

17. Any changes or modications not expressly approved in this manu-

al could void your authority to operate this apparatus.

IMPORTANT !

The lightning ash with an arrowhead symbol within an equilateral tri-

angle is intended to alert the user to the presence of uninsulated “dan-

gerous voltage” within the product’s enclosure that may be of sucient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

This product complies with all international standards for safety and

emissions including IEC62368 and FCC Part 15-B.

Do not attempt to service this unit yourself, as it will void your warran-

ty. Please check your unit carefully upon receipt and return to place

of purchase immediately if there are any problems with the product.

After that, the standard Black Lion Audio 3 YEAR warranty will apply

to defects in materials and workmanship.

U.S.A.

Should your Black Lion Audio product require service,

please contact us on our customer service site:

https://www.blacklionaudio.com/contact. You must obtain an RA #

(Return Authorization number) from us before shipping a unit back to

us. This RA # must be clearly written on the outside of the box.

Please safely pack the units…It is best to use the original packing

materials. Black Lion Audio cannot be responsible for any damag-

es incurred in shipping to us due to poor packaging. PLEASE PACK

CAREFULLY and FULLY INSURE THE SHIPMENT.

INTERNATIONAL

For service or warranty assistance, please contact the Black Lion Au-

dio distributor in your country through the dealer from whom you pur-

chased this product.

LIMITED 3 YEAR WARRANTY

Black Lion Audio’s PBR TRS Patchbays are warranted by Black Lion Au-

dio to be free from defects in materials and workmanship for the period

of THREE (3) YEARS to the original purchaser. In the event of such de-

fects, the product will be repaired without charge or, at our option, re-

placed with a new one if delivered to Black Lion Audio prepaid, together

with a copy of the sales slip or other proof of purchase date. The warran-

ty excludes problems due to normal wear, abuse, shipping damage or

failure to use the product in accordance with the specications.

All parts and labor are covered under this Limited Warranty. However,

if it is determined by Black Lion Audio that the device was damaged or

made defective through abuse, we reserve the right to charge the cus-

tomer for the cost of the repair.

Black Lion Audio shall not be liable for damages based upon inconve-

nience, loss of use of the product, loss of time, interrupted operation or

commercial loss or any other damages, whether incidental, consequen-

tial or otherwise. This warranty gives you specic legal rights, and you

may have other rights, which will vary from state to state.

This warranty is not transferable.

The PBR XLR patchbay offers 32 connection points for your equipment

with XLR connections. Connecting your gear to the XLR patchbay will

save a lot of time and frustration: no more getting behind your racks and

reconnecting hardware every time you want to try some new routing!

Simply connect the rear male jacks to the inputs of your racked

hardware, and the outputs of your racked gear to the rear female jacks.

From there, you can use the convenient front panels to directly connect

to any hardware connected to the rear of the patchbay.

PBR XLR

1. XLR female connection: Accepts male XLR jacks for connecting

your audio gear.

2. XLR male connection: Accepts female XLR jacks for connecting

your audio gear.

PBR TRS AND PBR TRS-BT

Specyfikacje produktu

Marka:	Black Lion Audio
Kategoria:	Niesklasyfikowane
Model:	PBR TRS

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Black Lion Audio PBR TRS, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje Niesklasyfikowane Black Lion Audio

Black Lion Audio PG-P Type C Instrukcja

7 Października 2024

Black Lion Audio PBR TRS3 Instrukcja

7 Października 2024

Black Lion Audio PBR TT Instrukcja

7 Października 2024

Black Lion Audio PG-X Type C Instrukcja

7 Października 2024

Black Lion Audio PBR TRS Instrukcja

4 Października 2024

Instrukcje Niesklasyfikowane

Najnowsze instrukcje dla Niesklasyfikowane

Black Diamond BD1121530000ALL1 Instrukcja

15 Października 2024

Husqvarna K 970 SmartGuard Instrukcja

15 Października 2024

Stihl HT 70 Instrukcja

15 Października 2024

Ernesto H14270 Instrukcja

15 Października 2024

Uniden BT MIC KIT Instrukcja

15 Października 2024

Vaude Omnis Bike 26 Instrukcja

15 Października 2024

ART ProChannel II Instrukcja

15 Października 2024

Aukey DR02J Instrukcja

15 Października 2024

Master Lock 653EURD Instrukcja

15 Października 2024

Roland FR-18 Diatonic Instrukcja

15 Października 2024
