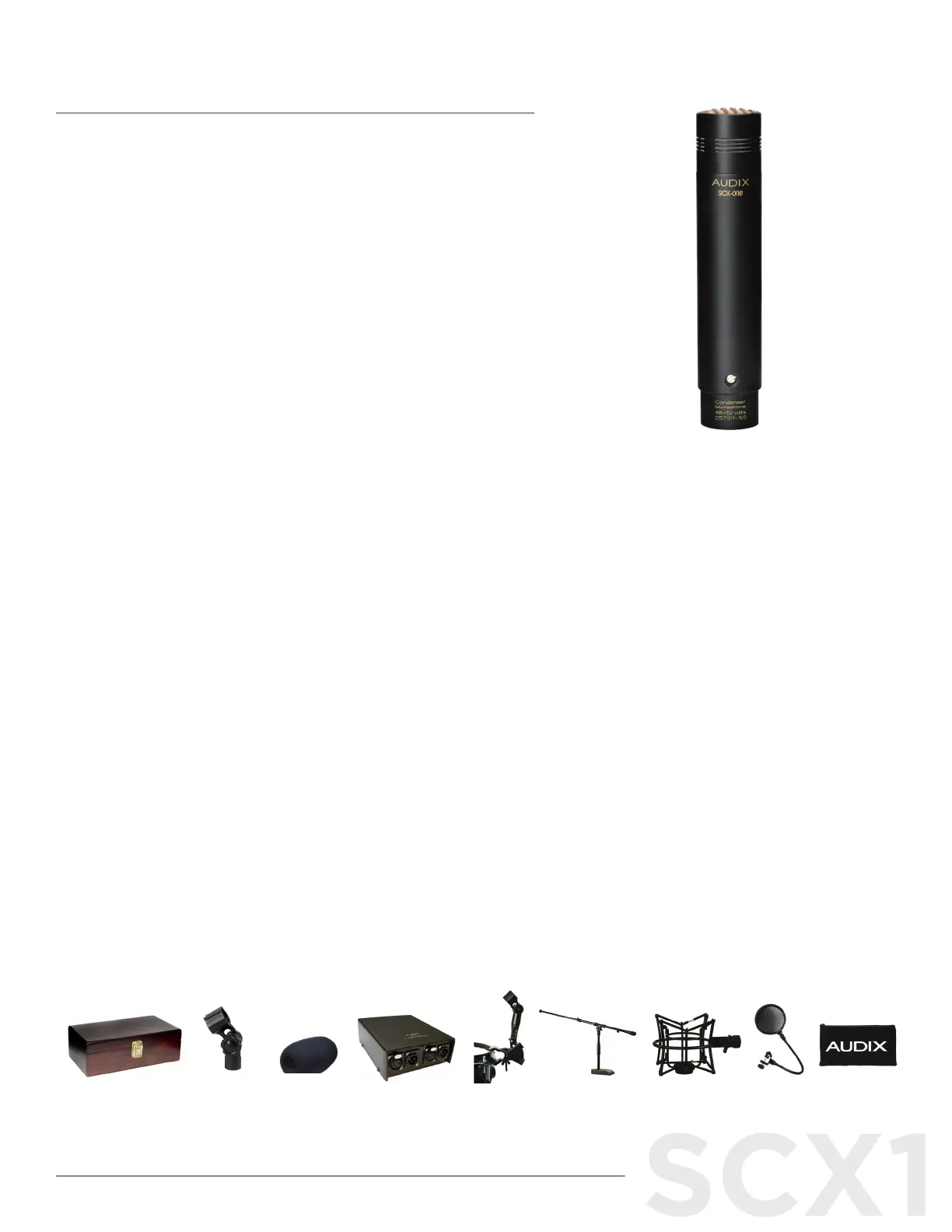

SCX1

OVERVIEW

The SCX1 is a professional studio cardioid condenser microphone designed for a

wide variety of recording, broadcast and live sound applications. Known for its high

sensitivity, pin-point accuracy, low proﬁle and consistency, the SCX1 is also available

with hypercardioid (model SCX1HC) or omnidirectional (model SCX1O) capsules.

With a smooth uniform frequency response from 40 Hz - 20 kHz, the SCX1 is very

consistent when responding to on and oﬀ-axis signals, and exhibits excellent phase

coherence and minimal proximity eﬀect. The SCX1 is characterized with a wide cardioid

polar pattern; this, coupled with the high output and sensitivity of the microphone,

makes the SCX1 an ideal choice for miking drum overheads, instruments, room

ambience, orchestral sections, stringed instruments, piano, vibes and sound eﬀects.

Other features include a 21 mm gold vapor capsule, miniaturized electronics and

an extremely small footprint. The SCX1 will handle sound pressure levels of 130

dB and will provide up to 20 dB of ambient noise rejection. In addition to acoustic

instruments, the SCX1 is an excellent choice for group vocals, speech or Foley work.

The SCX1HC has become a popular choice for interior dialogue boom pole miking.

It has a precision machined brass body, interchangeable capsules, black multi-layer

class ‘A’ liquid ﬁnish and gold plated XLR connector. The SCX1 is manufactured to

exacting standards and tight tolerances.

MODEL VARIATIONS

SCX1CMP - Matched pair cardioid

SCX1HC - Hypercardioid

SCX10 - Omni

SUPPLIED ACCESSORIES

CASEWOOD - Foam lined wooden case.

DCLIP - Heavy-duty nylon molded snap on clip.

WS81C - External foam windscreen for reducing wind, sibilance, and pop noise.

OPTIONAL ACCESSORIES

APS2 - Two-channel 48 V phantom power supply. 110 V switchable to 240 V.

Detachable power cord.

DFLEX - Dual pivot rim mounted clip with extra wide butterfly jaws.

STANDKD - Short pedestal stand with telescoping boom arm.

SMT25 - Low profile shock mount system with nylon cable and

thumbscrew for positioning.

PD133 - Optional two-layer mesh pop diffuser for controlling acoustic plosives.

CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted

pair with braided shield for conductivity. 6 mm PVC jacketed.

P1 - Carrying pouch.

Studio Condenser

Microphone

FEATURES

· Professional, studio quality cardioid condenser

· Extremely sensitive with pin-point accuracy

· 21 mm gold vapor capsule with modular design

· Designed, machined, assembled & tested

in the USA

· 3 year warranty

APPLICATIONS

· Studio vocals, group vocals

· Speech

· Overheads, hi-hat

· Orchestra, symphony

· Acoustic stringed instruments

· Piano, vibes, flute, bells, chimes, marimba

· Audience mics for in-ear monitors

CASEWOOD DCLIP WS81C APS2 DFLEX STANDKD SMT25 PD133 P1

FREQUENCY RESPONSE

POLAR PATTERNS

ARCHITECT AND ENGINEER SPECIFICATIONS

The microphone shall be of the condenser type with a modular threaded

capsule available in cardioid, hypercardioid, and omnidirectional polar patterns.

The microphone shall operate on 48-52 Volts phantom power and the nominal

output impedance shall be equal to 200 ohms at 1 kHz. The microphone

shall have a sensitivity of 26 mV (C), 17 mV (HC), 15 mV (O) / Pa at 1 kHz. The

microphone shall have a maximum SPL level of 130 dB with a THD of 0.5%. The

microphone shall have a capsule housing and body machined of brass with

dimensions of 19 mm diameter at the base, 21 mm in diameter at the widest

point on the grill and 104 mm in length.

OPERATION AND MAINTENANCE

The SCX1 is a low impedance microphone and should be plugged into a “mic

level” input on your console, mixer, or recording device. The SCX1 requires

phantom power and will NOT operate without phantom power voltage (48

Volts recommended) which is available on most professional mic preamps and

mixing devices. If phantom power is not available on your equipment, use a

phantom power supply such as the Audix APS2.

Avoid plugging or unplugging the microphone from a PA system unless the

channel is muted or the volume of the system is turned down. Failure to do so

may result in a loud “popping” noise which could seriously damage the speakers

in the PA system, studio monitors or headphones.

USER TIPS

The SCX1 is a world class recording microphone with very high output and

sensitivity. The SCX1 and SCX1O generally are not intended to be used at very

close range, especially with instruments that produce high sound pressure levels.

For acoustic instruments: In general, the working range should be from 1-2

feet, depending on the instrument and room acoustics.

For voice: The minimum distance is 8-10 inches for a single voice.

For group vocals: The distance should be 2-3 feet.

For drum overheads: The microphones should be in a vertical position and

placed above the cymbals by 1 ½-2 feet and equidistant from the snare.

For high hat: Use the SCX1HC and place 4-6 inches above the outer rim of the

high hat cymbal.

For bottom snare: Place the SCX1 or SCX1HC 3-4 inches beneath the snare

aimed up towards the snares. If miking both top and bottom of the snare, ﬂip

the phase on the bottom mic.

For piano: For live performance and live recordings, it is sometimes required to

use the short stick or closed lid in order to minimize the surrounding instruments

from “bleeding” into the piano mics. In these cases, it is suggested to use the

Audix DFLEX mounting clips which enable the SCX1 to be mounted right on to

the rail of the piano. The mics can be positioned horizontal to the sound board,

typically one towards the front of the keyboard and one towards the rear of

keyboard towards the bass strings.

Further miking techniques may be found at www.audixusa.com.

ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

www.audixusa.com

503.682.6933 Fax: 503.682.7114

Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070

ver 3.0 05-16

PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.

SERVICE AND WARRANTY:

This microphone is under warranty for a period of 3 years to be free of defects in material and workmanship. In the event of a product failure due to materials or

workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes

any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No

Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and ﬁtness for a particular purpose are hereby excluded. The liability of Audix, if any,

for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of

any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN

THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL

NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S

SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

DIMENSIONS (mm)

SPECIFICATIONS

SCX1

Transducer Type

Condenser

Frequency Response

40 Hz - 20 kHz

Polar Pattern

Cardioid / Hypercardioid / Omni

Output Impedance

200 ohms

Sensitivity
