DP-QUAD
When it comes to drum and percussion microphones, Audix is the industry leader. These high precision instrument microphones are designed to ll
the specic needs of artists and engineers for both studio and live applications.
The Audix DP Series QUAD pack is the simplest and most eective combination of microphones that will allow you to capture the depth and
imaging of a full drum kit. With kick, snare and two overheads, the QUAD incorporates the best of two miking techniques: close miking and
overhead (ambient) miking.
Close Miking: The D6 for kick drum and the i5 for snare are considered the two microphones every drummer must have. The kick and snare are
considered the core of any drum kit and the foundation for every groove. Close miking insures that they will be captured in the mix. If either the kick
or the snare is unable to be heard, there is simply no groove. Being high SPL dynamic microphones, the D6 and i5 excel at “close miking”. This
miking technique is required in order to capture the attack and percussive sound of the drum. Also, by having the mic close to the source of the
sound, it helps to isolate the sound of each drum and separate it from the rest of the kit.
Overhead (ambient) miking: Supporting the idea that “less is more”, there are many engineers who will use just two overhead mics to capture the
natural sound of the complete drum kit. With two overhead mics, positioned correctly, it is absolutely true that you can capture the transients, tonality
and balance of the kit in a completely phase-coherent manner. The ADX51, which is a pre-polarized condenser microphone with a 14mm gold
sputtered diaphragm, is designed specically with overhead applications in mind. Due to its cardioid pickup pattern, high sensitivity and slim pencil
design, the two ADX51 mics can be easily positioned overhead to provide a nice stereo image of the entire drum kit.
The Blend: With contemporary music and with the volumes typically generated on stage, it is more practical and eective to create a blended eect
of close miking and overhead miking – the exact intent of the DP-QUAD. The D6 will help provide the earthshaking lows and the attack of the kick;
the i5 will reinforce the depth and crack of the snare; the overheads will pick up the high-hat, tom lls, cymbals and the ambiance of the entire kit.
With the DP-QUAD, drums will maintain their sound integrity and critical presence, regardless of the size of the room and PA system.
DP-QUAD
Drum Microphone Packs
DP-QUAD

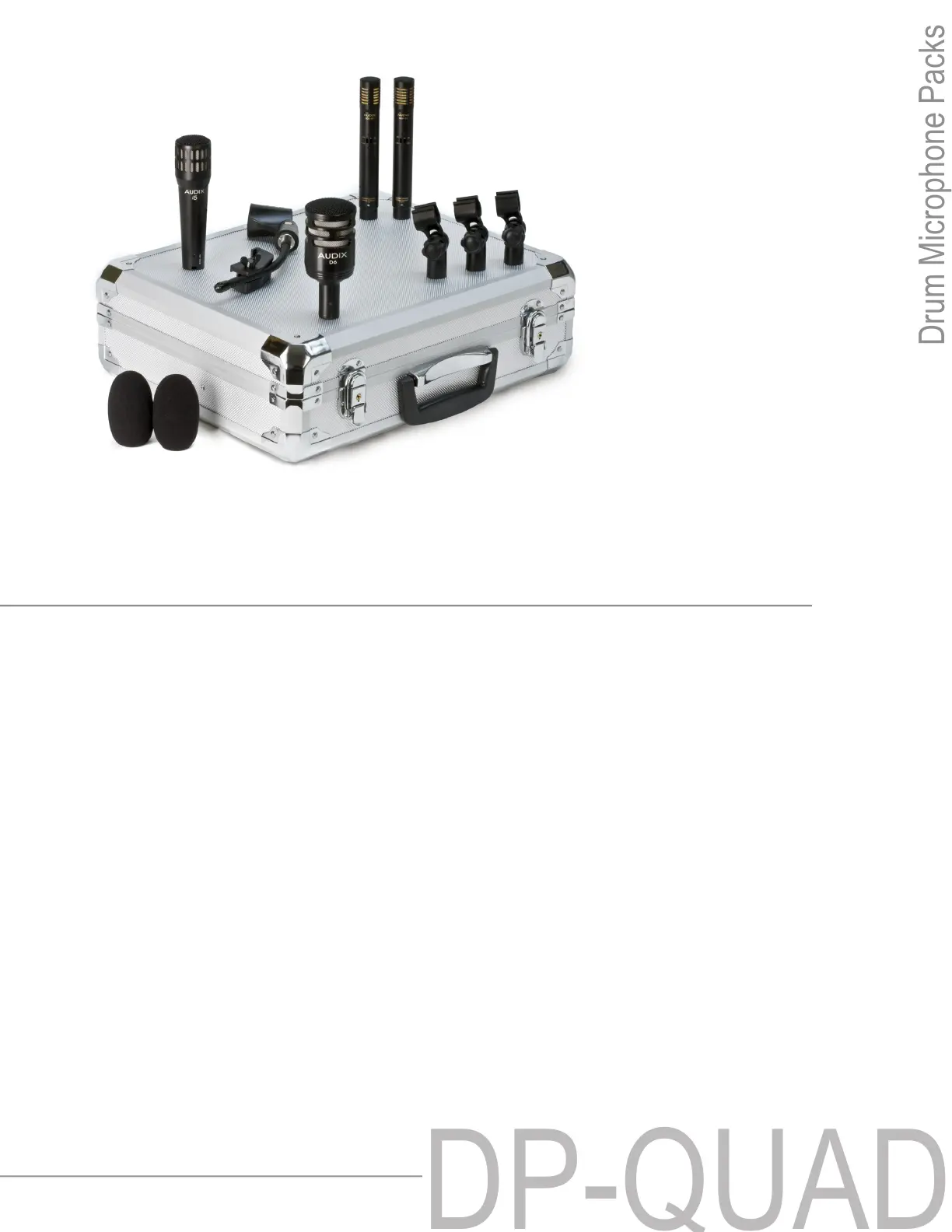

PACKAGED SET OF 4 DRUM MICS
Aluminum road case
1 x i5 snare mic
1 x D6 kick mic
2 x ADX51 overhead mics
1 x DVICE rim mount with MC1 mic clip
3 x DCLIP mic clips
2 x WS81C windscreens
PROFESSIONAL DRUM AND PERCUSSION MIC PACKAGE
SPECIFICATIONS:
DP-QUAD


Application
Features
Transducer Type
Frequency Response
Polar Pattern
Output Impedance
Sensitivity
Maximum SPL
Off-axis rejection
Power Requirements
Housing / Finish
Weight
Kick drum, oor tom,
djembe, cajon
Extended low end for
larger drums, accurate
frequency response,
natural sound
Dynamic VLMTM Type E
30 Hz - 15 kHz
Cardioid
280 ohms
0.8 mV / Pa @ 80Hz
≥144 dB
>20 dB
None
Machined Aluminum /
Black Hard Coat
255 g / 9 ounces
Overheads, high-hat,
cymbals, goodie table
Accurate reproduction of
high frequency instruments,
-10 dB pad bass roll-offlter
Condenser
40 Hz - 18 kHz
Cardioid
100 ohms
17 mV / Pa @ 1k
≥132 dB
>15 dB
9 - 52v phantom
Machined Brass /
Black E-Coat
150 g / 5.3 ounces
Snare (top or bottom), toms,
hand percussion, guitar cabs,
acoustic instruments
Protective steel grill, easy
to set up and use, clean,
accurate sound
Dynamic VLMTM Type B
50 Hz - 16 kHz
Cardioid
150 ohms
1.5 mV / Pa @ 1k
≥140 dB
>23 dB
None
Die Cast Zinc Alloy /
Black E-Coat
250 g / 8.8 ounces
i5 D6 ADX51
USER TIPS:
The following are some ideas as to how the microphones in the pack interact with each other.
DP-QUAD [1 x i5, 1 x D6, 2 x ADX51]: This package is ideal for literally any 5 piece kit for stage or recording.
D6 - Kick Drum: To position the D6, a good starting point is a few inches inside the port of the front head with the mic pointing
o-center and not directly at the beater. For more attack, move the mic closer towards the beater head. For more bass, pull the
mic away from the beater head.
i5 - Snare: As a general rule, the i5 is meant to be close miked. A good starting point is 2 inches above the rim with the mic pointing
towards the center of the head. For more “rim” sound, pull the mic back closer to the rim. For more resonance and depth of eld,
pull the mic further away from the head. The trick is to nd the right balance between resonance and attack while still controlling
bleed from the other drums.
ADX51s - As overheads: The most common positioning concept is to keep the snare as the focal point and move the mics into
various left and right positions equal distance from the snare; 4 feet is a good starting point. For best results, keep the mics in a
vertical position, keeping in mind that you are not necessarily just miking the cymbals but the whole kit. You will nd after some
experimentation that the kick, snare, and overheads will provide most of your sound while the tom mics are used for sweetening.
Note: To pick up more of the high-hat, you can change the balance of the mics by pulling the mic on the hi-hat side of your kit
closer towards the high hat.
For more tips on miking your kit, please refer to the Audix DVD on “How to Mic your Drums” or visit the Audix website to view the
individual chapters.
SERVICE AND WARRANTY:
These microphones are under warranty for a period of 3 years
for condensers and 5 years for dynamics from any and all
manufacturing defects. Should your microphone fail in any
way, please contact the Audix Service department at 503-
682-6933. A Return Authorization number is required before
returning any products.
CARE AND MAINTENANCE:
The microphones in the DP Series Packs are manufactured to exacting
specs with roadworthy construction. However, the capsule is highly sensitive
and should be handled with care. Avoid extreme temperatures and be sure to
store your microphone in the case provided when not in use. Moisture of any
kind can adversely aect the sound and performance of your microphone.
***All specications subject to change without notice.
www.audixusa.com
503-682-6933 Fax: 503-682-7114
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
AUDIX WA R R A N T Y REGIS T R ATION FORM
Please Check all that apply:
Male Female
Age: Occupation: Primary Instruments: Product to be used for:
18 or Under Musician Vocal Pro live sound
19-25 Producer Guitar / Bass Pro recording
26-35 Sound Eng. Drums Home recording
36-45 Radio/TV Keyboard Rehearsal
46-55 Production Brass Installation
55 + Other _______ Woodwinds School
Strings House of Worship
How did you hear about Audix? Other ___________ Other ___________
Magazine Ad Online Ad
On-line Store Friend Do you own other Audix Products? Yes No
Salesman Other __________ Model(s) ________________________________
Have you visited the Audix website? Yes No
Please register your product online at www.audixusa.com or mail this form to:
Audix Microphones P.O. Box 4010 Wilsonville, OR 97070
Name:________________________________ Model:___________________
Company:_____________________________ Serial Number:_____________
Address:______________________________ Store:____________________
City:_________________________________ Store Location:_____________
Prov./State:___________ Zip:_____________ Purchase Date:_____________
Phone: ( )___________________________ Signature:_________________
Email:________________________________ Date:____________________
OPTIONAL ACCESSORIES:
DVICE
Spring loaded rim mount clamp
MC1
Nylon mic clip
DCLIP
Heavy duty mic clip provided with D
series and SCX series
SMT25
Shockmount suspension clip
DFLEX
All purpose percussion clamp
DCLAMP
Tension rod mic clamp
TRIPOD
Tripod mic stand
STAND-KD
Adjustable kick drum mic stand
CBL-20
20’ XLR-XLR mic cable
CBL-DR25
25’ right angle XLR-XLR
mic cable
