Strona 1/4
Thank you for buying the 3-In 1-Out HDMI Switcher. The switcher allows you to easily
share a single HDMI display or a HDMI-compatible TV with three HDMI devices.
Features
• Supports 480i, 480p, 720p, 1080i and 1080p screen resolutions.
• Supports HDCP compliant devices.
• Easy to install and simple to operate.
Installation

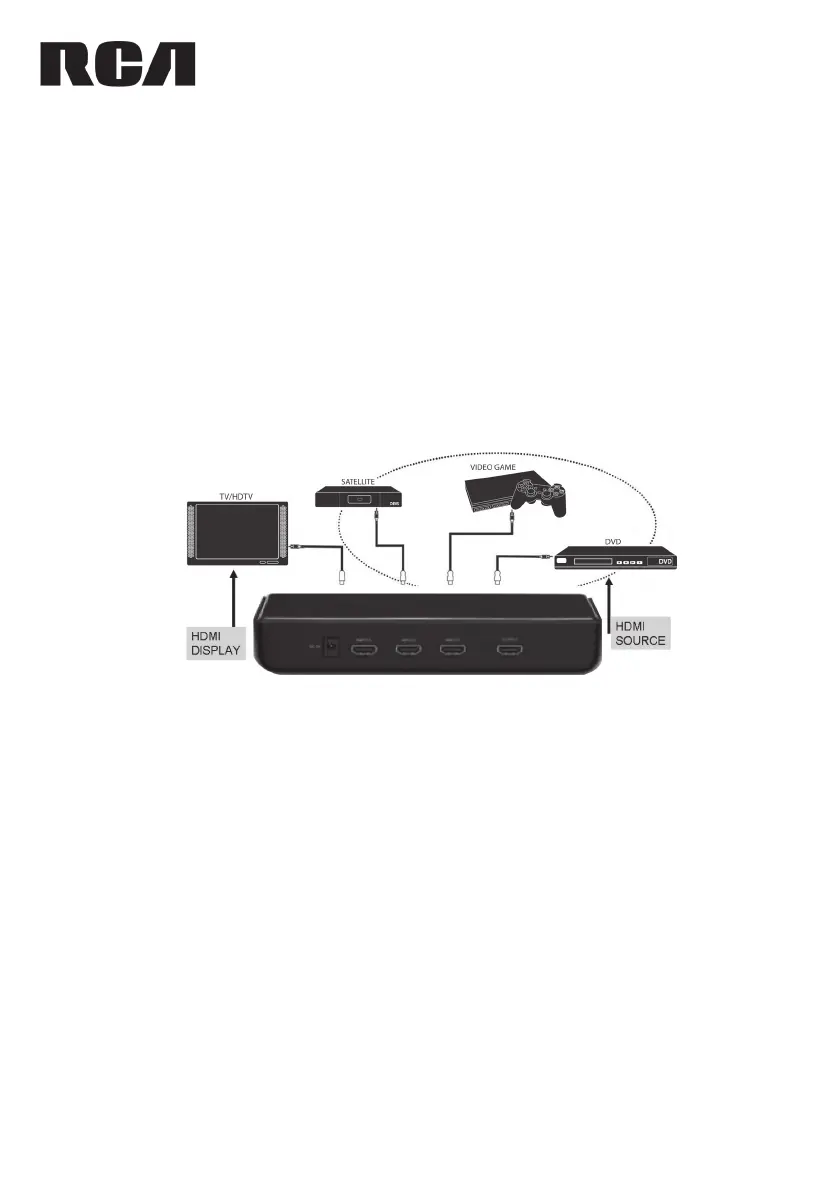

1. Use HDMI cables to connect HDMI sources to the inputs on the rear panel of the
switcher.
2. Connect the cable from your HDMI display to the switcher output.
3. Plug the supplied 5V DC adaptor into the switcher DC input. The LED power
indicator lights green. The power unit is intended to be oriented in a vertical or Note:
oor mount position.
4. Select the desired input sources by pressing the appropriate button on front of the
switcher. The related LED indicator on the front panel indicates which input is
selected. The default input is INPUT1.
3-Way HDMI Switcher
DH3HSM User’s Guide
Specifications
Video Amplier Bandwidth : 1.65 GHz
Format Support : Up to UXGA(1920x1200)
HDMI Input/Output Connector Type :
Type A
Power Consumption: 1.2 W(max.)
Power Supply : 5 Volt(DC)
Care
• Keep the switcher dry.
• Use and store the switcher only in
moderate indoor environments. Handle
the switcher carefully; do not drop it.
• Keep the switcher away from dust and
dirt, and wipe it with a moist cloth
occasionally to keep it clean after the
switcher has been unplugged from its
power source.
12 Month Limited Warranty
Audiovox Electronics Corporation (the “Company”) warrants to the original retail purchaser of this product that should
this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within
12 months from the date of original purchase, such defect(s) will be repaired or replaced (at the Company’s option) without
charge for parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product along with
any accessories included in the original packaging is to be delivered with proof of warranty coverage (e.g. dated bill of sale),
specication of defect(s), transportation prepaid, to the Company at the address shown below. Do not return this product to
the Retailer.
This Warranty is not transferable and does not cover product purchased, serviced or used outside the United States or Canada.
The Warranty does not extend to the elimination of externally generated static or noise. This Warranty does not apply to
costs incurred for installation, removal or reinstallation of the product, or, if in the Company’s opinion, the product has been
damaged through acts of nature, alteration, improper installation, mishandling, misuse, neglect, accident, or the simultaneous
use of different battery types (e.g. alkaline, standard or rechargeable). This Warranty does not cover damage caused by an AC
adapter not provided with the product.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED
THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
BE LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY
HEREUNDER, INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24
MONTHS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states/provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you
specic legal rights and you may also have other rights which vary from state/province to state/province.
U.S.A.: Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road, Unit 3, Door 16, Mississauga, Ontario L5T 3A5
FCC Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Trade Name: Audiovox
Model(s): DH3HSM
Equipment Classication: Class B Digital Device
Responsible Party: Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032
Customer Service: www.rca.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
©2007 Audiovox Accessories Corporation
Trademark(s) ® Registered
Made in China
DH3HSM NA IB 00
www.rca.com
Gracias por comprar el Conmutador HDMI de 3 entradas y 1 salida. El conmutador le permite
compartir con facilidad una pantalla HDMI o un TV compatible con HDMI con tres dispositivos
HDMI.
Características
• Respalda resoluciones de pantalla de 480i, 480p, 720p, 1080i y 1080p.
• Respalda dispositivos que cumplen con las especicaciones HDCP.
• Fácil de instalar y sencillo de manejar.
Instalación
1. Utilice cables HDMI para conectar fuentes HDMI a las entradas en el panel posterior
del conmutador.
TV/HDTV
FUENTE
HDMI
VIDEOJUEGO
SATÉLITE
LECTOR DE DVD
PANTALLA
HDMI
2. Conecte el cable de la pantalla HDMI a la salida del conmutador.
3. Enchufe el adaptador de 5V CC suministrado a la entrada de CC del conmutador. El indicador
de potencia LED se ilumina de color verde. Aviso: La unidad de potencia p3-ha sido diseñada para
quedar orientada en posición vertical o montaje en el piso.
4. Seleccione las fuentes de entrada deseadas oprimiendo el botón correspondiente en la parte
frontal del conmutador. El indicador LED respectivo en el panel frontal mostrará la entrada
seleccionada. La entrada por defecto es INPUT1 (Entrada 1).
Conmutador HDMI de 3 vías
Manual del Usuario DH3HSM
Especificaciones
Ancho de banda del amplicador de video:
1.65 GHz
Respaldo de formato: Hasta UXGA
(1920x1200)
Tipo de conector de entrada/salida HDMI:
Tipo A
Consumo de corriente: 1.2 W (máx.)
Fuente de potencia: 5 voltios (CC)
Cuidado
• Mantenga el conmutador seco.
• Utilice y almacene el conmutador única-
mente en entornos interiores moderados.
Maneje el conmutador con cuidado, no lo
deje caer.
• Mantenga el conmutador alejado del polvo
y la suciedad. Límpielo ocasionalmente con
un paño húmedo para mantenerlo limpio
luego de haberlo desenchufado de la fuente
de potencia.
