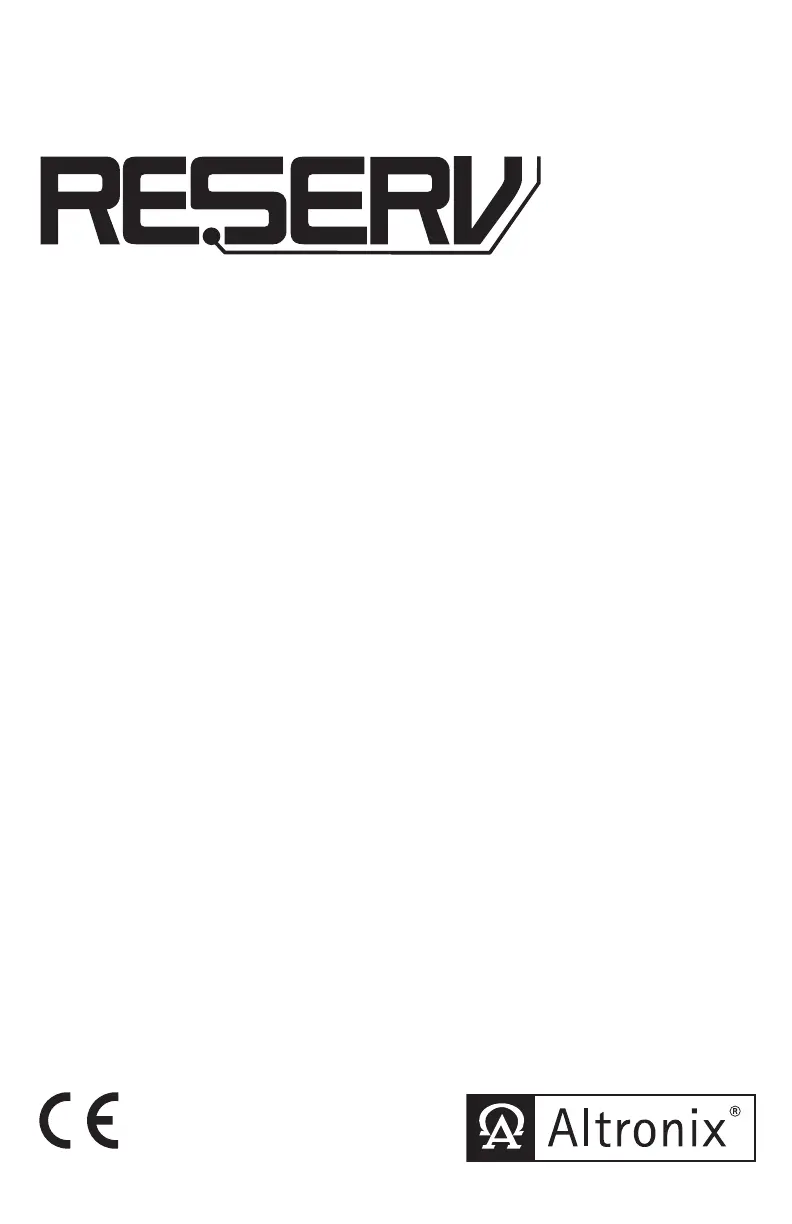

Rev. 081611 More than just power.TM
Video Surveillance UPS
Installation Guide
Models Include:
ReServ1V
- Twelve (12) true sine wave regulated 24VAC outputs and four (4) regulated 12VDC outputs.
- 4A total supply current @ 24VAC and 2A total supply current @ 12VDC.
- PTC protected power-limited outputs.
ReServ2V
- Sixteen (16) true sine wave regulated 24VAC outputs.
- 4A total supply current.
- PTC protected power-limited outputs.
ReServ3V
- Sixteen (16) regulated 12VDC outputs.
- 8A total supply current.
- PTC protected power-limited outputs.
- 2 - ReServV
Overview:
Altronix ReServV Video Surveillance UPS units are designed to provide power for 24VAC and/or 12VDC cam-
eras during normal or power outage conditions. True sine wave regulated AC outputs and/or regulated DC outputs.
ReServV Series Video Surveillance UPS
Configuration Reference Chart:
Altronix
Model
Number
Output/Supply
Current (A)
Ambient
Temperature
Input
Rating
PTC
Protected
Auto-
Resettable
Outputs
24VAC
Outputs
12VDC
Outputs
ReServ1V
24VAC @ 4A (100VA) and 12VDC @ 2A -33ºC to 30ºC
230VAC,
50/60Hz, 2A 16
12 4
24VAC @ 3.5A (85VA) and 12VDC @ 2A -33ºC to 42ºC
ReServ2V
24VAC @ 4A (100VA) -33ºC to 30ºC
16 –
24VAC @ 3.5A (85VA) -33ºC to 42ºC
ReServ3V 12VDC @ 8A -33ºC to 42ºC – 16
Specifications:
Output:
• PTC protected outputs are rated @ 1A.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switchover to stand-by battery
when AC fails.
Supervision:
• AC fail supervision (form “C” contacts).
• Low battery supervision (form “C” contacts).
Visual & Audio Indicators:
• AC/DC power LED indicators.
• Individual power output LED indicators.
• Low voltage input and Shutdown LED indicators.
• Audio AC Fail and Battery Fail indicator.
Additional Features:
• True sine wave regulated AC outputs
(ReServ1V & ReServ2V).
Regulated DC outputs (ReServ1V & ReServ3V).
• Unit maintains camera synchronization.
• Ease of installation saves time and
eliminates costly labor.
Enclosure Dimensions :(H x W x D approximate)
13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm)
• Enclosure accommodates up to
two (2) 12VDC/7AH batteries.
Stand-by Specifications:
Stand-by Batteries
ReServ1V - 4A (100VA) load at 24VAC and 2A load at 12VDC max.
ReServ2V - 4A (100VA) max. load at 24VAC
ReServ3V - 8A (100VA) max. load at 12VDC
Two (2) 12VDC/7AH 45 minutes
Two (2) 12VDC/12AH 90 minutes
*When using 12AH batteries or larger a separate UL Listed battery enclosure must be installed.
Optional UL Listed battery enclosure must be mounted adjacent to the power supply via Class 1 wiring methods.
ReServV - 3 -
Installation Instructions:
This installation should be made by qualified service personnel and should conform to all local codes and in
accordance with the
National Electrical Code. Product is intended for indoor use only. This product contains no serviceable parts.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in
the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the
enclosure’s upper keyholes over the two upper screws; level and secure. Mark the position of the lower two
holes. Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper
keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
. Secure enclosure to earth ground. (Enclosure Dimensions, pg. 8)
This product needs to be secured to the building before operation.Note:
2. Connect AC power mains to the terminals marked [L] and [N]. Connect ground wire to ground lug
.(Figs. 1-3, pg. 5-7)
Use 18 AWG or larger for all power connections (Battery, output) .(Figs. 1-3, pg. 5-7)
Use 18 AWG to 22 AWG for supervision circuits (AC Fail/Low Battery reporting) .(Figs. 1-3, pg. 5-7)
A readily accessible disconnect device shall be incorporated in the building installation wiring.Note:
3. The LEDs on the power supply board will illuminate when AC power is present.
4. Measure output voltage before connecting cameras/devices to outputs. This helps avoiding potential damage.
5. ReServ3V only - Adjust voltage for every two (2) outputs using the corresponding trimpot(s) on the board
prior to connecting devices.
6. Connecting cameras/devices:
- Connect 12VDC cameras/devices to the terminals marked [P 1-4, N 1-4] .ReServ1V (Fig. 1, pg. 5)
Connect 24VAC cameras/devices to the terminals marked [5-16] .(Fig. 1, pg. 5)
- Connect 24VAC cameras/devices to the terminals marked [1-16] .ReServ2V (Fig. 2, pg. 6)
- Connect 12VDC cameras/devices to the terminals marked [P 1-16, N 1-16] .ReServ3V (Fig. 3, pg. 7)
7. Connect batteries to the terminals marked [+ BAT –] . (Figs. 1-3, pg. 5-7)
Use two (2) 12VDC batteries connected in series for 24VDC operation (battery leads included).
Use batteries - Casil CA1270 (12V/7AH), Genesis NP7-12 (12V/7AH), Ultratech UT1270 (12V/7AH).
8. Connect appropriate signaling notification devices to AC FAIL and BAT FAIL (Figs. 1-3, pg. 5-7)
supervisory relay outputs.
9. The power LEDs on the unit for Outputs 1-16 will illuminate when AC power is present . (Figs. 1-3, pg. 5-7)
If any of the power LEDs are not illuminated, the cause may be due to the following:Note:
a. AC mains and battery fail.
b. One (1) or more power output PTCs are tripped due to a short circuit or overload condition.
c. Unit damaged/defective.
To reset the PTC:
1. Disconnect corresponding camera/device connected to terminals marked [1-16] .(Figs. 1-3, pg. 5-7)
2. Eliminate the trouble condition (short circuit or overload).
3. Allow 1 minute for PTC to cool off (reset).
4. Connect corresponding cameras/devices to the terminals marked [1-16] .(Figs. 1-3, pg. 5-7)
5. Power LEDs will illuminate indicating power has been restored to outputs .(Figs. 1-3, pg. 5-7)
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. This installation should be made by qualified service personnel and should conform
to the National Electrical Code and all local codes.
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the
user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that
may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
