8301 Paging Adapter & Scheduler FW 1.7

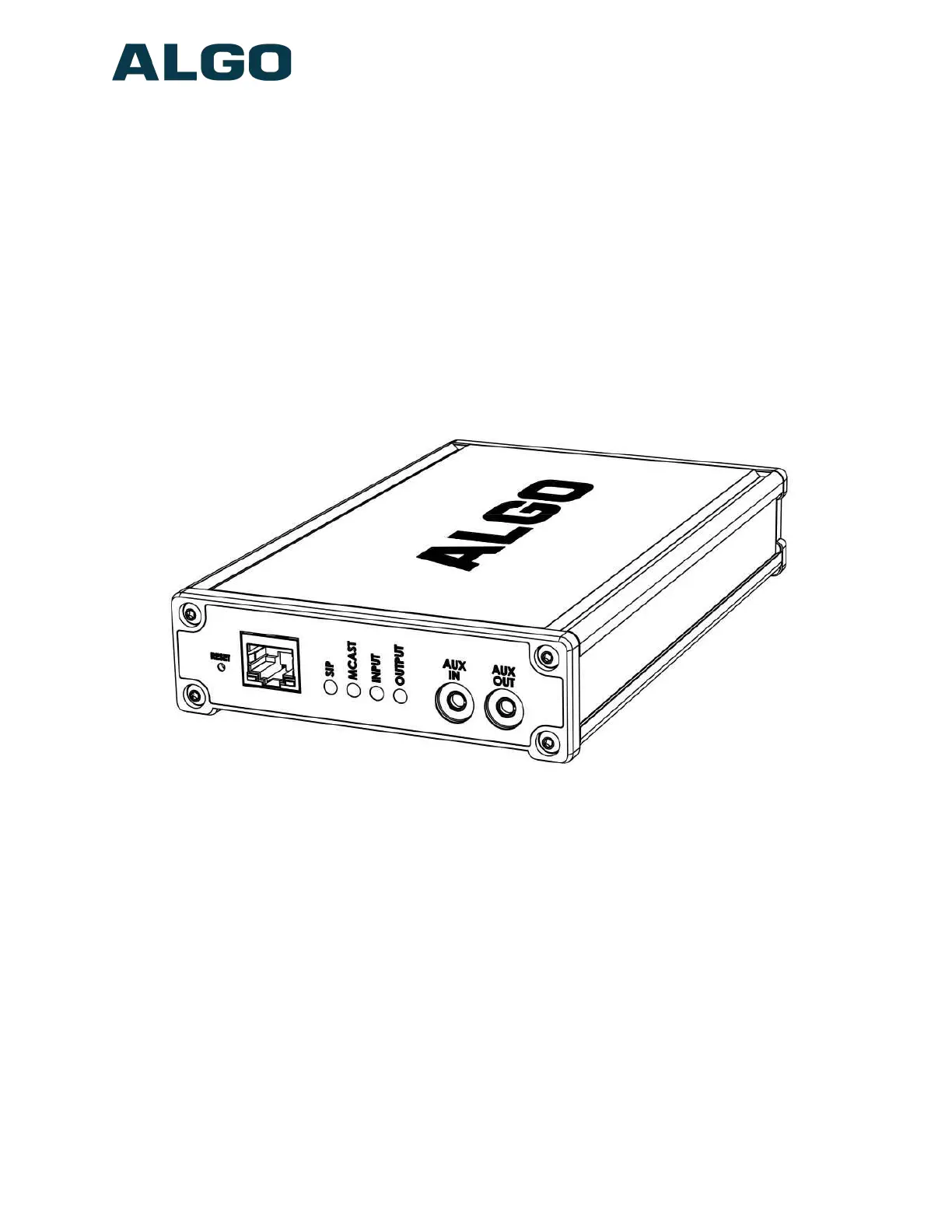

8301 Paging Adapter & Scheduler
FW version 1.7
User Guide
Order Codes
8301 Paging Adapter & Scheduler
Document 90-00070B
04/15/2020
Page 1
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
(604) 454-3792
support@algosolutions.com
8301 Paging Adapter & Scheduler FW 1.7
Setup and Installation
Getting Started - Quick Install & Test
This guide provides important safety information which should be read thoroughly
before permanently installing the product.
1. Connect the 8301 Paging Adapter & Scheduler to an IEEE 802.3af compliant PoE
network switch or PoE Injector. The blue lights on the front will remain on until boot up is
completed – about 30 seconds.
2. After the blue lights turn off, press the reset switch (RST) to hear the IP address over the
analog outputs (e.g. headset can be connected to the green Aux output port). The IP
address may also be discovered by downloading the Algo locator tool to find Algo
devices on your network: www.algosolutions.com/locator
3. Connect the adapter Line Out to an amplifier using the mini-XLR connector or pluggable
terminal block.
4. Access the 8301 Paging Adapter & Scheduler web page by entering the IP address into
a browser (e.g. Chrome, Firefox or Edge) and login using the default password algo .
5. Enter the IP address or the domain name for the SIP server into the SIP Domain field
under the tab.BASIC SETTINGS > SIP
6. Enter the credentials (SIP Extension, Authentication ID, and Password) for the Page and/
or Ring extension. Leave the credentials blank for either extension if there is no intended
use to have both registered.
Note: The Authentication ID may also be called Username for some SIP servers, and in
some cases may be the same as the SIP extension.
7. Verify the extension is properly registered with the SIP server in the Status tab. Ensure
the SIP Registration is “Successful”.
8. Make a call to the adapter by dialing the registered SIP extension of the adapter from a
telephone.
Document 90-00070B
04/15/2020
Page 8
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
(604) 454-3792
support@algosolutions.com
8301 Paging Adapter & Scheduler FW 1.7
1202 Call Button
A pair of wires from the terminal block Relay Input
on the back of the 8301 can connect to the center
pair of the modular connector at the back of the Call
Button. For more details check the Algo 1202
Installation Sheet.
1203 Call Switch
A pair of wires can be run from the back of the
device via a screw output connector to the 8301
via the Relay Input. For more details check the
Algo 1203 Getting Started Sheet.
1204 Volume Control Switch
Install the 1204 by connecting a single pair twisted wire to its terminal block (not polarity
sensitive) and wire it to the Relay Input on the 8301. For more details check the Algo 1204
Getting Started Sheet.
Document 90-00070B
04/15/2020
Page 19
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
(604) 454-3792
support@algosolutions.com
