Superseded Products
The following superseded products may be powered from
the Advanced RPS. Again their usage is subject to the
total power limitation of 480 watts.
Superseded Products requiring a 60 watt
Power Module
LinkBuilder Hubs
3C215A
Hub 100 Management Unit
3C250-TX
FMS 100 TX
3C16665
FMS II Fiber (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16670
FMS II 12-port TP (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16671
FMS II 24-port TP (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16672
FMS II Telco (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C510510B
FMS TR 12-port
3C510511B
FMS TR 24-port
NetBuilder Routers
3C8200C
NetBuilder Remote Office 200
3C8201C
NetBuilder Remote Office 201
3C8221C
NetBuilder Remote Office 221
3C8222C
NetBuilder Remote Office 222
3C8223C
NetBuilder Remote Office 223
3C8224C
NetBuilder Remote Office 224
3C8227C
NetBuilder Remote Office 227
3C8228C
NetBuilder Remote Office 228
3C8323C
NetBuilder Remote Office 323
3C8327C
NetBuilder Remote Office 327
3C8421C
NetBuilder Remote Office 421
3C8422C
NetBuilder Remote Office 422
3C8423C
NetBuilder Remote Office 423
3C8424C
NetBuilder Remote Office 424
3C8427C
NetBuilder Remote Office 427
3C8523C
NetBuilder Remote Office 523
3C8527C
NetBuilder Remote Office 527
LinkSwitch
3C16900
LinkSwitch 1000 24-port (also with
3C1206x or 3C16920/2 modules fitted)
3C16901
LinkSwitch 1000 12-port (also with
3C1206x or 3C16920/2 modules fitted)
3C16940
LinkSwitch 3000 (also with 3C1206x or
3C16920/2 modules fitted)
DISCLAIMER
Information in this document is subject to change without notice and
does not represent a commitment on the part of 3Com Ireland. 3Com
Ireland reserves the right to revise or change this document without
obligation of 3Com Ireland to notify any person of the revisions or
changes. Information contained in this document is believed to be
accurate at the time of publication but no liability whatsoever can be
accepted by 3Com Ireland arising out of any use of this information.
This document, or any part of it, must not be copied or reproduced on
any medium without the prior consent of 3Com Ireland.
In the unlikely event that this product is found to be damaged on
arrival, or fails to function once installed, you should contact your
distributor or reseller for advice.
ACKNOWLEDGEMENTS
3Com, AccessBuilder, NetBuilder, LinkSwitch and LinkBuilder are
registered trademarks of 3Com Corporation. Registered trademarks
are registered in the United States, and may or may not be registered
in other countries.
SuperStack is a trademark of 3Com Corporation.
Other brand and product names may be registered trademarks or
trademarks of their respective holders.
Part Number: DUA1607-2AAA02
Revision: 00
Issued:July 11th, 1997
© 1997 3Com Technologies
3C16941
LinkSwitch 3000 TP (also with 3C16920/2
modules fitted)
3C32700A
Switch 2700 OC-3 Multimode ATM
3C32710A
Switch 2700 DS-3 ATM
3C32711A
Switch 2700 OC-3 Singlemode ATM
AccessBuilder
3C7204
AccessBuilder 2204
3C7208
AccessBuilder 2208
LinkConverter
3C8252A
LinkConverter II 252
3C8254A
LinkConverter II 254
3C8352A
LinkConverter II 352
Superseded Product requiring a 100 watt
Power Module
3C16900
LinkSwitch 1000 24-port with 3C16930
module fitted
3C16901
LinkSwitch 1000 12-port with 3C16930
module fitted
3C16940
LinkSwitch 3000 with 3C16930 module
fitted
3C16941
LinkSwitch 3000 TP with 3C16930 module
fitted
3C32700A
Switch 2700 OC-3 Multimode ATM
3C32710A
Switch 2700 DS-3 ATM
3C32711A
Switch 2700 OC-3 Singlemode ATM
3C220000A
LinkSwitch 2200

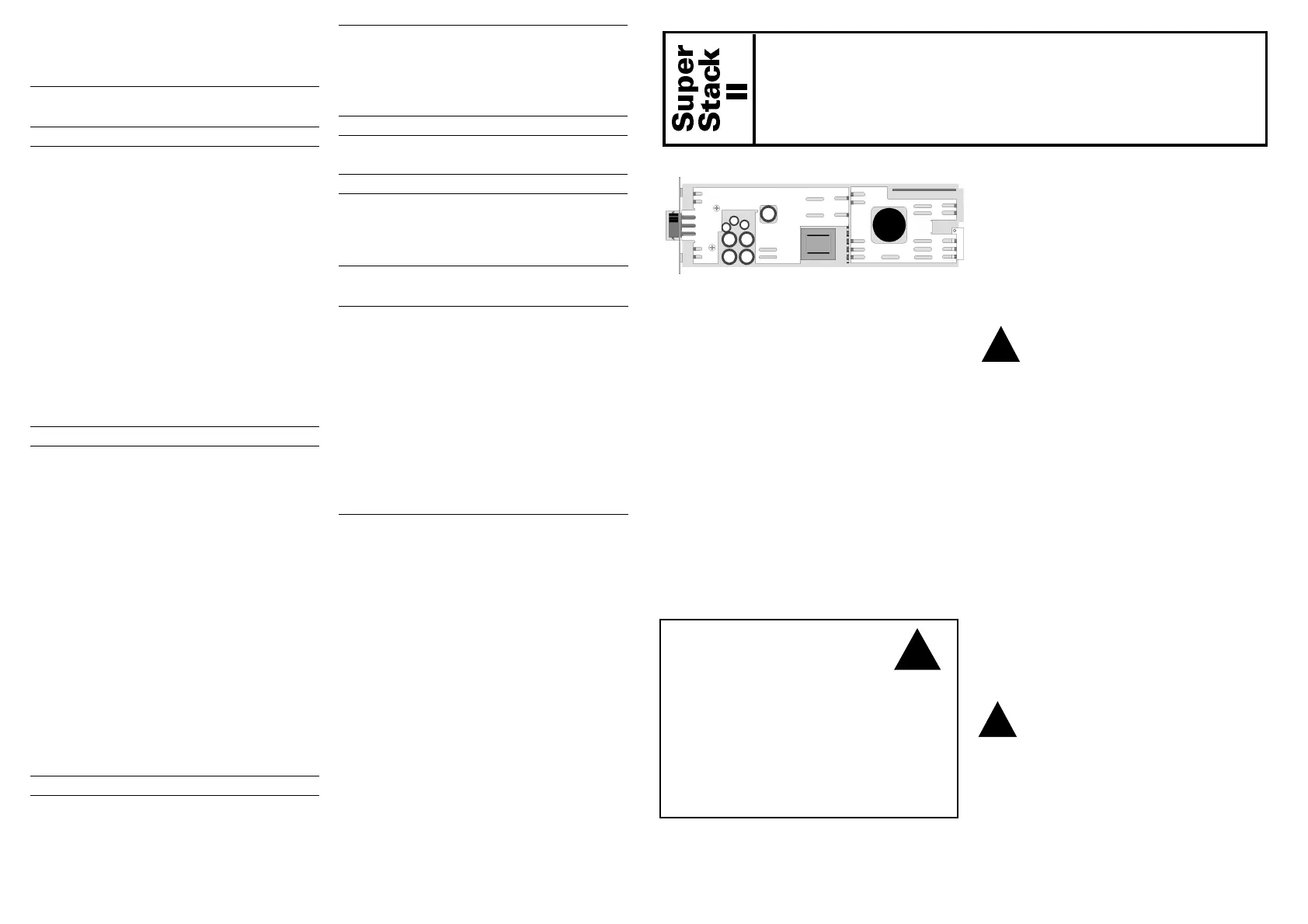

A
D
V
A
N
C
E
D
RPS P
O
W
E
R
M
O
D
U
L
E
S
(3C16072 & 3C16073)
U
S
E
R
G
U
I
D
E
Introduction
The SuperStack™ II Advanced RPS Power Modules are
designed to provide redundant power supplies, from the
SuperStack II Advanced RPS chassis (3C16070/1), to the
products in 3Com’s SuperStack II range. There are two
modules; a 60 watt capacity unit (3C16072) to supply most
of the products and a 100 watt unit (3C16073) for those
products with a higher power requirement. To connect the
power module to the active units, use only the cables
supplied with this module or the special ‘Y’ cables available
from your supplier.
For more general information and warranty details
for these products, please refer to SuperStack II
Advanced RPS User Guide, part number
DUA1607-0AAA0X.
The optional SuperStack II Advanced RPS Management
Module provides management information to a Network
Manager. Details of the management functions are in the
Management Module user guide, part number
DUA1608-0AAA0X.
This guide is written for the installation engineer and the
network administrator who manages and maintains the
network.
Safety Information
L’Information de Sécurité
Sicherheitsinformationen
Please read the safety information in the Advanced
RPS Chassis User Guide before installing the module.
Veuillez lire les instructions de sécurité dans le
manual d’utilisation du chassis de l’Advanced RPS
avant d’installer le module.
Lesen sie vor der Installation des Modules die
Sicherheitsinformationen in der Advanced RPS
Gebrachsanweisung.
Power Supply And Fuses
All power is supplied and fused from the Advanced RPS
chassis. There are no user-replaceable fuses on the Power
Modules.
Installing The Module
Power Module Usage
■
You must not connect units with a total power require-
ment of more than 480 watts to any one chassis.
■
Single Power Modules must be considered as supplying
their rated power.
■
Each Power Module in the full redundancy configuration
may be considered as supplying half its rated power.
The SuperStack II Advanced RPS Power Modules may be
hot-inserted into the chassis.
It is important that the Power Modules are
cooled effectively. We strongly recommend
installing the Power Modules as evenly as
possible between the top and bottom slots.
■
Take off the blanking plate by removing the fixing screw.
Keep the blanking plate and screw in a safe place. You
will need it, if you remove a module, to close the chassis
to the ingress of dust and maintain the correct cooling
airflow.
■
Slide the remote end of module into the runners and
push home firmly to connect to the backplane.
■
Secure the module with the screws provided.
Details of the permissible combinations of modules and
3Com products are given later in this user guide.
Connecting Cables
Connect the module output socket to the input of the unit
to which you wish to provide an alternative power source
using one of the special cables. Use a standard cable
(supplied with this module) to provide managed
redundancy or a special ‘Y’ cable (available from your
supplier) where full redundancy (resilience) is required.
Details of how to use the ‘Y’ cables are given on the guide
which accompanies the cables.
After installing the module, this guide should be stored
with your other 3Com user guides.
If the product you are connecting to the Power
Module does not have the auto-enable feature
(see
SuperStack II Advanced RPS User Guide
,
part number DUA1607-0AAA0X), ensure the
mains cable is removed from it before
attempting to connect it to the Advanced RPS.
!
!
!
Technical Information
Trouble Shooting
If you have a problem, the paragraphs below offer some
guidance for solving it. Check the status of the LEDs on
the front panel of the chassis, as described adjacent to
this paragraph and in the SuperStack II Advanced RPS
User Guide, part number DUA1607-0AAA0X.
Should you be unable to rectify the problem, consult your
supplier with the following information:
■
product number and power module serial number
■
a brief description of the fault
Mechanical
Weight
550 g (1.21 lb)
Size
272 x 87 mm (10.7 x 3.4 in)
Electrical - Maximum Current Available
3C16072
3C16073
+12.6 volts
2.5 amperes
2.5 amperes
- 12 volts
1 ampere
1 ampere
+5 volts
8.5 amperes
15 amperes
Power Consumption
60W Power Supply Module
Typical Input Power
:
100 watts
Total output power must not exceed 60 watts.
100W Power Supply Module
Typical Input Power
:
167 watts
Total output power must not exceed 100 watts.
Observed
Symptoms
Possible Fault
Mains present,
No Input LED ON
1/
Ensure AC Cable is correctly
connected.
2/
Internal AC fault.
Power Module
present,
No Output LED ON
1/
DC Cable not connected.
2/
SuperStack II unit not
connected.
3/
SuperStack II unit does not
require RPS power.
4/
SNMP management has
disabled the Power Module.
Power Module
present,
Yellow LED ON
1/
Power Module connected to
SuperStack II unit whose DC
requirement exceeds the
available DC output power.
2/
Power Module’s outputs are
out of specification.
3/
Power Module has failed.
LEDs
Power Module Requirements
The tables below detail the Power Modules needed to
provide sufficient power to the different SuperStack II
units. Products marked * have the auto-enable feature
(
see
SuperStack II Advanced RPS User Guide,
part number DUA1607-0AAA0X
).
The details are, we believe, correct at the time of printing
this manual, but may change. If you are in doubt, consult
the product user guide or your supplier for the latest
information.
LED
Function
State
Indication
Input
OK -
Green
Denotes
presence
of AC
power.
ON
AC is connected to
relevant input and is OK.
OFF
AC is not connected to
relevant input or there is
an AC fault.
Output
OK -
Green
Power
Module is
operating.
ON
Power Module is
supplying power to a
SuperStack II unit.
OFF
Power Module is not
present or Power Module
is not required to deliver
power or Power Module is
disabled by management.
Output
Fault -
Yellow
Power
Module
fault.
ON
Power Module is required
to deliver power but
cannot.
OFF
Power Module should be
OK.
Over-
temp -
Yellow
Temper-
ature in
Advanced
RPS and
fan state.
ON
Temperature is too high
or fan has failed.
OFF
Temperature is OK.
Fan OK.
SuperStack II Products requiring a 60 Watt
Power Module (numerical order)
3C215A
Hub 100 Management Unit
3C250-T4
Hub 100 T4 (also with 3C252 or 3C262
Module fitted)
3C250A-TX/I
Hub 100 TX (also with 3C252 or 3C262
Module fitted)
*3C7204A
AccessBuilder 2204
*3C7208A
AccessBuilder 2208
3C8200C
NetBuilder 200
3C8201C
NetBuilder 201
3C8221C
NetBuilder 221
3C8222C
NetBuilder 222
3C8223C
NetBuilder 223
3C8224C
NetBuilder 224
3C8227C
NetBuilder 227
3C8228C
NetBuilder 228
3C8252A
LinkConverter II 252
3C8254A
LinkConverter II 254
3C8323C
NetBuilder 323
3C8327C
NetBuilder 327
3C8352A
LinkConverter II 352
3C8354A
LinkConverter II 354
3C8421C
NetBuilder 421
3C8422C
NetBuilder 422
3C8423C
NetBuilder 423
3C8424C
NetBuilder 424
3C8427C
NetBuilder 427
3C8523C
NetBuilder 523
3C8527C
NetBuilder 527
*3C16405
PS Hub 40 12-port (also with a valid
combination of 3C1206X Transceiver
Modules or 3C16060 Bridge
MicroModules fitted)
*3C16406
PS Hub 40 24-port (also with a valid
combination of 3C1206X Transceiver
Modules or 3C16060 Bridge
MicroModules fitted)
3C16665A
Hub 10 Fiber (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16670A
Hub 10 12-port (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16671A
Hub 10 24-port (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16672A
Hub 10 Telco (also with 3C16630A or
3C16632 Management Module and
3C1206X Transceiver Module fitted)
3C16900A
Switch 1000 24-port (also with 3C1206x
or 3C16920/2 modules fitted)
3C16901A
Switch 1000 12-port (also with 3C1206x
or 3C16920/2 modules fitted)
*3C16902
Desk Top Switch (also with 3C1206x or
3C16920/2 modules fitted)
3C16940A
Switch 3000 FX (also with 3C1206x or
3C16920/2 modules fitted)
3C16941A
Switch 3000 TX (also with 3C16920/2
modules fitted)
3C32700A
Switch 2700 OC-3 Multimode ATM
3C32710A
Switch 2700 DS-3 ATM
3C32711A
Switch 2700 OC-3 Singlemode ATM
3C510510B
Hub TR 12-port (also with mixes of
3C51050X RI/RO Modules and 3C510502
or 3C510505 RMON Modules fitted)
3C510511B
Hub TR 24-port (also with mixes of
3C51050X RI/RO Modules and 3C510502
or 3C510505 RMON Modules fitted)
3C510600
Switch 2000
3C94103R-
CSIX
Open Partner Boundary Router 1
3C94103R-
CSD
Open Partner Boundary Router 2
3C94103R-
CSDI
Open Partner Boundary Router 3
3C94103R-
CSE
Open Partner Boundary Router 4
3C94117C-
XS
Open Partner Comms Server 16-port
3C94133C-
XS
Open Partner Comms Server 32-port
3C94101M-
SDEK
Open Partner Single Slot SS II Access
3C220000A
Switch 2200 without modules
Superstack II Products requiring a 100 Watt
Power Module (numerical order)
3C16900A
Switch 1000 24-port fitted with 3C16930
module
3C16901A
Switch 1000 12-port fitted with 3C16930
module
*3C16902
Desk Top Switch fitted with 3C16930
module
3C16940A
Switch 3000 FX fitted with 3C16930
module
3C16941A
Switch 3000 TX fitted with 3C16930
module
*3C16942
Switch 3000 TX 12-port (also with
3C16920/2 or 3C16930 modules fitted)
3C220000A
Switch 2200 with modules
SuperStack II Products NOT supported by the
Advanced RPS
3C81600
Enterprise Manager (including various
RMON Probes)
3C8930A
DC Voltage Converter 3-port
3C8960A
DC Voltage Converter 6-port
3C16010/1/2
UPS
3C565047A
RPS
Specyfikacje produktu
| Marka: | 3Com |
| Kategoria: | Zasilanie komputera |
| Model: | Superstack Advanced RPS 60W |
Potrzebujesz pomocy?
Jeśli potrzebujesz pomocy z 3Com Superstack Advanced RPS 60W, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą
Instrukcje Zasilanie komputera 3Com
27 Września 2024
Instrukcje Zasilanie komputera
- Zasilanie komputera LC-Power
- Zasilanie komputera StarTech.com
- Zasilanie komputera MSI
- Zasilanie komputera APC
- Zasilanie komputera Akasa
- Zasilanie komputera Cooler Master
- Zasilanie komputera Corsair
- Zasilanie komputera Ansmann
- Zasilanie komputera Pyle
- Zasilanie komputera FSP
- Zasilanie komputera Ewent
- Zasilanie komputera CLUB3D
- Zasilanie komputera Antec
- Zasilanie komputera Sharkoon
- Zasilanie komputera Silverstone
- Zasilanie komputera Thermaltake
- Zasilanie komputera Fractal Design
- Zasilanie komputera Be Quiet!
- Zasilanie komputera Chieftec
- Zasilanie komputera Allied Telesis
- Zasilanie komputera Steren
- Zasilanie komputera Fantec
- Zasilanie komputera ENDORFY
- Zasilanie komputera Xilence
- Zasilanie komputera Zalman
- Zasilanie komputera Seasonic
- Zasilanie komputera Zippy
- Zasilanie komputera AeroCool
- Zasilanie komputera Approx
- Zasilanie komputera AZZA
- Zasilanie komputera Mini-Box
- Zasilanie komputera CoolerMaster
- Zasilanie komputera FSP/Fortron
Najnowsze instrukcje dla Zasilanie komputera
9 Października 2024
9 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
8 Października 2024
