Strona 1/104

Read this manual carefully

before operating this watercraft.

OWNER’S/OPERATOR’S MANUAL

2016 WaveRunner

FZR SVHO

F3L-F8199-73-E0

Read this manual carefully before operating this watercraft. This manual

should stay with the WaveRunner if it is sold.

Important manual information

EJU42753

Declaration of Conformity for Personal Watercraft (PWC)

with the requirements of Directive 94/25/EC, as amended by Directive 2003/44/EC

Name of PWC Manufacturer: YAMAHA MOTOR CO., LTD.

Name / Title: Y. Henmi / General Manager of Engineering Section, Boat Business Unit

Address: 2500 Shingai, Iwata, Shizuoka 438-8501, Japan

Name of Authorised Representative: YAMAHA MOTOR EUROPE N.V.

Address: Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands

Name of Notified Body for exhaust and noise emission assessment: SNCH

GX1800-R / FZR SVHO

0499

Address: 11, route de Luxembourg BP 32, Sandweiler, L-5230. Luxembourg

U S - Y A M A 0 0 0 1 H 5 1 6

Conformity assessment module used:

for construction:

for exhaust emissions:

for noise emissions:

DESCRIPTION OF CRAFT

DESCRIPTION OF ENGINE

Craft model Identification Number, starting from :

Model name / Commercial name :

CDesign Category :

Other Community Directives applied

Electromagnetic Compatibility Directive 2004/108/EC and 2014/30/EU

EN 55012:2007/A1:2009

Directive 2006/42/EC relating to Machinery.

Standards

EN 61000-6-2:2005

B+C

B+D

B+E

B+F

Engine Type:

PWC engine

Combustion cycle:

4 stroke

Fuel Type:

Petrol

ESSENTIAL REQUIREMENTS

IDENTIFICATION OF ENGINE COVERED BY THIS DECLARATION OF CONFORMITY

Name of engine model

6EV

Name / ID number of Notified Body

SNCH / 0499

EC Type–examination certificate number

SNCH*94/25*2003/44*0076

(identification of the person empowered to sign on behalf of the manufacturer)

Signature:

(or an equivalent marking)

Date and place of issue:

Essential requirements standards other normative

document / method technical file Please specify in more detail

(* = mandatory standard)

I.A design and construction EN ISO 13590

I.B exhaust emission *EN ISO 8178-1

I.C noise emission *EN ISO 14509

This declaration of conformity is issued under the sole responsibility of the manufacturer. I declare on behalf of the PWC

manufacturer that the craft model(s) and engine(s) mentioned above complies (comply) with all applicable essential

requirements in the way specified and is (are) in conformity with the type(s) for which above mentioned EC type-examination

certificate(s) has (have) been issued.

ID Number:

1st / August / 2015, Shizuoka, Japan

Important manual information

EJU30193

To the owner/operator

Thank you for choosing a Yamaha watercraft.

This owner’s/operator’s manual contains in-

formation you will need for proper operation,

maintenance, and care. If you have any ques-

tions about the operation or maintenance of

your watercraft, please consult a Yamaha

dealer.

This manual is not a course on boating safety

or seamanship. If this is your first watercraft,

or if you are changing to a type of watercraft

you are not familiar with, for your own com-

fort and safety, please ensure that you obtain

proper training or practice before operating

the watercraft by yourself. In addition, a

Yamaha dealer or boating organization will be

pleased to recommend local sea schools, or

competent instructors.

In this manual, information of particular im-

portance is distinguished in the following

ways:

This is the safety alert symbol. It is used

to alert you to potential personal injury haz-

ards. Obey all safety messages that follow

this symbol to avoid possible injury or death.

WARNING

EWJ00072

A WARNING indicates a hazardous situa-

tion which, if not avoided, could result in

death or serious injury.

NOTICE

ECJ00092

A NOTICE indicates special precautions

that must be taken to avoid damage to the

watercraft or other property.

TIP:

A TIP provides key information to make pro-

cedures easier or clearer.

EJU40411

Because Yamaha has a policy of continuing

product improvement, this product may not

be exactly as described in this owner’s/oper-

ator’s manual. Specifications are subject to

change without notice.

This manual should be considered a perma-

nent part of this watercraft and should remain

with it even if the watercraft is subsequently

sold.

EJU30233

WaveRunner FZR SVHO

OWNER’S/OPERATOR’S MANUAL

1st Edition, August 2015

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in U.S.A.

Table of contents

General and important labels...........1

Identification numbers .................... 1

Primary Identification (PRI-ID)

number............................................ 1

Craft Identification Number (CIN)....... 1

Engine serial number.......................... 1

Manufactured date label .................... 2

Model information ........................... 2

Builder’s plate .................................... 2

Important labels .............................. 4

Warning labels.................................... 5

Other labels ........................................ 9

Safety information........................... 11

Limitations on who may operate

the watercraft ............................. 11

Cruising limitations........................ 12

Operation requirements ................ 13

Recommended equipment ........... 15

Hazard information........................ 16

Watercraft characteristics ............. 16

Safe boating rules ......................... 18

Enjoy your watercraft

responsibly................................. 18

Description.......................................20

Watercraft glossary ....................... 20

Location of main components ...... 21

Control function operation .............25

Watercraft control functions ......... 25

Remote control transmitter .............. 25

Yamaha Security System ................. 26

Engine stop switch .......................... 27

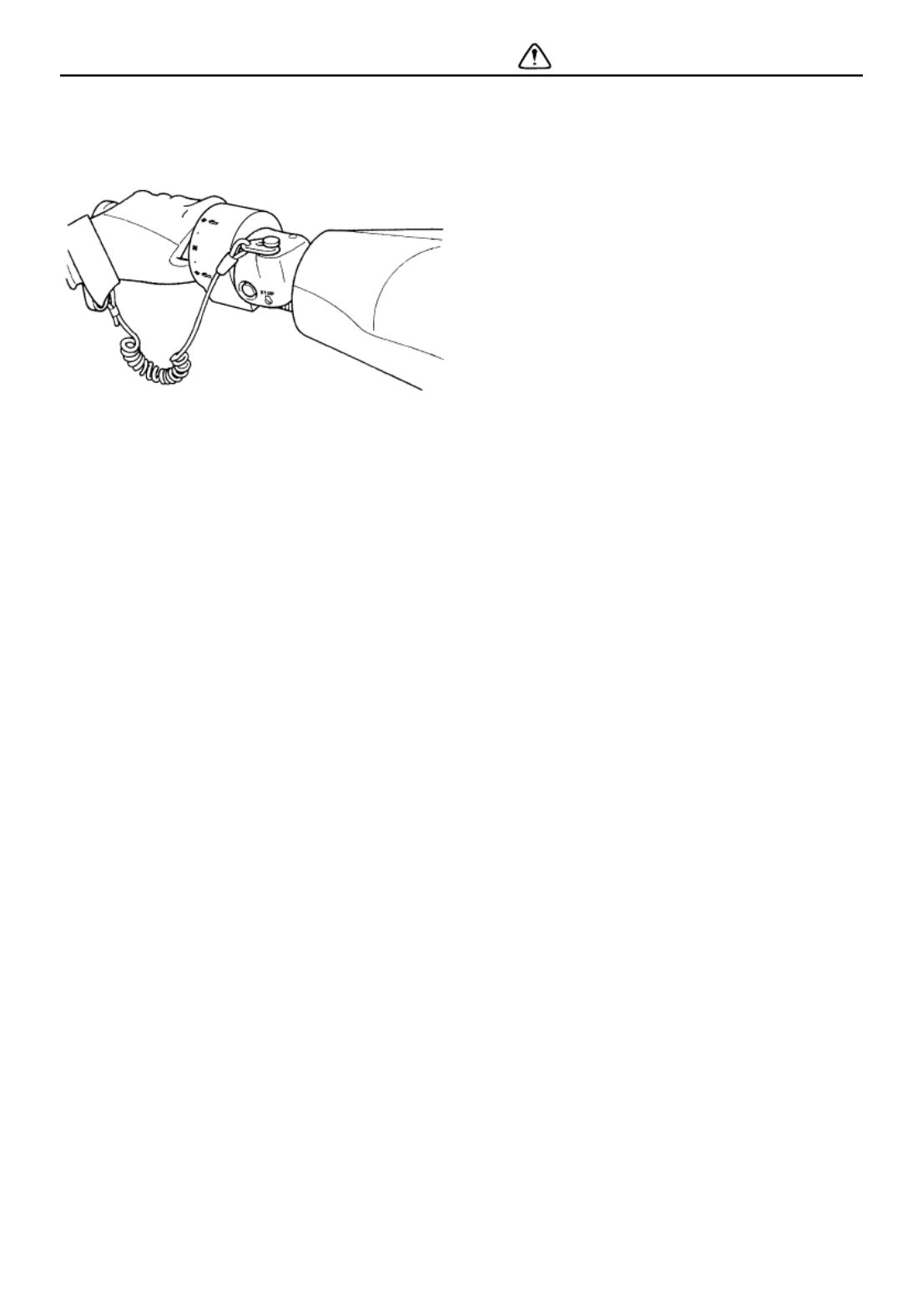

Engine shut-off switch .................... 27

Start switch ..................................... 27

Throttle lever .................................... 28

Steering system ............................... 28

Telescopic steering system.............. 29

Cooling water pilot outlets ............... 29

Water separator................................ 30

Watercraft operation ...................... 31

Watercraft operation functions ..... 31

Reverse system................................ 31

Quick Shift Trim System

(Q.S.T.S.)....................................... 31

Watercraft operation modes......... 33

Low RPM Mode ............................... 33

Instrument operation ...................... 35

Dual analog meter unit.................. 35

Speedometer.................................... 35

Tachometer ...................................... 35

Information display........................... 36

Equipment operation ...................... 40

Equipment..................................... 40

Seats ................................................ 40

Reboarding grip................................ 41

Reboarding step............................... 41

Bow eye............................................ 42

Stern eyes ........................................ 42

Storage compartments .................... 42

Fire extinguisher holder and cover... 45

Operation and handling

requirements ................................... 47

Fuel requirements......................... 47

Fuel................................................... 47

Engine oil requirements ................ 49

Engine oil.......................................... 49

Draining the bilge water ................ 51

Draining the bilge water on land....... 51

Draining the bilge water on water .... 51

Transporting on a trailer................ 52

First-time operation ........................ 53

Engine break-in............................. 53

Pre-operation checks ..................... 54

Pre-operation checklist .................... 54

Pre-operation check points .......... 56

Pre-launch checks ........................... 56

Post-launch checks.......................... 64

Table of contents

Operation ......................................... 65

Operating your watercraft ............. 65

Getting to know your watercraft ...... 65

Learning to operate your

watercraft...................................... 65

Riding position ................................. 66

Launching the watercraft ................. 66

Starting the engine on water ............ 66

Stopping the engine ......................... 67

Leaving the watercraft...................... 67

Operating the watercraft .................. 67

Turning the watercraft ...................... 68

Stopping the watercraft ................... 69

Operating the watercraft in

reverse .......................................... 70

Boarding the watercraft ................... 70

Starting off........................................ 73

Capsized watercraft ......................... 74

Beaching and docking the

watercraft...................................... 75

Operating in weeded areas .............. 75

After removing the watercraft from

the water....................................... 76

Care and storage............................. 77

Post-operation care ...................... 77

Flushing the cooling water

passages....................................... 77

Cleaning the watercraft .................... 78

Battery care...................................... 78

Long-term storage ........................ 81

Cleaning ........................................... 81

Lubrication ....................................... 81

Rustproofing..................................... 82

Maintenance ....................................83

Maintenance.................................. 83

Tool kit.............................................. 83

Removing and installing the engine

cover............................................. 83

Periodic maintenance chart ............. 85

Engine oil and oil filter ...................... 87

Specifications.................................. 88

Specifications ............................... 88

Trouble recovery ............................. 89

Troubleshooting............................ 89

Troubleshooting chart ...................... 89

Emergency procedures ................ 92

Cleaning the jet intake and

impeller ......................................... 92

Jumping the battery ......................... 93

Replacing the fuses.......................... 93

Towing the watercraft....................... 95

Submerged watercraft ..................... 95

Index................................................. 96

General and important labels

EJU36452

Identification numbers

Record the Primary Identification (PRI-ID)

number, Craft Identification Number (CIN),

and engine serial number in the spaces pro-

vided for assistance when ordering spare

parts from a Yamaha dealer. Also record and

keep these ID numbers in a separate place in

case your watercraft is stolen.

EJU42521

Primary Identification (PRI-ID) number

The PRI-ID number is stamped on a plate at-

tached inside the engine compartment. (See

page 40 for seat removal and installation pro-

cedures and page 45 for information on the

removable watertight storage compartment.)

MODEL:

GX1800-R (FZR SVHO)

EJU36551

Craft Identification Number (CIN)

The CIN is stamped on a plate attached to

the aft deck.

EJU40471

Engine serial number

The engine serial number is stamped on a

plate attached to the engine unit. (See page

40 for seat removal and installation proce-

dures and page 83 for engine cover removal

and installation procedures.)

1 Primary Identification (PRI-ID) number loca-

tion

MODEL

YAMAHA MOTOR CO., LTD.

ASSEMBLED IN U.S.A. FROM AMERICAN AND JAPANESE

COMPONENTS.

ASSEMBLÉ AUX ÉTATS-UNIS DE PIÈCES AMÉRICANES ET

JAPONAISES.

PRI-I.D.

F3L

F 3 L

1 Craft Identification Number (CIN) location

1 Engine serial number location

General and important labels

EJU42031

Manufactured date label

This label is attached to the top of the cylin-

der head. (See page 40 for seat removal and

installation procedures and page 83 for en-

gine cover removal and installation proce-

dures.)

EJU30321

Model information

EJU30332

Builder’s plate

Watercraft with this label conform to certain

portions of the European Parliament directive

relating to machinery.

Part of the information is given on the build-

er’s plate affixed on the craft. A full explana-

tion of this information is given in the relevant

sections of this manual.

Design category of this personal water-

craft: C

Category C:

This watercraft is designed to operate in

winds up to Beaufort force 6 and the associ-

ated wave heights (significant wave heights

up to 2 m (6.56 ft); see the following TIP).

Such conditions may be encountered in ex-

posed inland waters, in estuaries, and in

coastal waters in moderate weather condi-

tions.

1 Manufactured date label location

1 Builder’s plate location

YAMAHA MOTOR CO., LTD.

WATERCRAFT DESIGN CATEGORY : C

MAXIMUM CAPACITIES

2500 Shingai, Iwata, Shizuoka, Japan

Max. 2

Max. + = 160kg (353 lbs)

General and important labels

TIP:

The significant wave height is the mean

height of the highest one-third of the waves,

which approximately corresponds to the

wave height estimated by an experienced

observer. However, some waves will be dou-

ble this height.

General and important labels

EJU30453

Important labels

Read the following labels before using this watercraft. If have any questions, consult a

Yamaha dealer.

General and important labels

EJU35914

Warning labels

If any of these labels are damaged or missing, contact a Yamaha dealer for replacements.

F2S-U41B1-20

General and important labels

F2S-U41B1-30

F0M-U41B2-11

3J-U415B -30

General and important labels

WARNING

AVERTISSEMENT

WARNING

AVERTISSEMENT

(F2R-U41E1-10)

F3K-U41D5-10

F0V-U41DB-12

7 8

General and important labels

GJ3-U416H-01

General and important labels

EJU36262

Other labels

(F2R-U41E1-10)

F3J-U419B-30

F1B-U41F5-11

General and important labels

The following label indicates the correct direction to upright a capsized watercraft.

The following CE marking is located on the back of the remote control transmitter.

Safety information

EJU30683

The safe use and operation of this water-

craft is dependent upon the use of proper

riding techniques, as well as upon the

common sense, good judgment, and ex-

pertise of the operator. Before using this

watercraft, make sure that its use is per-

mitted under local laws, bylaws, and regu-

lations, and always operate the watercraft

in full conformity with any requirements

and limitations imposed. Every operator

should know the following requirements

before riding the watercraft.

 Before operating the watercraft, read this

owner’s/operator’s manual, the Riding

Practice Guide, the Riding Instruction card,

and all labels on the watercraft. These ma-

terials should give you an understanding of

the watercraft and its operation.

 Never allow anyone to operate this water-

craft until they too have read this own-

er’s/operator’s manual, the Riding Practice

Guide, the Riding Instruction card, and all

labels.

EJU30721

Limitations on who may

operate the watercraft

 Yamaha recommends a minimum operator

age of 16 years old.

Adults must supervise use by minors.

Know your local operator age and training

requirements.

 This watercraft is designed to carry the op-

erator and 1 passenger. Never exceed the

maximum load limit or allow more than 2

persons to ride the watercraft at any time.

 Do not operate the watercraft with a pas-

senger on board until you have consider-

able practice and experience riding alone.

Operating the watercraft with a passenger

requires more skill. Take the time to be-

come accustomed to the handling charac-

teristics of the watercraft before trying any

difficult maneuvers.

Maximum load:

160 kg (353 lb)

Load is the total weight of cargo, op-

erator, and passenger.

Safety information

colliding with another boat, which could re-

sult in severe injury or death.

 Follow navigation rules, and state/provin-

cial and local laws that apply to watercraft.

EJU30802

Operation requirements

 All riders must wear a personal flotation de-

vice (PFD) that is approved by the appro-

priate authorities and is suitable for

personal watercraft use.

 Wear protective clothing. Severe internal

injuries can occur if water is forced into

body cavities as a result of falling into the

water or being near the jet thrust nozzle.

Normal swimwear does not adequately

protect against forceful water entry into the

rectum or vagina. All riders must wear a

wetsuit bottom or clothing that provides

equivalent protection. Such clothing in-

cludes thick, tightly woven, sturdy and

snug-fitting apparel such as denim, but

does not include spandex or similar fab-

rics, like those used in bicycle shorts.

 Eye protection is recommended to keep

wind, water, and glare from the sun out of

your eyes while you operate your water-

craft. Restraining straps for eyewear are

made which are designed to float should

your eyewear fall in the water.

Footwear and gloves are recommended.

 You must decide whether to wear a helmet

while you ride for recreation. You should

know that a helmet could help protect you

1 Authority-approved PFD

2 Wetsuit bottom

Safety information

in certain kinds of accidents and that it

could injure you in others.

A helmet is designed to provide some head

protection. Although helmets cannot pro-

tect against all foreseeable impacts, a hel-

met might reduce your injuries in a collision

with a boat or other obstacle.

A helmet may have potential safety haz-

ards, as well. Falling into the water could

risk the chance of the helmet catching wa-

ter, commonly known as “bucketing”, and

the resulting strain on your neck could

cause choking, severe and permanent

neck injuries, or death. A helmet could also

increase the risk of an accident if it reduces

your vision or hearing, or if it distracts you

or increases your fatigue.

How should you decide if a helmet’s poten-

tial safety benefits outweigh its potential

risks for you? Consider your particular rid-

ing conditions. Consider factors such as

your riding environment and your riding

style and ability. Also consider the likeli-

hood of traffic congestion, and the water

surface conditions.

If you decide to wear a helmet based upon

your riding circumstances, choose one

carefully. Look for a helmet designed for

personal watercraft use, if possible. If you

will be engaging in closed-course competi-

tion, follow the helmet requirements of the

sanctioning organization.

 Never operate the watercraft after consum-

ing alcohol or taking other drugs.

 For reasons of safety and proper care of

the watercraft, always perform the pre-op-

eration checks listed on page 54 before op-

erating the watercraft.

 The operator and passenger should always

keep their feet on the floor of the footwell

when the watercraft is in motion. Lifting

your feet increases the chances of losing

your balance, or hitting objects outside the

watercraft with your feet. Do not give a ride

to a child whose feet cannot reach the floor

of the footwell.

 The passenger should firmly hold on to the

operator.

 Never allow a passenger to ride in front of

the operator.

 Always consult your doctor on whether it is

safe for you to ride this watercraft if you are

pregnant or in poor health.

 Do not attempt to modify this watercraft.

Modifications to your watercraft may re-

duce safety and reliability, and render the

watercraft unsafe or illegal for use.

 Attach the engine shut-off cord (lanyard) to

your left wrist and keep it free from the han-

dlebars so that the engine stops if you, the

operator, fall off. After riding, remove the

engine shut-off cord (lanyard) from the wa-

Safety information

tercraft to avoid accidental starting or un-

authorized use by children or others.

 Scan carefully for swimmers and stay away

from swimming areas. Swimmers are hard

to see and you could accidentally hit some-

one in the water.

 Avoid being hit by another boat. You

should always take the responsibility to

watch for traffic; other boaters may not be

watching for you. If they do not see you, or

if you maneuver more quickly than other

boaters expect, you risk a collision.

 Maintain a safe distance from other boats

and watercraft, and also watch for ski

ropes or fishing lines. Obey the “Safe boat-

ing rules” and be sure to check behind you

before making a turn. (See “Safe boating

rules” on page 18.)

EJU30841

Recommended equipment

The following items should be carried on

board your watercraft:

 Sound-signaling device

You should carry a whistle or other sound-

signaling device that can be used to signal

other boats.

 Visual distress signals

It is recommended that a pyrotechnic de-

vice, which is approved by the appropriate

authorities, be stored in a waterproof con-

tainer on your watercraft. A mirror can also

be used as an emergency signal. Contact a

Yamaha dealer for more information.

 Watch

A watch is helpful so you will know how

long you have been operating the water-

craft.

 Towline

A towline can be used to tow a disabled

watercraft in an emergency.

Safety information

EJU36851

Hazard information

 Never start the engine or let it run for any

length of time in an enclosed area. Exhaust

fumes contain carbon monoxide, a color-

less, odorless gas that may cause loss of

consciousness and death within a short

time. Always operate the watercraft in an

open area.

 Do not touch the hot muffler or engine dur-

ing or immediately after engine operation;

they can cause serious burns.

EJU30921

Watercraft characteristics

 Jet thrust turns the watercraft. Releasing

the throttle lever completely produces only

minimum thrust. If you are traveling at

speeds above trolling, you will have rapidly

decreasing ability to steer without throttle.

This model is equipped with the Yamaha

Engine Management System (YEMS) that

includes an off-throttle steering (OTS) sys-

tem. It will activate at planing speeds

should you attempt to steer the watercraft

after releasing the throttle lever. The OTS

system assists in turning by continuing to

supply some thrust while the watercraft is

decelerating, but you can turn more sharp-

ly if you apply throttle while turning the han-

dlebars.

The OTS system does not function below

planing speeds or when the engine is off.

Once the engine slows down, the water-

craft will no longer turn in response to han-

dlebar input until you apply throttle again or

you reach trolling speed.

Practice turning in an open area without

obstacles until you have a good feel for this

maneuver.

 This watercraft is water-jet propelled. The

jet pump is directly connected to the en-

gine. This means that jet thrust will produce

some movement whenever the engine is

running. There is no “neutral” position. You

are in either “forward” or “reverse”, de-

pending upon the shift lever position.

 Do not use the reverse function to slow

down or stop the watercraft as it could

cause you to lose control, be ejected, or

impact the handlebars.

This could increase the risk of back/spinal

injury (paralysis), facial injuries, and broken

legs, ankles, and other bones. You could

also damage the shift mechanism.

Safety information

 Reverse can be used to slow down or stop

during slow-speed maneuvering, such as

when docking. Once the engine is idling,

shift into reverse and gradually increase

engine speed. Make sure that there are no

obstacles or people behind you before

shifting into reverse.

 Keep away from the intake grate while the

engine is on. Items such as long hair, loose

clothing, or PFD straps can become entan-

gled in moving parts, resulting in severe in-

jury or drowning.

 Never insert any object into the jet thrust

nozzle while the engine is running. Severe

injury or death could result from coming in

contact with the rotating parts of the jet

pump.

 Stop the engine and remove the clip from

the engine shut-off switch before removing

any debris or weeds, which may have col-

lected around the jet intake.

1 Intake grate

2 Jet thrust nozzle

1 Clip

2 Engine shut-off switch

Safety information

EJU30971

Safe boating rules

Your Yamaha watercraft is legally considered

a powerboat. Operation of the watercraft

must be in accordance with the rules and

regulations governing the waterway on which

it is used.

EJU30992

Enjoy your watercraft

responsibly

You share the areas you enjoy when riding

your watercraft with others and with nature.

So your enjoyment includes a responsibility

to treat these other people, and the lands,

waters, and wildlife with respect and courte-

sy.

Whenever and wherever you ride, think of

yourself as the guest of those around you.

Remember, for example, that the sound of

your watercraft may be music to you, but it

could be just noise to others. And the exciting

splash of your wake can make waves others

won’t enjoy.

Avoid riding close to shoreline homes and

waterfowl nesting areas or other wildlife ar-

eas, and keep a respectful distance from fish-

ermen, other boats, swimmers, and

populated beaches. When travel in areas like

these is unavoidable, ride slowly and obey all

laws.

Proper maintenance is necessary to ensure

that the exhaust emission and sound levels of

your watercraft will continue to be within reg-

ulated limits. You have the responsibility to

make sure that the recommended mainte-

nance in this owner’s/operator’s manual is

carried out.

Remember, pollution can be harmful to the

environment. Do not refuel or add oil where a

spill could cause damage to nature. Remove

your watercraft from the water and move it

away from the shoreline before refueling. Dis-

pose of water and any fuel and oil residue in

the engine compartment according to local

regulations. And keep your surroundings

pleasant for the people and wildlife that share

the waterways: don’t litter.

Safety information

When you ride responsibly, with respect and

courtesy for others, you help ensure that our

waterways stay open for the enjoyment of a

variety of recreational opportunities.

Description

EJU40303

Watercraft glossary

Trolling speed

“Trolling” is the lowest maneuvering speed. You are applying little or no throttle. The water-

craft is down in the water, and there is no wake.

Sub-planing speed

“Sub-planing” is a medium speed. The bow of the watercraft is slightly up from the water sur-

face, but you are still traveling through the water. There is a wake.

Planing speed

“Planing” is a faster speed. The watercraft is more level and is skimming on top of the water.

There is a wake.

Bow

The front end of the watercraft.

Stern

The rear end of the watercraft.

Starboard

The right side of the watercraft when facing forward.

Port

The left side of the watercraft when facing forward.

Bilge water

Water that has collected in the engine compartment.

Yamaha Engine Management System (YEMS)

YEMS is an integrated, computerized management system that controls and adjusts ignition

timing, fuel injection, engine diagnostics, and the off-throttle steering (OTS) system.

Description

EJU31012

Location of main components

Exterior

1 Fuel filler cap (page 47)

2 Hood

3 Handlebar

4 Rear seat (page 40)

5 Front seat (page 40)

6 Footwell

7 Bow eye

8 Cooling water pilot outlet (page 29)

9 Gunwale

10 Sponson

Description

1 Boarding platform

2 Electric bilge pilot outlet

3 Reboarding grip (page 41)

4 Reboarding step (page 41)

5 Jet thrust nozzle

6 Reverse gate (page 31)

7 Ride plate

8 Stern drain plug (page 51)

9 Stern eye (page 42)

10 Speed sensor

11 Intake grate

Description

1 2 3 4

6 7

12 13 14

1098

1 Q.S.T.S. selector (page 31)

2 Q.S.T.S. selector lock lever (page 31)

3 Start switch (page 27)

4 Engine shut-off switch (page 27)

5 Clip (page 27)

6 Engine stop switch (page 27)

7 Engine shut-off cord (lanyard) (page 27)

8 Telescopic lock lever (page 29)

9 Dual analog meter unit (page 35)

10 Rearview mirror

11 Glove compartment (page 43)

12 Remote control transmitter (page 25)

13 Beverage holder (page 45)

14 Shift lever (page 31)

15 Throttle lever (page 28)

Control function operation

EJU31026

Watercraft control functions

EJU41391

Remote control transmitter

The Yamaha Security System and Low RPM

Mode settings can be selected by operating

the remote control transmitter. (See page 26

for Yamaha Security System setting proce-

dures and page 33 for Low RPM Mode acti-

vation procedures.)

Since the watercraft is programmed to rec-

ognize the internal code from this transmitter

only, the settings can only be selected with

this transmitter.

If you accidentally lose your remote control

transmitter or if it is not operating properly,

contact a Yamaha dealer.

When operating the watercraft, always keep

the transmitter with you, such as by storing it

in the transmitter holder in the beverage hold-

er, so that it is not lost.

NOTICE

ECJ00753



 The remote control transmitter is not

completely waterproof. Do not sub-

merge the transmitter or operate it un-

derwater. If the transmitter is

submerged, dry it with a soft, dry cloth,

and then check that it is operating prop-

erly. If the transmitter is not operating

properly, contact a Yamaha dealer.



 Keep the remote control transmitter

away from high temperatures and do

not place it in direct sunlight.



 Do not drop the remote control trans-

mitter, subject it to strong shocks, or

place any heavy items on it.



 Use a soft, dry cloth to clean the remote

control transmitter. Do not use deter-

gent, alcohol, or other chemicals.



 Do not attempt to disassemble the re-

mote control transmitter yourself. Oth-

erwise, the transmitter may not operate

properly. If the transmitter needs a new

battery, contact a Yamaha dealer. Refer

to local hazardous waste regulations

when disposing of transmitter batteries.

1 Remote control transmitter

1 Transmitter holder

Control function operation

EJU31153

Engine stop switch “ ”

The engine stop switch (red button) stops the

engine when the switch is pushed.

EJU31164

Engine shut-off switch “ ”

The engine shut-off switch automatically

stops the engine when the clip, on the end of

the engine shut-off cord (lanyard), is removed

from the switch, such as if the operator falls

off the watercraft.

Insert the clip under the engine shut-off

switch before starting the engine.

When the engine is not running, remove the

clip from the engine shut-off switch to pre-

vent accidental starting or unauthorized op-

eration by children or others.

EJU36287

Start switch “ ”

NOTICE

ECJ01311

Do not run the engine over 4000 r/min on

land. Also, do not run the engine for more

than 15 seconds without supplying water,

otherwise the engine could overheat.

The start switch (green button) starts the en-

gine when the switch is pushed.

Release the start switch as soon as the en-

gine starts to run. If the engine does not start

in 5 seconds, release the start switch, wait 15

seconds, and then try again. NOTICE: Never

push the start switch while the engine is

running. Do not operate the start switch

for more than 5 seconds, otherwise the

battery will be discharged and the engine

1 Engine stop switch

1 Engine shut-off switch

2 Clip

3 Engine shut-off cord (lanyard)

Control function operation

will not start. Also, the starter motor could

be damaged. [ECJ01041]

The engine will not start under any of the fol-

lowing conditions:

 Lock mode of the Yamaha Security System

has been selected. (See page 26 for

Yamaha Security System setting proce-

dures.)

 Clip is removed from the engine shut-off

switch.

 Throttle lever is squeezed.

EJU31212

Throttle lever

The throttle lever increases the engine speed

when the lever is squeezed.

The throttle lever returns automatically to its

fully closed (idle) position when released.

EJU31262

Steering system

By turning the handlebars in the direction you

wish to travel, the angle of the jet thrust noz-

zle is changed, and the direction of the water-

craft is changed accordingly.

Since the strength of the jet thrust determines

the speed and degree of a turn, throttle must

always be applied when attempting a turn,

except at trolling speed.

This model is equipped with the Yamaha En-

gine Management System (YEMS) that in-

cludes an off-throttle steering (OTS) system.

It will activate at planing speeds should you

attempt to steer the watercraft after releasing

the throttle lever. The OTS system assists in

turning by continuing to supply some thrust

while the watercraft is decelerating, but you

can turn more sharply if you apply throttle

while turning the handlebars. The OTS sys-

tem does not function below planing speeds

or when the engine is off. Once the engine

slows down, the watercraft will no longer turn

1 Start switch

1 Throttle lever

1 Handlebar

2 Jet thrust nozzle

Control function operation

in response to handlebar input until you apply

throttle again or you reach trolling speed.

EJU37343

Telescopic steering system

The position of the handlebars can be adjust-

ed up or down by operating the telescopic

lock lever.

The handlebars can be adjusted to three po-

sitions.

To adjust the handlebar position:

(1) Pull the telescopic lock lever up to disen-

gage the handlebar lock, and then move

the handlebars up or down to the desired

position. WARNING! Never pull the

lock lever during operation, otherwise

the handlebars may suddenly change

position, which may lead to an acci-

dent. [EWJ01271]

(2) Make sure that the telescopic lock lever

returns to its original position and that

the handlebars are securely locked in

place.

EJU41801

Cooling water pilot outlets

When the engine is running, some of the

cooling water that is circulated in the engine

is discharged from the cooling water pilot

outlets.

There are cooling water pilot outlets on the

port (left) and starboard (right) sides of the

watercraft. To check for proper operation of

the cooling system, make sure that water is

being discharged from the port (left) pilot out-

let. If water is not being discharged from the

outlet, stop the engine and check the jet in-

take for clogging. (See page 92 for informa-

tion on the jet intake.)

1 Telescopic lock lever

1 Cooling water pilot outlet (port [left] side)

Control function operation

TIP:

 It will take about 60 seconds for the water

to reach the outlets after the engine is start-

ed.

 Water discharge may not be constant

when the engine is running at idling speed.

If this occurs, apply a little throttle to make

sure that water discharges properly.

EJU40323

Water separator

The water separator prevents water from en-

tering the fuel tank by collecting any water

that has entered the fuel tank breather hose if

the watercraft was capsized.

If water has collected in the water separator,

drain it by loosening the drain screw.

To drain water from the water separator:

(1) Place a drain pan or dry cloth under the

water separator.

(2) Gradually loosen the drain screw to drain

the water. Catch the draining water in the

drain pan or soak it up with the dry cloth

so that it does not spill into the engine

compartment. If any water spills into the

watercraft, be sure to wipe it up with a

dry cloth.

(3) Securely tighten the drain screw until it

stops.

1 Water separator

2 Drain screw

Watercraft operation

EJU40013

Watercraft operation functions

EJU37183

Reverse system

WARNING

EWJ01231



 Do not use the reverse function to slow

down or stop the watercraft as it could

cause you to lose control, be ejected, or

impact the handlebars.



 Make sure that there are no obstacles or

people behind you before shifting into

reverse.



 Do not touch the reverse gate while the

shift lever is being operated, otherwise

you could be pinched.

When the shift lever is moved to the reverse

position, the reverse gate lowers and deflects

the water jet being discharged from the jet

thrust nozzle. This allows the watercraft to

move in reverse.

To shift into reverse:

(1) Release the throttle lever and let the en-

gine speed return to idle.

(2) Pull the shift lever rearward until it stops

in the reverse position. The reverse gate

will lower and the watercraft will start

moving in reverse at trolling speed.

TIP:

This model is equipped with a function which

limits the engine speed in reverse.

To shift into forward:

(1) Release the throttle lever and let the en-

gine speed return to idle.

(2) Push the shift lever forward until it stops

in the forward position. The reverse gate

will rise and the watercraft will start mov-

ing forward at trolling speed.

EJU42650

Quick Shift Trim System (Q.S.T.S.)

The Q.S.T.S. selector is integrated with the

left handlebar grip and is operated to change

1 Shift lever

2 Reverse position

3 Forward position

1 Reverse gate

2 Forward position

3 Reverse position

Watercraft operation

the vertical angle of the jet thrust nozzle,

which adjusts the trim angle of the watercraft.

There are 5 positions: neutral, 2 bow-down

positions (a) and (b), and 2 bow-up positions

Bow-down positions (a) and (b)

The bow will go down, causing the trim angle

to decrease.

Vertical movement of the bow will be reduced

and the watercraft will get up on plane more

quickly when accelerating.

Bow-up positions (c) and (d)

The bow will go up, causing the trim angle to

increase.

There is less water resistance, therefore,

straight-ahead acceleration is enhanced.

TIP:

The watercraft performance characteristics

according to the trim angle change depend-

ing on the operating conditions.

To change the trim angle:

(1) Reduce engine speed to less than 3000

r/min.

(2) Squeeze the Q.S.T.S. selector lock lever,

and then turn the Q.S.T.S. selector to the

desired position. NOTICE: Do not turn

the Q.S.T.S. selector while operating

the watercraft at an engine speed of

1 Q.S.T.S. selector

(c)

(d)

(a)

(b)

(a)

(d)

(c)

(d)

(c)

(b)

(a)

Watercraft operation

TIP:

If the remote control transmitter is operated

while the dual analog meter unit is in the

standby state, the unit will perform the initial

operation, and then the setting is selected.

To activate the Low RPM Mode:

Push the “L-Mode” (unlock) button on the re-

mote control transmitter for more than 4 sec-

onds. Once the beeper sounds three times

and the “UNLOCK” indicator light blinks

three times, then comes on, the “L-MODE”

indicator light comes on and the Low RPM

Mode is activated.

TIP:

If the Low RPM Mode is activated immediate-

ly after the information display turns off, the

“L-MODE” indicator light will not come on.

The “L-MODE” indicator light will come on

when the engine is started.

To deactivate the Low RPM Mode:

Push the “L-Mode” (unlock) button on the re-

mote control transmitter for more than 4 sec-

onds. Once the beeper sounds two times and

the “UNLOCK” indicator light blinks two

times, then comes on, the “L-MODE” indica-

tor light goes off and the Low RPM Mode is

deactivated. When the Low RPM Mode is de-

activated, the watercraft returns to the nor-

mal operation mode.

Number of

beeps

Low RPM Mode

operation

“L-

MODE”

indicator

light

Activated Comes

Deactivated Goes off

1 “L-Mode” (unlock) button

2 “L-MODE” indicator light

L - M o d e

Instrument operation

EJU37433

Dual analog meter unit

The dual analog meter unit displays various

watercraft information.

Dual analog meter unit initial operation

When the dual analog meter unit is activated,

the speedometer and tachometer make one

sweep, all of the display segments and indi-

cator lights come on. After 2 seconds, the

“WARNING” indicator light and the warning

indicators in the information display go off,

and then the unit starts to operate normally.

TIP:

The “UNLOCK” indicator light will go off

when the engine is started.

Dual analog meter unit standby state

If the dual analog meter unit does not receive

any operation input within 25 seconds after

the engine stops, the unit will turn off and en-

ter a standby state. When the engine is start-

ed again, the displays return to their state

before the unit turned off, and then the unit

starts to operate normally.

EJU37444

Speedometer

The speedometer shows the watercraft

speed against water.

The small inner numbers on the meter show

the watercraft speed in kilometers per hour

“km/h” and the large outer numbers show the

speed in miles per hour “mph”.

EJU37245

Tachometer

The tachometer shows the engine speed.

The numbers on the meter show the engine

speed × 1000 rpm (r/min).

1 Speedometer

2 Information display

3 Tachometer

4 “Hour Volt” button

5 “UNLOCK” indicator light

6 “L-MODE” indicator light

7 “WARNING” indicator light

123

7654

Instrument operation

EJU35027

Information display

The information display shows watercraft op-

erating conditions.

EJU37265

Hour meter/voltmeter

The hour meter/voltmeter has both an hour

meter function and a voltmeter function. By

switching the meter, it can be used as either

an hour meter or a voltmeter.

TIP:

The hour meter is selected at the Yamaha

factory.

Hour meter

The hour meter shows the total number of

hours that the engine has been running since

the watercraft was new.

TIP:

The elapsed time will be kept even if the bat-

tery terminals have been disconnected.

To switch to the hour meter from the voltme-

ter:

Push the “Hour Volt” button for at least 1 sec-

ond. The display switches to the hour meter

from the voltmeter.

Voltmeter

The voltmeter shows the battery voltage.

When the battery voltage is normal, the volt-

meter displays approximately 12 volts.

If the battery voltage has dropped significant-

ly, “LO” is displayed on the voltmeter. If the

battery voltage has risen significantly, “HI” is

displayed. If “LO” or “HI” is displayed, imme-

diately return to shore and have a Yamaha

dealer service the watercraft.

1 Fuel level meter

2 Fuel indicator

3 Engine overheat warning indicator

4 Check engine warning indicator

5 Oil pressure warning indicator

6 Hour meter/voltmeter

1 Hour meter/voltmeter

1 2 3 4 5

1 “Hour Volt” button

2 Hour meter

Instrument operation

sounds intermittently. At the same time, the

maximum engine speed is limited.

If the oil pressure warning is activated, imme-

diately reduce the engine speed, return to

shore, and then check the engine oil level.

(See page 49 for information on checking the

engine oil level.) If the oil level is sufficient,

have a Yamaha dealer check the watercraft.

TIP:

Push the “Hour Volt” button to stop the buzz-

er.

EJU37304

Engine overheat warning

If the engine temperature rises significantly,

the engine overheat warning indicator and

the “WARNING” indicator light blink, and the

buzzer sounds intermittently. Then, the en-

gine overheat warning indicator and the

“WARNING” indicator light stop blinking and

remain on, and the buzzer sounds continu-

ously. At the same time, the maximum engine

speed is limited.

If the engine overheat warning is activated,

immediately reduce the engine speed, return

to shore, and then make sure that water is

being discharged from the port (left) cooling

water pilot outlet while the engine is running.

If there is no discharge of water, stop the en-

gine, and then check the jet intake for clog-

ging. (See page 92 for information on the jet

intake.) NOTICE: If you cannot locate and

correct the cause of the overheating, con-

sult a Yamaha dealer. Continuing to oper-

ate at higher speeds could result in severe

engine damage. [ECJ00042]

TIP:

Push the “Hour Volt” button to stop the buzz-

er.

EJU37313

Check engine warning

If a sensor malfunction or a short circuit is de-

tected, the check engine warning indicator

and the “WARNING” indicator light blink, and

the buzzer sounds intermittently.

Instrument operation

If the check engine warning is activated, im-

mediately reduce the engine speed, return to

shore, and have a Yamaha dealer check the

engine.

TIP:

Push the “Hour Volt” button to stop the buzz-

er.

Equipment operation

(3) Pull the seat rearward and remove it.

To install the front seat:

(1) Insert the projection on the front of the

seat into the stay on the deck.

(2) Push the rear of the seat down to secure-

ly lock it in place.

(3) Securely install the rear seat in its original

position.

EJU37382

Reboarding grip

The reboarding grip is used when boarding

the watercraft from the water.

EJU34865

Reboarding step

The reboarding step is used to assist in re-

boarding the watercraft from the water.

When boarding the watercraft, push the re-

boarding step down until it stops. The step

returns automatically to its original position

when released. WARNING! Do not use the

reboarding step to lift the watercraft. The

reboarding step is not designed to support

the watercraft’s weight. If the reboarding

1 Reboarding grip

Equipment operation

EJU37332

Bow storage compartment

The bow storage compartment is located un-

der the hood.

To open the bow storage compartment:

Push the hood latch, and then lift up the rear

of the hood.

To close the bow storage compartment:

Push the rear of the hood down to securely

lock it in place.

To drain water from the bow storage com-

partment:

(1) Remove the drain plug on the bottom of

the storage compartment to drain the

water into the engine compartment.

(2) Securely install the drain plug in its origi-

nal position.

EJU31757

Glove compartment

The glove compartment is located in front of

the seat.

1 Hood latch

1 Bow storage compartment

Bow storage compartment:

Capacity:

68.4 L (18.1 US gal, 15.0 Imp.gal)

Load limit:

5.0 kg (11 lb)

1 Drain plug
