OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
USO E MANUTENZIONE
INSTRUKTIONSBOK
OMISTAJAN KÄSIKIRJA
EIERHÅNDBOK
E
F
I
S
SF
N
Les denne håndboken nøye før du tar kjøretøyet i bruk.
Lue tämä käsikirja huolellisesti ennen moottorikelkan käyttöä.
Läs den här instruktionsboken noga innan snöskotern används.
Leggere attentamente questo manuale prima di utilizzare questo veicolo.
Read this manual carefully before operating this vehicle.
Il convient de lire attentivement ce manuel avant la première utilisation du véhicule.
FX10D
FX10RTRSD
FX10XTD
FX10XT75D
FX10M53SD
FX10M62SD
8HK-28199-S4
PRINTED IN JAPAN
2012.06-0.5 1 CR×
PRINTED ON RECYCLED PAPER
IMPRIMÉ SUR PAPIER RECYC
STAMPATO SU CARTA RICICLATA
TRYCKT PÅ ÅTERVUNNET PAPPER
PAINETTU UUSIOPAPERILLE
TRYKKET PÅ RESIRKULERT PAPIR
Read this manual carefully
before operating this vehicle.
OWNER’S MANUAL
FX10D
FX10RTRSD
FX10XTD
FX10XT75D
FX10M53SD
FX10M62SD
8HK-28199-S4-E0
ESU13166
Read this manual carefully before operating this vehicle. This manual
should stay with this vehicle if it is sold.
EC Declaration of Conformity
conforming to Directive 2006/42/EC
(Make, model
)
2004
/
108
/
EC
(Title and
/
or number and date of issue of the other Directives of EEC)
to which this declaration applies, conforms to the essential health and
safety requirements of Directive 2006/42/EC
and to the other relevant Directive of EEC
(If applicable)
(
If applicable)
To e
ff
ect correct
application
of the
essential
health
and safety
requirements
stated in the Directives of EEC, the
following-standards
and
/
or
technical specifications were consulted:
– – – – – –
(
Title and
/
or number and date of issue of standards and
/
or specifications)
General Manager
RV Engineering Division
MC Operations
Signature
Date of Issue
Eiji Kato
18 October, 2011
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
Authorized Representative
RFX10ST2S (FX10XT75) ( JYE8JJ00
DA000001- )
RFX10RMS (FX10M62S) ( JYE8HR00DA005174- )
RFX10RMS2 (FX10M53S) ( JYE8HU00DA001653- )
RFX10ST2 (FX10XT) ( JYE8HL00
DA015772- )
RFX10RSS (FX10RTRS) ( JYE8HK00DA002903- )
Introduction
ESU10131
Congratulations on your purchase of a
Yamaha snowmobile. This model is the result
of Yamaha’s vast experience in the produc-
tion of fine sporting and touring snowmobiles.
It represents the high degree of craftsmanship
and reliability that have made Yamaha a lead-
er in these fields.
This manual will give you an understanding of
the operation, inspection, and basic mainte-
nance of this snowmobile. If you have any
questions concerning the operation or main-
tenance of your snowmobile, please consult a
Yamaha dealer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current product
information available at the time of printing,
there may be minor discrepancies between
your snowmobile and this manual. If there is
any question concerning this manual, please
consult a Yamaha dealer.
WARNING
EWS00670
Please read this manual carefully before
operating this snowmobile. Do not attempt
to operate this snowmobile until you have
attained adequate knowledge of its con-
trols and operating features.
Regular inspections and careful mainte-
nance, along with good operating tech-
niques, will help ensure that you safely
enjoy the capabilities and reliability of this
snowmobile.
FX10D
FX10RTRSD
FX10XTD
FX10XT75D
FX10M53SD
FX10M62SD
OWNER’S MANUAL
©2012 by Yamaha Motor Co., Ltd.
1st Edition, March 2012
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
Important manual information
ESU10151
Particularly important information is distin-
guished in this manual by the following nota-
tions.
This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWS00021
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECS00011
A NOTICE indicates special precautions
that must be taken to avoid damage to the
snowmobile or other property.
TIP
A TIP provides key information to make pro-
cedures easier or clearer.
Contents
Location of the important labels ..... 1
Safety information .......................... 16
Description ...................................... 19
Control functions ............................ 21
Main switch .................................. 21
Throttle lever ................................ 21
Throttle override system
(T.O.R.S.) .................................. 21
Multi-function meter unit ............... 22
High beam indicator light .............. 23
Low coolant temperature indicator
light ............................................ 23
Fuel meter and grip/thumb warmer
level indicator ............................ 24
Fuel level warning indicator .......... 25
Oil level/pressure warning
indicator ..................................... 25
Coolant temperature warning
indicator ..................................... 26
Self-diagnosis device ................... 26
Engine stop switch ....................... 27
Headlight beam switch
“LIGHTS” ................................... 27
Grip/thumb warmer adjusting
switch ........................................ 27
Auxiliary DC jack
(FX10M53S/FX10M62S) ........... 28
Brake lever ................................... 28
Parking brake lever ...................... 29
Shift lever ..................................... 29
Drive guard ................................... 30
Storage pouch .............................. 31
Fuel .............................................. 32
Suspension .................................. 33
Pre-operation checks...................... 48
Pre-operation check list ................ 48
Operation ......................................... 50
Starting the engine ....................... 50
Break-in ........................................ 51
Riding your snowmobile ............... 51
Maximizing drive track life ............ 55
Strap (FX10M53S/FX10M62S) .... 56
Driving .......................................... 56
Stopping the engine ..................... 57
Transporting ................................. 58
Periodic maintenance and
adjustment....................................... 59
Periodic maintenance chart for the
emission control system ........... 60
General maintenance and
lubrication chart ........................ 61
Tool kit ......................................... 63
Recommended equipment ........... 63
Removing and installing the
shroud and covers .................... 63
Checking the spark plugs ............. 65
Adjusting the throttle lever free
play ........................................... 66
Checking the throttle override
system (T.O.R.S.) ..................... 66
Checking the air filter ................... 67
High-altitude settings ................... 68
Valve clearance ........................... 68
Engine oil and oil filter cartridge ... 69
Cooling system ............................ 74
V-belt ............................................ 76
Drive chain housing ..................... 78
Brake and parking brake .............. 79
Extrovert drive sprocket
(FX10/FX10RTRS/FX10XT75/
FX10M53S/FX10M62S) ............ 82
Skis and ski runners ..................... 83
Steering system ........................... 84
Drive track and slide runners ....... 84
High-profile pattern drive track ..... 87
Lubrication ................................... 88
Replacing a headlight bulb ........... 89
Contents
Adjusting the headlight beams ..... 89
Fittings and fasteners ................... 90
Battery .......................................... 90
Replacing a fuse .......................... 91
Troubleshooting ............................. 93
Storage ............................................ 96
Specifications ................................. 98
Consumer information.................. 102
Identification number records ..... 102
Vehicle Emission Control
Information label
(for CANADA) .......................... 102
WARRANTY................................ 102
Location of the important labels
1
ESU12678
Read and understand all of the labels on your vehicle. They contain important information for
safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label
becomes difficult to read or comes off, a replacement label is available from your Yamaha deal-
er.
For CANADA
1
8
3
4
2
5 6
7
9
15
16
141312
11 10
Location of the important labels
2
TUNE-UP SPECIFICATIONS
ENGINE
1.SPARK PLUG
2.SPARK PLUG GAP
3.IDLE SPEED
SPECIFICATIONS DE LA MISE AU POINT
MOTEUR
1.TYPE DE BOUGIE
2.ECARTEMENT DES ÉLECTRODES
3.RÉGIME DE RALENTI
CR9E(NGK)
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
1500 ± 50 r/min
CR9E(NGK)
0.7 ~ 0.8 mm
1500 ± 50 r/min
8GL
8GL-1417E-00
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
30 ~ 35 mm (1.18 ~ 1.38 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HA-47578-00
30 ~ 35 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
40 ~ 45 mm (1.57 ~ 1.77 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HR-47578-00
40 ~ 45 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
25 ~ 30 mm (0.98 ~ 1.18 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8GL-47578-00
25 ~ 30 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
4
1 FX10M53S/FX10M62S 2
3 FX10/FX10RTRS/FX10XT75
3 FX10M53S/FX10M62S
3 FX10XT
Location of the important labels
3
ATTENTION
8ET-2815K-10
NOTICE
8ET-2815K-00
8GL-77763-E1
88C-77769-00
NOTICE
ATTENTION
This snowmobile is originally equipped with a high-profile pattern
track of more than 38 mm (1.5 in.) for deep snow riding conditions.
• Operation on light snowfall, ice, hard-packed snow, dirt, etc.,
will result in rapid wear or damage to track and slide runners.
• Cette motoneige est équipée de série d'une chenillé à crampons
de plus de 38 mm (1,5 in.) pour la conduite sur neige profonde.
• La conduite sur de la neige peu profonde, de la glace, de
la neige tassée, de la saleté, etc. provoquera une usure rapide
ou l’endommagement de la chenille et des patins. 8JJ-2815M-E0
5 6
7 FX10XT75/FX10M53S/FX10M62S
10
11
9
13
12 FX10XT/FX10XT75/FX10M53S/FX10M62S
8
Location of the important labels
4
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-00
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-F2259-10
C
M
V
S
S
C
A
N
A
D
A
N
S
V
A
C
T
R
A
N
S
P
O
R
T
506
This spark ignition system meets all requirements of the
Canadian Interference Causing Equipment Regulations.
Ce système dallumage par étincelle de véhicule
respecte toutes les exigences du glement sur le
matériel brouilleur du Canada.
3JK-82377-10
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8GT-F2259-50
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote sous haute pression.
Une mauvaise manipulation peut entraîner une explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-40
14 FX10/FX10XT/FX10XT75
15,16
FX10RTRS
16
FX10M53S/FX10M62S
15
16
FX10RTRS
15
Location of the important labels
5
For EUROPE
1
3
4
5
2
6
7
11
12
1098
Location of the important labels
6
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
40 ~ 45 mm (1.57 ~ 1.77 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HR-47578-00
40 ~ 45 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
25 ~ 30 mm (0.98 ~ 1.18 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8GL-47578-00
25 ~ 30 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
30 ~ 35 mm (1.18 ~ 1.38 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HA-47578-00
30 ~ 35 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
1 FX10M53S/FX10M62S 2
3
4 FX10M53S/FX10M62S
4 FX10RTRS/FX10XT75
4 FX10XT
Location of the important labels
7
8GL-77763-S1
TUNE-UP SPECIFICATIONS
ENGINE
1.SPARK PLUG
2.SPARK PLUG GAP
3.IDLE SPEED
SPECIFICATIONS DE LA MISE AU POINT
MOTEUR
1.TYPE DE BOUGIE
2.ECARTEMENT DES ÉLECTRODES
3.RÉGIME DE RALENTI
CR9E(NGK)
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
1500 ± 50 r/min
CR9E(NGK)
0.7 ~ 0.8 mm
1500 ± 50 r/min
8GL
8GL-1417E-00
8AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2012
VIKTIGT
MUISTA
• Snöskotern är originalutrustad med ett spårnster med hög
profil på minst 38 mm (1,5 in) för körning i djup snö.
• Användning på tunt snöfall, is, hårdpackad snö, jord o.s.v. resulterar
i snabb förslitning eller skada på drivband och glidskenor.
Tässä moottorikelkassa on vakiovarusteena yli 38 mm (1,5 in)
korkeaprofiilinen telamatto, joka on tarkoitettu syvässä lumessa ajoon.
• Käyttö vähäisessä lumessa, jäällä, kovalla hangella, likaisilla
pinnoilla jne. vahingoittaa raidetta tai sivuraiteita ja aiheuttaa
niiden nopean kulumisen. 8JJ-2815M-S0
6 FX10XT75/FX10M53S/FX10M62S
7
8 FX10XT/FX10XT75/FX10M53S/FX10M62S
9
5
Location of the important labels
8
8HK-2156A-20
RFX10RSS
94.2 kW 272 kg
8HL-2156A-30
RFX10ST2
94.2 kW 278 kg
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8GT-22259-50
4AA-22259-40
4AA-22259-40
8HR-2156A-20
RFX10RMS
94.2 kW 279 kg
8JJ-2156A-00
RFX10ST2S
94.2 kW 283 kg
8HU-2156A-10
RFX10RMS2
94.2 kW 278 kg
10 FX10RTRS 10 FX10XT
10 FX10M62S
10 FX10XT75 10 FX10M53S
FX10RTRS
11 12
FX10XT/FX10XT75
11,12
Location of the important labels
9
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-00
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-10
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owners manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote sous haute pression.
Une mauvaise manipulation peut entraîner une explosion.
• Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-40
FX10M53S/FX10M62S
11
12
Location of the important labels
10
Familiarize yourself with the following pictograms and read the explanatory text.
******
*** kW *** kg
1
2 3
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****
1
Read the Owner’s manual.
This unit contains high-pressure nitrogen gas.
Mishandling can cause an explosion. Do not incinerate,
puncture or open.
This pictogram shows the sled hitch tow weight limit
(combined weight of the sled and all cargo in the sled).
Overloading can cause loss of control.
Loss of control can result in severe injury or death.
This pictogram shows the sled hitch tongue weight limit
(weight on the sled tongue).
Overloading can cause loss of control.
Loss of control can result in severe injury or death.
1
2
3
Model Name
Max. Power
Mass In Running Order
1Year of construction
Location of the important labels
11
For RUSSIA
1
3
4
5
2
6
7
12
13
10 1198
Location of the important labels
12
8GL-77761-R0
8FN-77761-R1
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
40 ~ 45 mm (1.57 ~ 1.77 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HR-47578-00
40 ~ 45 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
25 ~ 30 mm (0.98 ~ 1.18 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8GL-47578-00
25 ~ 30 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
DRIVE
1. CHAIN CASE OIL Q’TY
2. CHAIN CASE OIL TYPE
3. TRACK TENSION
* FOR MORE INFO: SEE SERVICE MANUAL FOR THIS
MODEL.
* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE.
ENTRAÎNEMENT
1. CAPACITÉ D’HUILE DU CARTER DE CHAÎNE
2. TYPE D’HUILE DU CARTER DE CHAÎNE
3. FLÈCHE DE LA CHENILLE
* POUR PLUS DE DÉTAIL: VOIR LE MANUEL D’ATELIER
POUR CE MODÈLE.
* LES CARACTÉRISTIQUE TECHNIQUES SONT
SUSCEPTIBLES DE CHANGER SANS NOTIFICATION
PRÉALABLE.
200 cm³ (6.8 oz)
GL-3 75W or 80W
30 ~ 35 mm (1.18 ~ 1.38 in)/100 N (10 kg, 22 lb)
200 cm³
GL-3 75W or 80W
8HA-47578-00
30 ~ 35 mm/100 N (10 kg)
TUNE-UP SPECIFICATIONS
SPECIFICATIONS DE LA MISE AU POINT
2
3
4 FX10M62S
4 FX10XT
4 FX10XT75
1 FX10M62S
Location of the important labels
13
8GL-77763-S1
TUNE-UP SPECIFICATIONS
ENGINE
1.SPARK PLUG
2.SPARK PLUG GAP
4.IDLE SPEED
SPECIFICATIONS DE LA MISE AU POINT
MOTEUR
1.TYPE DE BOUGIE
2.ECARTEMENT DES ÉLECTRODES
3.RÉGIME DE RALENTI
CR9E(NGK)
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
1500 ± 50 r/min
CR9E(NGK)
0.7 ~ 0.8 mm
1500 ± 50 r/min
8GL
8GL-1417E-00
8HA-77762-R0
8AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2012
VIKTIGT
MUISTA
• Snöskotern är originalutrustad med ett spårnster med hög
profil på minst 38 mm (1,5 in) för körning i djup snö.
• Användning på tunt snöfall, is, hårdpackad snö, jord o.s.v. resulterar
i snabb förslitning eller skada på drivband och glidskenor.
Tässä moottorikelkassa on vakiovarusteena yli 38 mm (1,5 in)
korkeaprofiilinen telamatto, joka on tarkoitettu syvässä lumessa ajoon.
• Käyttö vähäisessä lumessa, jäällä, kovalla hangella, likaisilla
pinnoilla jne. vahingoittaa raidetta tai sivuraiteita ja aiheuttaa
niiden nopean kulumisen. 8JJ-2815M-S0
6 FX10XT75/FX10M62S
7
8
9
5
Location of the important labels
14
4AA-22259-40
8JJ-2156A-00
RFX10ST2S
94.2 kW 283 kg
8HL-2156A-30
RFX10ST2
94.2 kW 278 kg
8HR-2156A-20
RFX10RMS
94.2 kW 279 kg
8JF-2818P-R0
1110 FX10M62S
10 FX10XT7510 FX10XT
FX10XT/FX10XT75
12,13
Location of the important labels
15
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owner’s manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-00
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owner’s manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote à haute pression.
Une mauvaise manipulation peut entraîner d’explosion.
Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-10
WARNING
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
• Read owner’s manual for instructions.
• Do not incinerate, puncture or open.
AVERTISSEMENT
Cette unité contient de I’azote sous haute pression.
Une mauvaise manipulation peut entraîner une explosion.
Voir le manuel d’utilisateur pour les instructions.
• Ne pas brûler ni perforer ni ouvrir.
8HR-22259-40
FX10M62S
12
13
Safety information
16
ESU10183
As the vehicle’s owner, you are responsible
for the safe and proper operation of your
snowmobile. When you ride your snowmo-
bile, you must know and use the following for
your safety. Severe injury or death may result
if you ignore any of the following.
Before you operate your snowmobile
Read the Owners Manual and all labels.
Become familiar with all of the operating
controls and their function. Consult a
Yamaha dealer about any control or func-
tion you do not understand.
Wear protective clothing. Wear an ap-
proved helmet, and a face shield or gog-
gles. Also, wear a good quality snowmobile
suit, boots, and a pair of gloves or mittens
that will permit use of your thumbs and fin-
gers for operation of the controls.
Do not operate the snowmobile after or
while drinking alcohol or taking drugs. Your
ability to operate the snowmobile is re-
duced by the influence of alcohol or drugs.
Prepare your snowmobile
Perform the pre-operation checks each
time you use the vehicle to make sure it is
in safe operating condition. Failure to in-
spect or maintain the vehicle properly in-
creases the possibility of an accident or
equipment damage. See page 48 for a list
of pre-operation checks.
Apply the parking brake before starting the
engine. Never drive the snowmobile with
the parking brake applied. This may over-
heat the brake disc and reduce braking abil-
ity.
While using your snowmobile
This snowmobile was not manufactured for
use on public streets, roads, or highways.
Such use is prohibited by law, and you
could collide with another vehicle.
This snowmobile is designed to carry the
OPERATOR ONLY. Passengers are pro-
hibited. Carrying a passenger can cause
loss of control.
Be careful where you ride. There may be
obstacles hidden beneath the snow. Stay
on established trails to minimize your expo-
sure to hazards. Ride slowly and cautiously
when you ride off of established trails. Hit-
ting a rock or stump, or running into wires
could cause an accident and injury.
This snowmobile is not designed for use on
surfaces other than snow or ice. Use on dirt,
sand, grass, rocks, or bare pavement may
cause loss of control and may damage the
snowmobile.
Safety information
17
Always ride with other snowmobilers when
going on a ride. You may need help if you
run out of fuel, have an accident, or damage
your snowmobile.
Many surfaces such as ice and hardpacked
snow require much longer stopping distanc-
es. Be alert, plan ahead and begin deceler-
ating early. The best braking method on
most surfaces is to release the throttle and
apply the brake gently—not suddenly.
Avoid carbon monoxide poisoning
All engine exhaust contains carbon monox-
ide, a deadly gas. Breathing carbon monoxide
can cause headaches, dizziness, drowsiness,
nausea, confusion, and eventually death.
Carbon monoxide is a colorless, odorless,
tasteless gas which may be present even if
you do not see or smell any engine exhaust.
Deadly levels of carbon monoxide can collect
rapidly and you can quickly be overcome and
be unable to save yourself. Also, deadly lev-
els of carbon monoxide can linger for hours or
days in enclosed or poorly-ventilated areas. If
you experience any symptoms of carbon
monoxide poisoning, leave the area immedi-
ately, get fresh air, and SEEK MEDICAL
TREATMENT.
Do not run the engine indoors. Even if you
try to ventilate engine exhaust with fans or
open windows and doors, carbon monoxide
can rapidly reach dangerous levels.
Do not run the engine in poorly ventilated or
partially enclosed areas such as barns, ga-
rages, or carports.
Do not run the engine outdoors where en-
gine exhaust can be drawn into a building
through openings such as windows and
doors.
Genuine Yamaha Accessories
Choosing accessories for your snowmobile is
an important decision. Genuine Yamaha Ac-
cessories, which are available only from a
Yamaha dealer, have been designed, tested,
and approved by Yamaha for use on your
snowmobile. Many companies with no con-
nection to Yamaha manufacture parts and ac-
cessories or offer other modifications for
Yamaha vehicles. Yamaha is not in a position
to test the products that these aftermarket
companies produce. Therefore, Yamaha can
neither endorse nor recommend the use of
accessories not sold by Yamaha or modifica-
tions not specifically recommended by
Yamaha, even if sold and installed by a
Yamaha dealer.
Maintenance and storage
When laying the snowmobile on its side for
maintenance, use a suitable stand to keep
it in a stable and level position.
Do not leave the snowmobile on its left side
for an extended period of time. Fuel may
leak out from the fuel breather hose.
Do not allow anyone to stand behind the
snowmobile when starting, inspecting, or
adjusting the snowmobile. A broken track,
track fittings, or debris thrown by the track
could be dangerous to the operator or by-
standers.
Modifications made to the snowmobile not
approved by Yamaha, or the removal of
original equipment may render your snow-
mobile unsafe for use, which may cause se-
vere personal injury. Modifications may
also make the snowmobile illegal to use.
Never store the snowmobile with fuel in the
fuel tank inside a building where ignition
sources are present such as hot water and
space heaters, an open flame, sparks,
Safety information
18
clothes dryers, and the like. Allow the en-
gine to cool off before storing the snowmo-
bile in an enclosed space.
Description
19
ESU10261
11
13
5,6,7,8,94
12
1,2,3
10
1213
1,2,3
FX10
FX10M53S/FX10M62S
4 5,6,7,8,9 11
11
13
FX10RTRS
5,6,7,8,94
12
FX10XT/FX10XT75
11
1,2,3
1,2,3
13
5,6,7,8,94
12
1. Storage pouch
2. Tool kit
3. Coolant reservoir
4. Air filter
5. Battery
6. Main fuse
7. Fuel injection system fuse
8. Oil filler cap
9. Fuse box
10. Strap (FX10M53S/FX10M62S)
11. Tail/brake light
12. Slide rail suspension
13. Drive track
Description
20
TIP
The snowmobile you have purchased may differ slightly from those shown in the figures of
this manual.
Design and specifications are subjected to change without notice.
1 2 3 4 7 8
10
9
65
1. Brake lever
2. Parking brake lever
3. Grip warmer adjusting switch
4. Auxiliary DC jack (FX10M53S/FX10M62S)
5. Main switch
6. Thumb warmer adjusting switch
7. Engine stop switch
8. Throttle lever
9. Shift lever
10. Headlight beam switch
Control functions
21
ESU10292
Main switch
The main switch controls the ignition and
lighting systems. The various positions are
described below.
Off
The ignition circuit is switched off.
The key can be removed only in this position.
On
The ignition circuit is switched on.
Start
The starting circuit is switched on.
The starter motor cranks the engine.
NOTICE: Release the switch immediately
after the engine starts. [ECS00021]
TIP
The headlights and taillight come on after the
engine is started.
ESU10312
Throttle lever
Once the engine is running cleanly, squeez-
ing the throttle lever will increase the engine
speed and cause engagement of the drive
train. Regulate the speed of the snowmobile
by varying the throttle position. Because the
throttle is spring-loaded, the snowmobile will
decelerate, and the engine will return to idle
when it is released.
ESU10347
Throttle override system
(T.O.R.S.)
WARNING
EWS00041
If the T.O.R.S. is activated, make sure that
the cause of the malfunction has been cor-
rected and that the engine can be operated
without a problem before restarting the
engine. Continuing to operate with a mal-
function could cause loss of control or
damage.
If the throttle valves or throttle cable malfunc-
tions during operation, the T.O.R.S. will be ac-
tivated when the throttle lever is released.
The T.O.R.S. is designed to override the fuel
injection and limit the engine speed to less
than the clutch engagement speed if the throt-
tle valves fail to return to the idle position
when the throttle lever is released. (See page
98 for the clutch engagement speed.)
1. Off
2. On
3. Start
1. Throttle lever
Control functions
22
TIP
If the T.O.R.S. is activated, the warning light
and engine trouble warning indicator will
flash, and the two-digit code “84will flash in
the meter display. If this occurs, have a
Yamaha dealer check the system as soon as
possible.
ESU12726
Multi-function meter unit
The multi-function meter unit is equipped with
the following:
a digital speedometer
an odometer
a tripmeter (which shows the distance trav-
eled since it was last set to zero)
an engine speed meter (which shows the
engine speed; not for use while riding)
warning indicators (which show engine
trouble, coolant temperature, fuel level, oil
level, and oil pressure warnings)
indicator lights (which show high beam and
low coolant temperature conditions)
a warning light (which shows warnings to-
gether with the warning indicators)
a fuel meter (which shows the fuel remain-
ing in the fuel tank)
a grip/thumb warmer level indicator (which
shows the grip warmer or the thumb warm-
er level)
When the key is turned to the on position, the
warning light, the low coolant temperature in-
dicator light, and all segments of the meter
display come on and go off.
The grip warmer level is initially displayed for
5 seconds, then the display switches to the
fuel meter.
Idling Riding Malfunc-
tion
Throttle
lever Released Squeezed Released
Throttle
valve Closed Open Open
T.O.R.S.
Engine
runs
properly.
Engine
runs
properly.
T. O. R .S .
will be ac-
tivated.
1. Warning light “
2. Engine trouble warning indicator “
3. Two-digit code “84
1. Meter display
2. Warning indicators
3. High beam indicator light
4. Low coolant temperature indicator
light
5. Warning light “
6. “RESETbutton
7. “SELECT” button
5 4 3
1
7
6
2
Control functions
23
Odometer, tripmeter, and engine
speed meter modes
Pushing the “SELECT button switches the
display between the odometer mode “ODO”,
tripmeter mode “TRIP”, and engine speed
meter mode “r/minin the following order:
ODO → TRIP r/min → ODO
To reset the tripmeter, push the “RESETbut-
ton for at least 1 second while the tripmeter is
displayed.
TIP
To switch the speedometer, odometer, and
tripmeter displays between kilometers and
miles, select the odometer mode “ODO”,
and then push the “SELECT” button for at
least 10 seconds while the snowmobile is
stopped.
Use the engine speed meter only when
checking the snowmobile and performing
basic maintenance. The engine speed
meter should not be used while riding the
snowmobile since the reading will vary from
the actual engine speed.
ESU10411
High beam indicator light
The high beam indicator light comes on when
the high beams of the headlights are switched
on. (See page 27 for headlight beam switch
operation.)
ESU10473
Low coolant temperature indi-
cator light “
The low coolant temperature indicator light
comes on when the coolant temperature is
low and informs the rider that the snowmobile
should be warmed up. After the engine is
started, warm it up until the indicator light
goes off.
The snowmobile can be operated normally af-
ter the indicator light goes off.
TIP
Drive the snowmobile at low speeds when the
low coolant temperature indicator light is on. If
the engine speed is too high, maximum en-
gine speed is reduced to protect the engine.
1. Odometer/tripmeter/engine speed meter
1. High beam indicator light “
1. Low coolant temperature indicator
light
Control functions
24
ESU10427
Fuel meter and grip/thumb
warmer level indicator
The fuel meter and grip/thumb warmer level
indicator have eight segments which show
the amount of fuel remaining in the fuel tank,
the grip warmer level, or the thumb warmer
level.
Fuel meter
The display segments of the fuel meter disap-
pear towards “E(Empty) as the fuel level de-
creases. When only one segment is left near
“E”, the fuel level warning indicator and the
warning light come on.
If the fuel level warning indicator and the
warning light come on, refuel as soon as pos-
sible.
TIP
The snowmobile must be stopped on a level
surface to obtain an accurate fuel meter read-
ing, since the reading changes according to
the movement and inclination of the snowmo-
bile.
Grip/thumb warmer level indicator
When the grip warmer adjusting switch is
pressed, the grip warmer indicator comes on
and the display switches to the grip warmer
level.
When the thumb warmer adjusting switch is
pressed, the thumb warmer indicator comes
on and the display switches to the thumb
warmer level.
See “Grip/thumb warmer adjusting switch” on
page 27 for detailed information.
1. Fuel meter and grip/thumb warmer level in-
dicator
1. Fuel level warning indicator “
2. Warning light “
1. Grip warmer adjusting switch
1. Thumb warmer adjusting switch
1
Control functions
25
TIP
The grip/thumb warmer level is displayed
for 5 seconds after releasing the grip/thumb
warmer adjusting switch, then the display
switches to the fuel meter.
The top segment of the grip/thumb warmer
level indicator flashes once when the
grip/thumb warmer adjustment reaches the
maximum level. The bottom segment of the
grip/thumb warmer level indicator flashes
once when the grip/thumb warmer adjust-
ment reaches the minimum level.
When the engine is started, the grip/thumb
warmer levels are set to the levels selected
when the engine was last stopped.
ESU10455
Fuel level warning
indicator
The fuel level warning indicator and the warn-
ing light come on when the fuel level is low.
(See page 24 for details.)
The fuel level warning indicator, the warning
light, and all segments of the fuel meter start
to flash when a malfunctioning sensor, dis-
connected coupler, broken lead, or short cir-
cuit is detected by the self-diagnosis device of
the snowmobile to warn the rider of any of the
above problems.
If the fuel level warning indicator, the warning
light, and all segments of the fuel meter flash,
have a Yamaha dealer inspect the snowmo-
bile as soon as possible.
ESU13991
Oil level/pressure warning
indicator
The oil level/pressure warning indicator has
two functions. The warning indicator comes
on when the engine oil level is low and when
the engine oil pressure is low. The functions
are explained in the following sections.
Oil level warning
The warning indicator and the warning light
come on when the engine oil level is low.
1. Grip warmer indicator
2. Thumb warmer indicator
1. Fuel level warning indicator “
2. Warning light “
3. Fuel meter
1. Oil level/pressure warning indicator
2. Warning light “
Control functions
26
If the warning indicator and the warning light
come on, place the snowmobile on a level
surface and allow it to idle for one minute.
If the warning indicator and the warning light
go off, the engine oil level is sufficient, howev-
er it is getting low. Add engine oil as soon as
possible.
If the warning indicator and the warning light
do not go off, check the engine oil level in the
oil tank (see page 69 for engine oil level
checking procedures), and add engine oil if
necessary.
If the warning indicator and the warning light
still remain on, have a Yamaha dealer check
the snowmobile.
Oil pressure warning
The warning indicator comes on and “OP-LO
(oil pressure low) appears in the odometer
display if the engine oil pressure is low when
the engine is started. At the same time, the
engine speed is limited to less than the clutch
engagement speed until the warning indicator
goes off.
If the engine oil pressure remains low for one
minute, the engine stops. If this occurs, have
a Yamaha dealer check the snowmobile.
TIP
If there is no engine oil in the oil passages
when the engine is started, such as after the
engine oil is changed, the warning indicator
may come on and “OP-LO” may appear in the
odometer display for a few seconds until the
oil circulates through the engine. The snow-
mobile can be operated normally after the
warning indicator goes off.
ESU10513
Coolant temperature warning
indicator
If the engine overheats, the coolant tempera-
ture warning indicator and the warning light
come on. When this occurs, stop the engine
immediately and allow the engine to cool
down, and then check the coolant level in the
coolant reservoir. (See page 74 for checking
procedures.)
NOTICE
ECS00041
Do not continue to operate the engine if it
is overheating.
ESU12686
Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
1. “OP-LO” (oil pressure low)
2. Oil level/pressure warning indicator
1
2
1. Coolant temperature warning indicator
2. Warning light “
Control functions
27
If a problem is detected in any of those cir-
cuits, the warning light and the engine trouble
warning indicator flash, and an error code
flashes slowly in the meter display. Note the
error code, and then have a Yamaha dealer
inspect the snowmobile as soon as possible.
NOTICE: Do not continue to operate the
engine longer than necessary if there is an
error code to avoid possible engine dam-
age. [ECS00820]
ESU10531
Engine stop switch
The engine stop switch is used to stop the en-
gine in an emergency. Simply push the stop
switch to stop the engine. To start the engine,
pull the stop switch and proceed with starting
the engine. (See page 50 for engine starting
procedures.)
During the first few rides, practice using the
stop switch so that you can react quickly in an
emergency.
ESU10661
Headlight beam switch
LIGHTS”
Push the headlight beam switch to change the
headlight to high beam “HI” or to low beam
“LO”.
ESU12654
Grip/thumb warmer adjusting
switch
The grip warmer adjusting switch and the
thumb warmer adjusting switch control the
electrically heated handlebar grips and throt-
tle lever respectively.
1. Warning light “
2. Engine trouble warning indicator
3. Error code display
1. Engine stop switch
3
2
1. Headlight beam switch “LIGHTS”
2. High beam “HI”
3. Low beam “LO”
1. Grip warmer adjusting switch
1
Control functions
28
To raise the temperature
To raise the temperature, press the respec-
tive switch to “HI”.
To lower the temperature
To lower the temperature, press the respec-
tive switch to “LO”.
See “Fuel meter and grip/thumb warmer level
indicator” on page 24 for detailed information.
ESU10696
Auxiliary DC jack
(FX10M53S/FX10M62S)
The auxiliary DC jack is located in the front
panel and can be used for accessories.
TIP
The auxiliary DC jack can only be used if the
engine is running.
To use the auxiliary DC jack
1. Start the engine.
2. Open the auxiliary DC jack cap, and then
insert the accessory power plug into the
jack.
3. After using the auxiliary DC jack, be sure
to remove the accessory power plug from
the jack and to close the auxiliary DC jack
cap.
NOTICE
ECS00122
To avoid circuit overload and a possible
fuse blowing, do not use accessories re-
quiring more than the maximum rated
capacity for the auxiliary DC jack. (See
page 91 for the specified fuse amper-
age.)
Do not use an automotive cigarette light-
er or other accessory with a plug that
gets hot because the jack can be dam-
aged.
ESU14370
Brake lever
The snowmobile is stopped by braking the en-
tire drive system.
Squeeze the brake lever towards the handle-
bar grip to stop the snowmobile.
1. Thumb warmer adjusting switch 1. Auxiliary DC jack cap
2. Auxiliary DC jack
Maximum rated capacity:
DC 12 V, 2.5 A (30 W)
Control functions
29
TIP
When the brake lever is squeezed, the brake
light comes on.
ESU10581
Parking brake lever
When parking the snowmobile or starting the
engine, apply the parking brake by moving the
parking brake lever to the left.
To release the parking brake, move the park-
ing brake lever to the right.
ESU13032
Shift lever
The shift lever is used to put the snowmobile
into forward or reverse. Before shifting, wait
for the snowmobile to come to a complete
stop with the engine idling. Pull the shift lever
out, slide it to “FWD” or to “REV” until it stops,
and then push it back in.
1. Brake lever
1. Parking brake lever
1
1. Shift lever
1. Pull out.
2. Slide to “FWD (forward).
3. Push in.
1
Control functions
30
NOTICE
ECS00072
Do not use the shift lever while the snow-
mobile is moving, otherwise the drive train
could be damaged.
ESU12735
Drive guard
WARNING
EWS00402
Coming in contact with the rotating V-
belt or clutch parts can cause severe in-
jury or death. Never run the engine with
the drive guard removed.
Make sure that the drive guard is in-
stalled securely before operating the
snowmobile to protect against severe
injury or death from a broken V-belt or
other part should it come off the snow-
mobile while it is in operation.
NOTICE
ECS00830
Never run the engine with the V-belt re-
moved. Clutch components can be dam-
aged.
The drive guard is designed to protect the V-
belt clutch and V-belt in case parts break or
come loose.
The drive guard is located behind the left side
cover. (See page 63 for removal procedures.)
To remove the drive guard
1. Pull out the drive guard locking pin from
the drive guard rear holder.
2. Lift up the rear of the drive guard as
shown, and then pull the guard rearward
to remove it.
To install the drive guard
1. Fit the front slots in the drive guard over
the projections on the drive guard front
holder.
1. Pull out.
2. Slide to “REV” (reverse).
3. Push in.
1. Drive guard
2. Drive guard locking pin
1
2
Control functions
31
2. Align the slots in the rear of the drive
guard with the projections on the drive
guard rear holder, and then insert the
drive guard locking pin into the holder as
shown.
ESU13044
Storage pouch
The storage pouch is located under the
shroud. (See page 63 for shroud removal pro-
cedures.) Use the storage pouch to store the
tool kit, manuals, spare parts, such as the V-
belt, or other small items.
To remove the storage pouch
Unhook the swivel hook from the storage
pouch bracket, and then pull out the storage
pouch as shown.
To install the storage pouch
Place the storage pouch in the original posi-
tion, and then hook the swivel hook onto the
bracket.
1. Drive guard
1. Drive guard
2. Drive guard locking pin
1
2
1
1. Storage pouch
1. Swivel hook
2. Storage pouch bracket
Control functions
32
TIP
When installing the storage pouch, make sure
that the swivel hook is securely hooked onto
the bracket.
Storing the spare V-belt
Keep a spare V-belt for emergency use in the
storage pouch.
TIP
When storing a spare V-belt in the storage
pouch, be sure to secure it with the hook and
loop fastener.
ESU10617
Fuel
WARNING
EWS00071
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce the risk of injury
when refueling, follow these instructions.
Make sure there is sufficient gasoline in the
tank.
1. Before refueling, turn off the engine and
be sure that nobody is on the snowmo-
bile. Never refuel while smoking, or while
in the vicinity of sparks, open flames, or
other sources of ignition such as the pilot
lights of water heaters and clothes dry-
ers.
2. Do not overfill the fuel tank. Stop filling
when the fuel reaches the bottom of the
filler tube. Because fuel expands when it
heats up, heat from the engine or the sun
can cause fuel to spill out of the fuel tank.
3. Wipe up any spilled fuel immediately.
4. Be sure the fuel tank cap is closed se-
curely by turning it clockwise.
1. Hook and loop fastener
1. Filler tube
2. Maximum fuel level
Control functions
33
WARNING
EWS00680
Gasoline is poisonous and can cause inju-
ry or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale a
lot of gasoline vapor, or get some gasoline
in your eyes, see your doctor immediately.
If gasoline spills on your skin, wash with
soap and water. If gasoline spills on your
clothing, change your clothes.
Your Yamaha engine has been designed to
use unleaded gasoline with a research octane
number of 95 or higher. (For Canada and
Russia, regular unleaded gasoline with a
pump octane number [(R+M)/2] of 86 or high-
er, or a research octane number of 91 or high-
er.)
NOTICE
ECS00093
Make sure that snow or ice does not en-
ter the fuel tank when refueling.
The fuel tank should be filled with the
recommended gasoline. The use of oth-
er gasoline will cause severe damage to
internal engine parts, such as the valves
and piston rings, as well as to the ex-
haust system.
For CANADA
Oxygenated fuels (gasohol) containing
a maximum 10% of ethanol (E10) can be
used, although richer jetting may be re-
quired to prevent engine damage. Con-
sult a Yamaha dealer. Gasohol
containing methanol is not recommend-
ed.
Do not use alcohol deicers or water ab-
sorbing additives with oxygenated fuel.
ESU10874
Suspension
The suspension can be adjusted to suit rider
preference. Softer settings, for example, may
provide greater rider comfort, while harder
settings may allow more precise handling and
control over certain types of terrain or riding
conditions.
If you are not familiar with suspension adjust-
ments, have a Yamaha dealer make these
adjustments.
WARNING
EWS00151
Read and understand the following infor-
mation before handling shock absorbers
that contain highly pressurized nitrogen
gas.
Do not tamper with or attempt to open
the cylinder assemblies.
Recommended fuel:
FX10 REGULAR UNLEADED GASO-
LINE ONLY
FX10M53S Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10M53S REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10M62S Min 91 RON UNLEADED
GASOLINE ONLY (RUS)
FX10M62S Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10M62S REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10RTRS Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10RTRS REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10XT Min 91 RON UNLEADED
GASOLINE ONLY (RUS)
FX10XT Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10XT REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10XT75 Min 91 RON UNLEADED
GASOLINE ONLY (RUS)
FX10XT75 Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10XT75 REGULAR UNLEADED
GASOLINE ONLY (CAN)
Fuel tank capacity:
27.7 L (7.32 US gal, 6.09 Imp.gal)
Control functions
34
Do not subject the shock absorbers to
an open flame or other high heat source.
This may cause the unit to explode due
to excessive gas pressure.
Do not deform or damage the cylinders
in any way. Cylinder damage will result
in poor damping performance.
Do not dispose of a damaged or worn
out shock absorber yourself. Take the
shock absorber to a Yamaha dealer for
any service.
ESU10894
Adjusting the spring preload of the
front shock absorbers
(FX10/FX10XT/FX10XT75)
WARNING
EWS00720
The spring preload of the left and right
shock absorbers must be adjusted to the
same setting. Uneven settings can cause
poor handling and loss of stability.
The spring preload can be adjusted by turning
the adjusting nuts.
Adjust the spring preload as follows.
1. Loosen the locknut.
2. To increase the spring preload and there-
by harden the suspension, turn the ad-
justing nut in direction (a). To decrease
the spring preload and thereby soften the
suspension, turn the adjusting nut in di-
rection (b).
TIP
The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The longer distance A is, the higher the
spring preload; the shorter distance A is, the
lower the spring preload.
3. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten the locknut to the speci-
fied torque. [ECS00860]
1. Locknut
2. Distance A
3. Spring preload adjusting nut
Spring preload setting*:
Minimum (soft):
144.3 mm (5.68 in)
Standard:
161.3 mm (6.35 in)
Maximum (hard):
171.3 mm (6.74 in)
* Distance A changes 1.5 mm (0.06 in)
with each full turn of the adjusting nut.
Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
(a)
(b)
1
3
2
Control functions
35
ESU13711
Adjusting the air pressure of the front
shock absorbers
(FX10RTRS/FX10M53S/FX10M62S)
WARNING
EWS00730
The air pressure of the left and right shock
absorbers must be adjusted to the same
setting. Uneven settings can cause poor
handling and loss of stability.
FX10RTRS
The air pressure of the shock absorbers can
be adjusted using the shock absorber pump
included with your snowmobile.
To adjust the air pressure
WARNING
EWS00621
Support the snowmobile securely on a
suitable stand before adjusting the shock
absorbers. Otherwise, the snowmobile
could fall and cause injury.
NOTICE
ECS00710
Make sure that there is no load on the
shock absorbers and that they are fully ex-
tended before making any air pressure ad-
justments.
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Lift the front of the snowmobile onto a
suitable stand to raise the skis off the
ground.
3. Remove the air valve cap from the shock
absorber.
4. Install the hose connector of the shock
absorber pump onto the air valve of the
shock absorber and tighten it approxi-
mately six turns until the pressure regis-
ters on the pump gauge. NOTICE: Do
not overtighten the connector onto
the air valve as this will damage the
connector seal. [ECS00721]
TIP
If the shock absorber has no air pressure, the
gauge reading will be zero.
5. To increase the air pressure, operate the
pump a few times. The pressure should
increase slowly. If the pressure increases
1. Shock absorber pump
1. Air valve cap
1. Hose connector
1
Control functions
36
rapidly, check to make sure that the
pump is properly connected and tight-
ened onto the air valve. To decrease the
air pressure, push the black bleed valve
button. NOTICE: Do not exceed 1034
kPa (10.3 kgf/cm², 150 psi). [ECS00733]
TIP
To allow pressure to escape from the pump
and the shock absorber, push the button half-
way down and hold it. To allow only a small
amount of pressure to escape, push the but-
ton all the way down and quickly release it.
6. Remove the hose connector from the air
valve.
TIP
When removing the connector, the sound of
air escaping may be heard, but this is from the
pump hose, not the shock absorber.
7. Install the air valve cap.
TIP
If the front shock absorber bottoms too easily
or rolls too much during cornering, increase
the air pressure by 34 kPa (0.3 kgf/cm², 5 psi).
If the shock absorber is too firm and you want
a more compliant ride, decrease the air pres-
sure by 34 kPa (0.3 kgf/cm², 5 psi).
FX10M53S/FX10M62S
A shock absorber pump is provided with your
snowmobile to adjust the air pressure of the
shock absorbers. This pump is equipped with
an air pressure gauge. One side of the gauge
has a low-pressure meter and the other side
of the gauge has a high-pressure meter. Use
the low-pressure meter to adjust the front
shock absorbers.
1. Bleed valve button
Air pressure range:
FX10RTRS 345–1034 kPa (3.5–10.3
kgf/cm², 50–150 psi)
Recommended air pressure:
FX10RTRS 621 kPa (6.2 kgf/cm², 90
psi)
1. Shock absorber pump
2. Pressure gauge (low-pressure meter)
3. Pressure gauge (high-pressure meter)
150
200
250
300
100
50
0
10
bar
ps i
5
020
15
R
ACIN G
S
HO X
1
2
3
Control functions
37
To adjust the air pressure
WARNING
EWS00621
Support the snowmobile securely on a
suitable stand before adjusting the shock
absorbers. Otherwise, the snowmobile
could fall and cause injury.
NOTICE
ECS00710
Make sure that there is no load on the
shock absorbers and that they are fully ex-
tended before making any air pressure ad-
justments.
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Lift the front of the snowmobile onto a
suitable stand to raise the skis off the
ground.
3. Remove the air valve cap from the shock
absorber.
4. Install the hose connector of the shock
absorber pump onto the air valve of the
shock absorber, tighten it approximately
six turns until the pressure registers on
the pump gauge, and then pull the hose
connector lock lever up. NOTICE: Do not
overtighten the connector onto the air
valve as this will damage the connec-
tor seal. [ECS00721]
TIP
If the shock absorber has no air pressure, the
gauge reading will be zero.
5. To increase the air pressure, operate the
pump a few times. The pressure should
increase slowly. If the pressure increases
rapidly, check to make sure that the
pump is properly connected and tight-
ened onto the air valve. To decrease the
air pressure, push the black bleed valve
button. NOTICE: Do not exceed 1034
kPa (10.3 kgf/cm², 150 psi). [ECS00733]
1. Air valve cap
1. Air valve
2. Hose connector
3. Hose connector lock lever
1. Pressure gauge (low-pressure meter)
1
23
psi
50
40
30
20
10
60
70
80
90
0
100
1
Control functions
38
TIP
To allow pressure to escape from the pump
and the shock absorber, push the button half-
way down and hold it. To allow only a small
amount of pressure to escape, push the but-
ton all the way down and quickly release it.
6. Push the hose connector lock lever
down, and then remove the hose connec-
tor from the air valve.
TIP
When removing the connector, the sound of
air escaping may be heard, but this is from the
pump hose, not the shock absorber.
7. Install the air valve cap.
TIP
If the front shock absorber bottoms too easily
or rolls too much during cornering, increase
the air pressure by 34 kPa (0.3 kgf/cm², 5 psi).
If the shock absorber is too firm and you want
a more compliant ride, decrease the air pres-
sure by 34 kPa (0.3 kgf/cm², 5 psi).
ESU10926
Adjusting the damping forces of the
front shock absorbers (FX10RTRS)
WARNING
EWS00740
The damping forces of the left and right
shock absorbers must be adjusted to the
same settings. Uneven settings can cause
poor handling and loss of stability.
Compression damping force
The compression damping force of each
shock absorber can be adjusted by turning its
compression damping force adjusting knob.
To increase the compression damping force,
turn the adjusting knob in direction (a). To de-
crease the compression damping force, turn
the adjusting knob in direction (b).
1. Bleed valve button
Air pressure range:
FX10M53S 3451034 kPa (3.5–10.3
kgf/cm², 50–150 psi)
FX10M62S 3451034 kPa (3.5–10.3
kgf/cm², 50–150 psi)
Recommended air pressure:
FX10M53S 483 kPa (4.8 kgf/cm², 70
psi)
FX10M62S 483 kPa (4.8 kgf/cm², 70
psi)
1. Compression damping force adjusting knob
Compression damping setting:
Minimum (soft):
19 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting knob fully turned in
direction (a)
Control functions
39
Rebound damping force
The rebound damping force of each shock
absorber can be adjusted by turning its re-
bound damping force adjusting knob.
To increase the rebound damping force, turn
the adjusting knob in direction (a). To de-
crease the rebound damping force, turn the
adjusting knob in direction (b).
TIP
The damping forces will not decrease past the
minimum levels even if the adjusting knobs
are turned out more than the minimum set-
tings.
ESU13134
Adjusting the spring preload of the
center shock absorber and the rear
torsion springs
(FX10/FX10RTRS/FX10XT/FX10XT75)
The spring preload can be adjusted by turning
the adjusting nut on the center shock absorb-
er and the adjusters on the rear torsion
springs. Adjust the spring preload as follows.
Center shock absorber
1. Loosen the locknut.
2. To increase the spring preload and there-
by harden the suspension, turn the ad-
justing nut in direction (a). To decrease
the spring preload and thereby soften the
suspension, turn the adjusting nut in di-
rection (b).
TIP
The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The longer distance A is, the higher the
spring preload; the shorter distance A is, the
lower the spring preload.
1. Rebound damping force adjusting knob
Rebound damping setting:
Minimum (soft):
19 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting knob fully turned in
direction (a)
1. Spring preload adjusting nut
2. Distance A
3. Locknut
(a)
(b)
2
1
3
Control functions
40
3. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten the locknut to the speci-
fied torque. [ECS00860]
Rear torsion springs
WARNING
EWS00750
The left and right spring preloads must be
adjusted to the same setting. Uneven set-
tings can cause poor handling and loss of
stability.
To increase the spring preload and thereby
harden the suspension, turn the adjuster in di-
rection (a). To decrease the spring preload
and thereby soften the suspension, turn the
adjuster in direction (b).
ESU13631
Adjusting the air pressure of the cen-
ter shock absorber and the rear shock
absorber (FX10M53S/FX10M62S)
A shock absorber pump is provided with your
snowmobile to adjust the air pressure of the
shock absorbers. This pump is equipped with
an air pressure gauge. One side of the gauge
has a low-pressure meter and the other side
of the gauge has a high-pressure meter. Use
the low-pressure meter to adjust the center
shock absorber and the high-pressure meter
to adjust the rear shock absorber.
Spring preload setting*:
Minimum (soft):
FX10 93.6 mm (3.69 in)
FX10RTRS 75.4 mm (2.97 in)
FX10XT/FX10XT75 106.1 mm
(4.18 in)
Standard:
FX10 101.6 mm (4.00 in)
FX10RTRS 84.4 mm (3.32 in)
FX10XT/FX10XT75 122.1 mm
(4.81 in)
Maximum (hard):
FX10 109.6 mm (4.31 in)
FX10RTRS 91.4 mm (3.60 in)
FX10XT/FX10XT75 132.1 mm
(5.20 in)
* Distance A changes 1.5 mm (0.06 in)
with each full turn of the adjusting nut.
Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)

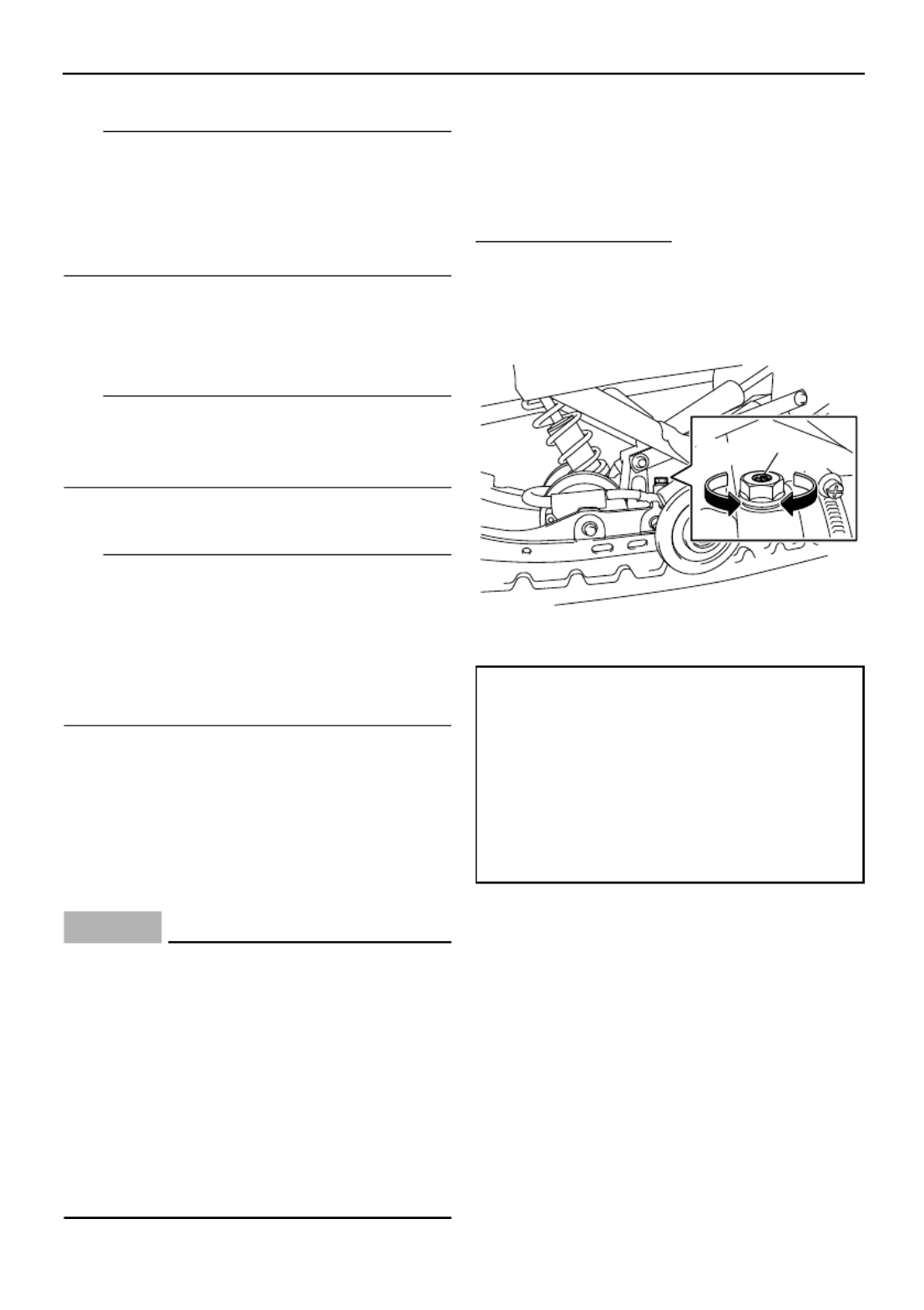

1. Spring preload adjuster
Spring preload setting:
Minimum (soft):
S
Standard:
M
Maximum (hard):
H
1
(b)
(a)
Control functions
41
WARNING
EWS00621
Support the snowmobile securely on a
suitable stand before adjusting the shock
absorbers. Otherwise, the snowmobile
could fall and cause injury.
NOTICE
ECS00710
Make sure that there is no load on the
shock absorbers and that they are fully ex-
tended before making any air pressure ad-
justments.
Center shock absorber
To adjust the air pressure
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Lift the rear of the snowmobile onto a suit-
able stand to raise the drive track off the
ground.
3. Remove the air valve cap from the shock
absorber.
4. Install the hose connector of the shock
absorber pump onto the air valve of the
shock absorber, tighten it approximately
six turns until the pressure registers on
the pump gauge, and then pull the hose
connector lock lever up. NOTICE: Do not
overtighten the connector onto the air
valve as this will damage the connec-
tor seal. [ECS00721]
TIP
If the shock absorber has no air pressure, the
gauge reading will be zero.
5. To increase the air pressure, operate the
pump a few times. The pressure should
increase slowly. If the pressure increases
rapidly, check to make sure that the
pump is properly connected and tight-
1. Shock absorber pump
2. Pressure gauge (low-pressure meter)
3. Pressure gauge (high-pressure meter)
150
200
250
300
100
50
0
10
bar
ps i
5
020
15
R
ACIN G
S
HO X
1
2
3
1. Air valve cap
1. Air valve
2. Hose connector
3. Hose connector lock lever
1
1
23
Control functions
42
ened onto the air valve. To decrease the
air pressure, push the black bleed valve
button. NOTICE: Do not exceed 1406
kPa (14.1 kgf/cm², 200 psi). [ECS00981]
TIP
To allow pressure to escape from the pump
and the shock absorber, push the button half-
way down and hold it. To allow only a small
amount of pressure to escape, push the but-
ton all the way down and quickly release it.
6. Push the hose connector lock lever
down, and then remove the hose connec-
tor from the air valve.
TIP
When removing the connector, the sound of
air escaping may be heard, but this is from the
pump hose, not the shock absorber.
7. Install the air valve cap.
TIP
If the shock absorber bottoms too easily or
rolls too much during cornering, increase the
air pressure by 34 kPa (0.3 kgf/cm², 5 psi). If
the shock absorber is too firm and you want a
more compliant ride, decrease the air pres-
sure by 34 kPa (0.3 kgf/cm², 5 psi).
Rear shock absorber
To adjust the air pressure
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Lift the rear of the snowmobile onto a suit-
able stand to raise the drive track off the
ground.
3. Remove the air valve cap from the shock
absorber.
1. Pressure gauge (low-pressure meter)
1. Bleed valve button
Air pressure range:
FX10M53S 246–1406 kPa (2.5–14.1
kgf/cm², 35–200 psi)
FX10M62S 246–1406 kPa (2.5–14.1
kgf/cm², 35–200 psi)
Recommended air pressure:
FX10M53S 345 kPa (3.5 kgf/cm², 50
psi)
FX10M62S 345 kPa (3.5 kgf/cm², 50
psi)
psi
50
40
30
20
10
60
70
80
90
0
100
1
Control functions
43
4. Install the hose connector of the shock
absorber pump onto the air valve of the
shock absorber, tighten it approximately
six turns until the pressure registers on
the pump gauge, and then pull the hose
connector lock lever up. NOTICE: Do not
overtighten the connector onto the air
valve as this will damage the connec-
tor seal. [ECS00721]
TIP
If the shock absorber has no air pressure, the
gauge reading will be zero.
5. To increase the air pressure, operate the
pump a few times. The pressure should
increase slowly. If the pressure increases
rapidly, check to make sure that the
pump is properly connected and tight-
ened onto the air valve. To decrease the
air pressure, push the black bleed valve
button. NOTICE: Do not exceed 1406
kPa (14.1 kgf/cm², 200 psi). [ECS00981]
1. Air valve cap
1. Air valve
2. Hose connector
3. Hose connector lock lever
1
1. Pressure gauge (high-pressure meter)
1. Bleed valve button
Air pressure range:
FX10M53S 773–1406 kPa (7.7–14.1
kgf/cm², 110–200 psi)
FX10M62S 773–1406 kPa (7.7–14.1
kgf/cm², 110–200 psi)
Recommended air pressure:
FX10M53S 1034 kPa (10.3 kgf/cm²,
150 psi)
FX10M62S 1034 kPa (10.3 kgf/cm²,
150 psi)
150
200
250
300
100
50
0
10
bar
psi
5
020
15
R
ACING
S
HOX
1
Control functions
44
TIP
To allow pressure to escape from the pump
and the shock absorber, push the button half-
way down and hold it. To allow only a small
amount of pressure to escape, push the but-
ton all the way down and quickly release it.
6. Push the hose connector lock lever
down, and then remove the hose connec-
tor from the air valve.
TIP
When removing the connector, the sound of
air escaping may be heard, but this is from the
pump hose, not the shock absorber.
7. Install the air valve cap.
TIP
If the shock absorber bottoms too easily or
rolls too much during cornering, increase the
air pressure by 34 kPa (0.3 kgf/cm², 5 psi). If
the shock absorber is too firm and you want a
more compliant ride, decrease the air pres-
sure by 34 kPa (0.3 kgf/cm², 5 psi).
ESU13721
Adjusting the damping forces of the
center and rear shock absorbers
(FX10RTRS), or damping force of the
rear shock absorber
(FX10XT/FX10XT75)
NOTICE
ECS00881
Do not continue to turn the adjuster in
direction (a) after it stops. The shock ab-
sorber could be damaged and damping
force adjustments will not be able to be
made.
Do not turn the adjuster in direction (b)
beyond the adjustable range. Even if the
adjuster is continually turned beyond
the adjustable range, there will be no
change in the damping force.
FX10RTRS
The compression and rebound damping forc-
es can be adjusted by turning the adjusting
bolt, dial, knob, or screw.
Center shock absorber
To increase the compression damping force,
turn the adjusting screw in direction (a). To
decrease the compression damping force,
turn the adjusting screw in direction (b).
To increase the rebound damping force, turn
the adjusting dial in direction (a). To decrease
the rebound damping force, turn the adjusting
dial in direction (b).
1. Compression damping force adjusting
screw
Compression damping force setting:
Minimum (soft):
12 click(s) in direction (b)*
Standard:
6 click(s) in direction (b)*
Maximum (hard):
2 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1
(b) (a)
Control functions
45
Rear shock absorber
To increase the compression damping force
(for fast compression damping), turn the ad-
justing bolt in direction (a). To decrease the
compression damping force, turn the adjust-
ing bolt in direction (b).
To increase the compression damping force
(for slow compression damping), turn the ad-
justing screw in direction (a). To decrease the
compression damping force, turn the adjust-
ing screw in direction (b).
To increase the rebound damping force, turn
the adjusting dial in direction (a). To decrease
the rebound damping force, turn the adjusting
dial in direction (b).
1. Rebound damping force adjusting dial
Rebound damping force setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
11 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting dial fully turned in
direction (a)
1. Compression damping force adjusting bolt
(for fast compression damping)
2. Compression damping force adjusting
screw (for slow compression damping)
Compression damping force setting (for
fast compression damping):
Minimum (soft):
4 turn(s) in direction (b)*
Standard:
2 turn(s) in direction (b)*
Maximum (hard):
0 turn(s) in direction (b)*
* With the adjusting bolt fully turned in
direction (a)
Compression damping force setting (for
slow compression damping):
Minimum (soft):
16 click(s) in direction (b)*
Standard:
6 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
(a)
(b)
1
2
Control functions
46
FX10XT/FX10XT75
The compression damping force can be ad-
justed by turning the adjusting knob.
To increase the compression damping force,
turn the adjusting knob in direction (a). To de-
crease the compression damping force, turn
the adjusting knob in direction (b).
ESU11034
Adjusting the control rods
(FX10XT/FX10XT75)
WARNING
EWS00770
The left and right adjusting nuts must be
set to the same position. Uneven settings
can cause poor handling and loss of sta-
bility.
The weight transfer can be adjusted by turn-
ing the adjusting nuts on the control rods.
1. Loosen the locknut while holding the ad-
justing nut.
1. Rebound damping force adjusting dial
Rebound damping force setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
11 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting dial fully turned in
direction (a)
1. Compression damping force adjusting knob
(b) (a)
1
Compression damping force setting:
Minimum (soft):
12 click(s) in direction (b)*
Standard:
6 click(s) in direction (b)*
Maximum (hard):
2 click(s) in direction (b)*
* With the adjusting knob fully turned in
direction (a)
Control functions
47
2. To increase weight transfer, turn the ad-
justing nut in direction (a), and to de-
crease weight transfer, turn it in direction
(b). WARNING! Never adjust the con-
trol rods beyond the maximum set-
ting, indicated by red paint; otherwise,
they could be damaged, which could
lead to an accident or injury. [EWS00173]
3. Tighten the locknut while holding the ad-
justing nut in place. NOTICE: Always
tighten the locknut against the adjust-
ing nut, and then tighten the locknut to
the specified torque. [ECS00860]
1. Locknut
2. Control rod adjusting nut
1. Locknut
2. Control rod adjusting nut
3. Standard position
4. Adjustable range
5. Red paint area
Locknut tightening torque:
25 Nm (2.5 m·kgf, 18 ft·lbf)
1
5
2
3
4
Pre-operation checks
48
ESU11071
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the
Owner’s Manual.
WARNING
EWS00191
Failure to inspect or maintain the vehicle properly increases the possibility of an acci-
dent or equipment damage. Do not operate the vehicle if you find any problem. If a prob-
lem cannot be corrected by the procedures provided in this manual, have the vehicle
inspected by a Yamaha dealer.
ESU11081
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level.
Refuel if necessary.
Check fuel line for leakage.
32
Engine oil
Check oil level in engine.
If necessary, add recommended oil to specified
level.
Check vehicle for oil leakage.
69
Coolant Check coolant level.
Add if necessary. 74
V-belt Check for wear and damage.
Replace if necessary. 76
Drive guard Make sure the drive guard is installed securely.
Check the drive guard mounts for damage. 30
Brake
Check operation.
If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in master cylinder.
If necessary, add recommended brake fluid to
specified level.
Check hydraulic system for leakage.
79
Air filter
Check that there is no snow under the air filter ele-
ment.
If necessary, brush off the snow.
67
Tool kit and recommended
equipment Check for proper placement. 63, 63
Shroud and covers Make sure that the shroud and covers are securely
fastened. 63
Skis and ski runners
Check for wear and damage.
If necessary, have Yamaha dealer replace skis or
ski runners.
83
Pre-operation checks
49
Front shock absorbers
(FX10RTRS)
Front, center and rear
shock absorbers
(FX10M53S/FX10M62S)
Check air pressure.
Adjust if necessary. 35, 40
Drive track
Check the deflection.
Adjust if necessary.
Check for wear and damage.
If necessary, have a Yamaha dealer replace track.
84
Slide runners
Check for wear and damage.
If necessary, have Yamaha dealer replace slide
runners.
84
Steering Check for excessive free play. 84
Strap
(FX10M53S/FX10M62S)
Check for damage.
Replace if necessary. 56
Lights, signals and switch-
es
Check operation.
Correct if necessary. 27, 27, 89, 89
Throttle lever Make sure that operation is smooth and spring
back to its original position when released. 21
Throttle override system
(T.O.R.S.)
Check the T.O.R.S. for proper operation.
If system is not functioning properly, have Yamaha
dealer check vehicle.
66
ITEM CHECKS PAGE
Operation
50
ESU13500
Read the Owners Manual carefully to be-
come familiar with all controls. If there is a
control or function you do not understand, ask
your Yamaha dealer.
WARNING
EWS00201
Failure to familiarize yourself with the con-
trols can lead to loss of control, which
could cause an accident or injury.
ESU13212
TIP
This model is equipped with:
an engine oil pressure switch to stop the en-
gine in case an engine oil pressure drop is
detected. To start the engine after this sys-
tem has stopped the engine, be sure to
place the snowmobile on a level surface,
and then turn the key in the main switch to
the off position, and then to the on position.
Failing to do so will prevent the engine from
starting even though the engine will crank
when turning the key to the start position. If
the engine does not start or if it stops again,
ask a Yamaha dealer to inspect the snow-
mobile.
an engine overheating prevention system,
which prevents overheating when the en-
gine is idling. When the engine has been
idling for 3 minutes or longer and the cool-
ant temperature has risen above 100 °C
(212 °F), the engine automatically stops to
prevent overheating. The engine can be
started after it stops.
ESU11303
Starting the engine
1. Apply the parking brake.
2. Be sure the engine stop switch is in the
run position. The starter motor cannot be
operated when the engine stop switch is
in the off position.
3. Turn the main switch to the start position
and release it when the engine starts.
NOTICE: Release the switch immedi-
ately after the engine starts. If the en-
gine fails to start, release the switch,
wait a few seconds, then try again.
Each attempt should be as short as
possible to preserve the battery. Do
not crank the engine more than 10
seconds on any one attempt. [ECS00331]
1. Run position
2. Off position
1
2
Operation
51
4. Warm up the engine until it runs smooth-
ly.
5. Be sure the low coolant temperature indi-
cator light has gone out before operation.
(See page 23 for detailed information
about the indicator light.)
ESU11310
Break-in
There is never a more important period in the
life of your engine than the period between 0
and 500 km (300 mi). For this reason, you
should read the following material carefully.
Since the engine is brand new, do not put an
excessive load on it for the first 500 km (300
mi). The various parts in the engine wear and
polish themselves to the correct operating
clearances. During this period, prolonged full-
throttle operation or any condition that might
result in engine overheating must be avoided.
Operating your snowmobile for the
first time
Start the engine and let it idle for 15 minutes.
0–160 km (0–100 mi)
Avoid prolonged operation above 6000 r/min.
160–500 km (100–300 mi)
Avoid prolonged operation above 8000 r/min.
500 km (300 mi) and beyond
The snowmobile can now be operated nor-
mally.
NOTICE
ECS00340
After 800 km (500 mi) of operation, the
engine oil must be changed and the oil
filter cartridge replaced.
If any engine trouble should occur dur-
ing the engine break-in period, immedi-
ately have a Yamaha dealer check the
snowmobile.
ESU12624
Riding your snowmobile
Getting to know your snowmobile
WARNING
EWS00211
To avoid severe injury or death:
Keep both hands on the handlebar dur-
ing operation.
Never put your feet outside the running
boards.
Avoid higher speeds or more difficult
maneuvers until you have become thor-
oughly familiar with your snowmobile
and all of its controls.
A snowmobile is a rider active vehicle, and
your riding position and your balance are the
two basic factors of maneuvering your snow-
mobile.
Riding your snowmobile requires skills ac-
quired through practice over a period of time.
Take the time to learn the basic techniques
well before attempting more difficult maneu-
vers.
Riding your new snowmobile can be a very
enjoyable activity, providing you with hours of
pleasure. However, it is essential to familiar-
ize yourself with the operation of the snowmo-
bile to achieve the skill necessary to enjoy
riding safely. Before operating the snowmo-
bile, read this Owner’s Manual completely
and understand the operation of the controls.
1. Start
Operation
52
Pay particular attention to the safety informa-
tion on page 16.
Please read all warning and notice labels on
your snowmobile.
Also, read the Snowmobiler’s Safety Hand-
book that is supplied with your snowmobile
(for Canada).
Learning to ride your snowmobile
Before you ride, always perform the pre-oper-
ation checks listed on page 48. The short time
spent checking the condition of the snowmo-
bile will be rewarded with added safety and a
more reliable snowmobile. Always wear the
proper clothing for both warmth and to help
protect you from injury if an accident occurs.
Become familiar with operating your snowmo-
bile at low speeds, even if you are an experi-
enced rider. Do not attempt to operate at
maximum performance until you are totally fa-
miliar with the snowmobile’s handling and
performance characteristics.
The beginning operator should select a large
flat area to become familiar with the snowmo-
bile. Make sure that this area is free of obsta-
cles and other traffic. You should practice
control of the throttle and brake, and master
turning techniques in this area before trying
more difficult terrain.
Set the parking brake and follow the instruc-
tions on page 50 to start the engine. Once the
engine has warmed up, you are ready to be-
gin riding your snowmobile.
To start out and accelerate
1. With the engine idling, release the park-
ing brake.
2. Apply the throttle slowly and smoothly.
The V-belt clutch will engage and you will
start to accelerate. WARNING! Do not
allow anyone to stand behind the
snowmobile when starting the engine.
A broken track, track fittings, or debris
thrown by the track could be danger-
ous to bystanders. [EWS00690]
Braking
WARNING
EWS00220
Many surfaces such as ice and hard-
packed snow require much longer stop-
ping distances. Be alert, plan ahead, and
begin decelerating early.
Improper use of the brake can cause the
drive track to lose traction, reduce con-
trol, and increase the possibility of an
accident.
When slowing down or stopping, release the
throttle and apply the brake gently—not sud-
denly.
Turning
For most snow surfaces, “body English” is the
key to turning.
As you approach a curve, slow down and be-
gin to turn the handlebar in the desired direc-
tion. As you do so, put your weight on the
running board to the inside of the turn and
lean your upper body into the turn.
This procedure should be practiced at low
speeds many times, in a large flat area with no
obstacles. Once you have learned this tech-
nique, you should be able to perform it at high-
Operation
54
Traversing a slope
WARNING
EWS00251
Driving across the face of a slope (“side-
hilling”) can lead to overturn or loss of
control if proper techniques are not used.
Follow these instructions to reduce your
risk of an accident. Do not try steeper or
more difficult inclines until you have de-
veloped your skill on gentle slopes.
Traversing a slope requires you to properly
position your weight to maintain proper bal-
ance. As you travel across the slope, lean
your body to position your weight towards the
uphill side. A recommended riding position is
to kneel with the knee of your downhill leg on
the seat and the foot of your uphill leg on the
running board. This position will make it easi-
er for you to shift your body weight as needed.
Snow and ice are slippery, so be prepared for
the possibility that your snowmobile could be-
gin to slip sideways on the slope. If this hap-
pens, steer in the direction of the slide if there
are no obstacles in your path. As you regain
proper balance, gradually steer again in the
direction you wish to travel.
If your snowmobile starts to tip, steer down
the hill to regain balance. WARNING! If you
are unable to maintain correct balance,
and your snowmobile is going to tip over,
dismount your snowmobile immediately
on the uphill side to avoid being hit or
caught under the snowmobile as it tips
over. [EWS00261]
Ice or icy surface
WARNING
EWS00270
When you have to operate on ice or icy
surfaces, drive slowly and cautiously.
Avoid accelerating, turning, and braking
rapidly. Steering is minimal and uncon-
trolled spins are an ever-present danger.
Operating on ice or icy surfaces can be very
dangerous. Traction for turning, stopping, and
starting is much less than that on snow.
Hard-packed snow
It can be more difficult to negotiate on hard-
packed snow as both the skis and drive track
do not have as much traction as when the
snowmobile is operated on fresh snow. Avoid
rapid acceleration, turning, and braking.
Operation on surfaces other than
snow or ice
Operation of your snowmobile on surfaces
other than snow or ice should be avoided. Op-
eration under such conditions will damage or
result in rapid wear of the ski runners, drive
Operation
56
around the already weakened area. To mini-
mize possible damage, consult your stud
manufacturer for installation and stud pattern
recommendations.
Yamaha does not recommend track stud-
ding.
ESU11360
Strap (FX10M53S/FX10M62S)
The strap should be used only by experienced
operators to assist them when traverse (side-
hill) riding.
WARNING
EWS00290
Improper use of the strap on the handlebar
can result in severe injury or death.
Use the strap only as an operator grip
point when needed to shift weight uphill
to maintain balance during traverse
(side-hill) riding. Only experienced oper-
ators should traverse slopes steep
enough to require strap use.
Keep the right hand on the right handle-
bar grip for steering, and grip the strap
with the left hand to shift weight uphill
for balance during traverse riding.
Ride cautiously while using the strap.
Do not accelerate or decelerate abruptly
while holding onto the strap.
Do not use the strap to lift the snowmo-
bile.
Do not use the strap as a mounting point
for cargo or accessories.
ESU13224
Driving
WARNING
EWS00300
Be sure to read the “SAFETY INFORMA-
TION” section on page 16 and the “Riding
your snowmobile section on page 51
carefully before operating the snowmo-
bile.
WARNING
EWS00310
Make sure that the throttle lever is fully
released and the snowmobile is at a full
stop before shifting.
Be sure to slide the shift lever to “FWD
or “REV until it stops completely and
only while the engine is idling.
Make sure that the area behind the
snowmobile is clear before reversing.
Watch behind.
Reduce speed and avoid sharp turning
when operating the snowmobile in re-
verse.
TIP
Make sure that the engine is warmed up
enough before riding.
1. To select the desired operating position,
pull the shift lever out, slide it to “FWDor
to “REV” until it stops, and then push it
back in. NOTICE: Do not shift from
“FWD” to “REV” or from REV” to
“FWD” while the snowmobile is mov-
ing, as the drive train could be dam-
aged. [ECS00811]
1. Strap
Operation
57
TIP
The reverse buzzer beeps while the shift lever
is in reverse.
2. While squeezing the brake lever, release
the parking brake by moving the parking
brake lever to the right, and then release
the brake lever.
3. Squeeze the throttle lever slowly to start
out.
4. Turn the handlebar in the desired direc-
tion.
5. Squeeze the brake lever to stop the
snowmobile.
6. Apply the parking brake by moving the
parking brake lever to the left.
ESU11411
Stopping the engine
Turn the main switch to the off position to
stop the engine.
Push down the engine stop switch to stop
the engine in an emergency.
1. Pull out.
2. Slide to “FWD” (forward).
3. Push in.
1. Pull out.
2. Slide to “REV” (reverse).
3. Push in.
1. Off
1
Operation
58
ESU11430
Transporting
When transporting your snowmobile on a trail-
er or in a truck, observe the following recom-
mendations to help protect it from damage:
If transporting the snowmobile in an open
trailer or truck, put a tight fitting cover on the
snowmobile. A cover specifically designed
for your snowmobile is best. This will help
keep foreign objects out of the cooling
vents, and also help protect the snowmo-
bile against damage from debris on the
road.
If transporting the snowmobile in an open
trailer or truck in areas where road salt is
used, coat metal suspension surfaces light-
ly with oil or another protectant. This will
help protect against corrosion. Be sure to
clean the snowmobile when you get to your
destination to remove any corrosive salts.
Periodic maintenance and adjustment
59
ESU13181
Periodic inspection, adjustment, and lubrication will keep your snowmobile in the safest and
most efficient condition possible. Safety is an obligation of the vehicle owner/operator. The
most important points of vehicle inspection, adjustment, and lubrication are explained on the
following pages.
WARNING
EWS00341
Failure to properly maintain the snowmobile or performing maintenance activities incor-
rectly may increase your risk of injury or death during service or while using the snow-
mobile. If you are not familiar with snowmobile service, have a Yamaha dealer perform
service.
WARNING
EWS00700
Turn off the engine when performing maintenance unless otherwise specified.
A running engine has moving parts that can catch on body parts or clothing, and elec-
trical parts that can cause shocks or fires.
Running the engine while servicing can lead to eye injury, burns, fire, or carbon mon-
oxide poisoning–possibly leading to death. See page 16 for more information about
carbon monoxide.
WARNING
EWS00790
Brake discs, calipers, and linings can become very hot during use. To avoid possible
burns, let brake components cool before touching them.
Periodic maintenance and adjustment
60
ESU11461
Periodic maintenance chart for the emission control system
Items marked with an asterisk should be performed by a Yamaha dealer as they require special
tools, data and technical skills.
ITEM REMARKS
INITIAL EVERY
PAGE
1 month
or 800 km
(500 mi)
(40 hr)
Seasonally
or
4000 km
(2500 mi)
(200 hr)
Spark plugs
Check condition.
Adjust gap and clean.
Replace if necessary.
65
* Valve clearance Check and adjust valve clear-
ance when engine is cold.
Every 40000 km (25000
mi) 68
*Crankcase breather
system
Check breather hose for cracks
or damage.
Replace if necessary.
* Fuel line
Check fuel hose for cracks or
damage.
Replace if necessary.
* Fuel injection Check synchronization.
Adjust if necessary.
* Exhaust system
Check for leakage.
Tighten or replace gasket if
necessary.
Periodic maintenance and adjustment
61
ESU11565
General maintenance and lubrication chart
ITEM REMARKS
INITIAL EVERY
PAGE
1 month
or 800 km
(500 mi)
(40 hr)
Seasonally
or
4000 km
(2500 mi)
(200 hr)
Engine oil Change (warm engine before
draining). 69
*Engine oil filter car-
tridge • Replace.
Every
20000 km
(12000 mi)
69
* Cooling system
Check coolant level.
Bleed the cooling system if
necessary.
74
*Primary and sec-
ondary clutches
Check engagement and shift
speed.
Adjust if necessary.
Whenever operating ele-
vation is changed.
Inspect sheaves for wear and
damage.
Inspect weights/rollers and
bushings for wear for primary.
Inspect ramp shoes/bushings
for wear for secondary.
Replace if necessary.
Lubricate with specified
grease.
* Drive chain Check chain slack.
Adjust if necessary.
Initial at 500 km (300 mi)
and every 800 km (500
mi) thereafter.
78
* Drive chain oil Check oil level. 78
• Change. 78
* Shift lever Lubricate with specified
grease.
*Brake and parking
brake
Adjust free play and/or replace
pads if necessary. 79
Change brake fluid. See TIP following this
chart. 79
Control cables
Make sure that operation is
smooth.
Lubricate if necessary.
88
*Disc brake installa-
tion
Check for slight free play.
Lubricate shaft with specified
grease as required.
Every 1600 km (1000
mi)
Periodic maintenance and adjustment
62
TIP
Brake system:
After disassembling the master cylinder or caliper cylinder, always change the brake fluid.
Regularly check the brake fluid level and add fluid if necessary.
Replace the oil seals of the master cylinder and caliper cylinder every two years.
Replace the brake hose every four years, or if cracked or damaged.
*
Extrovert drive
sprocket
(FX10/FX10RTRS/
FX10XT75/
FX10M53S/
FX10M62S)
Check for wear and damage.
Replace if necessary. 82
* Slide runners Check for wear and damage.
Replace if necessary. 84
*Skis and ski run-
ners
Check for wear and damage.
Replace if necessary. 83
* Steering system Check toe-out.
Adjust if necessary. 84
* Steering bearings
Check bearing assemblies for
looseness.
Lubricate with specified
grease.
*Suspension compo-
nent
Lubricate with specified
grease.
Check ball joints for wear and
damage.
Replace if necessary.
88
* Drive track Check the deflection.
Adjust if necessary.
Initial at 500 km (300 mi)
and every 800 km (500
mi) thereafter.
84
Fittings and fasten-
ers
Make sure that all nuts, bolts
and screws are properly tight-
ened.
Tighten if necessary.
90
* Battery Check condition.
Charge if necessary. 90
ITEM REMARKS
INITIAL EVERY
PAGE
1 month
or 800 km
(500 mi)
(40 hr)
Seasonally
or
4000 km
(2500 mi)
(200 hr)
Periodic maintenance and adjustment
63
ESU13003
Tool kit
The owners tool kit is located in the storage
pouch. (See page 31 for more information
about the storage pouch.)
The service information included in this man-
ual and the tools provided in the owners tool
kit are intended to assist you in the perfor-
mance of preventive maintenance and minor
repairs. However, additional tools such as a
torque wrench may be necessary to perform
certain maintenance work correctly.
NOTICE
ECS00781
Before starting the engine, make sure that
the tool kit is securely fastened and that
the storage pouch zipper is completely
closed.
TIP
If you do not have a torque wrench available
during a service operation requiring one, take
your snowmobile to a Yamaha dealer to
check the torque settings and adjust them if
necessary.
ESU14230
Recommended equipment
It is good practice to carry the spare parts and
other necessary equipment with you while
riding the snowmobile so that minor repairs
can be done if necessary. The following
should be carried at all times:
Flashlight
Roll of plastic tape
Steel wire
Tow rope
V-belt
Light bulbs
When you start out for a long distance trip, ex-
tra fuel should be carried as well.
ESU12783
Removing and installing the
shroud and covers
WARNING
EWS00091
Be sure shroud and covers are secured
before operation. A loose shroud or cover
could move and cause loss of control.
Shroud
To remove the shroud
Loosen the fasteners, and then slide the
shroud forward.
1. Tool kit
1. Fastener
1
Periodic maintenance and adjustment
64
To install the shroud
Hook the end of the shroud onto the front cov-
er, insert the projections on the shroud into
the slots in the headlight unit stay, and then
tighten the fasteners.
Left and right side covers
To remove a side cover
1. Remove the shroud. (See above for re-
moval procedures.)
2. Loosen the fasteners, and then remove
the side cover as shown.
To install a side cover
1. Insert the projection on the rear of the
side cover into the slot in the fuel tank
side cover and insert the projections on
the front of the side cover into the slots in
the lower cover.
2. Tighten the fasteners.
3. Install the shroud.
NOTICE
ECS00372
Make sure that all cables, hoses and
leads are routed properly before install-
ing the shroud and covers.
When installing the shroud and covers,
be sure to tighten the fasteners secure-
ly.
1. Shroud
1
1. Fastener
2. Left side cover
1. Left side cover
1
2
1
1
1
Periodic maintenance and adjustment
66
ESU13663
Adjusting the throttle lever free
play
1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle lever free play,
turn the adjusting nut in direction (a). To
decrease the throttle lever free play, turn
the adjusting nut in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original posi-
tion.
ESU11863
Checking the throttle override
system (T.O.R.S.)
WARNING
EWS00352
When checking the T.O.R.S., take precau-
tions to avoid snowmobile movement
which could cause an accident:
Make sure that the throttle lever moves
smoothly with the engine off before
checking the T.O.R.S.
Make sure that the parking brake is ap-
plied.
Do not rev the engine to the point that
the clutch engages.
Check the T.O.R.S. for proper operation.
1. Start the engine.
TIP
Refer to the “Starting the engine” section on
page 50.
2. Hold the pivot point of the throttle lever
away from the throttle switch by putting
your thumb (above) and forefinger (be-
low) between the throttle lever pivot and
the engine stop switch housing.
While holding the pivot point as described
above, squeeze the throttle lever gradu-
ally.
1. Rubber cover
2. Locknut
3. Throttle lever free play adjusting nut
4. Throttle lever free play
Throttle lever free play:
3.0–4.0 mm (0.12–0.16 in)
4
(a)
(b)
3 21
Periodic maintenance and adjustment
67
The T.O.R.S. will be activated and the
engine speed will be limited to less than
the clutch engagement speed. (See page
98 for the clutch engagement speed.)
WARNING! If the engine speed does
not decrease to less than the clutch
engagement speed, stop the engine
by turning the main switch to the off
position and consult a Yamaha dealer.
Operating the snowmobile with a mal-
functioning T.O.R.S. could result in
loss of control. [EWS00362]
ESU12803
Checking the air filter
Check that there is no snow under the air filter
element frame after each ride. In addition,
snow may need to be cleaned during a ride
depending on the riding conditions.
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Remove the shroud, the left side cover,
and the right side cover. (See page 63 for
removal procedures.)
3. Remove the headlight unit stay quick fas-
teners and disconnect the air tempera-
ture sensor coupler.
4. Unhook the air filter case cover fasteners.
5. Lift the headlight unit and headlight unit
stay, and then slide the air filter case cov-
er toward the right side of the snowmobile
and remove it.
1. Throttle lever pivot
2. Engine stop switch housing
3. Throttle lever
1. Quick fastener
2. Air temperature sensor coupler
1. Air filter case cover fastener
Periodic maintenance and adjustment
68
6. Lift up the air filter element frame and
check the air filter element. If there is any
snow on the air filter element, remove the
element, brush off the snow, and then in-
stall the air filter element.
7. Place the air filter element frame in the
original position, and then install the air
filter case cover.
8. Hook the fasteners onto the air filter case
cover.
9. Connect the air temperature sensor cou-
pler and install the headlight unit stay
quick fasteners.
10. Install the right side cover, the left side
cover, and the shroud.
ESU11931
High-altitude settings
Operating at high altitude reduces the perfor-
mance of a gasoline engine about 3% for ev-
ery 305 m (1000 ft) of elevation. This is
because there is less air as altitude increases.
Less air means less oxygen available for
combustion.
Your snowmobile utilizes an electronic fuel in-
jection system that delivers the optimal air/fu-
el ratio required by the engine. Therefore, the
fuel injection system does not need to be ad-
justed, even for operation at high altitude.
Remember:
Less air at higher altitude means there is less
horsepower available, even with the optimal
air/fuel ratio. Expect acceleration and top
speed to be reduced at higher altitudes.
To overcome operating with less power at
high altitudes, your snowmobile may also re-
quire different settings for the drive chain
gears and V-belt clutch to avoid poor perfor-
mance and rapid wear. If you plan to operate
your snowmobile at an altitude different from
the area where you bought it, be sure to con-
sult a Yamaha dealer. The dealer can tell you
if there are any changes necessary for the al-
titude where you plan to ride. NOTICE: The
drive chain gears and V-belt clutch should
be adjusted when operating above a high
altitude of 900 m (3000 ft). Consult a
Yamaha dealer. [ECS00431]
ESU11950
Valve clearance
The valve clearance changes with use, result-
ing in improper air-fuel mixture and/or engine
noise. To prevent this from occurring, the
1. Air filter case cover
Periodic maintenance and adjustment
70
5. Remove the oil filler cap, wipe the dipstick
clean, insert it back into the oil filler hole
(without screwing it in), and then remove
it again to check the oil level.
TIP
The engine oil should be between the “H” and
“L” level marks on the dipstick.
6. If the engine oil is below the L” level
mark, add sufficient oil of the recom-
mended type to raise it to the “H level
mark. (See page 98 for the recommend-
ed oil.) NOTICE: When adding the en-
gine oil, be careful not to fill above the
“H” level mark on the dipstick. Use
only the recommended oil. (See page
98.) Make sure that no foreign material
enters the engine oil tank. [ECS00462]
7. Insert the dipstick into the oil filler hole,
and then tighten the oil filler cap.
8. Connect the oil level gauge coupler.
9. Install the right side cover and the shroud.
To change the engine oil (with or with-
out oil filter cartridge replacement)
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Start the engine, warm it up for several
minutes, and then turn it off.
3. Remove the shroud, the left side cover,
the right side cover, and the drive guard.
(See pages 30 and 63 for removal proce-
dures.)
4. Remove the left lower cover, the right
lower cover, and the bottom panel.
1. Oil filler cap
2. Dipstick
1. “H” level mark
2. “L” level mark
1. Left lower cover
2. Quick fastener
3. Bolt
4. Washer
3 1
2
2
4 3
Periodic maintenance and adjustment
71
5. Place an oil pan under the oil tank to col-
lect the used oil.
6. Disconnect the oil level gauge coupler.
7. Remove the oil filler cap and cylinder
head cap, and then remove the engine oil
drain bolt and its gasket to drain the oil
from the oil tank.
8. Place an oil pan under the engine to col-
lect the used oil.
9. Remove the engine oil drain bolt and its
gasket to drain the oil from the crank-
case.
1. Right lower cover
2. Quick fastener
3. Bolt
4. Washer
1. Bottom panel
2. Quick fastener
1. Oil level gauge coupler
2. Oil filler cap
2
2
3
1
43
2 2
21
1. Cylinder head cap
1. Engine oil drain bolt (oil tank)
2. Gasket
1
1
2
Periodic maintenance and adjustment
72
TIP
A “ mark is stamped on the crankcase
near the engine oil drain bolt.
Dispose of used oil according to local regu-
lations.
Skip steps 10–12 if the oil filter cartridge is
not being replaced.
10. Remove the oil filter cartridge with an oil
filter wrench.
TIP
An oil filter wrench is available at a Yamaha
dealer.
11. Apply a thin coat of engine oil to the O-
ring of the new oil filter cartridge.
TIP
Make sure that the O-ring is properly seated.
12. Install the new oil filter cartridge with an
oil filter wrench, and then tighten it to the
specified torque.
13. Install the engine oil drain bolts and their
new gasket, and then tighten the bolts to
the specified torques.
14. Add 2.0 L (2.11 US qt, 1.76 Imp.qt) of the
recommended engine oil to the oil tank,
and then install and tighten the oil filler
cap and the cylinder head cap.
15. Start the engine, warm it up for several
minutes, and then turn it off.
16. Remove the oil filler cap, and then add
sufficient oil of the recommended type to
raise it to the “H” level mark on the dip-
stick. (See above for the checking proce-
dure.) NOTICE: When adding the
engine oil, be careful not to fill above
1. Engine oil drain bolt (crankcase)
2. Gasket
3. ” mark
1. Oil filter cartridge
1. O-ring
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torques:
Engine oil drain bolt (crankcase):
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Engine oil drain bolt (oil tank):
16 Nm (1.6 m·kgf, 12 ft·lbf)
Periodic maintenance and adjustment
74
22. Install the drive guard, the right side cov-
er, the left side cover, and the shroud.
ESU12828
Cooling system
The coolant level should be checked before
each ride. In addition, the cooling system
must be bled at the intervals specified in the
periodic maintenance and lubrication chart.
WARNING
EWS00390
Do not remove the radiator cap when the
engine is hot. Scalding hot fluid and steam
may be blown out under pressure, which
could cause serious injury.
When the engine has cooled, place a thick
rag or towel over the radiator cap, and
slowly rotate the cap counterclockwise to
the detent. This procedure allows any re-
sidual pressure to escape. When the hiss-
ing sound has stopped, press down on the
cap while turning counterclockwise and
remove it.
To check the coolant level
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Check the coolant level in the coolant
reservoir when the engine is cold. If the
coolant level is below the “LOW” mark,
add coolant until it reaches the “FULL
mark. (See the following section “Replen-
ishing the coolant” for more details.)
NOTICE: If coolant is not available,
use distilled water or soft tap water in-
stead. Do not use hard water or salt
water since it is harmful to the engine.
If water has been used instead of cool-
ant, replace it with coolant as soon as
possible, otherwise the cooling sys-
tem will not be protected against frost
and corrosion. If water has been add-
ed to the coolant, have a Yamaha deal-
er check the antifreeze content of the
coolant as soon as possible, other-
wise the effectiveness of the coolant
will be reduced. [ECS00492]
1. Left lower cover
1
1. Radiator cap
Periodic maintenance and adjustment
76
4. Start the engine and add coolant until the
coolant level stabilizes, and then stop the
engine.
5. Check for any coolant leakage. If coolant
is leaking, check for the cause.
TIP
If you find any leaks, consult a Yamaha deal-
er.
6. Fill the coolant reservoir with coolant until
it reaches the “FULL” mark.
7. Install the coolant reservoir cap.
8. Install the shroud.
ESU12067
V-belt
WARNING
EWS00402
Coming in contact with the rotating V-
belt or clutch parts can cause severe in-
jury or death. Never run the engine with
the drive guard removed.
Make sure that the drive guard is in-
stalled securely before operating the
snowmobile to protect against severe
injury or death from a broken V-belt or
other part should it come off the snow-
mobile while it is in operation.
NOTICE
ECS00830
Never run the engine with the V-belt re-
moved. Clutch components can be dam-
aged.
The V-belt should be checked before each
ride.
To check the V-belt
1. Remove the shroud and the left side cov-
er, and then remove the drive guard.
(See pages 30 and 63 for removal proce-
dures.)
2. Check the V-belt for wear and damage.
Replace if necessary.
3. Install the drive guard, and then install the
left side cover and the shroud.
To replace and adjust the V-belt
WARNING
EWS00411
When installing a new V-belt, make sure
that it is positioned properly. Otherwise,
the V-belt clutch engagement speed will
be changed and the snowmobile may
move unexpectedly when the engine is
started, which could cause an accident.
Recommended antifreeze:
High-quality ethylene glycol antifreeze
containing corrosion inhibitors
Antifreeze and water mixing ratio:
3:2
Total amount:
FX10 3.80 L (4.02 US qt, 3.34 Imp.qt)
FX10M53S 4.90 L (5.18 US qt,
4.31 Imp.qt)
FX10M62S 4.90 L (5.18 US qt,
4.31 Imp.qt)
FX10RTRS 3.80 L (4.02 US qt,
3.34 Imp.qt)
FX10XT 3.80 L (4.02 US qt,
3.34 Imp.qt)
FX10XT75 4.90 L (5.18 US qt,
4.31 Imp.qt)
1. V-belt wear limit
New V-belt width:
34.5 mm (1.36 in)
V-belt wear limit width:
32.5 mm (1.28 in)
Periodic maintenance and adjustment
77
NOTICE
ECS00511
As the V-belt wears, the position of the V-
belt will change. If the V-belt position is out
of specification, it must be adjusted to en-
sure proper clutch performance.
Have a Yamaha dealer make this adjust-
ment.
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Remove the shroud and the left side cov-
er, and then remove the drive guard.
(See pages 30 and 63 for removal proce-
dures.)
3. Rotate the secondary sliding sheave
clockwise and push it so that it separates
from the secondary fixed sheave.
4. Pull the V-belt up over the secondary
fixed sheave.
5. Remove the V-belt from the secondary
sheave assembly and primary sheave
assembly.
6. Temporarily install the new V-belt on the
secondary sheave assembly only, and
then measure the V-belt position. Do not
force the V-belt between the sheaves; the
secondary sliding and fixed sheaves
must touch each other.
7. If the V-belt position is incorrect, adjust it
by removing or adding a spacer on each
V-belt position adjusting bolt.
1. Secondary sliding sheave
2. Secondary fixed sheave
1. V-belt
1. Edge of the secondary sheave assembly
2. Standard V-belt position
Standard V-belt position:
From 1.5 mm (0.06 in) above the
edge of the secondary sheave as-
sembly to 0.5 mm (0.02 in) below the
edge
2 1
Periodic maintenance and adjustment
78
8. Tighten the V-belt position adjusting
bolts.
9. Install the V-belt over the primary sheave
assembly.
10. Rotate the secondary sliding sheave
clockwise and push it so that it separates
from the secondary fixed sheave.
11. Install the V-belt between the secondary
sliding and fixed sheaves.
12. Install the drive guard, and then install the
left side cover and the shroud.
ESU12834
Drive chain housing
To check the drive chain housing oil
level
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
3. Remove the dipstick, wipe it off with a
clean rag, and then screw it back into the
filler hole.
1. V-belt position adjusting bolt
2. Spacer
V-belt position Adjustment
More than 1.5 mm
(0.06 in) above the
edge
Remove a spacer.
From 1.5 mm (0.06 in)
above the edge to 0.5
mm (0.02 in) below
the edge
Not necessary (it is
correct).
More than 0.5 mm
(0.02 in) below the
edge
Add a spacer.
V-belt position adjusting bolt tightening
torque:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1. Secondary sliding sheave
2. Secondary fixed sheave
1. V-belt
Periodic maintenance and adjustment
79
4. Remove the dipstick and check that the
oil level is within the range shown at the
bottom of the dipstick. If the oil does not
reach the bottom of the dipstick, add suf-
ficient oil of the recommended type to
raise it to the correct level. NOTICE:
Make sure that no foreign material en-
ters the drive chain housing. [ECS00531]
5. Install the dipstick.
6. Install the right side cover and the shroud.
To adjust the chain tension
1. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
2. Loosen the locknut.
3. Turn the chain tension adjusting bolt
clockwise until it is finger tight, and then
loosen it 1/4 turn.
4. While holding the chain tension adjusting
bolt with a wrench, tighten the locknut to
the specified torque.
5. Install the right side cover and the shroud.
ESU13541
Brake and parking brake
WARNING
EWS00440
A soft, spongy feeling in the brake lever
indicates a failure in the brake system.
Do not operate the snowmobile if you
find any problems in the brake system.
You could lose braking ability, which
could lead to an accident. Ask a Yamaha
dealer to inspect and repair the brake
system.
1. Dipstick
1. Oil level range
Recommended drive chain oil:
SAE 75W or 80W API GL-3 Gear oil
1
1. Locknut
2. Chain tension adjusting bolt
Tightening torque:
Locknut:
25 Nm (2.5 m·kgf, 18 ft·lbf)
Periodic maintenance and adjustment
80
Test the brake at a low speed when starting
out to make sure that it is working properly. If
the brake does not provide proper braking
performance, inspect the brake for wear or
brake fluid leakage. (See the following section
for more details.)
Checking the brake pads
Check the brake pads for wear according to
the following procedure.
1. Place the snowmobile on a level surface
and apply the parking brake.
2. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
3. Check the brake pads for wear.
If the brake pads reach the wear limit, ask
a Yamaha dealer to replace them.
4. Install the right side cover and the shroud.
Checking the parking brake pads
Check the parking brake pads for wear ac-
cording to the following procedure.
1. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
2. Check the parking brake pads for wear by
measuring the thickness of the pads. If
the parking brake pads reach the wear
limit, ask a Yamaha dealer to replace
them.
3. Install the right side cover and the shroud.
To adjust the parking brake
As the parking brake pads wear, adjustment
may be necessary to ensure proper brake
performance.
1. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
2. Loosen the parking brake pad adjusting
bolt locknut and the parking brake pad
adjusting bolt.
3. Loosen the parking brake cable locknut.
4. Turn the parking brake cable adjusting
bolt in or out to adjust the cable length.
1. Brake pad wear limit
Brake pad wear limit:
4.7 mm (0.19 in)
1. Parking brake pad wear limit
Parking brake pad wear limit:
1.2 mm (0.047 in)
Periodic maintenance and adjustment
81
5. Tighten the parking brake cable locknut.
6. Turn the parking brake pad adjusting bolt
in or out to adjust the clearance between
the parking brake pads and the brake
disc.
7. Tighten the parking brake pad adjusting
bolt locknut.
8. Install the right side cover and the shroud.
Checking the brake fluid level
Before riding, check that the brake fluid is
above the lower level. Check the brake fluid
level with the top of the reservoir level. Re-
plenish the brake fluid if necessary.
WARNING
EWS00820
Improper maintenance can result in loss
of braking ability. Observe these precau-
tions:
Insufficient brake fluid may allow air to
enter the brake system, reducing brak-
ing performance.
Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed
container.
Use only the specified brake fluid; other-
wise, the rubber seals may deteriorate,
causing leakage.
Refill with the same type of brake fluid.
Adding a brake fluid other than DOT 4
may result in a harmful chemical reac-
tion.
1. Parking brake pad adjusting bolt locknut
2. Parking brake pad adjusting bolt
3. Parking brake cable locknut
4. Parking brake cable adjusting bolt
5. Parking brake cable length
Parking brake cable length:
43.5–46.5 mm (1.713–1.831 in)
1. Parking brake pad
2. Brake disc
3. Parking brake pad adjusting bolt
4. Parking brake pad adjusting bolt locknut
Parking brake pad to brake disc clear-
ance (a) + (b):
1.5–2.0 mm (0.059–0.079 in)
4
3
1. Lower level
Specified brake fluid:
DOT 4
Periodic maintenance and adjustment
82
Be careful that water does not enter the
brake fluid reservoir when refilling. Wa-
ter will significantly lower the boiling
point of the fluid and may result in vapor
lock.
NOTICE
ECS01050
Brake fluid may damage painted surfaces
or plastic parts. Always clean up spilled
fluid immediately.
As the brake pads wear, it is normal for the
brake fluid level to gradually go down. A low
brake fluid level may indicate worn brake
pads and/or brake system leakage; therefore,
be sure to check the brake pads for wear and
the brake system for leakage. If the brake fluid
level goes down suddenly, have a Yamaha
dealer check the cause before further riding.
Changing the brake fluid
WARNING
EWS00471
Make sure that the brake fluid and the fol-
lowing parts are replaced by a Yamaha
dealer.
Brake fluid replacement is necessary when
the following components are replaced during
the periodic maintenance or if they are dam-
aged or leaking.
All oil seals of the master cylinder and cali-
per cylinder
The brake hose
ESU14360
Extrovert drive sprocket
(FX10/FX10RTRS/FX10XT75/
FX10M53S/FX10M62S)
Check the extrovert drive sprocket for wear
and damage. Replace if necessary.
FX10/FX10RTRS/FX10M53S/
FX10M62S
To measure the drive sprocket wear
Measure the drive sprocket tooth width. If the
tooth width is less than 28 mm (1.10 in), re-
place the drive sprocket.
FX10XT75
To measure the drive sprocket wear
Measure the drive sprocket tooth width at the
measuring line shown. If the tooth width is 13
mm (0.51 in) or less, replace the drive sprock-
et.
1. Drive sprocket tooth
2. Drive sprocket tooth width
1. Drive sprocket tooth
2. Measuring line
3. Drive sprocket tooth width
1
2
12
3
Periodic maintenance and adjustment
83
ESU14420
Skis and ski runners
Checking the skis and ski runners
Check the skis and ski runners for wear and
damage. Replace if necessary.
NOTICE
ECS00560
Avoid scratching the skis when loading
and unloading the snowmobile, when
riding in areas with little or no snow, or on
sharp edges such as concrete, curbs, etc.
This will wear or damage the skis.
FX10/FX10RTRS/FX10XT/FX10XT75
FX10M53S/FX10M62S
1. Ski runner wear limit
1. Ski wear limit (front)
2. Ski runner
3. Ski wear limit (rear)
1
13
2 2
Ski runner wear limit:
6.0 mm (0.24 in)
Ski wear limit (front):
13.0 mm (0.51 in)
Ski wear limit (rear):
8.0 mm (0.31 in)
1. Ski runner wear limit
1. Ski wear limit (front)
2. Ski runner
3. Ski wear limit (center)
4. Ski wear limit (rear)
1
32
1
4
2
2
Periodic maintenance and adjustment
84
Aligning the skis
1. Turn the handlebar so the skis face
straight ahead.
2. Check the following for ski alignment:
Skis are facing forward.
Ski toe-out (distance A – distance B) is
within specification.
TIP
Move the front tip of each ski fully inward be-
fore measuring or aligning.
3. If the alignment is not correct, consult a
Yamaha dealer.
ESU12152
Steering system
Check the handlebar for excessive free play.
To check the handlebar
1. Push the handlebar up and down and
back and forth.
2. Turn the handlebar slightly to the right
and left.
If excessive free play is felt, consult a Yamaha
dealer.
ESU12176
Drive track and slide runners
Drive track
WARNING
EWS00481
A broken track, track fittings or debris
thrown by the drive track could be danger-
ous to an operator or bystanders. Observe
the following precautions:
Do not allow anyone to stand behind the
snowmobile when the engine is running.
When the rear of the snowmobile is
raised to allow the drive track to spin, a
suitable stand must be used to support
the rear of the snowmobile. Never allow
anyone to hold the rear of the snowmo-
bile off the ground to allow the drive
track to spin. Never allow anyone near a
rotating drive track.
Inspect the drive track condition fre-
quently. Replace any damaged slide
metal. Replace the drive track if it is
damaged to the depth where fabric rein-
forcement material is visible or support
rods are broken. Otherwise, track dam-
Ski runner wear limit:
8.0 mm (0.31 in)
Ski wear limit (front):
3.0 mm (0.12 in)
Ski wear limit (center):
1.0 mm (0.04 in)
Ski wear limit (rear):
10.0 mm (0.39 in)
1. Distance A
2. Distance B
Ski toe-out (distance Adistance B):
0.0–15.0 mm (0.00–0.59 in)
Periodic maintenance and adjustment
85
age or failure could result in loss of
braking ability and snowmobile control,
which could cause an accident.
Checking the drive track
WARNING
EWS00490
Do not operate the snowmobile if you find
damage to the drive track, or if it has been
maladjusted. Drive track damage or failure
could result in loss of braking ability and
snowmobile control, which could cause
an accident.
Check the drive track alignment and deflec-
tion, and check the track for wear and dam-
age.
Adjust or replace if necessary. (See the fol-
lowing section for more details.)
Checking the drive track alignment
1. Lift the rear of the snowmobile onto a suit-
able stand to raise the drive track off the
ground.
2. Start the engine and rotate the drive track
one or two turns. Stop the engine.
3. Check the drive track alignment with the
slide runners. If the alignment is incorrect,
adjust the drive track.
Measuring the drive track deflection
1. Lay the snowmobile on its side.
2. Measure the drive track deflection with a
spring scale. Pull at the center of the drive
track with a force of 100 N (10 kgf, 22 lbf).
TIP
Measure the gap between the slide runner
and the edge of the track window on both
sides.
1. Slide runner
1. Spring scale
1
Periodic maintenance and adjustment
86
3. If the deflection is incorrect, adjust the
drive track.
Adjusting the drive track alignment and de-
flection
1. Loosen the rear axle nut.
2. Lift the rear of the snowmobile onto a suit-
able stand to raise the drive track off the
ground.
3. Start the engine and rotate the drive track
one or two turns. Stop the engine.
4. Align the drive track by turning the left
and right adjusting nuts.
Shifted to right
1. Drive track deflection
2. Slide runner
Standard drive track deflection:
FX10 30.035.0 mm (1.18–1.38 in)
FX10M53S 40.0–45.0 mm (1.57–1.77
in)
FX10M62S 40.0–45.0 mm (1.57–1.77
in)
FX10RTRS 30.0–35.0 mm (1.18–1.38
in)
FX10XT 25.0–30.0 mm (0.98–1.18 in)
FX10XT75 30.0–35.0 mm (1.18–1.38
in)
1. Rear axle nut
Drive track
alignment
Shifted to
right Shifted to left
Left adjusting
nut Turn out Turn in
Right adjust-
ing nut Turn in Turn out
1. Left adjusting nut
2. Right adjusting nut
1. Forward
2. Gap
3. Slide runner
4. Drive track
5. Slide metal
Periodic maintenance and adjustment
87
Shifted to left
5. Adjust the drive track deflection to speci-
fication. NOTICE: The right and left ad-
justing nuts should be turned an equal
amount. [ECS00592]
6. Recheck alignment and deflection. If nec-
essary, repeat steps 3 to 5 until the prop-
er adjustment is achieved.
7. Lower the snowmobile to the ground.
8. Tighten the rear axle nut.
Slide runners
Check the slide runners for wear and dam-
age.
If the slide runners reach the wear limit, they
should be replaced.
NOTICE
ECS00350
Ride on fresh snow frequently. Operating
on ice or hard-packed snow will rapidly
wear the slide runners.
ESU12182
High-profile pattern drive track
FX10XT75/FX10M53S/FX10M62S
This snowmobile is originally equipped with a
high-profile pattern drive track with a lug
height of 38 mm (1.5 in.) or more specifically
for use in deep snow riding conditions.
Therefore, avoid prolonged operation on hard
surfaces such as ice, hard-packed snow, dirt,
etc., to extend the life of the track and slide
runners.
1. Forward
2. Gap
3. Slide runner
4. Drive track
5. Slide metal
Drive track
deflection
More than
specified
Less than
specified
Left adjusting
nut Turn in Turn out
Right adjust-
ing nut Turn in Turn out
Rear axle nut tightening torque:
75 Nm (7.5 m·kgf, 54 ft·lbf)
1. Slide runner
2. Wear limit height
Slide runner wear limit height:
10.5 mm (0.41 in)
1 2
Periodic maintenance and adjustment
88
NOTICE
ECS00610
Only use in deep snow riding condi-
tions.
Operation on areas with light snowfall,
ice, hard-packed snow, dirt, or grass will
result in rapid wear or damage to the
track and slide runners from lack of
snow which serves as a lubricant.
ESU12198
Lubrication
Lubricate the following points with the speci-
fied grease.
WARNING
EWS00511
Do not grease the throttle cable because it
could become frozen, which could cause
loss of control. Apply a dab of grease onto
the cable end only.
TIP
For parts equipped with a grease nipple, use
a grease gun. FX10/FX10RTRS
Lubricants:
Brake lever:
Silicone grease
Other lubrication points:
Low-temperature grease
1. Lubrication point
1
1. Throttle cable end
1. Grease nipple
1. Grease nipple
1
Periodic maintenance and adjustment
89
FX10XT/FX10XT75
FX10M53S/FX10M62S
ESU12852
Replacing a headlight bulb
1. Remove the shroud. (See page 63 for re-
moval procedures.)
2. Disconnect the headlight coupler.
3. Remove the bulb holder cover.
4. Unhook the headlight bulb holder, and
then remove the burnt-out bulb.
5. Install the new bulb, and then hook the
bulb holder onto the headlight unit.
NOTICE: Keep oil and your hands
away from the glass part of the bulb or
its life and illumination will be affect-
ed. If the glass is oil stained, thor-
oughly clean it with a cloth moistened
with alcohol or lacquer thinner. [ECS00621]
6. Install the bulb holder cover, and then
connect the headlight coupler.
7. Install the shroud.
ESU12861
Adjusting the headlight beams
1. Remove the shroud. (See page 63 for re-
moval procedures.)
1. Grease nipple
1. Grease nipple
1. Headlight coupler
2. Bulb holder cover
1 1
1
1
1. Bulb holder
1. Do not touch the glass part of the bulb.
Bulb type:
Halogen bulb
1
Periodic maintenance and adjustment
90
2. Turn the headlight beam adjusting screw
in or out to adjust the headlight beams.
To lower the headlight beams, turn the
headlight beam adjusting screw in direc-
tion (a). To raise the headlight beams,
turn the headlight beam adjusting screw
in direction (b).
3. Install the shroud.
ESU12290
Fittings and fasteners
Check the tightness of the fittings and fasten-
ers.
Tighten in proper sequence and torque if nec-
essary.
ESU13890

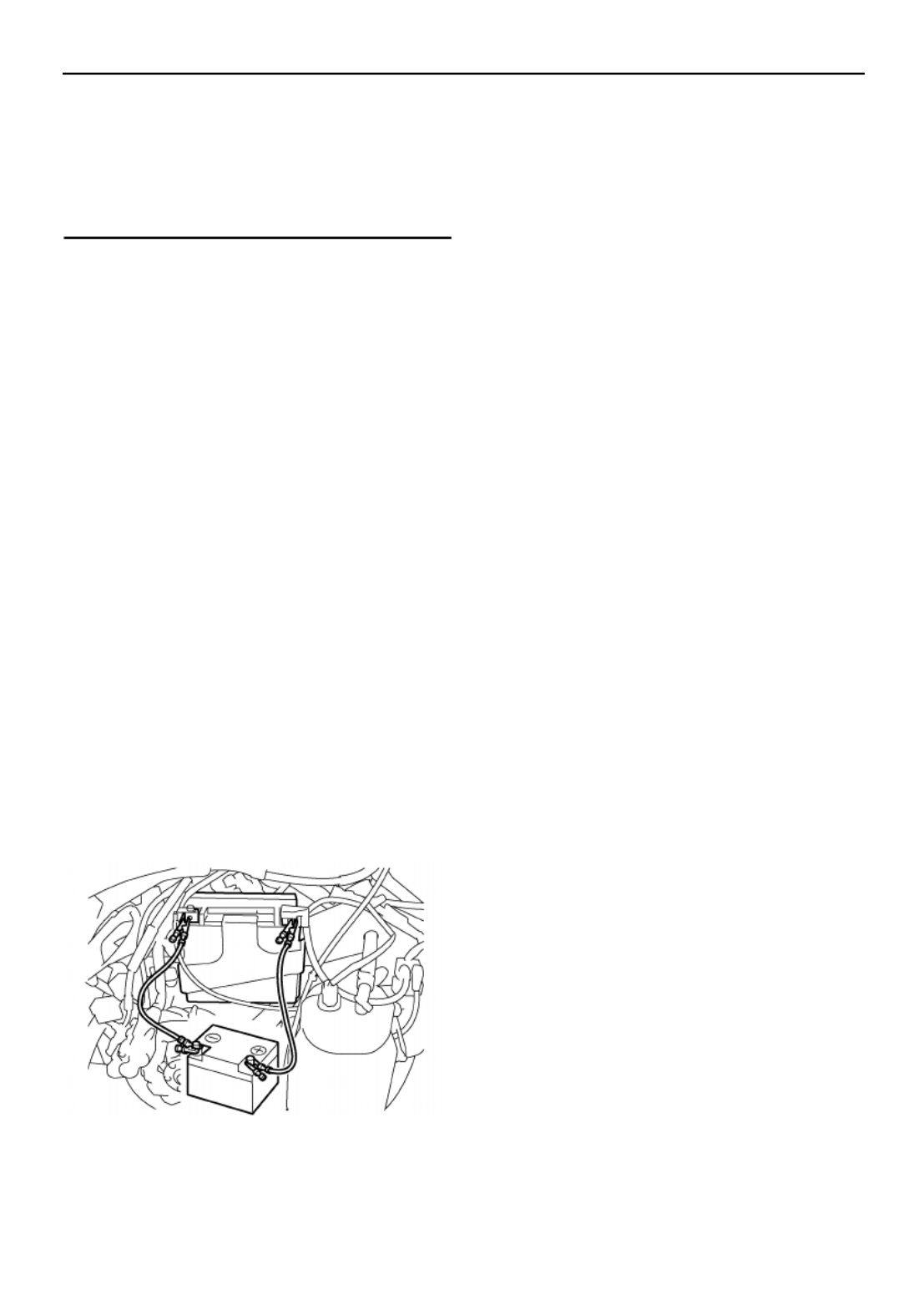

Battery
The battery is located behind the right side
cover. (See page 63 for right side cover re-
moval procedures.)
This model is equipped with a VRLA (Valve
Regulated Lead Acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and, if necessary, tight-
ened.
WARNING
EWS00540
Battery electrolyte is poisonous and dan-
gerous. It contains sulfuric acid and can
cause severe burns. Avoid contact with
skin, eyes, or clothing.
ANTIDOTE:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of wa-
ter or milk. Follow with milk of magne-
sia, beaten egg, or vegetable oil. Call
physician immediately.
EYES: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. away. Venti-
late when charging or using in an en-
closed space. Always shield your eyes
when working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
Charge or have a Yamaha dealer charge the
battery as soon as possible if it seems to have
discharged. Keep in mind that the battery
tends to discharge more quickly if the snow-
mobile is equipped with electrical accesso-
ries.
WARNING
EWS00610
Never smoke around the battery while it
is being charged. Sparks may ignite the
hydrogen gas created by the battery.
Disconnect the negative lead first, then
the positive lead from the battery.
Connect the positive lead first, then the
negative lead to the battery when install-
ing the battery.
Never connect the battery to or discon-
nect it from the snowmobile while it is
being charged. Sparks may ignite the
hydrogen gas created by the battery.
Make sure that the battery terminals are
tight.
1. Headlight beam adjusting screw
Periodic maintenance and adjustment
92
4. Connect the negative battery lead.
5. Install the right side cover and the shroud.
TIP
If the fuse immediately blows again, ask a
Yamaha dealer to inspect the snowmobile.
Specified fuses:
Main fuse:
40.0 A
Fuel injection system fuse:
10.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
3.0 A
Auxiliary DC jack fuse:
3.0 A
Ignition fuse:
20.0 A
Radiator fan fuse:
10.0 A
Helmet shield heater jack fuse:
FX10 3.0 A
FX10M53S 3.0 A (CAN)
FX10M62S 3.0 A (CAN)
FX10RTRS 3.0 A (CAN)
FX10XT 3.0 A (CAN)
FX10XT75 3.0 A (CAN)
Spare fuses:
20.0 A, 10.0 A, 3.0 A
Troubleshooting
94
When connecting the jumper cables, do
not contact the jumper cables to each
other or to the frame or any metal part of
the snowmobile. This can cause electri-
cal system damage or A FIRE HAZARD.
1. Apply the parking brake and turn the
main switch to the off position.
2. Remove the shroud and the right side
cover. (See page 63 for removal proce-
dures.)
3. Connect the red (+) jumper cable to the
positive (+) terminal of the discharged
battery.
4. Connect the other end of the red (+)
jumper cable to the positive (+) terminal
of the booster battery.
5. Connect the black (–) jumper cable to the
negative (–) terminal of the booster bat-
tery.
6. Connect the other end of the black (–)
jumper cable to the negative (–) terminal
of the discharged battery. NOTICE: Do
not reverse the connections! Make
sure that all connections are secure
and correct before attempting to start
the engine. Any wrong connection
could damage the electrical system.
[ECS00671]
7. Start the engine.
8. Disconnect the black (–) jumper cable
from the negative (–) terminal of the dis-
charged battery.
9. Disconnect the black (–) jumper cable
from the negative (–) terminal of the bat-
tery used to jump-start the engine.
10. Disconnect the red (+) jumper cable from
the positive (+) terminal of the battery
used to jump-start the engine.
11. Disconnect the red (+) jumper cable from
the positive (+) terminal of the discharged
battery.
12. Install the right side cover and the shroud.
Electric starter does not operate or
operates slowly
Engine stop switch is pushed in: Pull it out.
Faulty wire connections: Check connec-
tions or ask a Yamaha dealer to inspect.
Discharged battery: Charge battery or see
“Discharged batteryabove.
Seized engine: Seizure is caused by poor
lubrication, inadequate fuel, or an air leak.
Ask a Yamaha dealer to inspect.
Engine power is low
Low coolant temperature indicator light is
flashing: Warm the engine up.
Faulty spark plugs: Clean or replace the
spark plugs.
Improper fuel flow: See “Fuel system”
above.
Incorrect V-belt clutch settings for altitude
or conditions: Ask a Yamaha dealer to in-
spect.
Engine constantly backfires or mis-
fires
Faulty spark plugs: Replace the spark
plugs.
Clogged fuel system: See “Fuel system
above.
Malfunctioning T.O.R.S.: See “Electrical
system” above.
Engine overheats
Insufficient coolant: Add coolant.
Troubleshooting
95
Air in cooling system: Bleed the cooling sys-
tem or ask a Yamaha dealer to inspect.
Leaking coolant: Ask a Yamaha dealer to
inspect.
Snowmobile does not move
Malfunctioning V-belt clutch: Ask a Yamaha
dealer to inspect.
Drive track does not move: Foreign object is
caught in the drive track, or slide runners
have melted to the slide metal due to lack of
lubrication.
Tight, loose, or broken drive chain: Ask a
Yamaha dealer to inspect.
V-belt twists
Improper V-belt: Replace with the correct V-
belt.
Incorrect V-belt clutch offset: Ask a Yamaha
dealer to inspect.
Loose or broken engine mount(s): Ask a
Yamaha dealer to inspect.
V-belt slips or becomes extremely hot
Oily or dirty V-belt or primary and second-
ary sheave assembly surfaces: Clean.
Problem with the driveline: See “V-belt
twists” above.
Engine does not upshift or downshift
properly or engages harshly
Worn or damaged V-belt: Replace the V-
belt or ask a Yamaha dealer to inspect.
Incorrect V-belt clutch settings for altitude
or conditions: Ask a Yamaha dealer to in-
spect.
Worn or sticking primary sheave assembly:
Ask a Yamaha dealer to inspect.
Worn or sticking secondary sheave assem-
bly: Ask a Yamaha dealer to inspect.
Noise or excessive vibration in drive
chain and sprockets
Broken V-belt clutch components: Ask a
Yamaha dealer to inspect.
Worn or damaged bearings: Ask a Yamaha
dealer to inspect.
Worn or damaged V-belt with flat spots: Re-
place.
Worn or damaged idler wheels or shafts:
Ask a Yamaha dealer to inspect.
Worn or damaged drive track: Ask a
Yamaha dealer to inspect.
Storage
97
Battery
Remove the battery from the snowmobile.
Store it in a cool, dry place that is above 0 °C
(32 °F), but less than 30 °C (90 °F). Check the
condition of the battery once a month, and
charge it as necessary. NOTICE: Always
keep the battery charged. Storing a dis-
charged battery can cause permanent bat-
tery damage. [ECS00691]
TIP
Before installing the battery, have a Yamaha
dealer inspect and fully charge it.
Specifications
98
ESU1246C
Dimensions:
Overall length:
FX10 2820 mm (111.0 in)
FX10M53S 3405 mm (134.1 in)
FX10M62S 3405 mm (134.1 in)
FX10RTRS 2820 mm (111.0 in)
FX10XT 3060 mm (120.5 in)
FX10XT75 3060 mm (120.5 in)
Overall width:
FX10 1205 mm (47.4 in)
FX10M53S 1250 mm (49.2 in)
FX10M62S 1250 mm (49.2 in)
FX10RTRS 1205 mm (47.4 in)
FX10XT 1205 mm (47.4 in)
FX10XT75 1205 mm (47.4 in)
Overall height:
FX10 1160 mm (45.7 in)
FX10M53S 1195 mm (47.0 in)
FX10M62S 1195 mm (47.0 in)
FX10RTRS 1140 mm (44.9 in)
FX10XT 1160 mm (45.7 in)
FX10XT75 1160 mm (45.7 in)
Weight:
With oil and fuel:
FX10 269.0 kg (593 lb)
FX10M53S 277.0 kg (611 lb) (CAN)
FX10M62S 278.0 kg (613 lb) (CAN)
FX10RTRS 272.0 kg (600 lb) (CAN)
FX10XT 278.0 kg (613 lb) (CAN)
FX10XT75 283.0 kg (624 lb) (CAN)
Mass in running order:
FX10M53S 278.0 kg (613 lb) (FIN)(SWE)
FX10M62S 279.0 kg (615 lb)
(FIN)(RUS)(SWE)
FX10RTRS 272.0 kg (600 lb) (FIN)(SWE)
FX10XT 278.0 kg (613 lb)
(FIN)(RUS)(SWE)
FX10XT75 283.0 kg (624 lb)
(FIN)(RUS)(SWE)
Ski stance:
FX10 1050 mm (41.3 in)
FX10M53S 1009 mm (39.7 in)
FX10M62S 1009 mm (39.7 in)
FX10RTRS 1050 mm (41.3 in)
FX10XT 1050 mm (41.3 in)
FX10XT75 1050 mm (41.3 in)
Engine:
Type:
Liquid cooled 4-stroke, 12 valves
Cylinder arrangement:
Inline 3-cylinder
Displacement:
1049 cm³
Bore × stroke:
82.0 × 66.2 mm (3.23 × 2.61 in)
Idling speed:
1450–1550 r/min
Engine oil:
Recommended grade:
API service SG type or higher, JASO
standard MA
Recommended brand:
YAMALUBE
Type:
SAE 0W-30
Fuel injection:
ID mark:
8GL1 10
Fuel:
Type:
FX10 REGULAR UNLEADED GASOLINE
ONLY
FX10M53S Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10M53S REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10M62S Min 91 RON UNLEADED
GASOLINE ONLY (RUS)
FX10M62S Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10M62S REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10RTRS Min 95 RON UNLEADED
GASOLINE ONLY (FIN)(SWE)
FX10RTRS REGULAR UNLEADED
GASOLINE ONLY (CAN)
FX10XT Min 91 RON UNLEADED
GASOLINE ONLY (RUS)
Specifications
100
Track sprocket wheel:
Material:
Polyethylene
Number of teeth:
FX10 8
FX10M53S 7
FX10M62S 7
FX10RTRS 8
FX10XT 9
FX10XT75 9
Transmission:
Clutch type:
Automatic centrifugal engagement
Overall reduction ratio:
FX10 7.06–1.86 : 1
FX10M53S 6.91–1.82 : 1 (FIN)(SWE)
FX10M53S 8.44–2.22 : 1 (CAN)
FX10M62S 6.91–1.82 : 1
(FIN)(RUS)(SWE)
FX10M62S 8.44–2.22 : 1 (CAN)
FX10RTRS 7.06–1.86 : 1
FX10XT 7.06–1.86 : 1
FX10XT75 7.41–1.95 : 1
Sheave distance:
267.0–270.0 mm (10.51–10.63 in)
Sheave offset:
13.5–16.5 mm (0.53–0.65 in)
Engagement speed (Subject to change
according to elevation settings.):
FX10 3550–3950 r/min
FX10M53S 31003500 r/min (FIN)(SWE)
FX10M53S 3300–3700 r/min (CAN)
FX10M62S 3100–3500 r/min
(FIN)(RUS)(SWE)
FX10M62S 3300–3700 r/min (CAN)
FX10RTRS 3900–4300 r/min
FX10XT 3550–3950 r/min
FX10XT75 3550–3950 r/min
Shift speed [Subject to change according to
elevation settings. Usually achieved after
approximately 800 m (0.5 mi) traveled.]:
8500–9000 r/min
Drive chain type:
Silent chain enclosed in oil bath
Drive chain housing oil:
Type:
SAE 75W or 80W API GL-3 Gear oil
Capacity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Reverse system:
Yes
Primary reduction ratio:
3.80–1.00 : 1
Secondary reduction ratio:
FX10 39/21 (1.86)
FX10M53S 40/18 (2.22) (CAN)
FX10M53S 40/22 (1.82) (FIN)(SWE)
FX10M62S 40/18 (2.22) (CAN)
FX10M62S 40/22 (1.82)
(FIN)(RUS)(SWE)
FX10RTRS 39/21 (1.86)
FX10XT 39/21 (1.86)
FX10XT75 39/20 (1.95)
Secondary reduction ratio [R]:
FX10 2.38
FX10M53S 2.27 (FIN)(SWE)
FX10M53S 2.78 (CAN)
FX10M62S 2.27 (FIN)(RUS)(SWE)
FX10M62S 2.78 (CAN)
FX10RTRS 2.38
FX10XT 2.38
FX10XT75 2.50
Fuel tank capacity:
27.7 L (7.32 US gal, 6.09 Imp.gal)
Engine oil quantity:
With oil filter cartridge replacement:
3.2 L (3.38 US qt, 2.82 Imp.qt)
Without oil filter cartridge replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Total amount:
3.9 L (4.12 US qt, 3.43 Imp.qt)
Brake:
Type:
Hydraulic disc type (ventilated disc)
Operation:
Handle lever, left-hand operated
Throttle:
Operation:
Handle lever, right-hand operated
Electrical system:
Ignition system:
T.C.I.
Spark plug:
Manufacturer:
NGK
Model:
CR9E
Gap:
0.7–0.8 mm (0.028–0.031 in)
Battery:
Model:
YTX20L-BS
Specifications
101
Voltage, capacity:
12 V, 18.0 Ah
Ten-hour rate amperage:
1.8 A
Bulb voltage, wattage × quantity:
Headlight:
12 V, 60/55 W 2×
Headlight bulb type:
Halogen bulb
Tail/brake light:
LED
Meter lighting:
LED
High beam indicator light:
LED
Warning light:
LED
Low coolant temperature indicator light:
LED
ESU14250
For EUR only
The figures quoted are emission levels and
are not necessarily safe working levels. Whilst
there is a correlation between the emission
and exposure levels, this cannot be used reli-
ably to determine whether or not further pre-
cautions are required. Factors that influence
the actual level of exposure of work-force in-
clude the characteristics of the work room, the
other sources of noise, etc. i.e. the number of
machines and other adjacent processes, and
the length of time for which an operator is ex-
posed to the noise. Also the permissible expo-
sure level can vary from country. This
information, however, will enable the user of
the machine to make a better evaluation of
the hazard and risk.
Consumer information
102
ESU14220
Identification number records
Record the frame serial number and engine
serial number (Primary ID) in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer.
Also, record and keep the ID numbers in a
separate place in case the snowmobile is sto-
len.
Frame serial number
The frame serial number is the seventeen-
digit number stamped on the frame of the
snowmobile.
Engine serial number (Primary ID)
The engine serial number is stamped in the
location as shown.
ESU13461
Vehicle Emission Control Infor-
mation label (for CANADA)
The Vehicle Emission Control Information la-
bel is affixed at the location in the illustration.
This label shows specifications related to ex-
haust emissions as required by federal law,
state law and Environment Canada.
ESU12491
WARRANTY
If doubt exists as to the cause and cure of a
problem, consult your authorized Yamaha
snowmobile dealer. This is especially impor-
tant during the warranty period, as unautho-
rized, haphazard, or improper repairs can
void the warranty. Remember that your autho-
1. Frame serial number
1. Engine serial number
1. Vehicle Emission Control Information label
1
Consumer information
103
rized Yamaha dealer has the special tools,
techniques, and spare parts necessary for
proper repair of your snowmobile.
Always consult your Yamaha dealer if you are
in doubt as to proper specifications and/or
maintenance procedures. Occasionally, print-
ing errors or production changes will result in
incorrect documentation in this manual.
Until you are thoroughly familiar with this
model, consult your Yamaha dealer before at-
tempting any maintenance. Should further
maintenance or service information be de-
sired, service manuals can be purchased
from your local authorized Yamaha snowmo-
bile dealer.
Index
A
Air filter, checking..................................... 67
Auxiliary DC jack
(FX10M53S/FX10M62S) ...................... 28
B
Battery...................................................... 90
Brake and parking brake .......................... 79
Brake lever............................................... 28
Break-in.................................................... 51
C
Center and rear shock absorbers,
or rear shock absorber, adjusting
damping forces ..................................... 44
Center shock absorber and rear shock
absorber, adjusting air pressure
(FX10M53S/FX10M62S) ...................... 40
Center shock absorber and rear torsion
springs, adjusting spring preload
(FX10/FX10RTRS/FX10XT/
FX10XT75) ........................................... 39
Control rods, adjusting
(FX10XT/FX10XT75) ............................ 46
Coolant temperature warning indicator .... 26
Cooling system......................................... 74
D
Drive chain housing.................................. 78
Drive guard............................................... 30
Drive track and slide runners ................... 84
Drive track, high-profile pattern................ 87
Drive track life, maximizing ...................... 55
Driving...................................................... 56
E
Engine oil and oil filter cartridge............... 69
Engine stop switch ................................... 27
Extrovert drive sprocket
(FX10/FX10RTRS/FX10XT75/
FX10M53S/FX10M62S)........................ 82
F
Fittings and fasteners............................... 90
Fuel .......................................................... 32
Fuel level warning indicator...................... 25
Fuel meter and grip/thumb warmer level
indicator ................................................ 24
Fuse, replacing......................................... 91
G
General maintenance and lubrication
chart...................................................... 61
Grip/thumb warmer adjusting switch ........ 27
H
Headlight beam switch ............................. 27
Headlight beams, adjusting...................... 89
Headlight bulb, replacing.......................... 89
High beam indicator light.......................... 23
High-altitude settings................................ 68
I
Identification numbers ............................ 102
L
Location of the important labels ................. 1
Low coolant temperature indicator light ... 23
Lubrication................................................ 88
M
Main switch .............................................. 21
Multi-function meter unit........................... 22
O
Oil level/pressure warning indicator ......... 25
P
Parking brake lever .................................. 29
Part locations ........................................... 19
Periodic maintenance chart for the
emission control system ....................... 60
Pre-operation check list............................ 48
R
Recommended equipment ....................... 63
Riding your snowmobile ........................... 51
S
Safety information ....................................16
Self-diagnosis device ............................... 26
Shift lever .................................................29
Shock absorbers, front, adjusting air
pressure
(FX10RTRS/FX10M53S/FX10M62S) ... 35
Shock absorbers, front, adjusting
damping forces (FX10RTRS) ............... 38
Shock absorbers, front, adjusting spring
preload (FX10/FX10XT/FX10XT75) ..... 34
Shroud and covers, removing and
installing................................................ 63
Skis and ski runners................................. 83
Spark plugs, checking .............................. 65
Specifications ........................................... 98


Specyfikacje produktu

Marka: Yamaha
Kategoria: Niesklasyfikowane
Model: FX Nytro X-TX 75 (2013)

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Yamaha FX Nytro X-TX 75 (2013), zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą




Instrukcje Niesklasyfikowane Yamaha

Instrukcje Niesklasyfikowane

Najnowsze instrukcje dla Niesklasyfikowane

SmallRig

SmallRig VB99 SE Instrukcja

29 Stycznia 2025
QSC

QSC TSC-8 Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS5130 Instrukcja

29 Stycznia 2025
Sunding

Sunding SD-581G Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS5070 Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS2010 Instrukcja

29 Stycznia 2025
OSEE

OSEE TX402 Instrukcja

29 Stycznia 2025
