Installation Guide
90cm freestanding cookers
Your freestanding cooker is designed to fit into a 900mm wide gap
between standard kitchen cabinets. The appliance integrates with
the kitchen cabinets by matching the height, depth and kick panel.
The cooker may also be installed at the end of a line of benches or
with a free space either side. In addition, a slot-in type installation is
catered for allowing a continuous cabinetry kick panel to be used.
WARNING
• The cooker must be installed and serviced only by an authorised
person.
• A Certificate of Compliance MUST be supplied to be kept by the
customer.
• The packing materials must be removed before you install the
cooker.
• The surrounding kitchen cabinets must be able to withstand 85°C.
Electrolux WILL NOT accept responsibility for damage caused by
installation into kitchen cabinets which cannot withstand 85°C.
• The pipes used for installation MUST have sufficient loops so the
cooker can be moved for service (gas models).
• The vents, openings and air spaces MUST NOT be blocked.
• Two anti-tilt brackets are supplied and stored in the base of the
packaging
• The anti-tilt brackets MUST be installed to avoid accidental
tipping (freestanding and slot-in models).
• You MUST NOT lift or pull the cooker by the door handle.
• The cooker MUST be checked every five years.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• The appliance must not be installed behind a decorative door in
order to avoid overheating.
• Due to the weight (95-100kg) and size of the cooker, 2 persons
are required to install it.
Gas model clearance requirements
• Ensure the appliance is installed in accordance with AS/NZS
5601.1 or AS/NZS 5601.2 with regard to clearances to combustible
surfaces and materials, and clearances to rangehoods and exhaust
fans, to ensure clearances of 200mm from burners to vertical
combustible surfaces. Observe the minimum dimension of 100mm
from each side of the cooker to combustible surfaces.
• Clearances to combustible surfaces may be reduced if combustible
surfaces are protected in accordance with AS/NZS 5601.1, or AS/
NZS 5601.2.
• When setting the cooker height, ensure the top of the cooker is at
least 10mm higher than the level of the benchtop.
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights
Reserved. © 2021 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 ANC A26723201 Rev W_INS_FS_90_Cooker_A4_ 23COct
Dimensions
600mm minimum
vertical clearance
from combustible
surfaces
Gas hob 910mm
(adjustable 910-930mm)
Ceramic hob 906mm
(adjustable 906-926mm)
15mm
(height of trivet above hob)
600mm
895mm
60mm
Splashback
The splashback is secured to the back of the cooker.
REMOVE the splashback before installing the feet.
Undo this screw
to remove the
splashback.
Re-attach the
screw afterwards
1

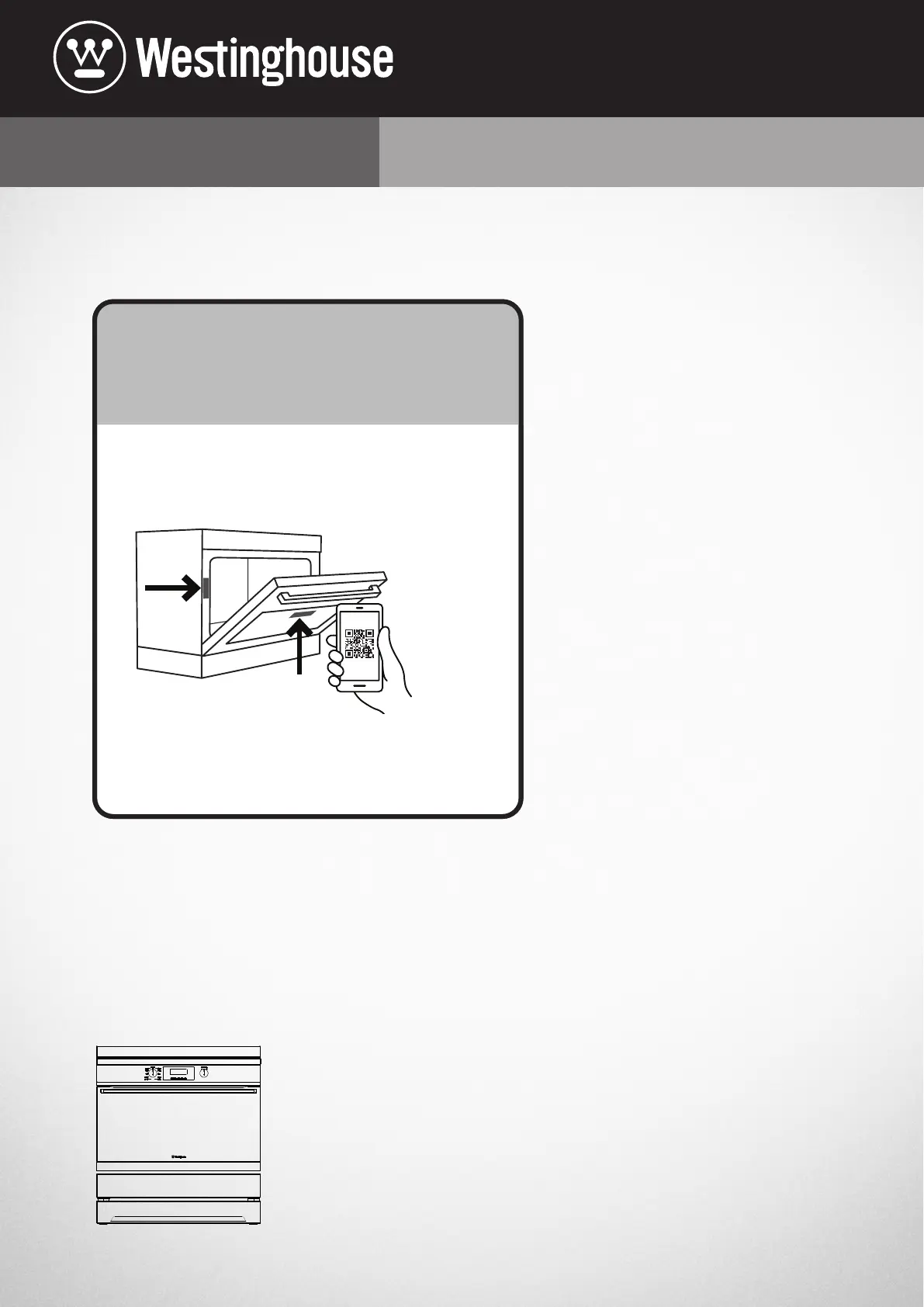

To access your detailed user manual simply scan the QR code on your
smart phone.
For more detailed information and installation guide refer to user manual at
westinghouse.com.au/manuals
The freestanding type installation requires four screw-in feet to be
installed before it can be fitted in between cabinets, with cabinets
on one side or without adjacent cabinets. There is no clearance
requirement to adjacent side cabinets.
To ensure cooker stability, the anti-tilt brackets must be installed.
Four screw-in feet are supplied with the appliance and can be
found in the accessories pack in the oven. Select models are
supplied with a clip-on kick panel.
900mm minimum
755mm NOM
900mm NOM
600mm
both sides
Installation of feet
• Freestanding appliances are supplied with four screw-in feet in
the internal accessory pack. The screw-in feet can be adjusted
by turning the lower half clockwise or anti-clockwise.
IMPORTANT
• If the appliance is a gas hob model, remove the burner cap
and burner crown. Store all items safely, away from the
installation area.
1. You MUST remove the oven door before commencing
installation.
Locking tab up at
normal position
Press the locking tab down for
removing the door.
2. Gently close the door until it comes to a stop.
Then lift the door off the hinge.
Installation Guide
90cm freestanding cookers
3. Tilt and carefully lay the appliance on its back to gain access to
the installation point for the screw in feet.
CAUTION
• To avoid scratching the floor and the appliance itself, fold the
packaging carton board and place it underneath the appliance
as protection.
• The cooker MUST be laid on its back when installing the feet.
4. Install the four supplied feet via the four installation points.
Make sure that each foot is securely fastened.
Put the oven door handle
protection foam underneath the
laid down cooker to protect your
cooker when putting it upright
5. Adjust the height of the screw-in feet to make sure the hob
surface is 10mm above the bench when appliance is upright.
Bench height + 10mm minimum
6. Tilt the appliance upright by lifting the back of the hob and
pivoting it about the back two feet.
WARNING
Heavy item! This step must be performed by two persons.
L
P
fr
In
F
I
B
T
T
a
fo
t
It
o
n
1.
2
3
FREESTANDING INSTALLATION
2
Installation Guide
90cm freestanding cookers
The slot-in type installation uses the appliance as
supplied. The appliance can be mounted on a plinth.
This enables a continuous cupboard kickboard to be
installed, giving a more integrated appearance. There is
no clearance requirement between oven and adjacent
side cabinets.
600mm minimum
vertical clearance
from combustible
surfaces
This surface to be level with
the top edge of the kick board
755mm
900mm
900mm
minimum
600mm
• The anti-tilt brackets are to be secured to the back
wall with appropriate fasteners.
• Two stops are to be screwed to the plinth in locations
as shown (stops provided). The stops locate into
slots in the base of the appliance to prevent the
product from being pulled forward when installed.
• Measurements from the rear wall are to be adjusted if
there are tiles etc. that come between the appliance
and the wall.
• Once services are connected, product can be lifted
onto the plinth and pushed back carefully, ensuring
the appliance engages into both brackets at the rear
and the front stops.
• If the product requires removal for service, it must
be lifted at the front approximately 5mm to clear the
front stops prior to being pulled forward.
+
+
+
+
+
+
C
L
+
++
+
104
104
370 370
165 165
344 344
Location of holes for front stops
Measurements are to be adjusted to account for the
thickness of any skirting board or tiles coming between
the back of the appliance and the wall
Front stops Front stops
In
S
b
s
A
P
k
M
in
C
t
SLOT-IN INSTALLATION K
4
