Strona 1/6

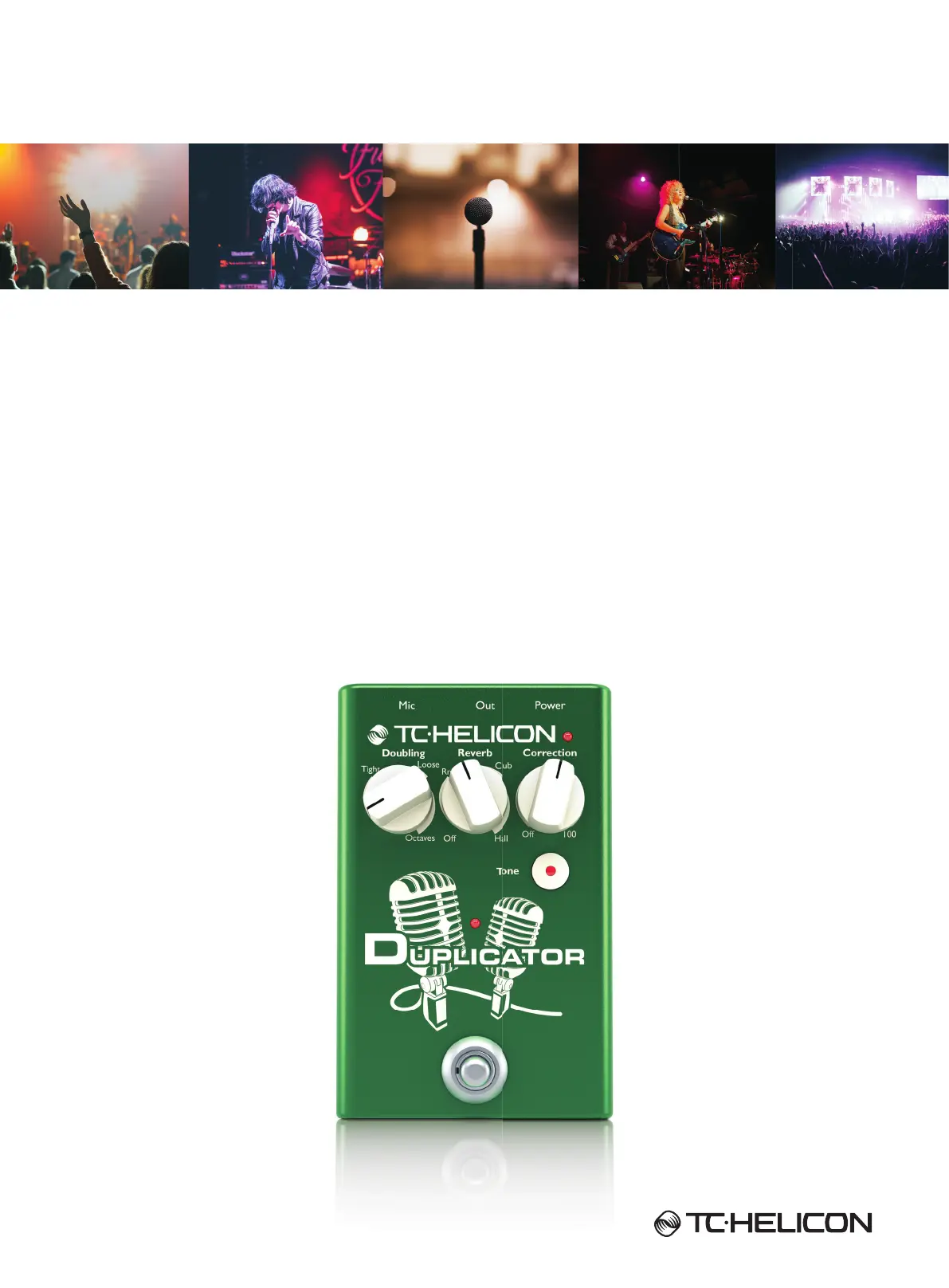

DUPLICATOR
Ultra-Simple Vocal E ects Stompbox with
Doubling, Reverb and Pitch Correction
User Manual
2DUPLICATOR User Manual
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY
Terminals marked with this symbol carry
electrical current of su cient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by quali ed service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories speci ed by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
17. Correct disposal of this
product: This symbol indicates
that this product must not be
disposed of with household
waste, according to the WEEE
Directive (2012/19/EU) and
your national law. This product
should be taken to a collection center licensed for the
recycling of waste electrical and electronic equipment
(EEE). The mishandling of this type of waste could have
a possible negative impact on the environment and
human health due to potentially hazardous substances
that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product
will contribute to the e cient use of natural resources.
For more information about where you can take your
waste equipment for recycling, please contact your local
city o ce, or your household waste collection service.
18. Do not install in a con ned space, such as a book
case or similar unit.
19. Do not place naked ame sources, such as lighted
candles, on the apparatus.
20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.
21. Use this apparatus in tropical and/or
moderate climates.
MUSIC Group accepts no liability for any loss
which may be su ered by any person who relies
either wholly or in part upon any description,
photograph, or statement contained herein.
Technical speci cations, appearances and other
information are subject to change without notice.
All trademarks are the property of their respective
owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE,
TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON,
BEHRINGER, BUGERA and DDA are trademarks
or registered trademarks of MUSIC Group IP Ltd.
© MUSIC Group IP Ltd. 2016 All rights reserved.
For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
music-group.com/warranty.
3DUPLICATOR User Manual
1. Controls
(1) (2) (3)
(5)
(4)
(8)
(6)
(7)
(9) (10) (11) (12)
(1) DOUBLING knob selects the type and amount of doubling e ect on your
voice. The rst two types allow a tight voicing that has less variation from
your original voice, or loose doubling that varies more in pitch and time.
The 3rd type adds an extra voice an octave below your original note. Adjust
the knob within your preferred e ect type to determine the volume of the
second voice.
(2) REVERB knob selects the type and amount of reverb e ect on your voice.
The 3 types of reverb appear in order from the smallest space (Room) to
the largest (Hall). Adjusting the knob within your preferred reverb space
determines how pronounced the e ect will be. Turning the knob fully
counterclockwise turns the reverb o .
(3) CORRECTION knob adjusts the amount of pitch correction. With the knob
at the center 12:00 position, the e ect will provide subtle pitch support
without noticeable or unnatural artifacts. Turn the knob all the way up for a
more aggressive e ect, or fully counterclockwise to turn the e ect o .
(4) BATTERY LED indicates the battery level, with green showing full life,
yellow being partial life, and red to alert that the batteries
should be changed.
(5) TONE button engages a preset combination of adaptive EQ, compression,
de-essing, and noise gate. "Normal" and "Less Bright" settings can be
toggled by holding the Tone button and pressing the footswitch.
(6) ON/OFF LED lights when the e ect is engaged.
(7) FOOTSWITCH bypasses the doubling e ect, but does not a ect the reverb,
correction or Tone status.
(8) USB input accepts a micro USB cable for connection to a computer.
Use the VoiceSupport application to install rmware updates, and for
other features depending on your product. Download VoiceSupport from
tc-helicon.com/products/voicesupport/
(9) ON/OFF switch powers the pedal on and o .
(10) POWER input accepts a 9V power cable (not included).
(11) OUT jack accepts a balanced XLR cable for connection to a mixer or
active speaker.
(12) MIC input jack accepts a balanced XLR cable to connect your microphone.
