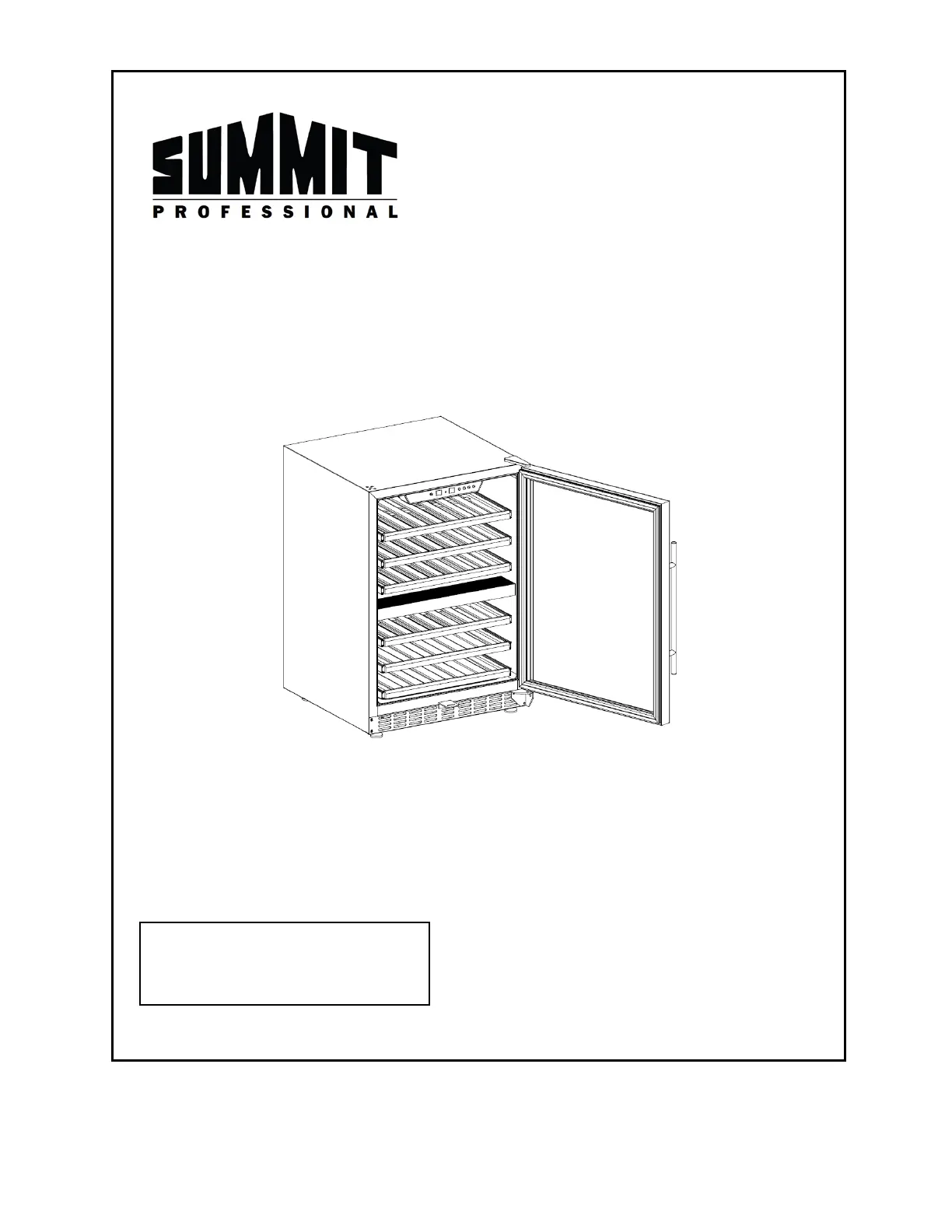

Write the Serial Number here:

_________________________

BUILT- -ZONE WINE C R IN TWO OOLE

Model SWC532 LBIST

Owner’s Manual

BEFORE USE, PLEASE READ AND FOLLOW

ALL SAFETY RULES AND OPERATING INSTRUCTIONS

Felix Storch, Inc.

Summit Appliance Division

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

TABLE OF CONTENTS

Important Safety Instructions ................................................................ 2 – 3

Location of Parts ........................................................................................... 4

Installation Instructions .......................................................................... 5 – 7

Before Using Your Wine Cooler ............................................................ 5

Installation of Your Wine Cooler ..................................................... - 6 5

Reversing the Door Swing .............................................................. - 7 6

Operating Your Wine Cooler ................................................................ 8 10–

Recommended Temperatures for Chilling Wine ................................... 8

Control Panel ........................................................................................ 8

ON/OFF Power ..................................................................................... 8

RUN Light ............................................................................................. 8

Setting the Temperature Control ...................................................... 8 - 9

Interior Light ......................................................................................... 9

Door Lock ............................................................................................. 9

Defrosting ............................................................................................. 9

Storage of Wine Bottles ...................................................................... 10

Care and Maintenance ........................................................................ 10 12–

Cleaning Your Wine Cooler ................................................................ 10

To Remove a Sliding Shelf ................................................................. 11

Replacement of the LED Light ............................................................ 11

Power Failure ..................................................................................... 11

Vacation Time ..................................................................................... 11

Transporting Your Wine Cooler ..................................................... 11 - 12

-Energy Saving Tip .............................................................................. 12

Technical Information ................................................................................. 12

Problems with Your Wine Cooler ............................................................... 13

Limited Warranty ......................................................................................... 15

IMPORTANT SAFETY INSTRUCTIONS



WARNING



 To reduce the risk of fire, electrical shock or injury when

using your appliance, follow these basic precautions

• Read all instructions before using the w cine ooler.

• - aPlug into a grounded 3 prong outlet. Do not remove grounding prong, do not use an ad pter,

and do not use an extension cord.

• cIt is recommended that a separate circuit, serving only your wine ooler, be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

• c Never clean wine ooler parts with flammable fluids. These fumes can create a fire hazard or

explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the

unit is disconnected.

• . Do not connect or disconnect the electric plug when your hands are wet

• c Unplug the wine ooler or disconnect the power before cleaning or servicing. Failure to do so

can result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically

recommended in this ma icing should be referred to a qualified technician.nual. All other serv

• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or

any other appliance. The fumes can create a fire hazard or explosion.

• cUse two or more people to move and install the wine ooler. Failure to do so can result in

back or other injury.

• To ensure proper ventilation for your , the front of the unit must be completely appliance

unobstructed. Choose a well ventilated area with temperatures above - 61°F (16°C) and below

95°F (35°C). This unit must be installed in an area protected from , such as wind, the elements

rain, water spray or drips.

• c The wine ooler should not be located next to ovens, grills or other sources of high heat.

• c For optimum energy conservation, locate the wine ooler in the coolest area of the room, away

from heat producing appliances and out of direct sunlight.-

• c The wine ooler must be installed with all electrical connections in accordance with state and

local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in

accordance with the National Electrical Code and local codes and ordinances is required.,

• . Do not kink or pinch the power supply cord of the appliance

• The fuse (or circuit breaker) size should be 15 amps.

• It is important for the to be leveled in order to work properly. You may need to make wine cooler

several adjustments to level it.

• Although the unit has been tested at the factory, due to transit and storage, you should clean

the appliance before use.

• -Do not use solvent based cleaning agents o abrasives on the interior. These cleaners may r

damage or discolor the interior.

• Do not use this apparatus for other than residential purposes.

• - - This appliance is CFC and HFC free and contains small quantities of Isobutane (R600a) which

is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it

increase the greenhouse effect. re must be taken during transportation and setting up of the Ca

appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and

may damage the eyes.

In the event of any damage:

- A void open flames and anything that creates a spark,

- D isconnect from the electrical power line,

- A ir the room in which the appliance is located for several minutes, and

- C ontact the Service Department for advice.

• The more coolant there is in an appliance, the larger the room it should be installed in. In the

event of a leakage, if the appliance is in a small room, there is the danger of combustible gases

building up. For every ounce of coolant at least 325 room space is required. The cubic feet of

amount of coolant in the appliance is stated on the data plate on the back of the appliance . It is

hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs

to this appliance.

• Take serious care when handling, moving, and using the appliance to avoid either damaging

the refrigerant tubing or increasing the risk of a leak.

• -Replacing component parts and servicing shall be done by factory authorized service

personnel so as to minimize the risk of possible ignition due to incorrect parts or improper

service.

• -This appliance is design noned to be used in household and similar retail applications. Do not

use this appliance for any but its intended purpose.

DANGER! Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned

appliances are still dangerous, even if they will “just sit a few days”.for

• Before you throw away your old w ine cooler or any appliance: Remove the door.

Leave the shelves in place so that children may not easily climb inside.

• Never allow children to operate, play with, or crawl inside the appliance.

- SAVE THESE INSTRUCTIONS -

LOCATION OF PARTS

1. Control anel p

2. Large shelf in upper zone

3. duct oard -Air b

4. Large shelf in lower zone

5. Small shelf in lower zone

6. Lock hook

7. Front vent

8. Adjustable f eet

9. Upper hinge

10. Door (with handle ) and gasket

11. Lower hinge

12. Lock

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

Remove the exterior and interior packing.

Before connecting the r to the power source, let it stand upright for wine oolec

approximately 2 hours. This will reduce the possibility of a malfunction in the

cooling system from handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth.

This appliance is especially designed for the storage of wine; do not use it for

other purposes.

Installation of Your Wine Cooler

This appliance is designed for free standing or built in (fully recessed) installation. -

If free standing, the unit should have at least 4” of clearance at both sides, at the

top and at the back to allow for adequate ventilation.

If the appliance is to be in, leave at least 3/16” at both sides, 1/16” at the top -built

and 2” at the rear. Be sure that airflow under the appliance is not blocked. The

diagram below shows the correct dimensions for under counter installation:-

Place your wine oolec r on a floor that is strong enough to support it when it is fully

loaded. To level your wine cooler, adjust the leveling legs at the bottom of the unit.

Locate the r away from direct sunlight and sources of heat (stove, wine oolec

heater, radiator, etc.). Direct sunlight may affect the exterior surface and heat

sources may increase electrical consumption. Extremely cold or warm ambient

23.62” 23.43”

23.62”

(min)

33.27”

3.54”

33.86

”

(min)

temperatures may also cause the unit to perform improperly.

Avoid locating the unit in moist areas. Do not use an extension cord.

Plug the wine cooler into an exclusive, properly installed and grounded wall outlet.

Do not under any circumstances cut or remove the third (ground) prong from the

power cord. Any questions concerning power and/or grounding should be

directed toward a certified or authorized products service center.

Reversing the Door Swing

This appliance has the capability of the door opening from either the left or right

side. The unit is delivered to you with the door opening from the left side. Should

you desire to reverse the opening direction, please follow these illustrations and

instructions:

NOTE: All parts removed must be saved to allow the door swing to be reversed

1. arefully C use a sharp tool to pry up the decorative cap on the top of the cabinet

and the cap of door spindlethe . (Fig 1)

2. Open the door , unscrew the screw of the about 90° upper door hinge cover and

remove the cover then unscrew all the screws on the upper door hinge. Be ,

sure to hold the door firmly after removing the screws, and take off the door.

(Fig 2)

3. Remove the screw of the lower door hinge and the left side screw of the front

vent (Fig 3) install the lower door hinge at the designated position on the , then

opposite side. (Fig 4)

4. Remove the screw of the door handle, then remove the bottom screw on the

left side of the door and remove the lower support of the door (Fig 5). Install the

lower support of the door on the opposite side. (Fig 6).

5. Gently pull open the middle section of the door gasket; you will see the handle

screw hole (Fig 7). Remove the handle and install it on the opposite side.(Fig 8)

6. Loosely install the upper door hinge on the opposite side. (Fig 9)

7. door Set the onto the lower door hinge (Fig 10) shaft of the , then fit the shaft of

the upper door hinge into the top of the door (Fig 11) and tighten the screws .

Adjust the door so it is aligned with the cabinet. L evel the cabinet and tighten all

the lock screws.

You also can call customer service for reversal instructionsdoor necessaryif .

OPERATING YOUR WINE C R OOLE

The w cine ooler should be placed where the ambient temperature is between 61

and 95 degrees Fahrenheit (16-35°C). If the ambient temperature is above or

below this range, the performance of the unit may be affected. For example,

placing your unit in extreme cold or hot conditions may cause interior ly

temperatures to fluctuate and the range of 41-72 degrees Fahrenheit (5-22°C)

may not be reached.

Recommended Temperatures for Chilling W ine

Red Wines: -58 65°F (14-18°C)

Dry / White Wines 48-57°F (9-14°C)

Sparkling Wine 40 47- °F (4-8°C)

Temperatures inside the unit may vary slightly depending on whether or not the

interior light is ON or OFF or whether the bottles are located on the upper/middle

or lower section.

Control Panel

ON/OFF Power

Connect the power cord to a properly grounded outlet. To turn the appliance on or

off, press the ON/OFF button.

NOTE This : wine cooler has a protective delay function. The compressor will start

to work about 3 to 5 minutes after it is powered on.

RUN Light

This light indicat compressor workinges when the is . While the compressor is

operating, the red light is on. During down time in the operating cycle , this light is

off.

Setting the Temperature Control

Each cooling chamber of the wine oolec r (upper and lower) is independently

controlled.

Set the desired cooling temperature by pressing one of the buttons SET . Each

depression of the button will scroll through the available temperature settings (for

each c ) in increments of 1 degree. The temperature selected will flash in hamber

the LED display for approximately 5 seconds, then revert back to the display will

the internal cabinet temperature. The SET temperature is automatically saved.

Upper chamber: Temperature setting can be adjusted from 41 4to 5 °F (5 2to 1 °C ).

Lower chamber

To view the SET temperature of either chamber press the at any time,

corresponding he showSET button. T SET temperature will in the LED display

for about 5 seconds, then the current internal temperature for that chamber will

reappear.

: Temperature setting can be adjusted from 54 to 72°F (12 to

22°C ).

In the event of a power interruption, all previous temperature settings are

automatically saved and each c will keep the previous temperature setting. hamber

(The temperature preset at the factory is 41°F (5°C) for the upper chamber and

54°F (12°C) for the lower chamber.)

This unit has the option to display temperatures in either Fahrenheit or Celsius. To

change the setting, press the °C/°F button. A green light will indicate whether

Fahrenheit or Celsius temperatures are being displayed.

NOTES: If the unit is unplugged or turned off, or if there is a power failure, you

must wait 3 to 5 minutes before restarting the unit. If you attempt to restart

before this time delay, the wine oolec r will not start.

When you use the w cine ooler for the first time, or restart the wine cooler after it

has been shut off for a long time, there could be a few degrees variation

between the temperature you select and the one indicated on the LED readout.

This is normal and is due to the length of the inactivation time. Once the wine

c s ooler ha been running for a few hours, it should operate normally.

Interior Light

You can turn the interior light on or off by pushing the button marked LIGHT. For

best storage of wine, keep the light off except when viewing.

NOTE: The light goes off automatically after 10 minutes.

Door Lock

This unit can be secured with a lock and key. The keys are located inside the

plastic bag that contains the User’s Manual. Insert the key into the lock and turn it

clockwise to lock the door, making sure metal pin is engaged completelythe . To

unlock the door, do the reverse. Remove the key and put n it i a secure location.

Defrosting

T c s he wine ooler defrost automatically d operating cycleuring its . The water

resulting from the defrosting is collected in a drip tray near the compressor at the

back where it is automatically evaporated. During the defrosting operation, the

displayed temperature may be higher than the set temperature.

Storage of Wine Bottles

Your wine cooler was designed to store a maximum of bottles in total security. 44

We recommend that you observe the tips below to optimize loading:

• Each of the four large and the two smaller shelves shelves can hold 8 bottles,

can each hold 6 bottles, arranged as shown here:

• Spread your bottles out as evenly as possible over the shelves, so that weight

is not concentrated in one spot. Also make sure your bottles do not touch the

back of the cabinet or the step at the bottom of the lower chamber.

• Make sure that bottles are not all grouped together at the top or bottom of the

cabinet.

• Never stack more than one layer of bottles on a sliding shelf.

• Never try to pull out more than one sliding shelf at a time.

CARE AND MAINTENANCE

Cleaning Your Wine Cooler

1. Turn off the power, unplug the appliance, and remove all items including

shelves. (See “To Remove a Sliding Shelf” below.).

2. Wash the inside surfaces with a warm water and baking soda solution. The

solution should be about 2 tablespoons of baking soda to a quart of water.

3. Wash the shelves with a mild detergent solution.

4. Wring excess water out of the sponge or cloth when cleaning the area near the

controls, or any electrical parts.

5. Wash the outside cabinet with warm mild liquid detergent. Rinse water and a

well and wipe dry with a clean soft cloth. Clean the stainless steel trim with a

product specifically designed for this use.

Large shelf Small shelf

rear wall

To Remove a Sliding Shelf

1. Remove all bottles from the shelf.

2. Pull the shelf out as far as it will go.

3. Adjust the lever on each side of the shelf, as shown below (down on the left, up

on the right) and at the same time, p the shelf out completely.ull

To raise or lower the position of the shelf up the sliding rail, push s , making the

front hook out of the shelf bracket, then pull the sliding rails outward to detach

them from the shelf bracket. Reverse these steps to install rails in new location.

Replacement of the LED Light

Replacing the requires aLED qualified technician. First unscrew the 2 screws on

the light cover, then the screw on the ED panel, and replace remove L the light

with one having the same specifications.

Power Failure

Most power failures are corrected within a few hours and should not affect the

temperature of your appliance if you minimize the number of times the door is

opened. If power is going to be off for a longer period of time, you need to take

the proper steps to protect the contents ine oole wof your c r.

Vacation Time

Leave the wine cooler operating during vacations of less th n three weeks. a For

periods longer than this turn the wine c, oole and r off leave the door slightly ajar to

prevent odor from building inside the appliance.

Transporting your Wine ooleC r

If you need to move your wine cooler once the box has been discarded:

1. Securely tape down all loose items (shelves) inside your appliance.

2. Turn the adjustable legs up to the base to avoid damage.

3. Tape the door shut.

4. Be sure the appliance stays secure in the upright position during transportation.

Also protect the outside of the appliance with a blanket or similar item.

Energy- Saving Tip

The wine cooler should be located in the coolest area of the room, away from heat

producing appliances and out of direct sunlight.

TECHNICAL INFORMATION

Model Number SWC532LBIST

Volume 5.43 cu.ft. (154 liters)

Bottle Capacity 44

Rated Voltage 110V AC

Rated Current 0.5A

Power Input 70W

Rated Frequency 60Hz

Refrigerant

R160a (30g, or 1 ounce)

Sound Level (db)

Climate Type N

Net Weight 112 lbs (51kg)

Gross Weight 121 lbs (55kg)

Defrost Type Automatic

PROBLEMS WITH YOUR WINE C R OOLE

You can solve many common r problems easily, saving you the cost of wine oolec

a possible service call. Try the suggestions below to see if you can solve the

problem before calling a service technician.

TROUBLESHOOTING GUIDE

Problem

Possible Cause

Wine cooler does not

operate.

Not plugged in.

The appliance is turned off.

The circuit breaker has tripped or a fuse has blown.

Wine cooler is not

cold enough.

Check the temperature control settings.

External environment may require higher settings.

The door is opened too often.

The door is not closed completely.

The door gasket does not seal properly.

Turns on and off

frequently.

The room temperature is hotter than normal.

A large number of bottles has been added to the

w cine ooler.

The door is opened too often.

The door is not closed completely.

The temperature control not set correctly.s are

The door gasket does not seal properly.

The light does not

work.

Not plugged in.

The circuit breaker tripped or has fuse is blown.

The bulb has burned out.

The LIGHT button is off.

Vibrations

Check to be sure w c the ine ooler is level.

W cine ooler seems to

be making too much

noise.

Some noise may come from the flow of the

refrigerant, which is normal.

As each cycle ends, you may hear gurgling sounds

caused by the flow of refrigerant in your wine c ooler.

Contraction and expansion of the inside walls may

cause popping and crackling noises.

The w cine ooler is not level.

The door will not close

properly.

The w cine ooler is not level.

The door was reversed and not properly installed.

The gasket is dirty.

The shelves are out of position.

This appliance is intended to be used exclusively for the storage of wine.

NOTES

LIMITED WARRANTY

ONE- YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and

maintained according to instructions attached to or furnished with the product, warrantor will pay for

factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by

a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing

defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable

standards, and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.

2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace

or repair fuses or to correct wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)

are excluded from warranty coverage.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,

installation not in accordance with electrical or plumbing codes, or use of products not approved by

warrantor.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

6. Expenses for travel and transportation for product service in remote locations.

7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed

in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES LIMITATION OF REMEDIES–

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE

LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE

DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR

LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU

MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

For parts and accessory ordering,

troubleshooting and helpful hints, visit:

www.summitappliance /support.com

FELIX STORCH, INC.

770 Garrison Avenue

Bronx, NY 10474

Phone: (718) 893-3900

Fax: (844) 478 8799-

www.summitappliance.com

Printed i

n China

WARNING! This product may contain chemicals known to the state of California

to cause cancer or birth defects or other reproductive harm. For more information,

visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations

higher than threshold limits: NONE.

Specyfikacje produktu

Marka:	Summit
Kategoria:	Szafka klimatyczna na wino
Model:	SWC532LBISTPNR

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Summit SWC532LBISTPNR, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje Szafka klimatyczna na wino Summit

Summit SWC1224B Instrukcja

9 Października 2024

Summit SWCDAF24PNR Instrukcja

9 Października 2024

Summit SWCDAR24 Instrukcja

9 Października 2024

Summit ASDW2412 Instrukcja

9 Października 2024

Summit STC6 Instrukcja

9 Października 2024

Summit SWCDAF24 Instrukcja

9 Października 2024

Summit SWCDRF24 Instrukcja

9 Października 2024

Summit SWCDRF24PNR Instrukcja

9 Października 2024

Summit STC12 Instrukcja

9 Października 2024

Summit SWC532LBIST Instrukcja

30 Września 2024

Instrukcje Szafka klimatyczna na wino

Najnowsze instrukcje dla Szafka klimatyczna na wino

Liebherr WPgbh 7473 Instrukcja

11 Marca 2025

Liebherr WPsd 5262 Instrukcja

11 Marca 2025

Sheffield PLA2400 Instrukcja

4 Marca 2025

Stoves 600WC Instrukcja

28 Lutego 2025

Euromaid EWC46IB Instrukcja

27 Lutego 2025

Euromaid EWC171IB Instrukcja

27 Lutego 2025

Euromaid EWC122IB Instrukcja

27 Lutego 2025

Stoves 300WC Instrukcja

27 Lutego 2025

Klarstein Shiraz 24 Instrukcja

13 Stycznia 2025

Klarstein Vinamour 46 Instrukcja

12 Stycznia 2025
