Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 09/10/2015

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x USB 3.0 Laptop Docking Station

• 1x 1m USB 3.0 Cable

• 1x Stand

• 2x Stand Screws

• 1x Screwdriver

• 4x Rubber Feet

• 1x DVI to VGA Adapter

• 1x DVI to HDMI® Adapter

• 1x Universal Power Adapter (NA/UK/EU)

• 1x Driver CD

• 1x Instruction Manual

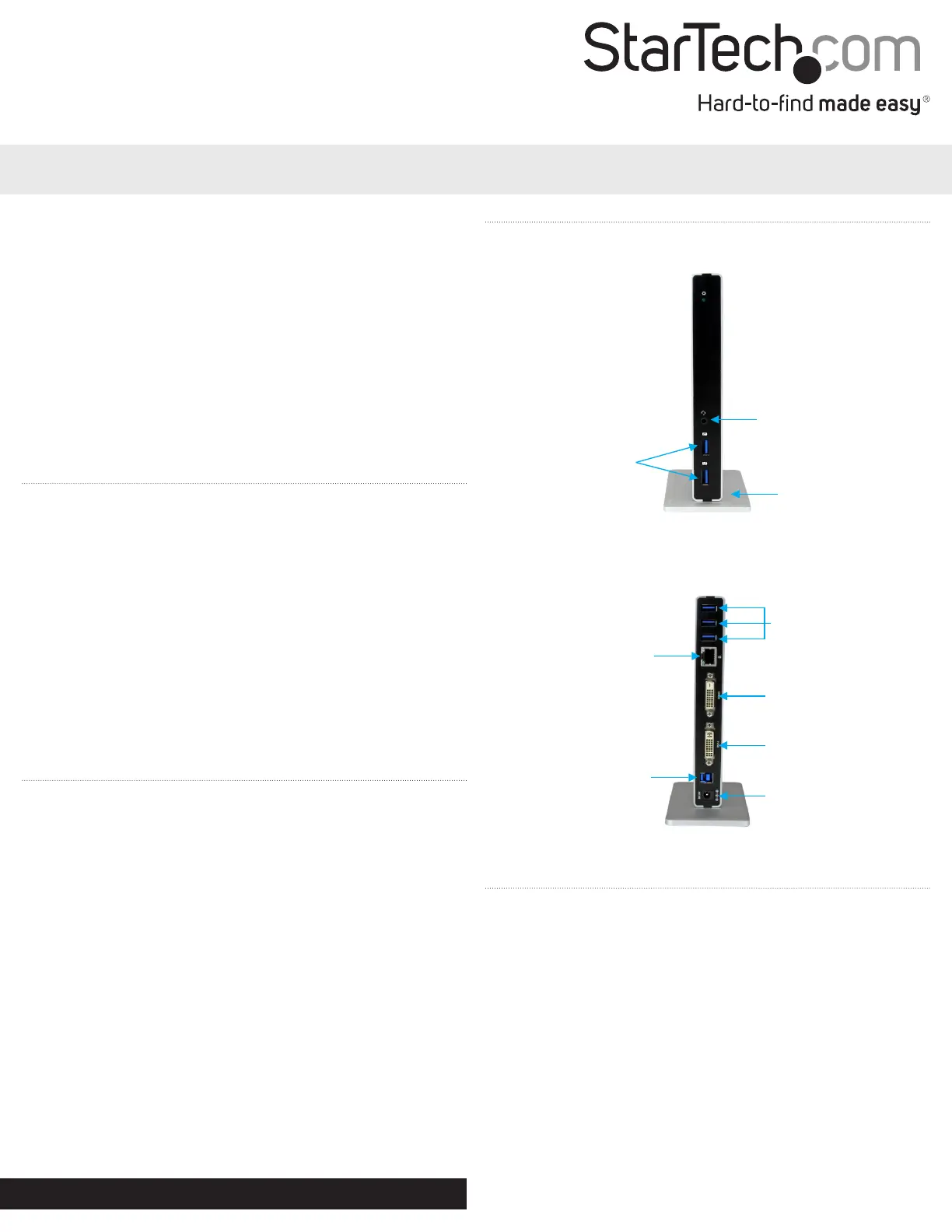

Product Diagram

Front view

Installation

Driver Installation

Windows / Mac

1. Download the latest drivers from the www.startech.com website

(recommended) applicable to the Operating System on the host

computer that you are connecting the Docking Station to, or insert the

included Driver CD into your computer’s CD/DVD-ROM drive.

2. If AutoPlay is enabled, select the “Open folder to view les” option

when the dialog appears and run the DisplayLink “.exe” application.

3. If AutoPlay is disabled, browse to your CD/DVD drive location (or

to where the driver was downloaded) and run the DisplayLink “.exe”

application.

4. Follow any on-screen instructions to complete the driver installation.

Note: You may be prompted to restart your system.

System Requirements

• USB enabled computer system with an available USB 3.0 port

• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP SP3 (32),

Mac OS® 10.6 and up (Tested up to 10.10)

• DVI, HDMI® or VGA enabled display device(s)if desired (for

additional external monitors) with cables

Note: Only a USB 3.0 port interface and USB 3.0 cable can be used

to connect the Docking Station to the host computer.

USB3SDOCKDD

USB 3.0 Laptop Docking Station with Dual DVI Video, 2x USB Charging Ports, USB 3.0 Hub and GbE

Rear View

3.5mm TRRS Headset

Port (Audio/Microphone)

Stand

DVI-D Port

DVI-I Port

DC Input Port

RJ-45 Port

USB 3.0 Upstream

Port

USB 3.0 Hub Ports

USB 3.0 Fast Charging/

Data Ports

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Supported Video Resolution

Video Output Max Resolution

DVI, HDMI®, VGA 2048x1152

Hardware Installation

Stand Installation

The Docking Station can be positioned horizontally on a surface

(apply the included rubber feet to the bottom of the Docking Station

if desired), or alternatively, you may mount and position the Docking

Station vertically using the included stand.

1. Using the provided screwdriver and screws, secure the stand to the

Docking Station.

Installation

1. Connect the included power adapter from an AC electrical outlet

to the DC Input Jack on the Docking Station.

2. Connect the Docking Stations USB 3.0 Upstream Port to an

available USB 3.0 port on the host computer using the included USB

3.0 Cable.

3. Connect your DVI monitors to the DVI ports on the Docking

Station.

Note: If your displays use an HDMI® or VGA interface, connect the

included DVI to HDMI® or DVI to VGA adapters to your display cables,

and then to the Docking Station as desired. The DVI to VGA adapter

can only be used on the DVI-I (29 pin) port.

4. Connect any other devices as desired, including your RJ-45 LAN

Connection, USB peripherals, and Headset.

Operation

USB 3.0 Charging Downstream / Fast Charging & Data Ports

Windows / Mac

The front USB 3.0 Ports on the Docking Station function as both

Charging Downstream/Fast Charging and Data Ports, compliant with

Battery Charging Specication Revision 1.2 (BC 1.2), letting you connect

and charge devices quicker than a traditional standard USB 3.0 port.

These Charging Downstream Ports (CDP) have the ability to fast charge

connected devices, even when not connected to a host system. When

connected to a host computer, the front USB ports will still function as

both Fast Charge and data throughput ports.

1. Connect your devices to the USB 3.0 ports on the front of the Docking

Station as desired. A connection to a host computer is not required if

using the ports for charging purposes only.

Note: The three USB 3.0 ports on the back of the Docking Station are

standard USB 3.0, providing data throughput and a standard trickle

charge only.

Note: Depending on conguration and the supported resolutions

of your connected monitors, the docking station may support video

resolutions lower than those specied above.

Display Conguration

Use your Windows or Mac operating system to adjust display

settings for multiple monitors.
