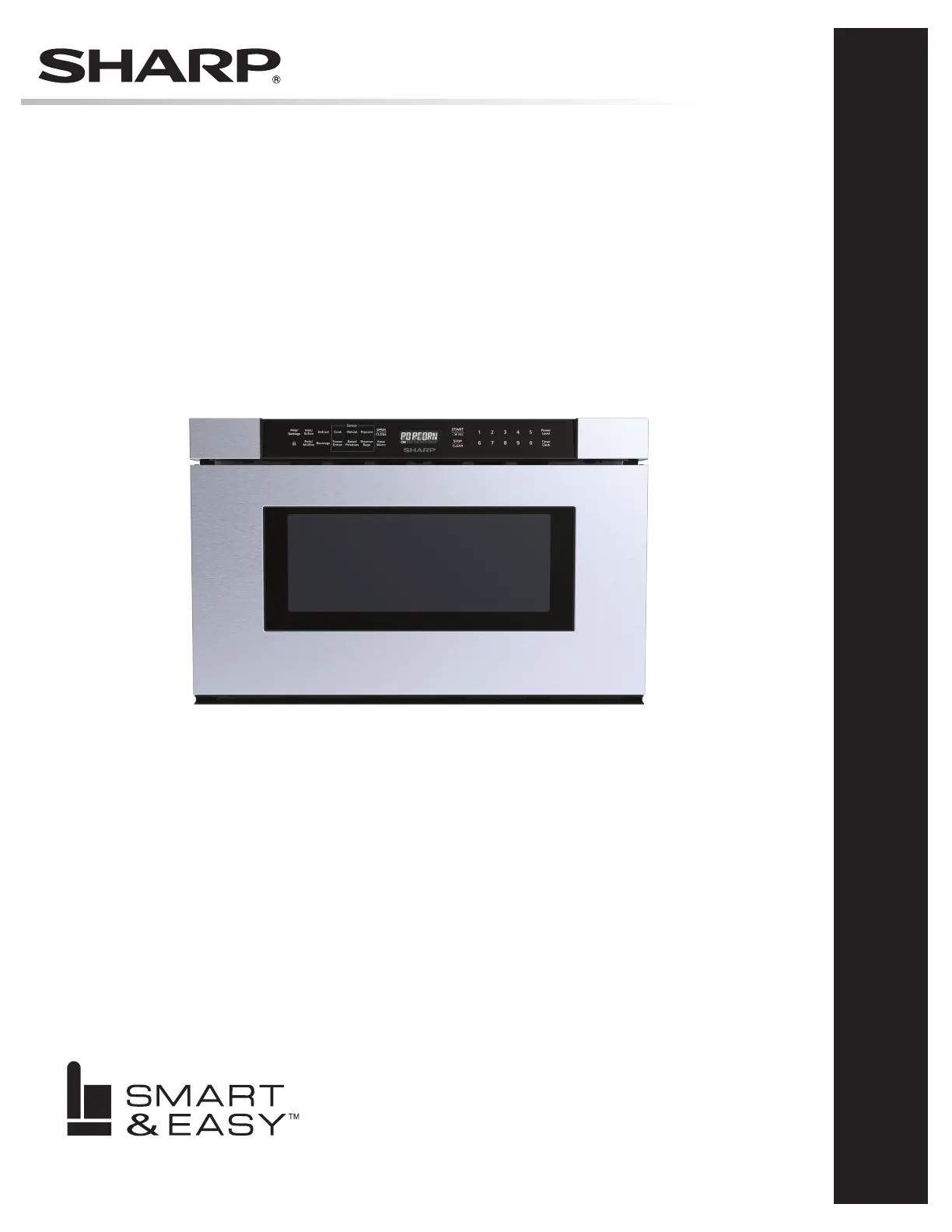

Sharp Microwave Drawer™ Oven: SMD2440JS
INSTALLATION MANUAL
1
SPECIAL WARNING
Installation and service must be performed by a qualified
installer.
IMPORTANT: Save this installation manual for local
electrical inspector's use and future reference.
CLEARANCES AND DIMENSIONS
Do not install this appliance in any combustible cabinetry,
which is not in accord with the stated clearances and
dimensions on pages 2–5. See Figures 1–7.
SAFELY LIFT AND MOVE UNIT
Two people are required to safely lift and move this unit.
UNPACKING THE APPLIANCE
• Remove all packing materials from inside the Sharp Microwave
Drawer™ Oven. DO NOT REMOVE THE WAVEGUIDE
COVER, which is located on the top of the Sharp Microwave
Drawer™ Oven.
Sealing
Surface
Oven
Cavity
Waveguide
Cover
Sealing
Surface
• Remove the protective lm from the touch control area. Addition-
ally, remove the feature sticker, if there is one. Check the drawer
for any damage, such as misaligned or bent drawer, damaged
drawer seals and sealing surfaces, broken or loose drawer guides
and dents inside the cavity or on the front side of the drawer. If
there is any damage, do not operate the Sharp Microwave Drawer
™
Oven and contact your dealer or a Sharp authorized servicer.
IMPORTANT NOTES TO THE INSTALLER
• Read the entire Installation Manual before installing the Sharp
Microwave Drawer™ Oven.
• Remove all packing material before connecting the electrical
supply. Manually pull open the drawer to ensure all packing
material is removed prior to connection and installation.
• Observe all governing codes and ordinances.
• Leave these instructions with the consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual with your Operation Manual for future reference.
• Read and follow the safety precautions listed in the operation
manual.
• Ensure your Sharp Microwave Drawer
™ Oven is installed and
grounded properly by a qualied installer or service technician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
If the information in this manual is not followed
exactly, a re or electrical shock may result that could cause property
damage, personal injury or death.
WARNING
To reduce the risk of tipping, the Sharp Microwave
Drawer™ Oven must be secured by a properly installed Anti-Tip block.
• This appliance must be electrically grounded in accordance with
local codes.
• Ensure the wall coverings and the cabinets around the appli-
ance can withstand the heat generated by the Sharp Microwave
Drawer™ Oven.
WARNING
Never leave children alone or unattended
in the area where the Sharp Microwave Drawer™ Oven is
in use. Never leave the drawer open when the appliance is
unattended.
WARNING
Stepping, leaning or sitting on the drawer may
result in serious injuries and can also cause damage to the
Sharp Microwave Drawer
™ Oven.
• Do not use the Sharp Microwave Drawer™ Oven as a storage space,
as this creates a potentially hazardous situation.
• Check that the time-of-day is in the display. If not, touch STOP/
CLEAR for safety reasons and to prevent unintended use.
2
D
G
A
B
C
H
I
F
E
J
B
C
DE
F
G
H
I
I
J
K
L
M
N
O
P
A
Figure 1
Figure 2
A. 6"
B. Suggested electrical
outlet location*
C. Anti-Tip block
D. 5"
E. 31/2"
F. 4"
G. 221/8" opening
H. 1413/16" to bottom of
Anti-Tip block
I. Allow 7/8" overlap
J. 231/2" minimum depth
K. Allow 1/4" overlap
L. 36" countertop height
M. Allow 1/4" minimum
space
N. Floor must support
100 lb
O. 24" cabinet minimum
P. 1413
/16" opening
Figures 1 and 2 contain many measurements for reference when
planning the Sharp Microwave Drawer
™ Oven location.
* Can also be installed using an electrical outlet in an adjacent cabinet
within the area where the provided electrical cord can reach. Power
cord access hole in cabinet should be a minimum 11/2" diameter hole
and deburred of all sharp edges.
IMPORTANT Always allow sufcient power cord length to the
electrical outlet to prevent tension.
Always check electrical codes for requirements.
A. 215/8"
B. 411/16"
C. 13/4"
D. 217/8"
E. 235/8"
F. 151/16"
G. 145/8"
H. 19/16" door thickness
I. 15" auto drawer opening
J. 4"
CLEARANCES AND DIMENSIONS
• Dimensions shown in Figure 1 must be used. Given dimensions
provide minimum clearance. Locate electrical outlet in the shaded
area in the upper left-hand corner of the cutout. See Figure 9.
• Contact surface must be solid and level. Pay special attention to
the oor on which the Sharp Microwave Drawer
™ Oven will sit.
The oor of the opening should be constructed of plywood strong
enough to support the weight of the oven (about 100 pounds).
• Check location where the Sharp Microwave Drawer
™ Oven will
be installed for proper electrical supply.
• If installing below a wall oven, ensure the clearance of the oor
between the wall oven and the Sharp Microwave Drawer
™ Oven
is a minimum of 2".
• The oven can also be mounted ush. See page 4 for ush mounting
instructions.
• Your oven can be built into a cabinet or wall as a stand-alone unit.
It can be installed under gas or electric wall ovens and the Sharp
Combi Steam Oven/Wall Oven Models ovens or under the Sharp
cooktops listed below.
COMBI STEAM OVEN/
WALL OVEN MODELS
COOKTOP
MODELS
• SSC3088AS
• SSC2489DS
• SSC2489GS
• SWA2450GS
• SDH3042DB
• SDH3652DB
• SCH3043GB
• SCH2443GB
• SCR3042FB
• SCR2442FB
24" MICROWAVE DRAWER™ STANDARD MOUNT AND MEASUREMENTS
3
B
C
E
D
A
F
Figure 3 represents a typical standard cabinet. If installed in
custom cabinets with extended countertops, take into account
visibility and access to controls. See Figure 4.
Move oven location downward for
extended countertops
Extended countertops
Figure 4
Figure 3
A. 25"
B. 1/2" minimum
C. 151/16"
D. 36"
E. 341/2"
F. 24"
